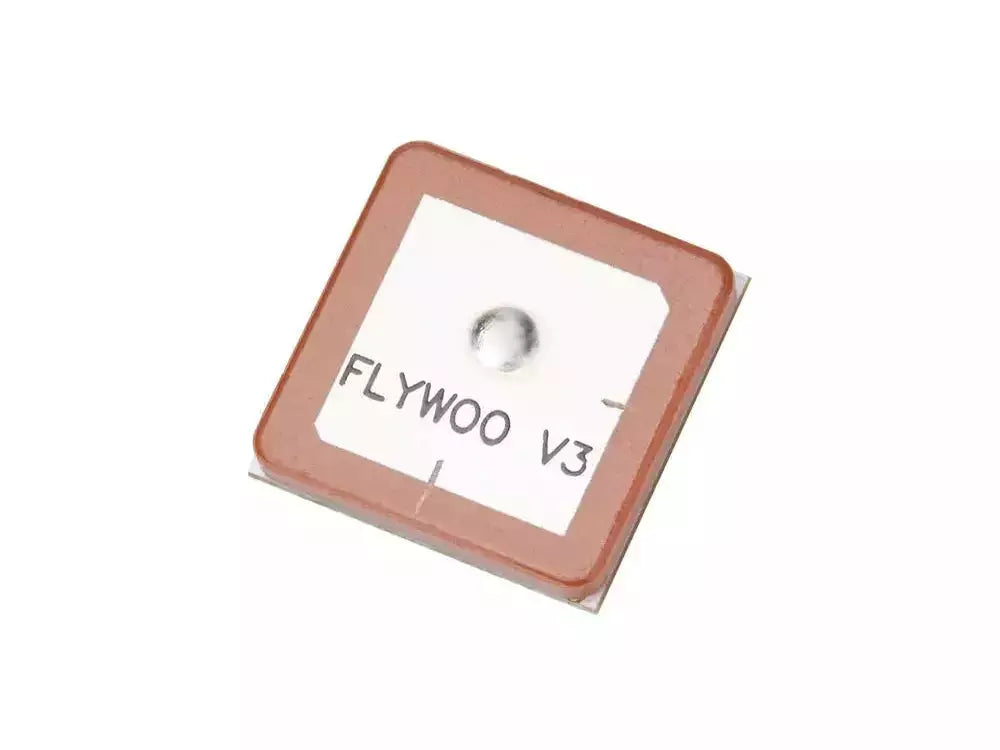

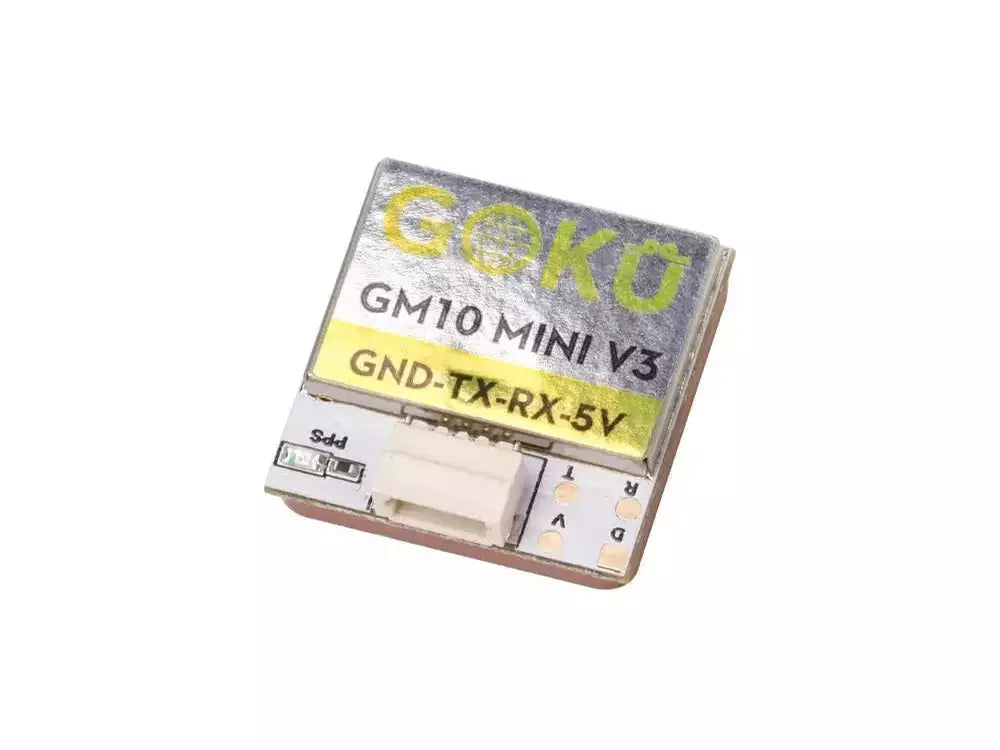

Flywoo Goku GM10 Mini V3 GPS

  • $17.99
    Unit price per



GOKU GM10 V3 GPS series is here! Using the latest M10050 GNSS chip. Compared with the previous generation GM8 V2, the positioning is more accurate, and the speed of search is faster.

Available in 5 versions:

Nano
Nano With Compass
Mini
Mini With Compass
Pro with Compass

Specifications:

  • Brand: FLYWOO
  • Model: GM10 MINI V3 GPS

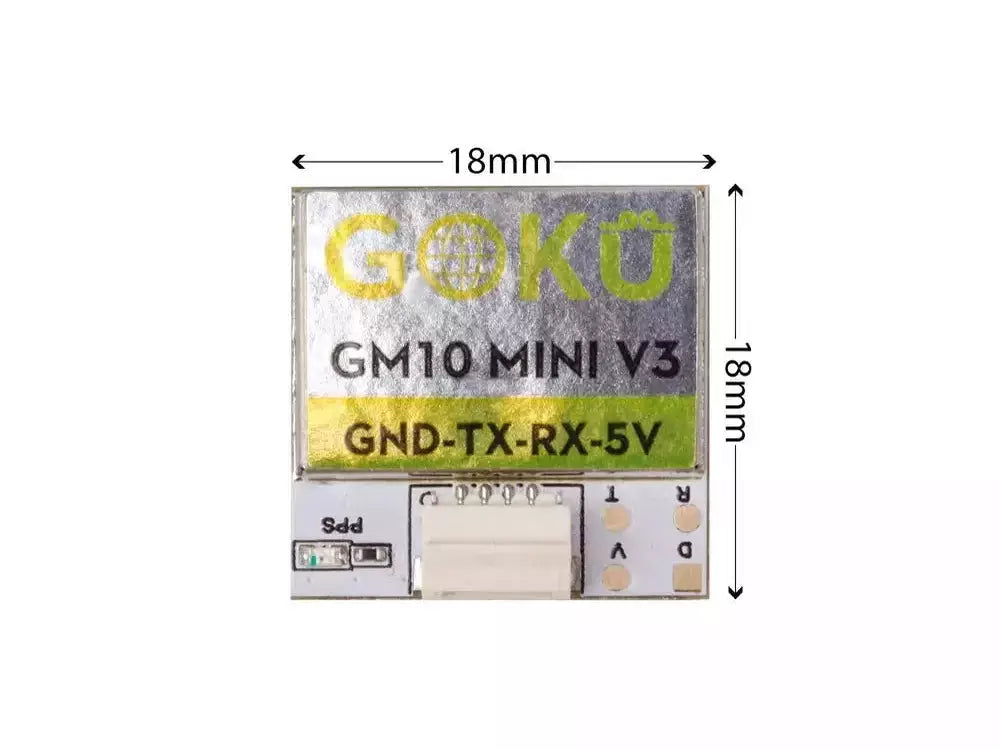

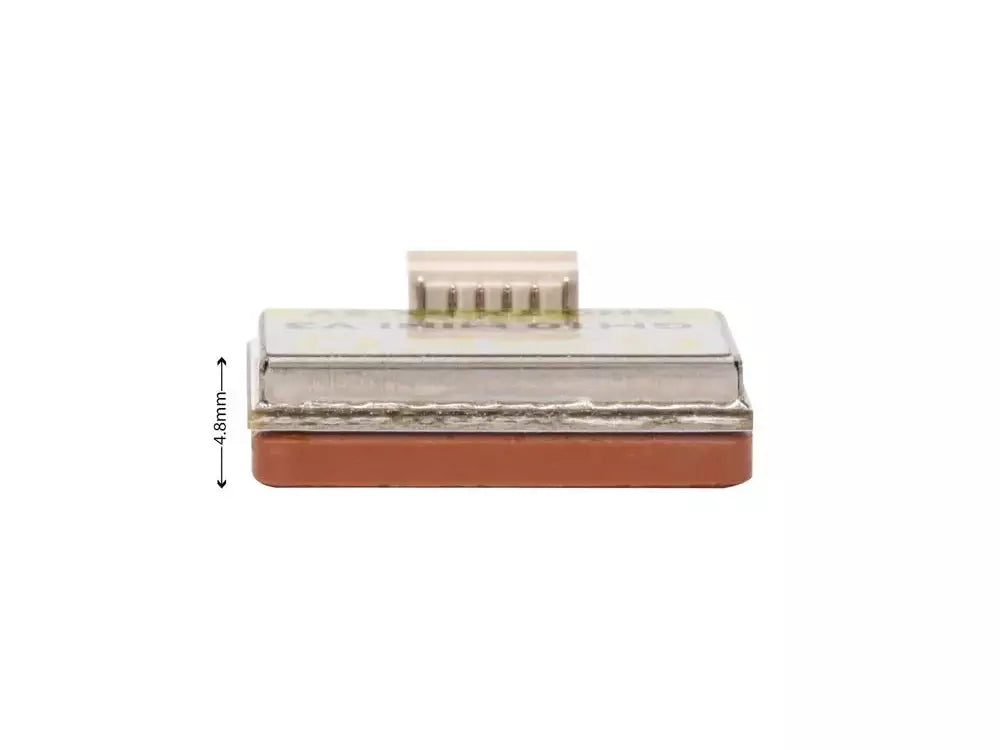

  • Dimension: 18mm*18mm*4.8mm

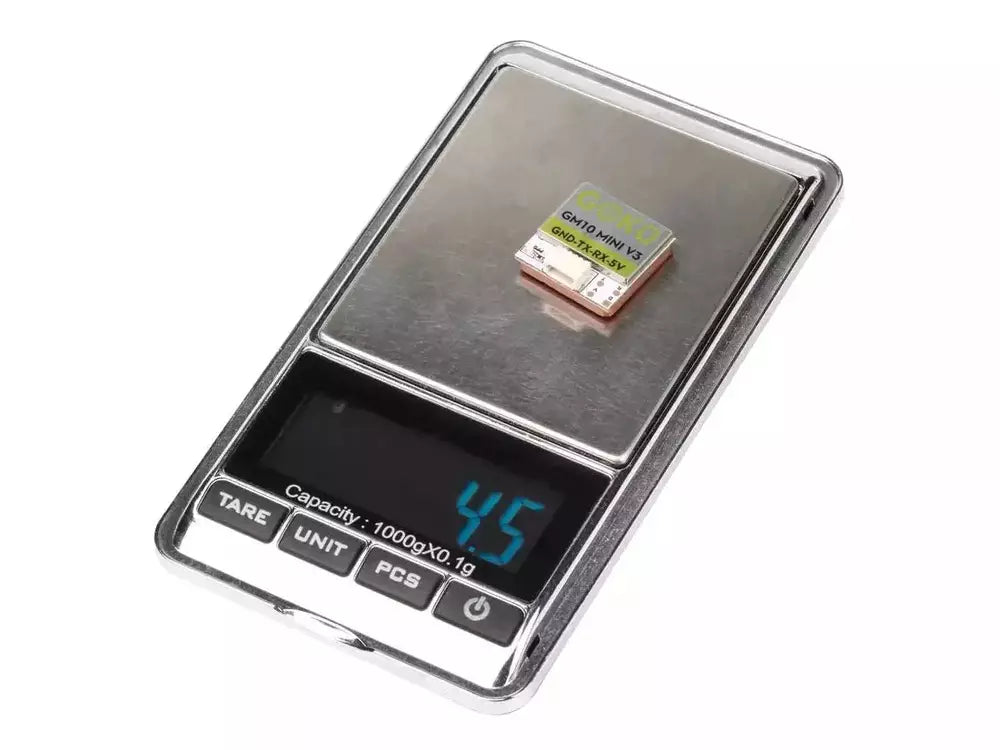

  • Weight: 4.7g
  • Connector: 4pins
  • Chipset: M10050 (Tenth Generation Chip)
  • Receiving Format: GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS
  • Default Protocol: GPS, Galileo, BeiDou
  • Frequency: GPS L1, GLONASS L1, BeiDou B1, SBAS L1, Galileo E1
  • Channels: 72 Searching Channel
  • Tracking: -162dBm
  • Reacquisition: -160dBM
  • Support Rate: 4800bps to 921600bps, Default 115200bps
  • Data Level: TTL or RS-232, Default TTL level
  • Data Protocol: BF4.3.X(UBLOX)/BF4.2.X(NMEA)
  • Output frequency: 1Hz-10Hz,Default 10Hz
  • Altitude: 50,000m Max
  • Velocity: 500m/s Max
  • Acceleration: Less than 4g
  • VCC: DC Voltage 5V
  • Operating temp: -40 °C ~ +85°C
  • Storage Temp: -40°C ~ +105°C

Flywoo Goku GM10 Nano V3 GPS
Flywoo Goku GPS V3
Flywoo Goku V3 GPS Set up
Flywoo Goku V3 GPS
Flywoo Goku GM10 Mini GPS V3

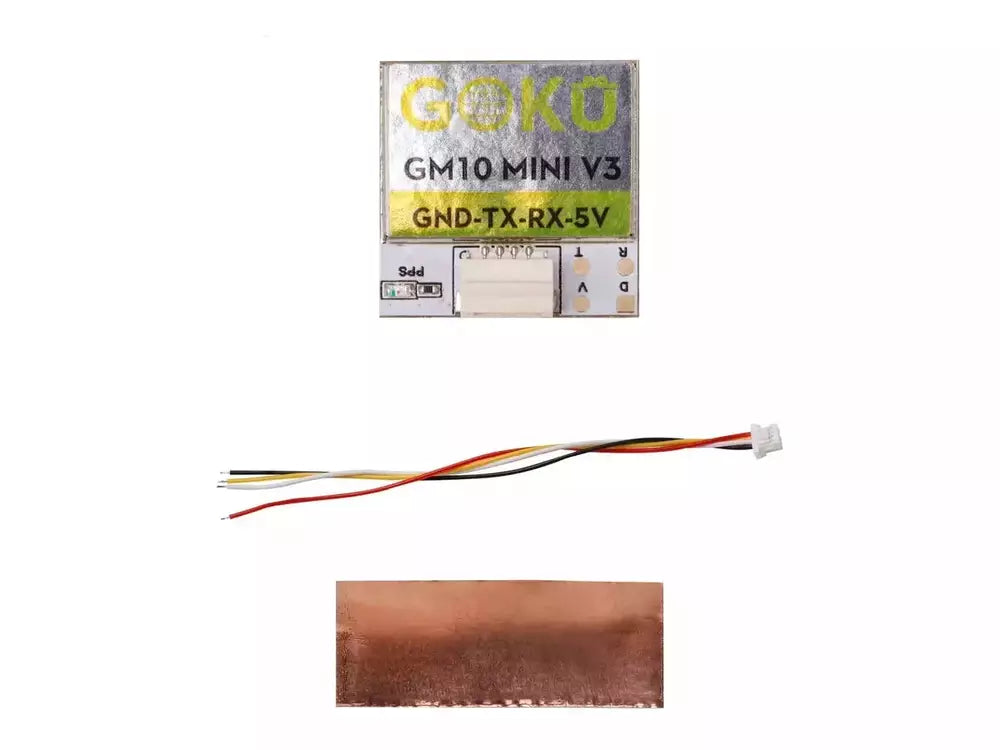

Includes:
1x Flywoo Goku GM10 Mini V3 GPS
