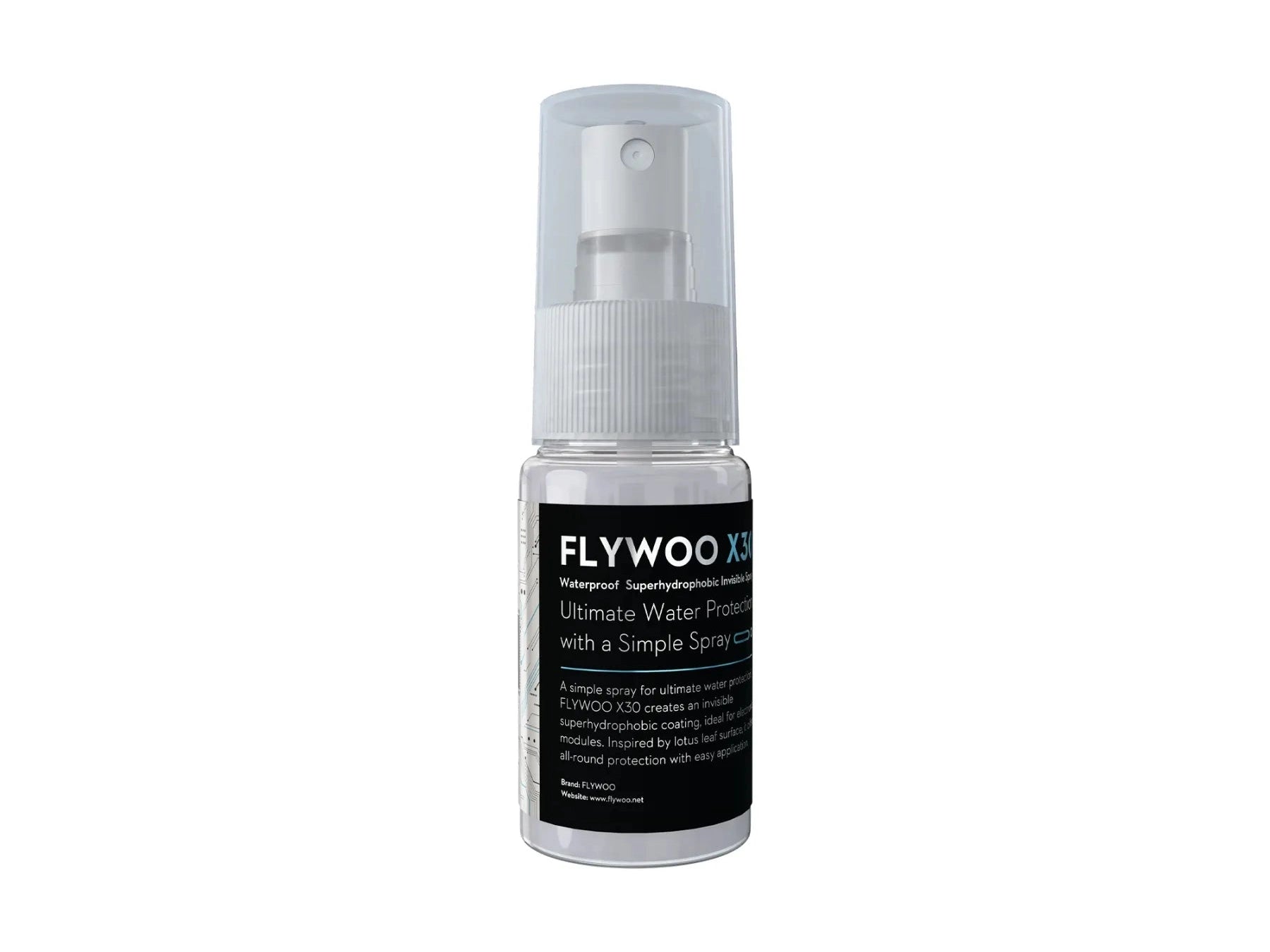

Flywoo X30 PCBA Waterproof Super Hydropphobic Invisible Spray
Ultimate Water Protection with a Simple Spray
New Spray Bottle:
- Made of PETG with a high-quality pump head. Resists clogging and deformation (even for long-term use) and provides even spray coverage over a wider area.

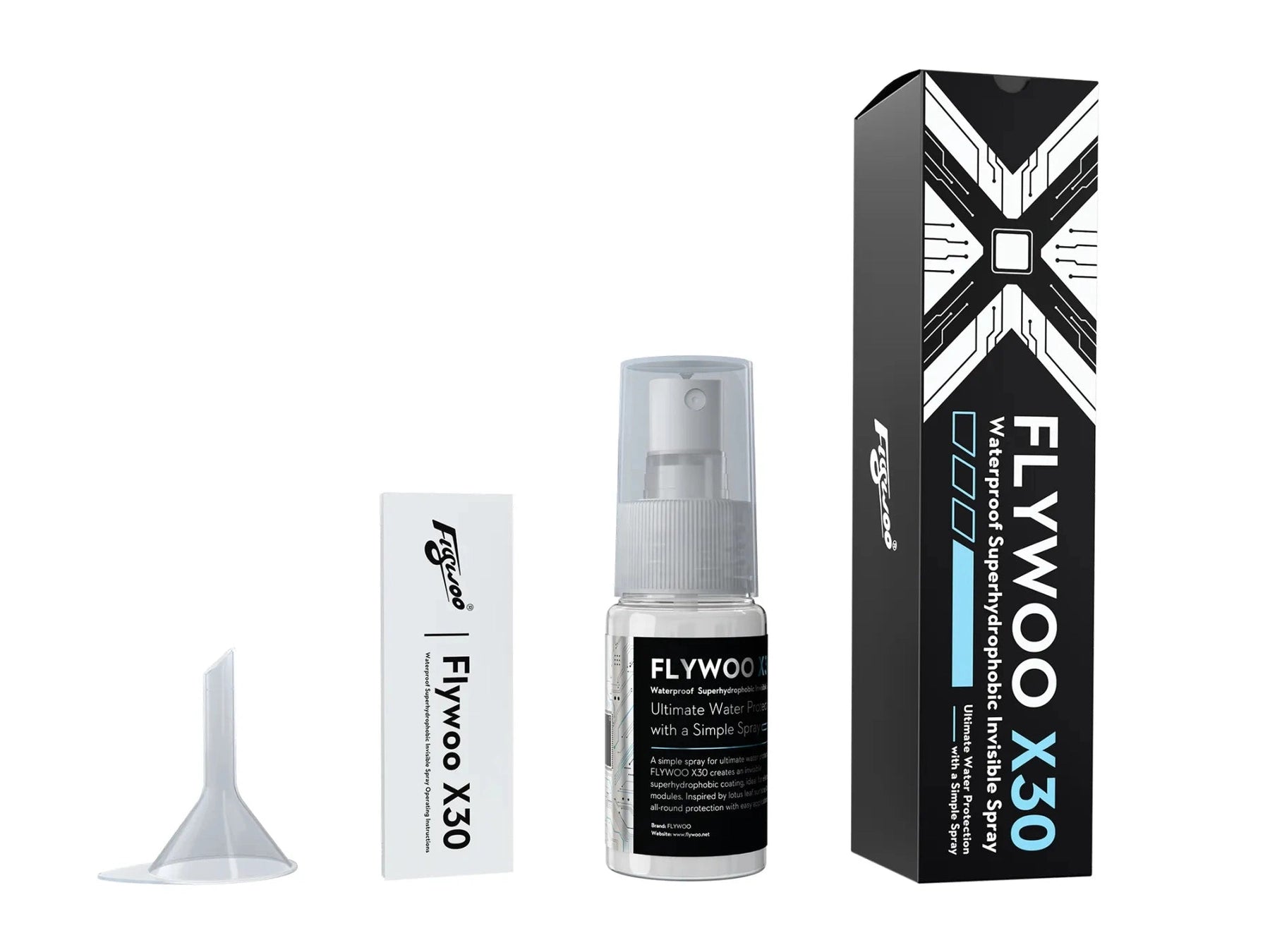

- A complimentary funnel is included for easy liquid transfer when refilling the bottle.
Flywoo X30 Waterproof Superhydrophobic Invisible Spray creates an effective waterproof coating for electronic modules, meeting nearly all your needs. Positioned to provide daily waterproofing for drones most easily.
Superhydrophobic materials, which resemble the surface of a lotus leaf, are ideal for waterproof electronic products. Due to their unique repellency to water or water vapor, superhydrophobic materials have the inherent and natural functions of preventing water, moisture, salt spray, mold, dust, corrosion, short circuits, etc.
With a simple spray, a highly effective waterproof coating is formed within 2-3 minutes, allowing your electronic products to withstand water splashes and remain usable even on rainy days.
Operating Instructions:
- Cleaning: Before the coating operation, make sure to thoroughly remove the dust and oil stains on the substrate surface.
- Maintenance or recoating: This product has excellent recoating performance. If re-coating is needed, clean the surface and reapply directly at the corresponding position.
Note:
- Allow each layer to dry before applying the next one.
- To achieve the best waterproof effect, it is recommended to spray repeatedly for 2 - 3 times.
- Before use, please shake it to maintain the uniformity of the liquid
- After spraying, the surface drying time is approximately 2 - 3 minutes. The surface can meet daily use requirements after drying.
- Don't let your circuit board be immersed in water for long when powered on.
- Use a dedicated circuit board cleaning solution to thoroughly clean the board
Application Scope:
- Covering all circuit boards (Flight Controller, Electronic Speed Controller, Video Transmitter, O3, etc.)
- Glass materials such as lenses (Can effectively prevent water droplets from adhering, but it will reduce the permeability by 30%. If dissatisfied after application, it can be wiped clean)
- Plugs on all circuit boards
- Plugs on the battery
Specifications:
-

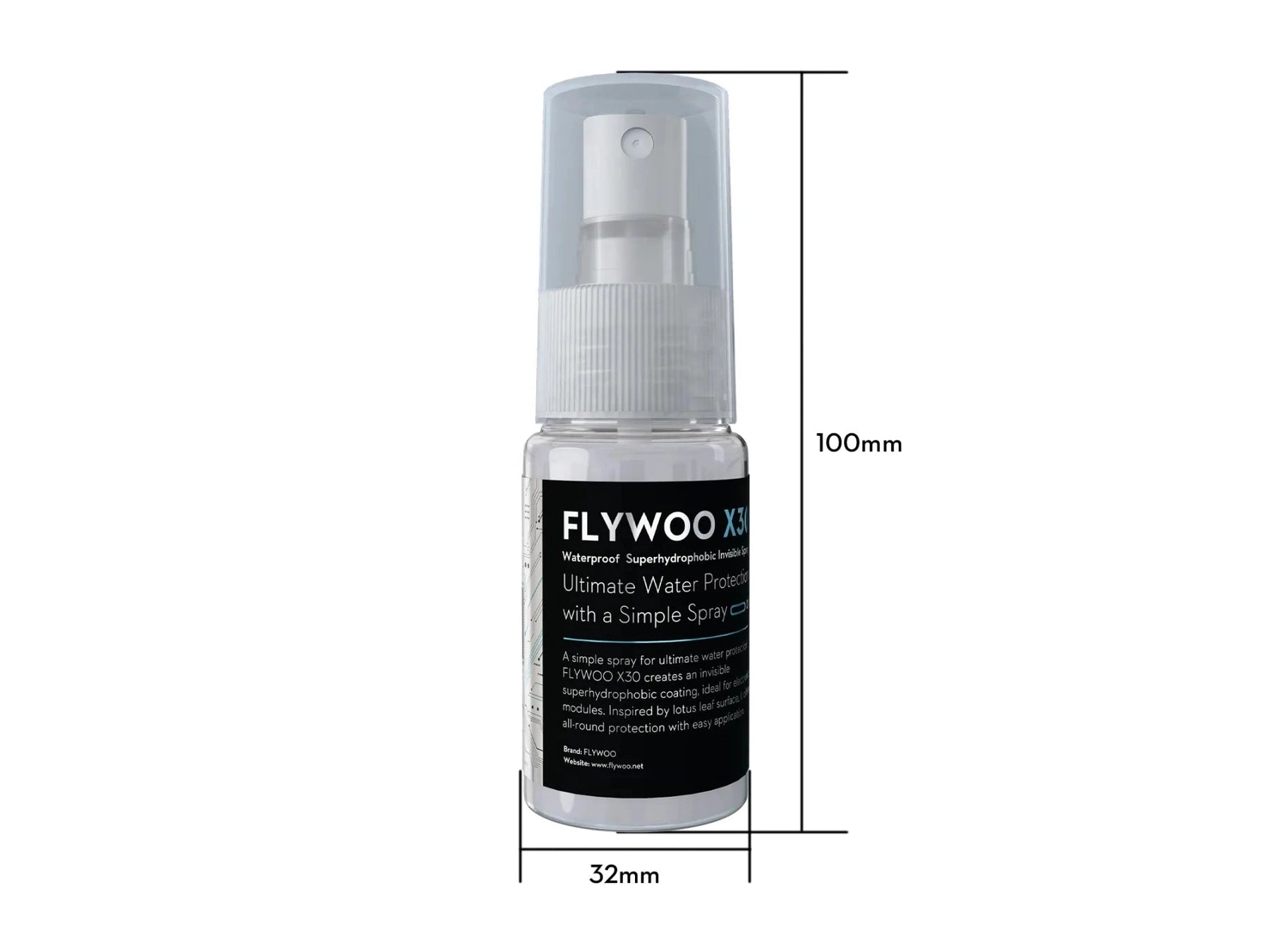

Product Name: Flywoo X30 Waterproof Superhydrophobic Invisible Spray
-
Capacity: 56.7g (For example: Flywoo GOKU F722 PRO Mini V2 20X20 Flight Controller double-sided spray 3 times, need to use 2.5g)
- Color: Milky white
- Relative density (g/cm³, 25℃) : 1.56 ± 0.3
- Water repellency angle：>160°
-
Material: Superhydrophobic material
- Volatility: Non-volatile
-
Purpose: Used for waterproofing, short-circuit prevention, corrosion resistance, salt spray protection, mold resistance, dust prevention, and heat dissipation in electronic products.
- Weight：67.2g
Long-lasting Protection of Flywoo X30 Waterproof SprayWhen the coating remains undamaged (after spraying and in a static state), it has been tested by Huawei and Midea and the protection effect lasts for up to 8 years. When sprayed on drones, as impacts and other accidents may occur during flight and damage the coating, we recommend re-spraying before each flight
Excellent Safety
The Flywoo X30 waterproof spray is an environmentally friendly product that does not contain harmful substances. However, traditional three-proof paints may release volatile organic compounds (VOCs), which have certain impacts on the environment and human health.
Comparison to Traditional Conformal Coatings
The protective performance of the three-proof paint relies largely on the compactness of the coating. This is also the focus of the research and development for three-proof paint manufacturers. Moreover, the super-hydrophobic coating inherently possesses natural characteristics such as waterproofing, anti-short circuit, anti-corrosion, anti-salt spray, anti-mold, and anti-dust. Consequently, superhydrophobic materials are ideal alternatives to conformal coatings!
Includes:
1x Flywoo X30 PCBA Waterproof Super Hydropphobic Invisible Spray
