The ORQA FPV.Battery was designed to power your ORQA FPV.One and FPV.One Pilot OLED FPV Goggles.
This rechargeable battery pack uses a standard barrel plug to power many common FPV goggles.
The top of the unit has four LEDs that display the voltage level, so you always know how long you have left until you need to charge.
- Power Supply: 7.4VDC (2S LiPo Battery)
- Battery Connector: 2.1 x 5.5mm barrel connector
- Weight: 102g
- Capacity: 2500mAh
The Orqa Battery should be recharged once the battery voltage is low.

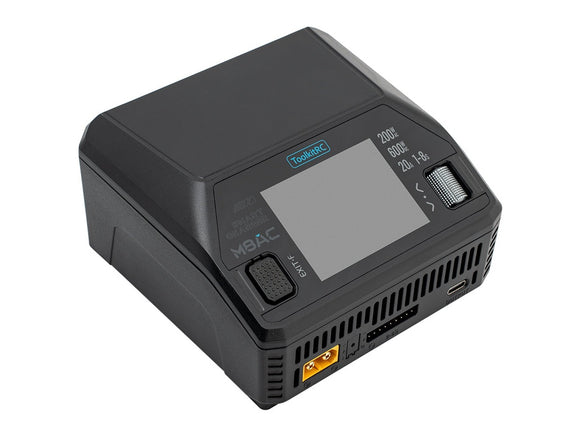

To charge the battery you will need the battery charger with the Li-Po charging profile.
The best way to recharge the battery is the “balance charge” option. That means that the charger will make sure that cells inside the battery will always be charged to the same voltage.
Having the cells balanced will ensure long-time optimum battery performance.
The optimal charging current should be set to 1.0A max. The battery should be fully charged to 8.4V (4.2V per cell). The fully charged battery will have all four bars lit.
The correct battery connector's polarity is shown in the images below.
1x Orqa FPV.Battery 2500mAh LiPo by Tattu
