Zeez RC F7 3030 Flight Controller V3

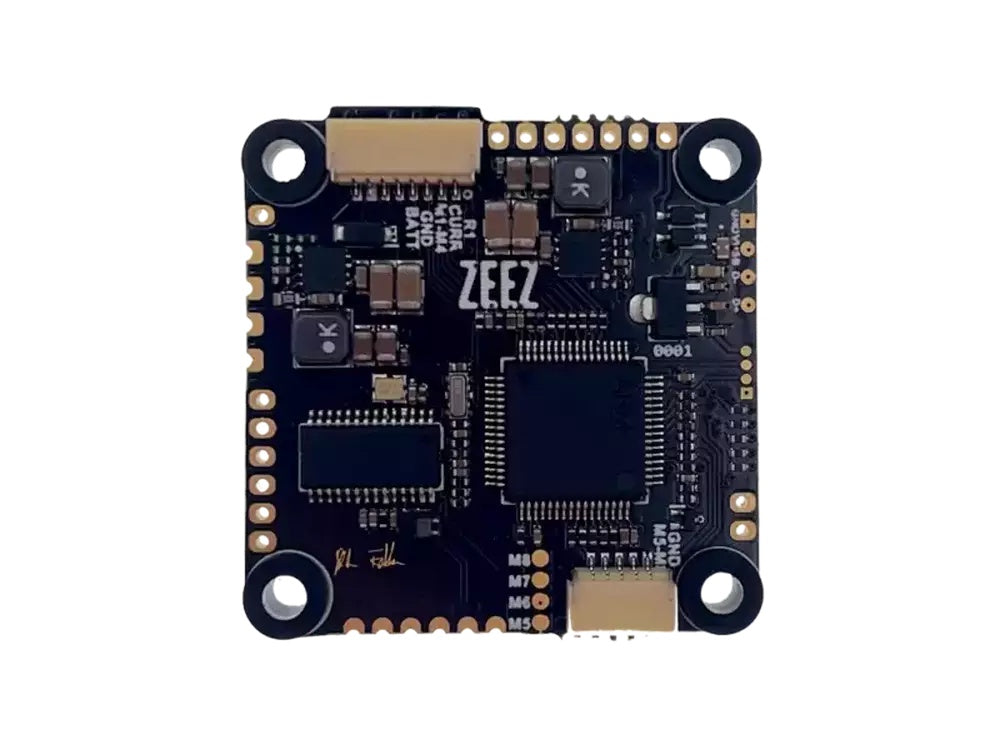

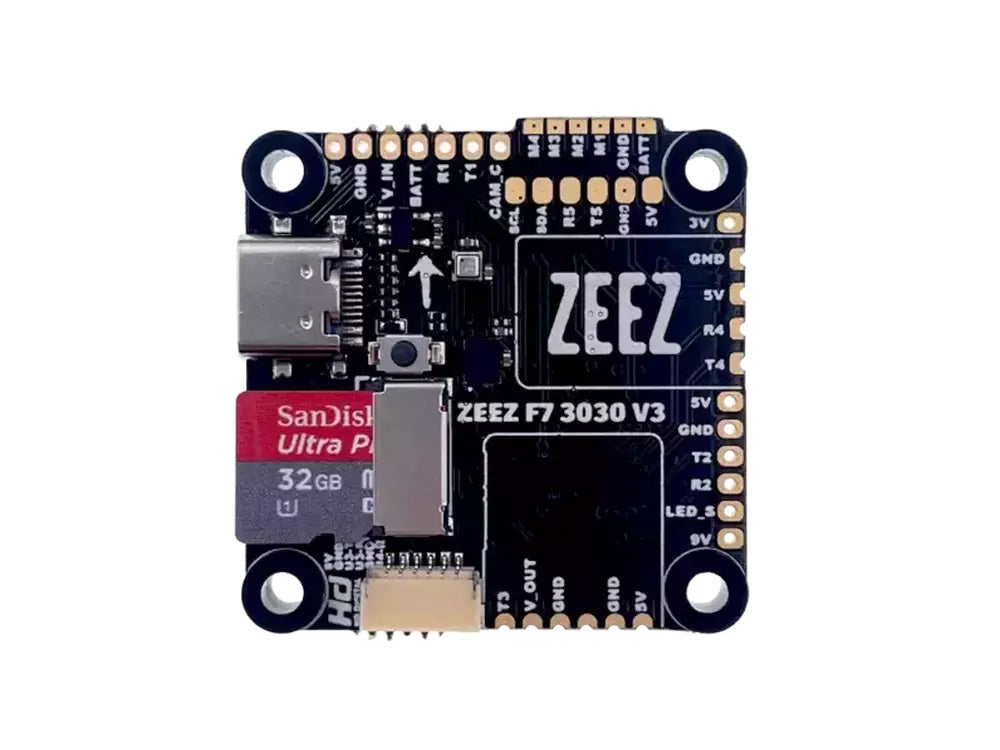

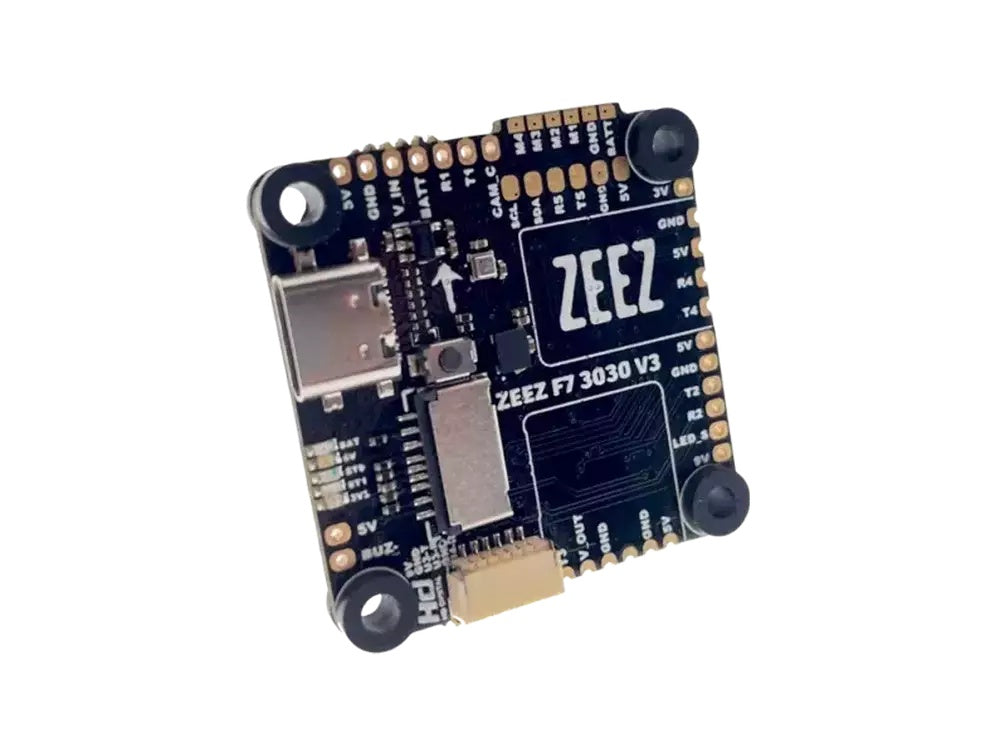

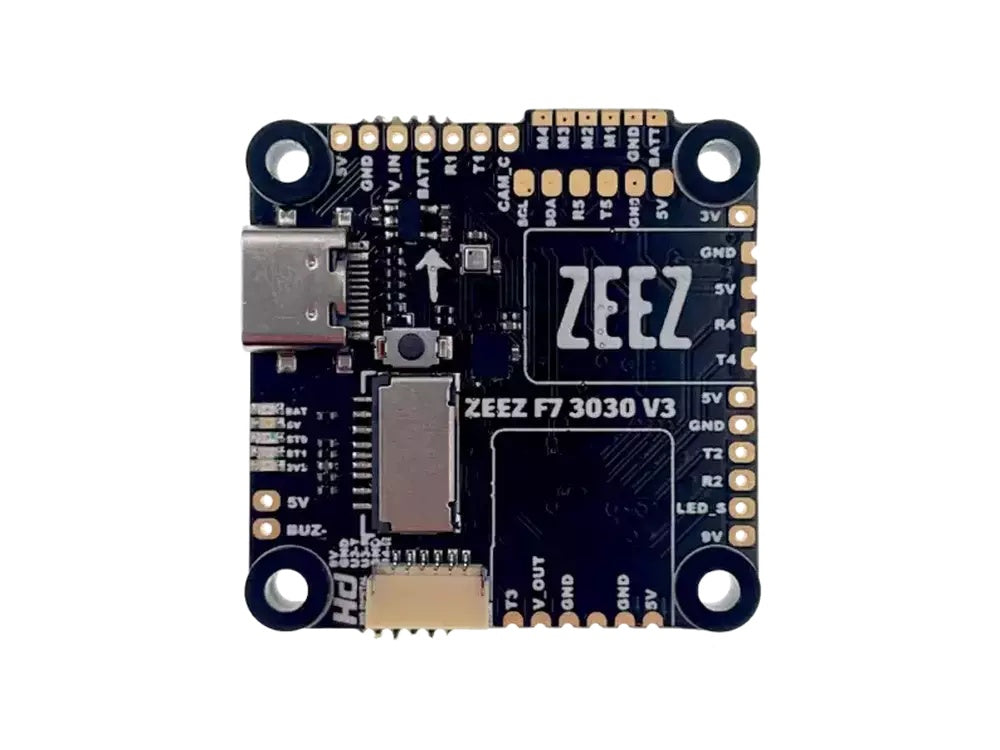

The ZEEZ F7 V3 3030 is an 8 Motor Output, DJI HD System Ready Flight Controller with an on-board 9V@3A regulator to power the DJI Air Unit, with a simple plug-and-play configuration and 5V@3A regulator to power all the peripheral.
It uses a powerful F7 processor along with top-of-the-line hardware: ICM42688P Gyro, BMP388 Barometer, with a separate power rail for cleanest data. The ZEEZ F7 V3 3030 comes in a standard 30×30 form factor. It comes with spaces and pads for TBS Crossfire and TBS Unify Nano32 for a very clean and low-profile assembly. We have added a connector for a 2nd ESC to make building X8’s as easy as possible. There are 5 UARTS available as well as an I2C port, SD CARD for Blackbox data record, and an OSD chip for analog video.
Specifications:
- Mounting holes: 30.5x30.5mm
- LiPo Power input: 3S-6S
- 8 Motor output
- BEC 5V-3A / 9V-3A
- STM32F722 MCU (216MHz max frequency)
- ICM42688P Gyro/ACC
- BMP388 Barometer
- OSD chip Onboard
- 5 available UARTs / I2C bus
- SD Card Reader
- HD Plug for DJI Air Unit or Caddx Vista or Walksnail VTX
- USB Type C connector
- Direct solder connection and board space for TBS Nano RX and TBS Unify Pro32 Nano providing the ultimate in clean stack installation
Includes:

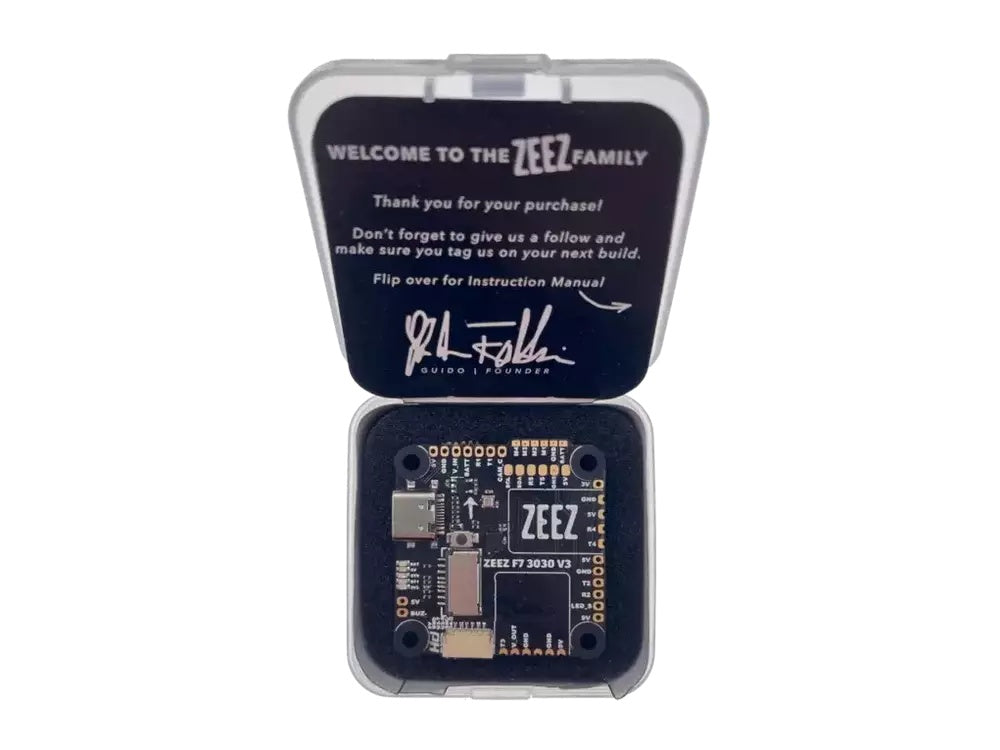

1x Zeez RC F7 3030 Flight Controller V3
4x Aluminum Standoff
4x Aluminum Nut
1x ESC to Flight Controller 8 Pin to 8 Pin JST SH 1mm Connector
1x ESC to Flight Controller 8 Pin to Free Wires (with JST SH crimp)
1x 2nd ESC to Flight Controller 5 Pin to 8 Pin JST SH 1mm connector
1x 2nd ESC to Flight Controller 5 Pin to Free Wires (with JST SH crimp)
1x JST SH 8 Pin Plastic Housing
1x JST SH 10 Pin Plastic Housing
2x 2.00mm Header Pin for VTX Connection
2x 2.54mm Header Pin for Receiver Connection
1x JST 6 pin to AirUnit Connector
