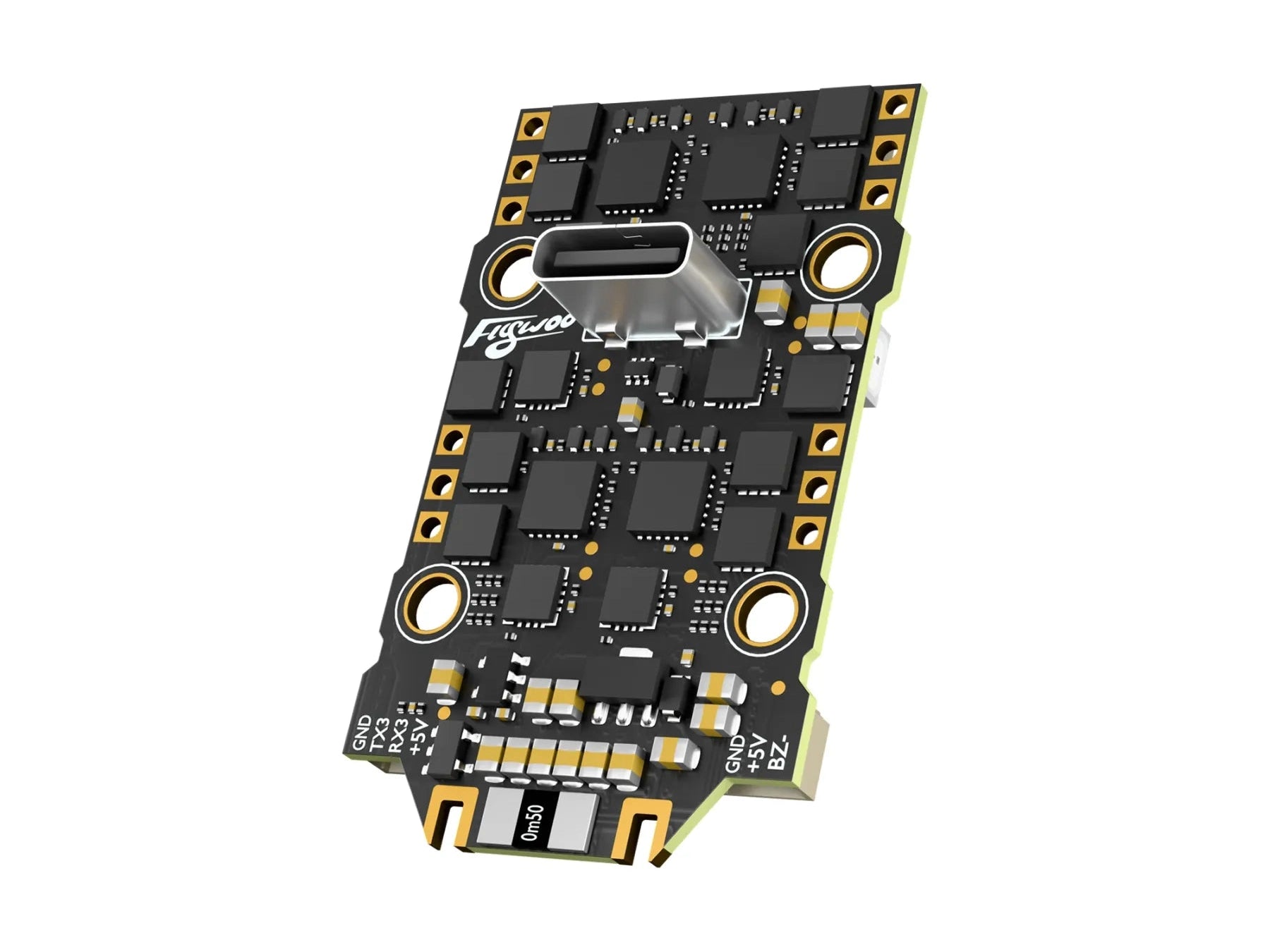

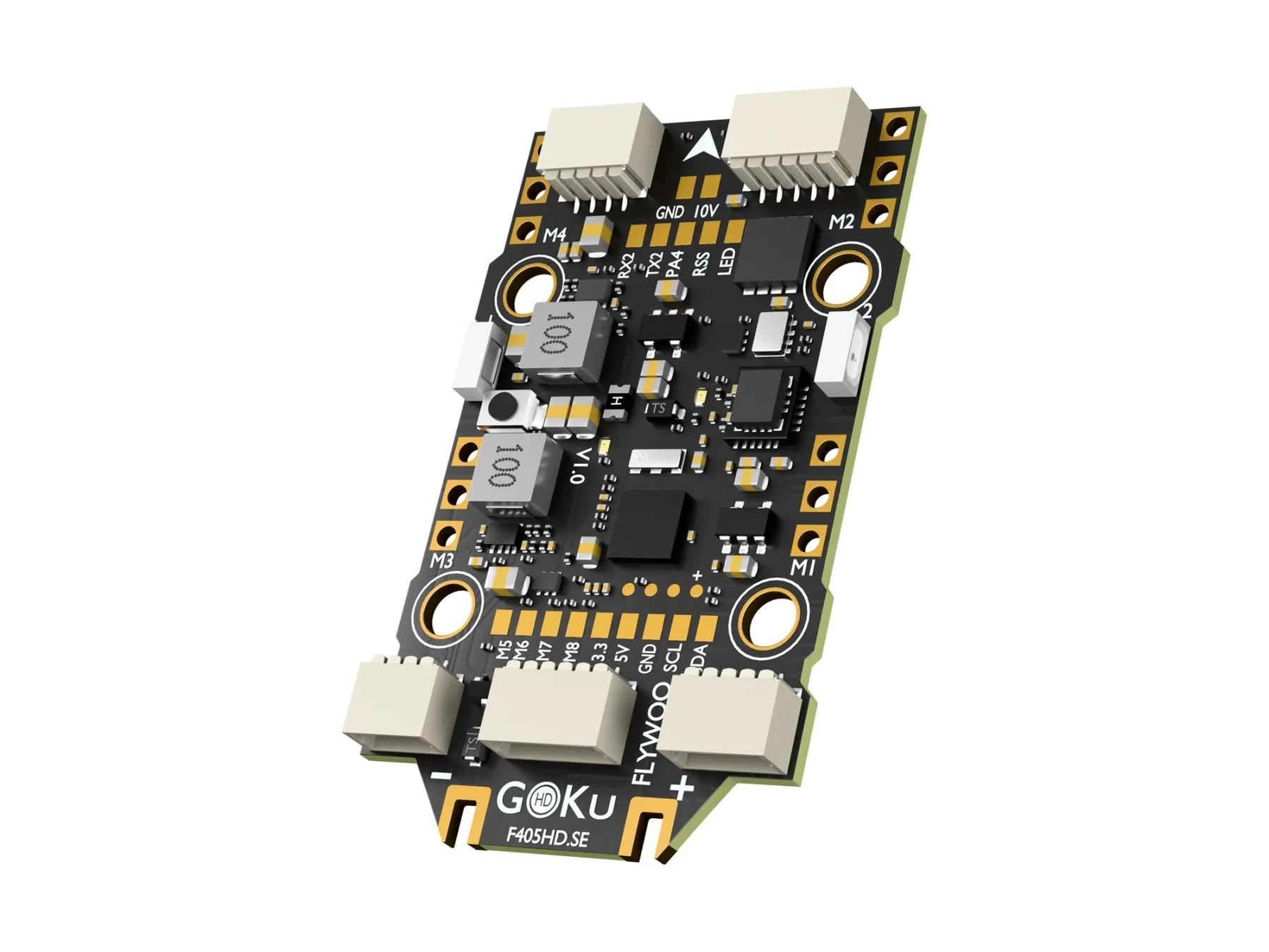

Flywoo Goku F405 SE 3-4S 20A AIO Flight Controller

Micro FPV enthusiasts have long struggled with tedious assembly, messy wiring, excessive soldering, and the trade-off between flight controller performance and weight.

Our GOKU F405 SE 3-4S 20A AIO solves all these. Designed specifically for 2-inch and 2.5-inch drones with deep compatibility for Firefly 25mini 3S and Firefly 20pro 4S, it reimagines HD FPV building and flying.

Powered by STM32F405 and MPU6000 gyro for responsive, butter-smooth control. Features a dedicated dual BEC for direct DJI O4 Air Unit connection on 3-4S (no extra BEC needed). Full plug-and-play ports mean only motor wires require soldering – easy even for beginners. At just 6.5g with standard 20×20mm mounting, it delivers the perfect balance of functionality and lightness.

Features:

• Butter-Smooth Flight – STM32F405 MCU + ICM42688-P (MPU6000) gyro for ultra-responsive, jitter-free control
• Powerful & Efficient – 20A continuous / 25A peak current, supports 3-4S LiPo batteries
• Plug-and-Play HD FPV – Dual BEC (10V/2A + 5V/2A) for direct DJI O4/Air Unit connection, no extra regulators needed
• Beginner-Friendly Build – Full plug-and-play ports, only motor wires require soldering
• Ultra-Light & Compact – 20×20mm standard footprint, only 6.5g, deeply optimized for Firefly 25mini 3S & 20pro 4S
• Unlimited Flight Modes – Onboard 8MB black box, supports Betaflight/INAV dual firmware
• Hassle-Free Tuning – Bottom-mounted vertical Type-C port, no disassembly needed for firmware flashing
• Built to Last – 6-layer gold-plated PCB, stable operation from -20°C to 50°C

Specifications:

• Product Model:  GOKU F405 SE 3-4S 20A AIO
• MCU:  STM32F405BGA
• Gyro:  MPU6000
• ESC:  4-in-1, 20A continuous / 25A peak per channel
• Input Voltage:  3–4S LiPo
• BEC Output:  10V/2A + 5V/2A dual independent

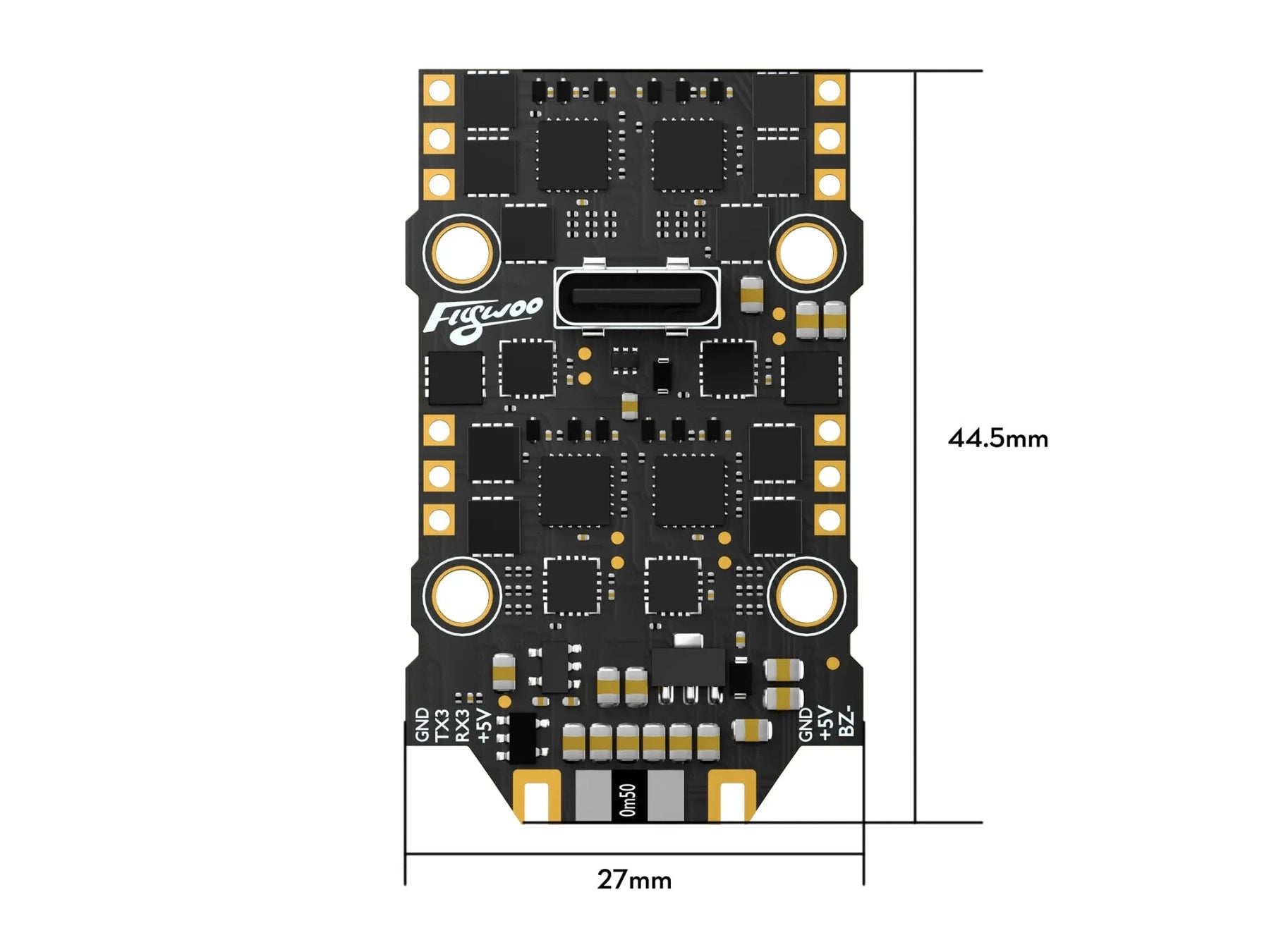

• Mounting Holes:  20×20mm standard

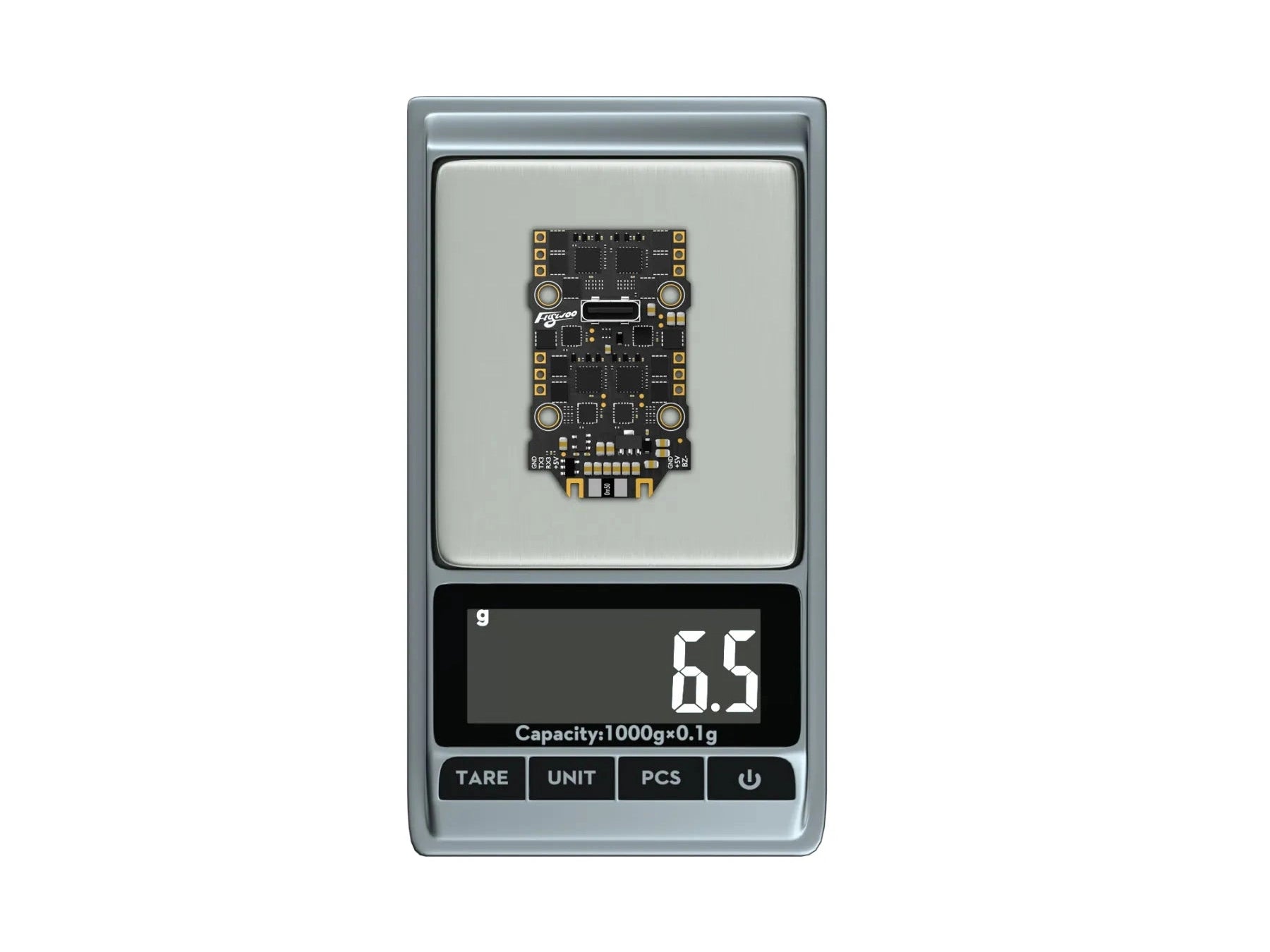

• Net Weight:  6.5g
• On-Board Storage:  8MB flight black box
• Interfaces:  HD VTX, receiver, GPS, Bluetooth, buzzer ports; bottom Type-C
• FC Firmware
  • BetaFlight Firmware:  FLYWOOF405S_AIO
  • INAV Firmware:  FLYWOOF405HD
• Compatible Drones:  Firefly 25mini 3S, Firefly 20pro 4S, 2" / 2.5" micro FPV drones
• ESC Firmware:  G_H_30_48KHz_Bluejay

Includes:
1x Flywoo Goku F405 SE 3-4S 20A AIO Flight Controller
5x M2x10 Cup Head Screws
5x M2 Nylon Nuts
5x M2*6.6 Shock-Absorbing Balls
1x 220U 25V Capacitor
1x XT30 Male 18AWG Power Cord
1x Buzzer Connection Cable
1x GPS Connection Cable
1x O4/O4 Pro Connection Cable
1x Receiver Connection Cable
