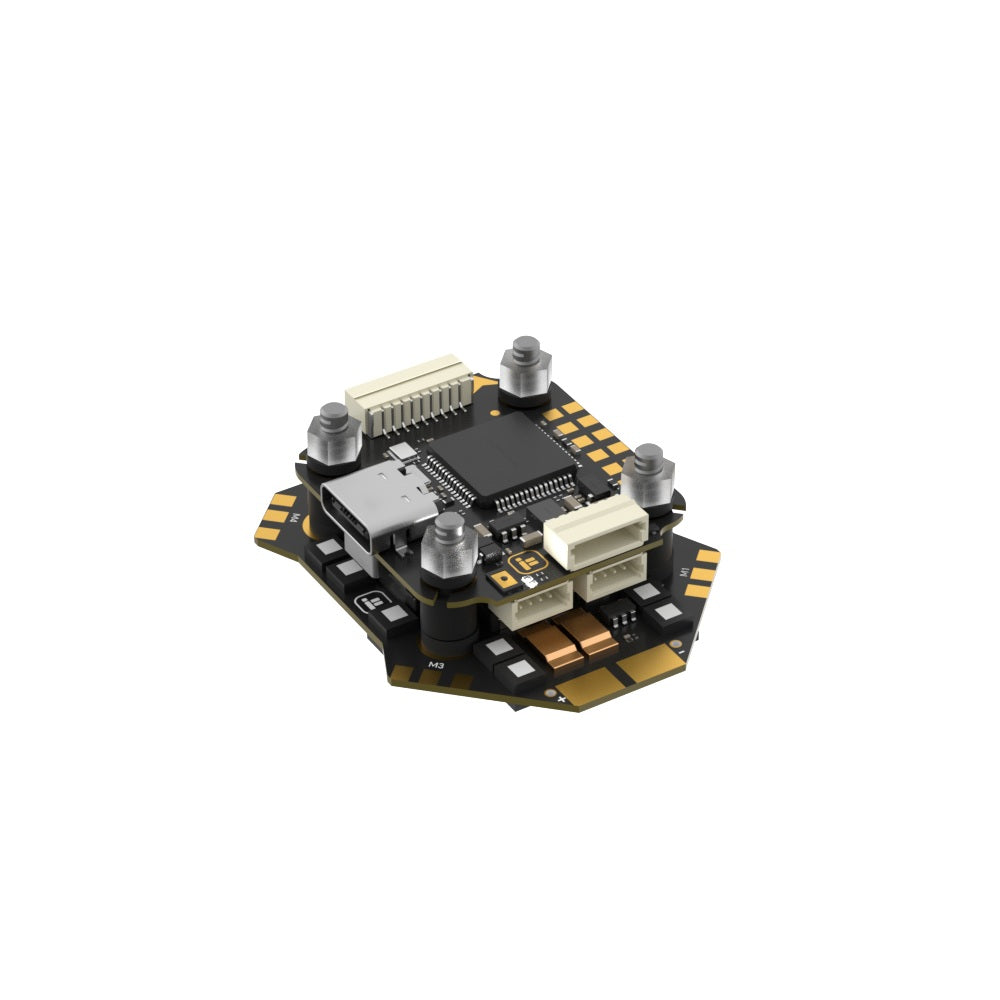

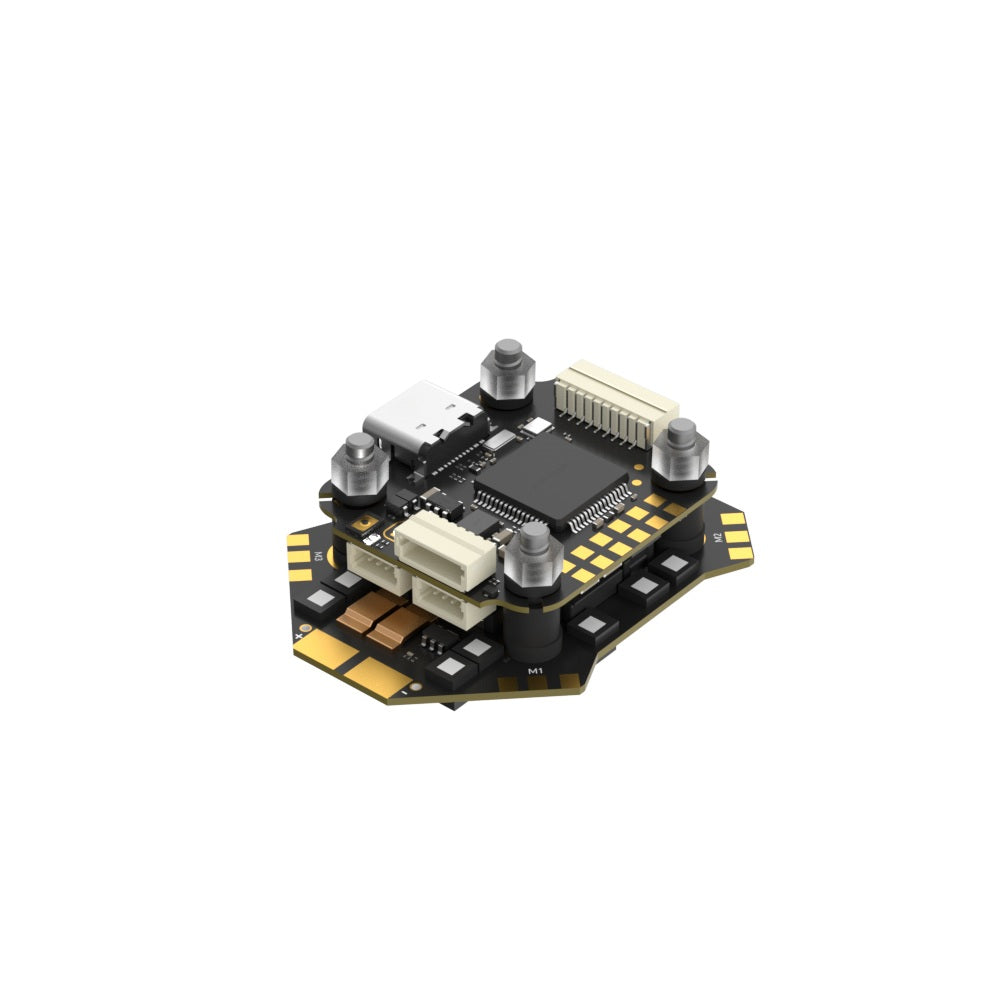

iFlight Borg F7 60A Mini 4-In-1 Stack
Introducing the All-New Borg Series – Power Meets Precision!
The Borg F7 Mini Flight Controller is specifically designed for racing fpv, providing unmatched performance. Elevate your racing experience with the cutting-edge technology of the Borg Series!
Features:
- Supports 4S to 8S battery inputs, offering versatility for various racing setups.
- Integrated 12V BEC provides stable power for your VTX system and allows remote control to switch it on and off.
- FPC cables ensure secure connections with ESCs, while SH1.0 connectors enhance reliability across all other interfaces.
Specifications:

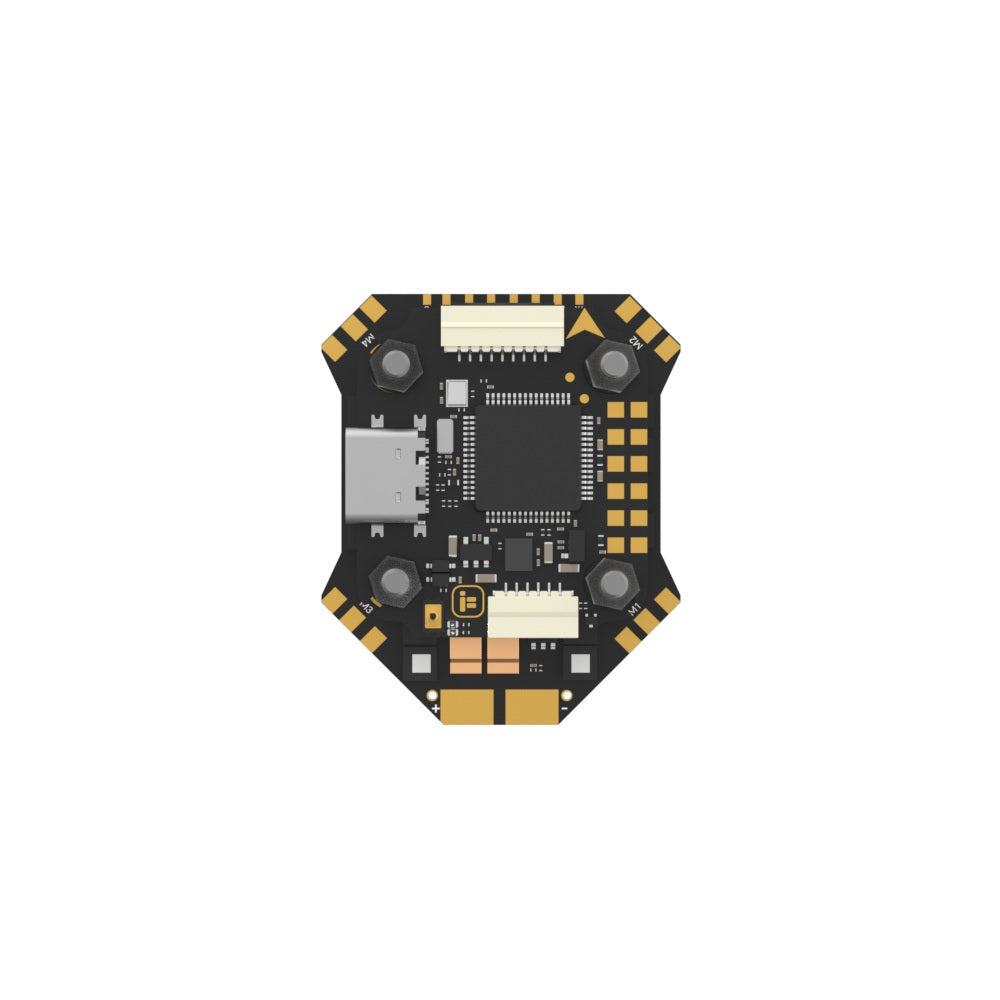

Flight Controller
- Input voltage: 4-8S; Support LIHV battery
- MCU: STM32F722RET6
- Gyro: ICM42688
- Barometer: SPA06-003
- OSD Chip: AT7456E（LGA）
- Flash: 32MB (Blackbox flash)
- UARTS: 6
- Motor outputs: 4
- I2C serial: Not supported
- VTX protocol: support DJI MSP/Smartaudio/IRCTramp/HDZero
- LED controller: Yes
- Beeper pad: Yes
- Betaflight Firmware target: IFLIGHT_BLITZ_F722
- INAV Firmware target: IFLIGHT_BLITZ_F722
- Mount pattern: 20*20φ4
- Dimensions: 27*30.6mm±1
- Total Weight: 17.1g±1(FC+ESC)
- BEC: 5V 2.5A, 12V 2A (12V with VTX switch)
ESC
- Product Name: Borg Mini 60 ESC
- Input Voltage: 2-6S; Support LIHV battery
- Max. Continuous Current: 60A
- Max. Burst Current: 65A (10s)
- MCU: STM32G071N
- Driver: FD6288
- Firmware: BL32 (32bit ESC)
- Target: IFLIGHT_BLITZ_G3 32.9
- Current Sensor: Yes
- BEC: N/A
- Telemetry: Supported
- Bidirectional DSHOT: Supported
- Dimensions: 42*35mm±1
- Mounting Holes: 20 x20 mm/Φ4mm
- Protocol: Supports DShot150/300/600, MultiShot, OneShot etc.
Includes:
1x iFlight Borg Mini F7 Flight Controller
1x Borg Mini 60A 4-In-1 ESC
1x Cable Set
5x Silicon Grommets
