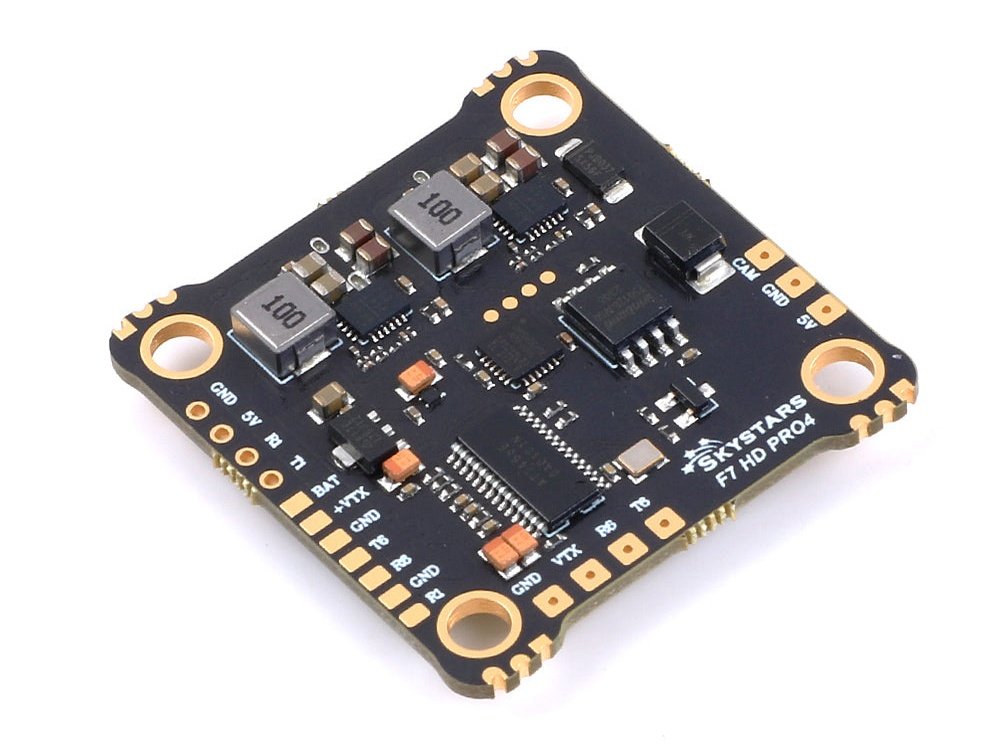

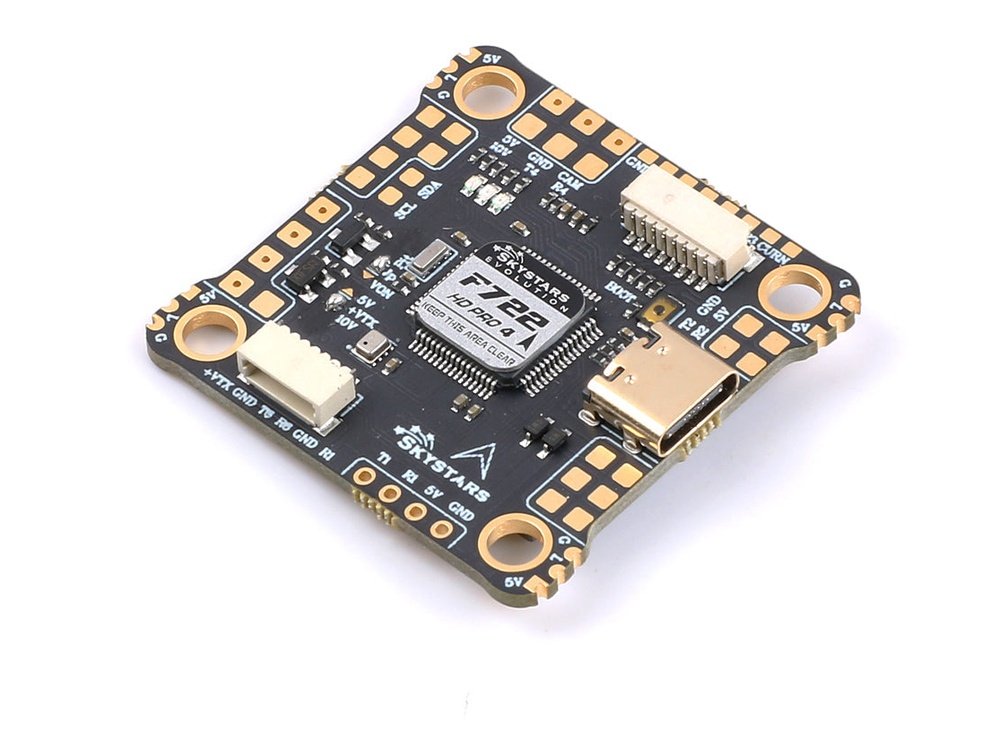

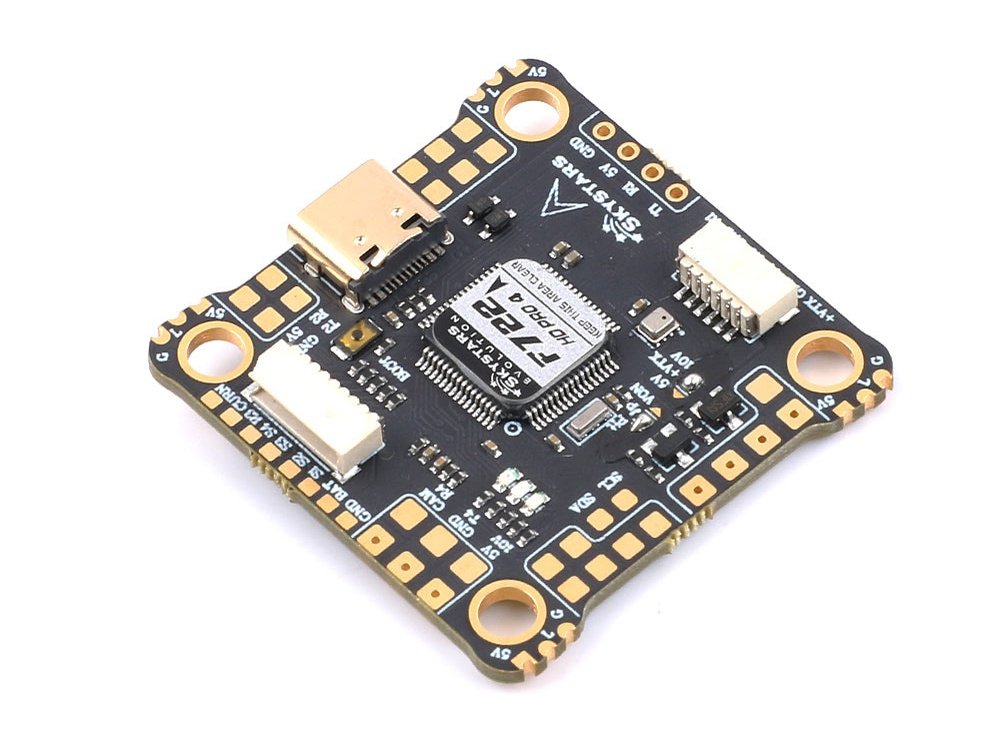

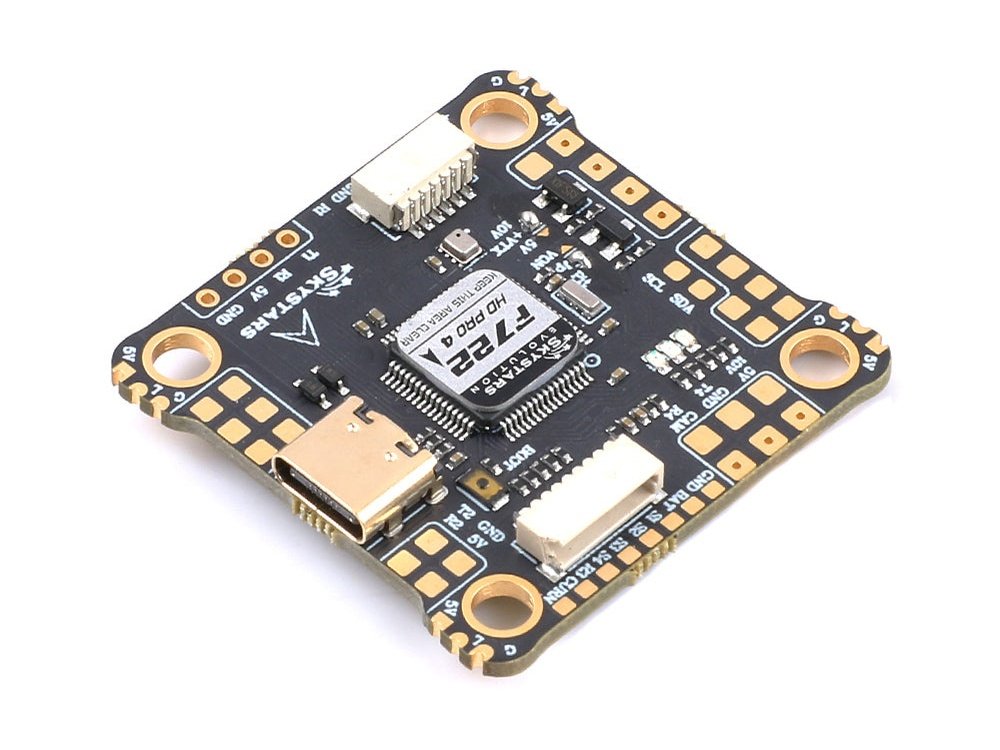

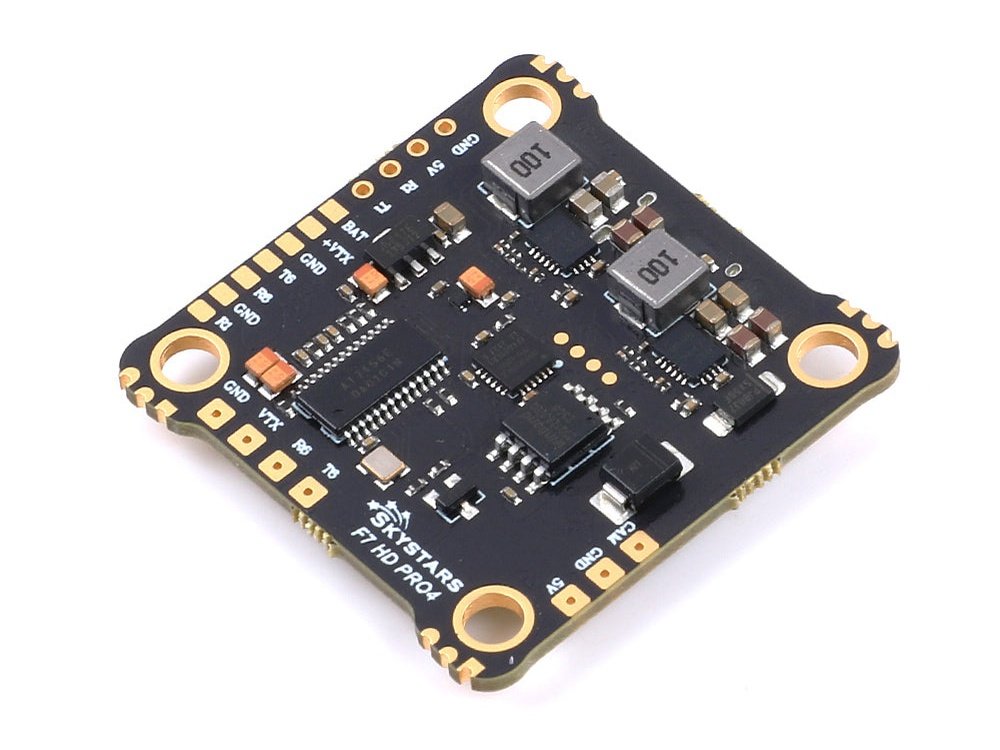

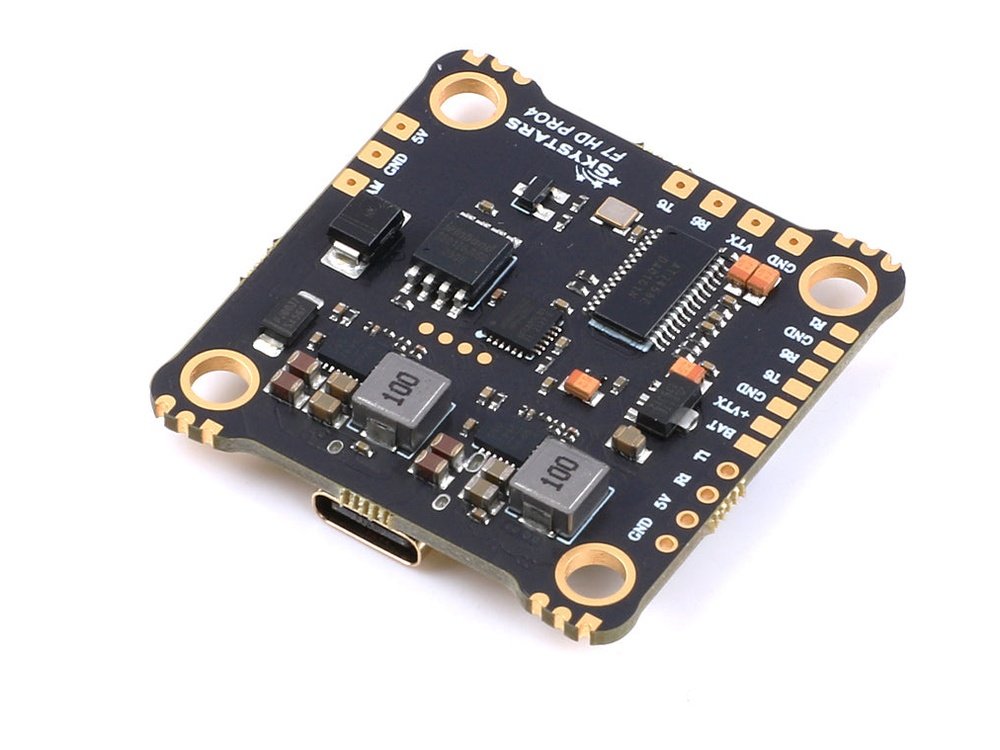

Skystars RC F7HD Pro4 F722 Flight Controller

As a top-rated RC flight controller, the Skystars RC F7HD Pro4 F722 offers the powerful STM32F722RET6 MCU and MPU6000 gyro for smooth, responsive flight. With added features such as a barometer and modern design, this controller provides high-quality performance for expert flyers.

Features:

• Solder pads are the largest compared to other FC in the market.
• Proper solder pad spacing to avoid solder bridges and facilitate easy soldering.
• ESC connector on top-side rather than bottom which makes it easy for repair.
• TVS Diode for Reverse Polarity Protection and Voltage Spike Suppression.
• Powerful 3A BEC to supply all your electronics.
• Pad arrangement is executed in such a way that when you twist the wires of the camera VTX and RX you don't get any wire overlapping this gives you a uniform twist and clean look.
• Support DJI O3 connector on the top side.
• Support VTX ON/OFF Pit Switch.
• Gyroscope independent power supply, No power lines near MPU6000 Gyro to avoid any EMI interference.
• Two stages of Quality check to reduce any faulty electronic.
• Comes ready with I2C support and INAV.

Specifications:

• MCU: STM32F722RET6 216MHz
• Gyroscope: MPU6000
• Baro: BMP280
• OSD: Betaflight SPI OSD DJI HD OSD(UART6)
• Black box: 16MB
• 6x Uarts: UART 1/2/3/4/5/6
• 4x PWM outputs
• 1x I2C
• 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
• USB Type-C(USB2.0)
• 1x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Rx3/Curr)
• 1x JST-SH1.0_6pin connector (10V/Gnd/TX6/RX6/Gnd/Sbus)
• VTX 10V/Vbat filtered power ON/OFF Pit switch
• DJI FPV OSD is supported by any spare UART
• LED: 4 LED independent pads, support WS2812 programming lamp output.
• Receiver: Support Sbus, CRSF, iBus, SBUS, XBUS, support 3.3v Spektrum satellite receiver, The default receiver input is UART1(You can solder ELRS RX on UART1), F7 has a built-in inverter, which can actually be installed in any spare UART.
• Input Voltage:  3-6S
• BEC: 5V/10V 3A dual-channel BEC supports stable power
• LDO 3.3V:  Max 250mA
• Firmware:
• Betaflight: SKYSTARSFF722Pro
• iNav:  SKYSTARSF722HD
• Mounting: 30.5x30.5mm, M4
• Dimensions: 39mmx39mm
• Weight:  6.9g
