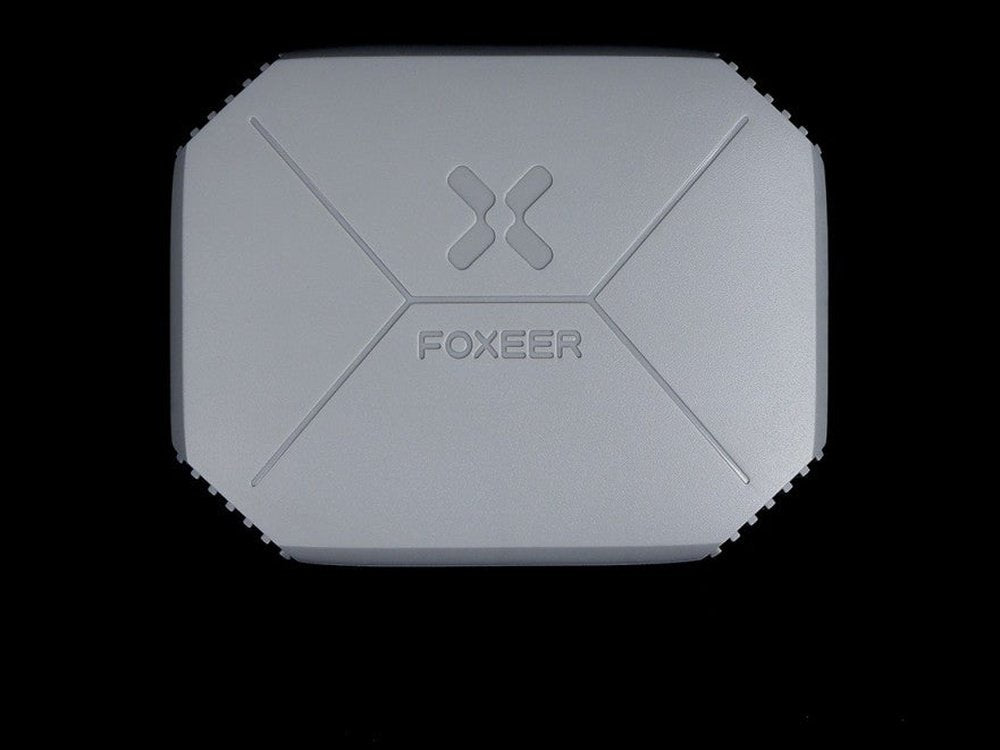

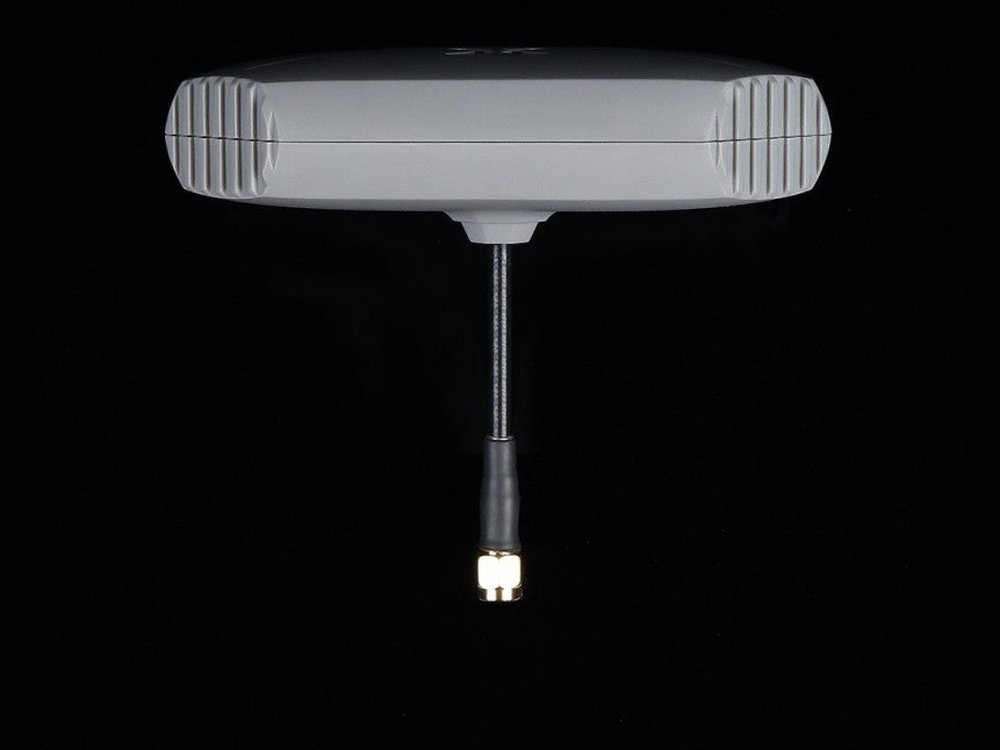

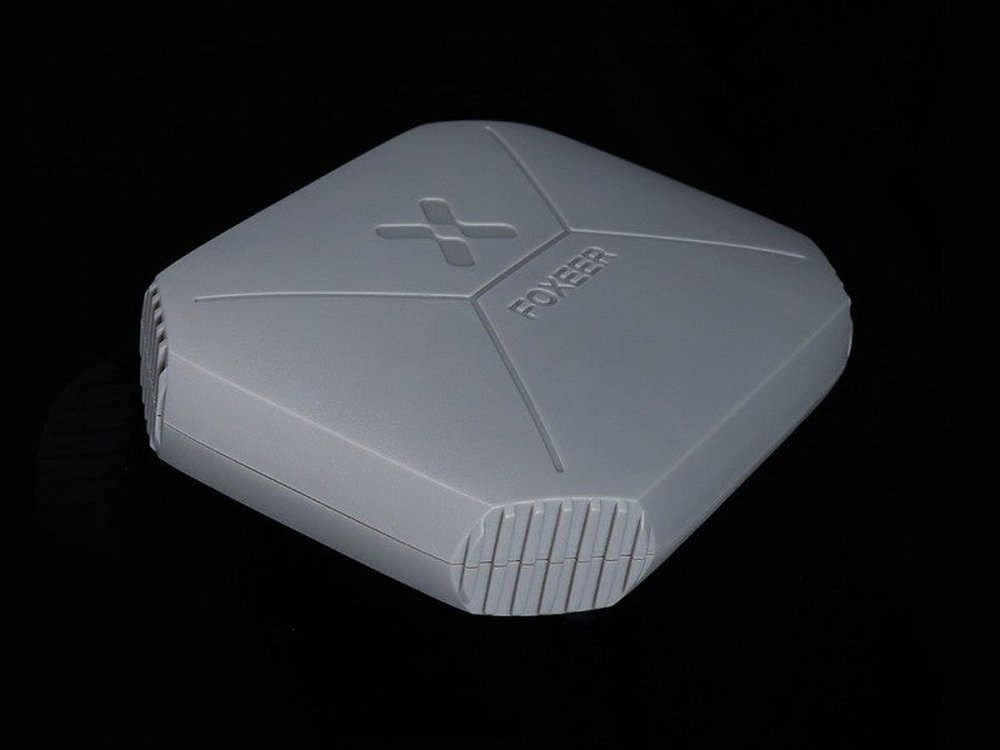

Foxeer Echo 2 Max 13dBi 5.8GHz/2.4GHz Dual-Band High Gain FPV Antenna

$29.99
Unit price per

The Foxeer Echo 2 Max FPV Antenna is designed for maximum long-range penetration, featuring a 13dBi dual-band linear high-gain design and support for both 5.8GHz and 2.4GHz frequencies. Enjoy enhanced signal stability and lower latency for clear, interference-free video transmission.

Specifications:

Frequency: 5.8GHz/2.4GHz Dual Frequency
Gain: 13dBi
Axial Ratio: Close to 1
Radiation Angle: 60°
Radiation Efficiency: 98%
Impedance: 50Ω
SWR: 2.4GHz: 1.5; 1.2 at Center Frequency
Connector: RP-SMA
Dimension: 113x89x92mm
Polarization: Linear
Case Material: PC
Weight: 75g

Foxeer Echo 2 Max Dual-Band 2.4GHz 5.8GHz FPV Antenna

Includes:
1x Foxeer Echo 2 Max 13dBi 5.8GHz/2.4GHz Dual-Band High Gain FPV Antenna
