The 30fps frame rate of the Dominator is also doubled to 60fps, which is essential for capturing fluid race footage.
Immersion RC PowerPlay FPV DVR H.264 60FPS Lithium Ions Included

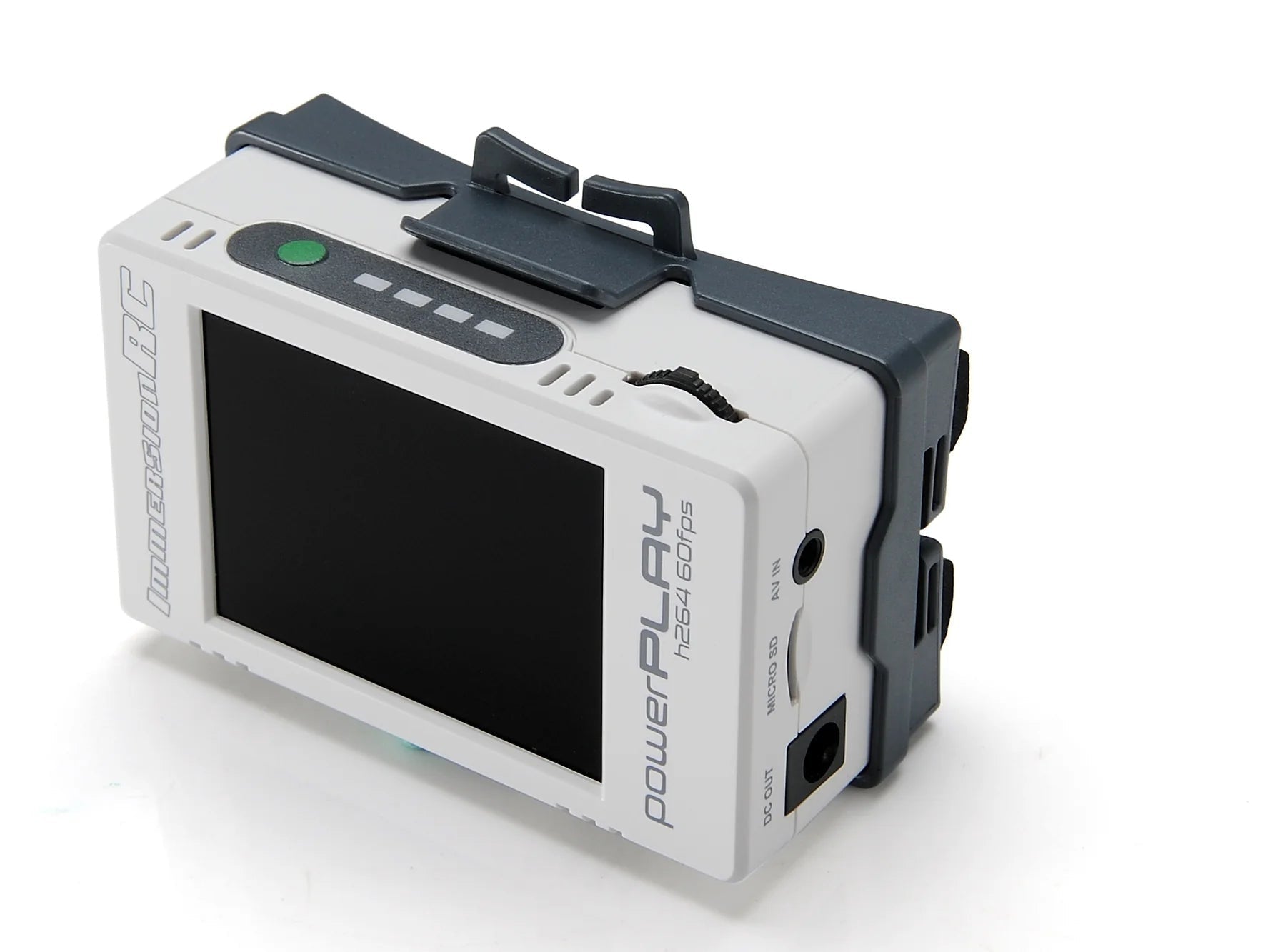

Immersion RC PowerPlay FPV DVR
A DVR Created Purely for FPV - The internal DVR on FatShark Dominator Goggles is ‘ok’, but it doesn’t come close to the quality that PAL/NTSC can offer.
Instead of the MJPEG compression used in the Dominator, the PowerPlay uses x264 (AVC) compression, with a much higher bit-rate.
PowerPlay’s Power section is a pair of two 18500, Li-ion cells, that can power a Dominator HDO + rapidFIRE + DVR for up to 3 hours *.
To recharge, either use the built-in USB-C port for up to 1.5A charging, or simply pop out the cells, and replace with a freshly charged set.
The PowerPlay ships with 1400mAh cells, but larger capacity 2040mAh cells are available from most vape shops, and are the same ones used in the FrSky X-Lite radios, so any decent FPV retailer will stock them.
* 3 hours with 2040mAh cells, not shipped with the product
The PowerPlay ships with a head-mounting accessory pack. A quick-release clip mounts on the rear of the standard goggle headstrap, and the new included top-strap ensures a comfortable fit.
A short ‘Y’ cable connects power, A/V, and the fan connector.
The rear-mounted DVR has the advantage of letting people standing behind you see what you, the pilot, is seeing.
A longer version of the cable is also supplied, for those who would rather keep their battery/DVR in a pocket, and keep weight off of the head.
- Power: 2x 18500 Li-ion cells (without protection circuits)
- Power Switch: Yes… powers both the DVR, and the Goggles
- Video File Format: h264 (AVC)
- Video File Resolution: 720×576 (PAL), 720×480 (NTSC)
- Video Data Rate: ~15Mbps (PAL), ~8Mbps (NTSC)
- Black Flashy: None
- Built-in 6cm LCD screen

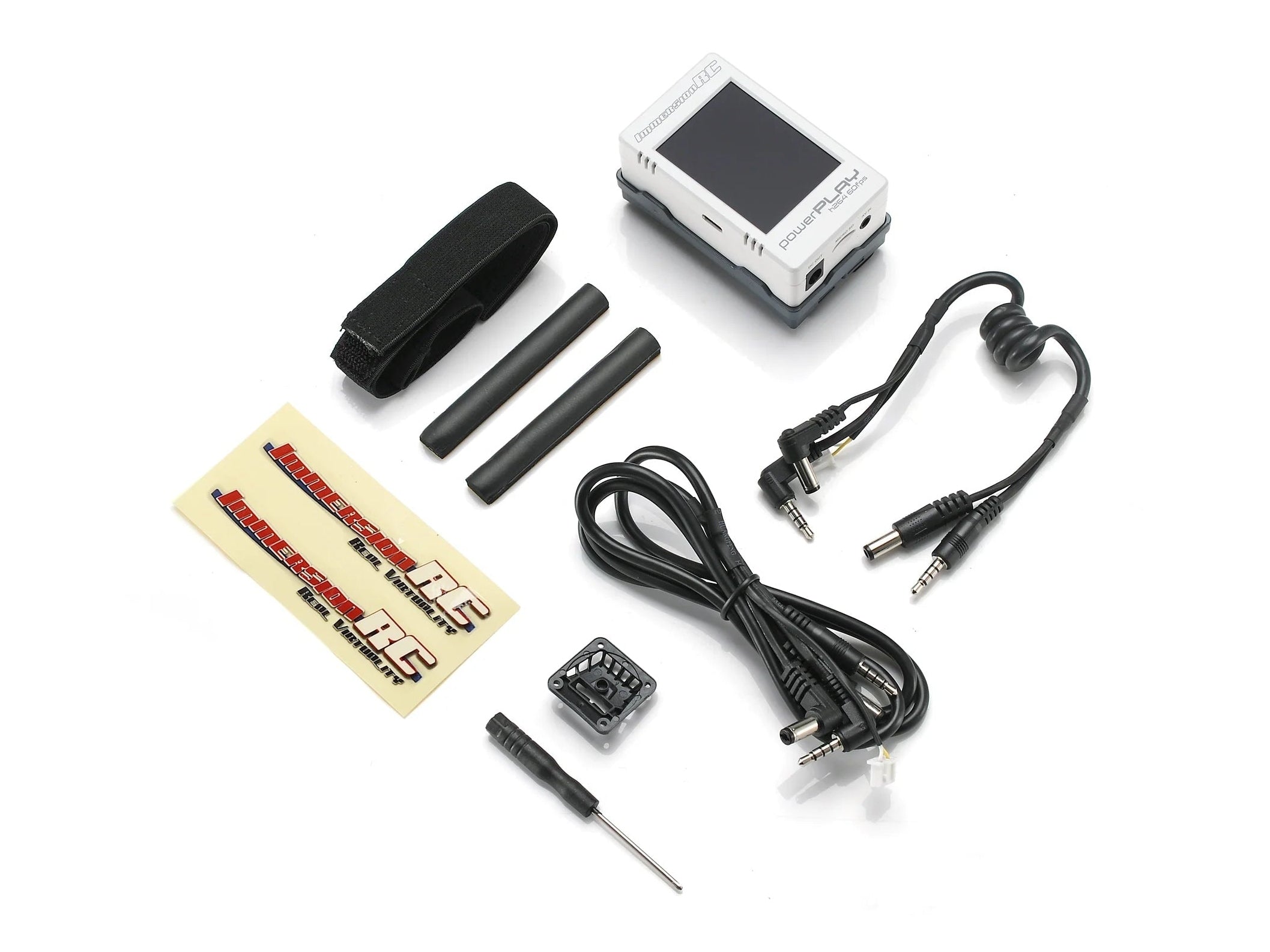

1x PowerPlay DVR
2x 18500 1400mAh Li-ion Batteries (installed)
1x Head Strap Clip
1x Over-head Strap
1x Replacement fan cover mounting kit w/Strap clip
1x Short DC/AV ‘Y’ cable for head-mounting use (incl. Fan Power)
1x Long DC/AV ‘Y’ cable for pocket use (incl. Fan Power)
