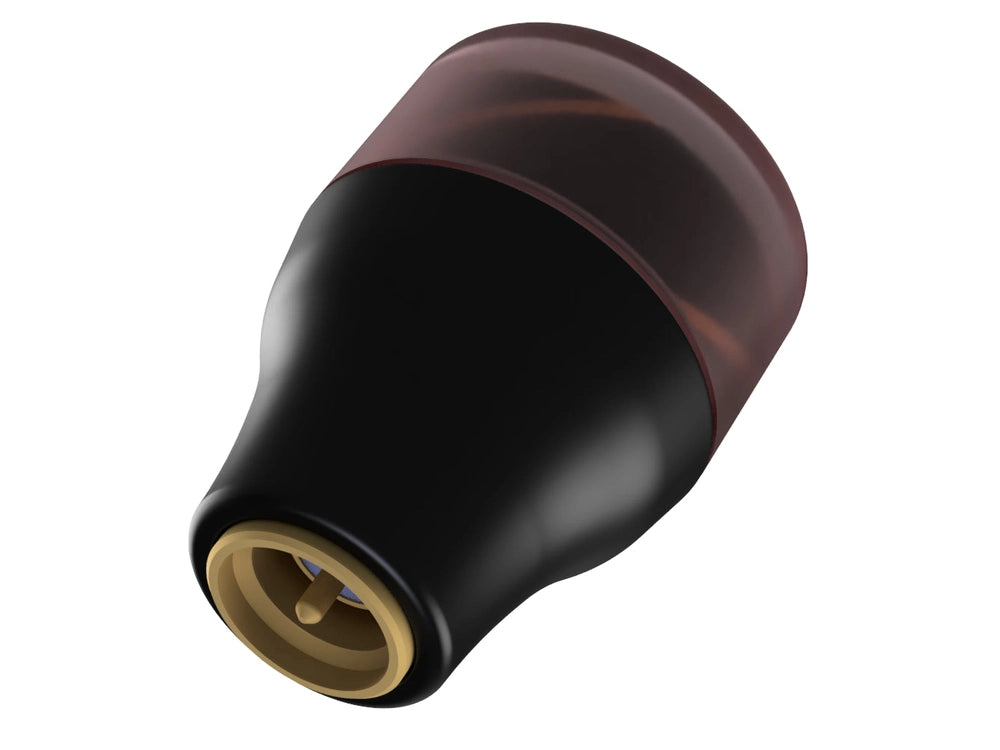

TrueRC Stubby Core 5.8GHz Antenna

$14.99
Unit price per

The stubby 5.8 is a wideband, circularly polarized antenna fabricated via laser direct structuring (LDS). By pushing the limits of this technology, TrueRC etched the complex structure required for this antenna. Featuring a uniquely ingenuous design that incorporates both feeding network and CP elements within the antenna. Its low profile makes it especially useful for FPV goggles use.

Features:

Compact Size
High Efficiency
Uniform stable radiation pattern throughout bandwidth and beyond
Excellent axial ratio throughout bandwidth and beyond
DC grounded construction

Specifications:

Frequency: 5.5-6.2GHz
Gain @5.8GHz: 2.0 dBic

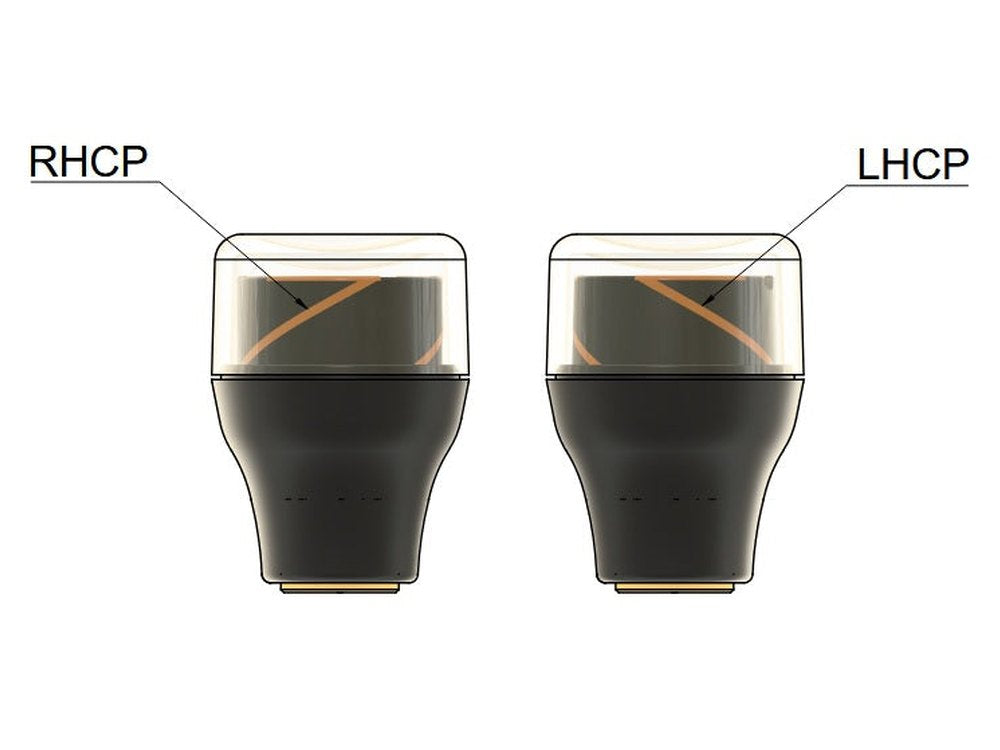

Polarization: RHCP or LHCP
Connector: SMA or RP-SMA
Dimensions(mm): Dia: 16.9, Height: 23.5
Weight: 4.9g

Includes:
1x TrueRC Stubby Core 5.8GHz Antenna
