The HDZero system works by using 2 diversity systems, one on the left side and the other on the right, and then combining the best signals of both of those into one HD signal. So why not use this diversity to your advantage and create spatial diversity with a set of high-performance Crosshair® Xtreme Minis?

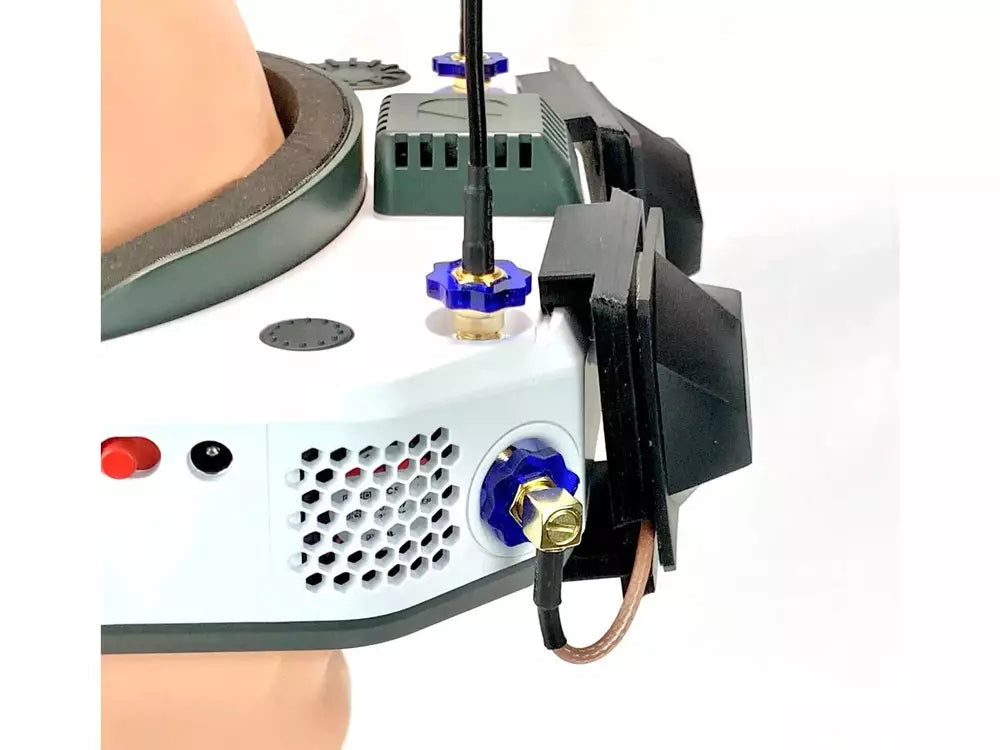

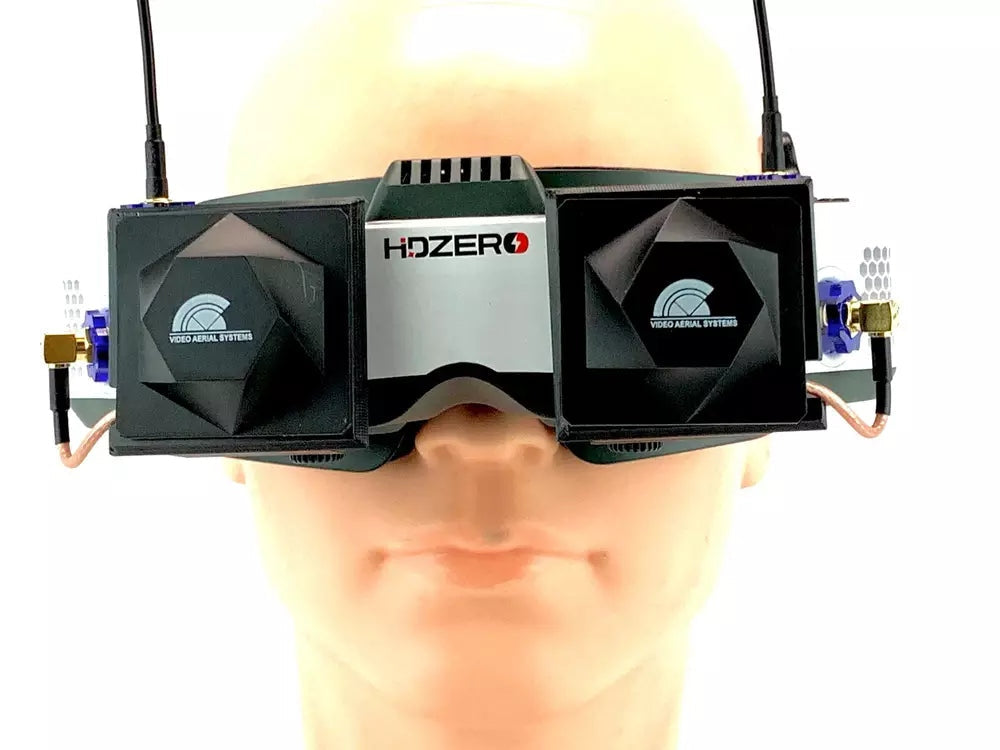

The New Crosshair® Xtreme Mini Antenna pair is easily attached to the HDZero goggle's "rail system" using the included mounts, just slide them right on. The Crosshair® Xtreme Mini gives both long-range and object penetration to the front of the pilot, right where you need it. The Crosshair® Xtreme's patented technology creates a smooth rotation to the video signal minimizing the break up your receiver "sees" with other antennas, resulting in a clear solid signal. For maximum clarity, install the Crosshair® Xtremes on your goggles and enjoy your flight.
- Gain: 10dbic
- Axial ratio: 0.99 (as measured)
- Bandwidth: 5300MHz-6400MHz
- Beamwidth: 120 degrees
- -3db beamwidth: +/-30 degrees
- Mounting Solution: Included, 3D Printed from PETG
- Connector: SMA Male 90

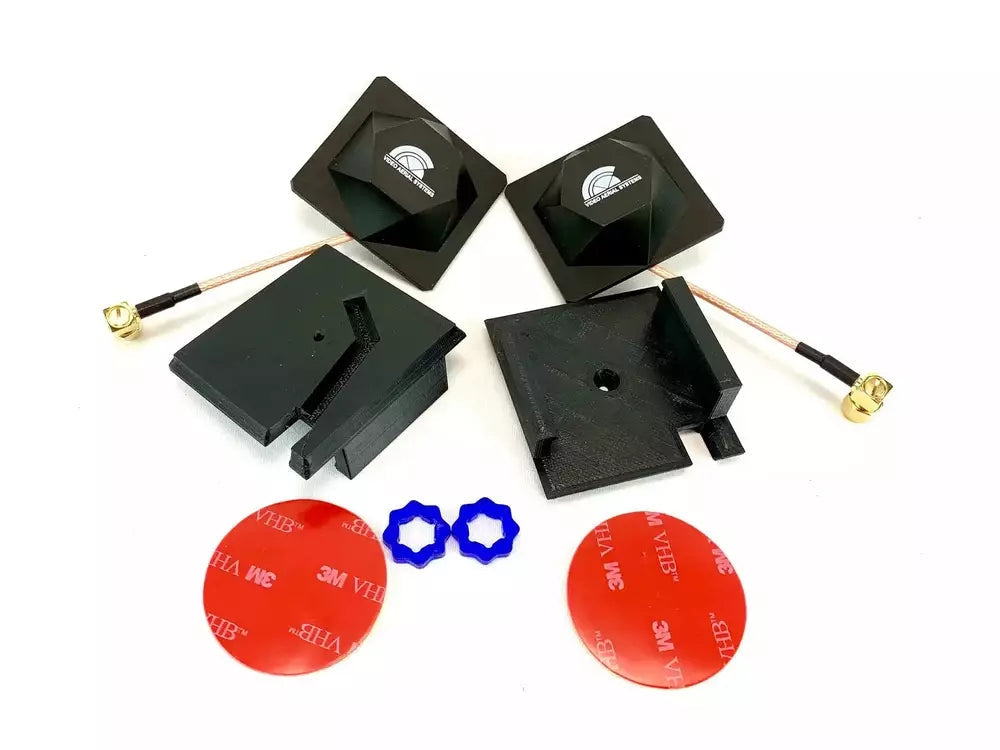

2x VAS Crosshair XTreme Mini Antennas
2x Mount for HDZero Goggles
