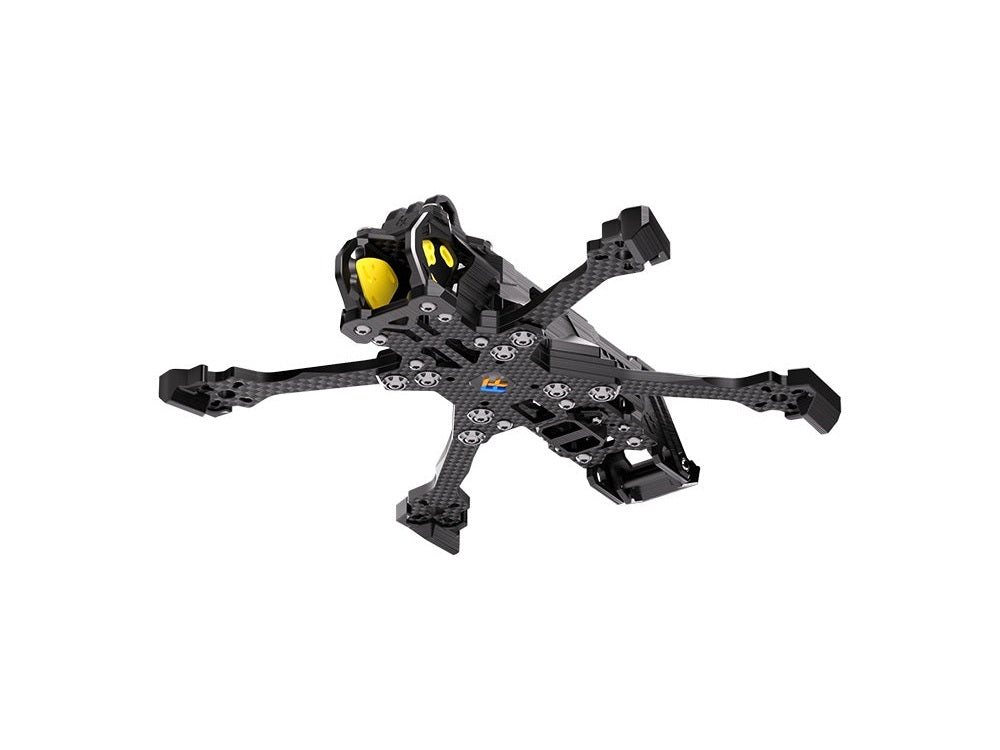

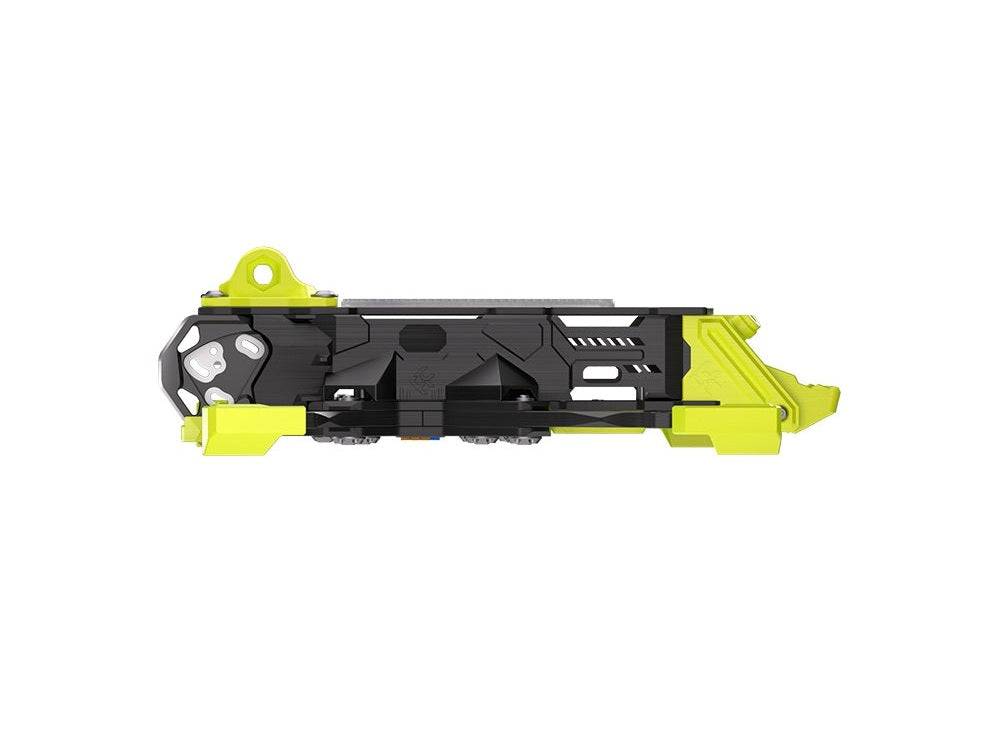

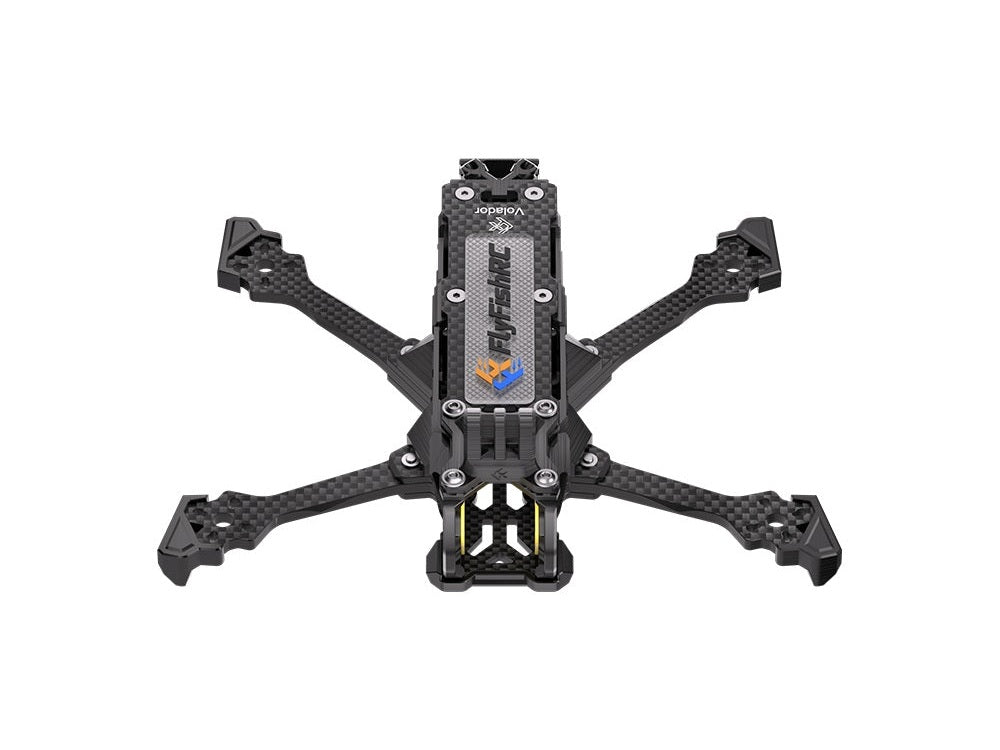

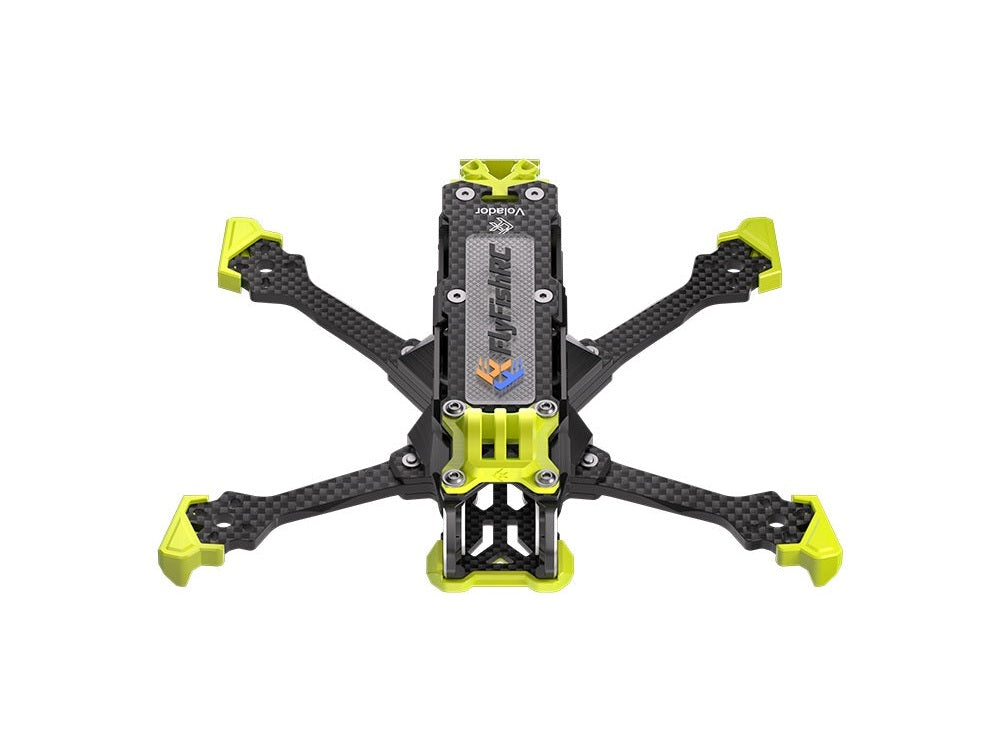

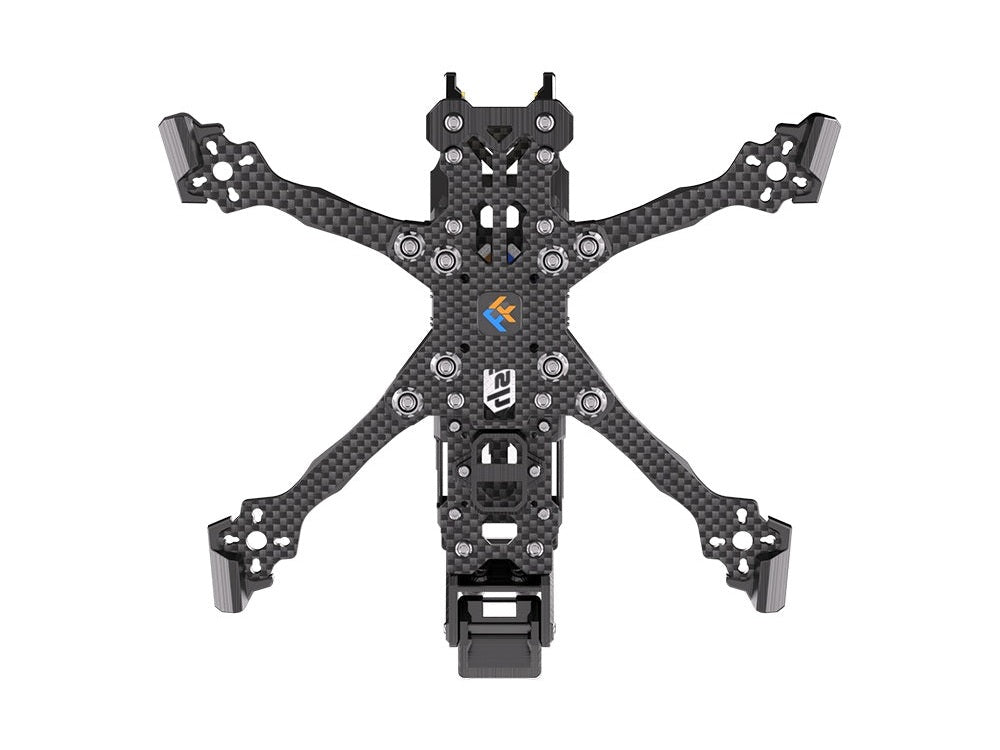

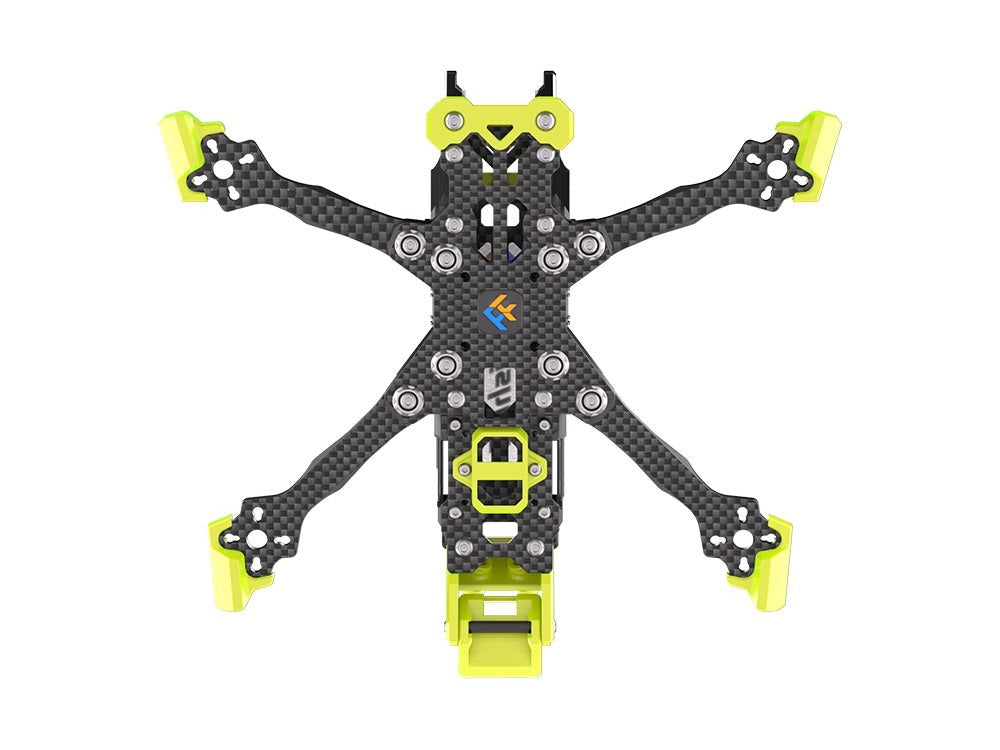

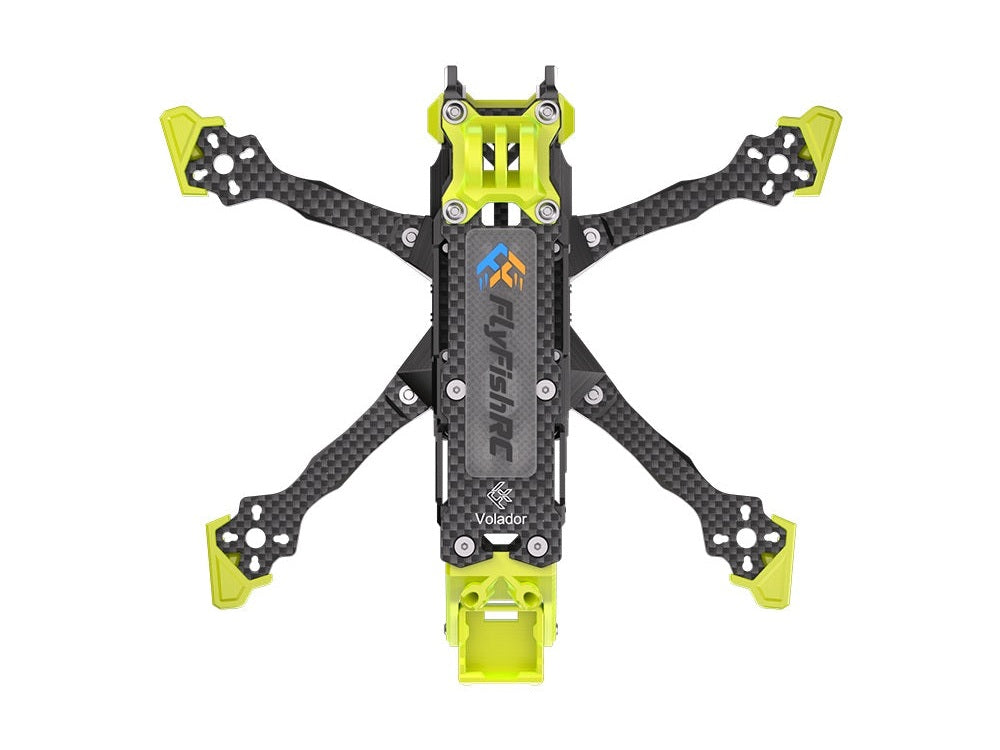

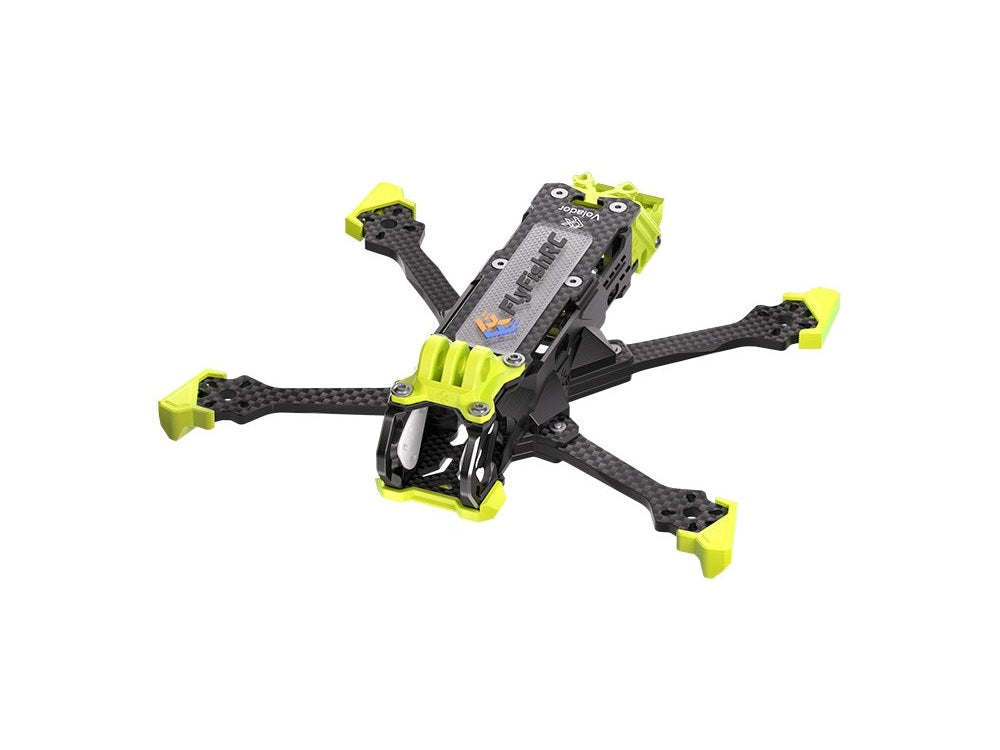

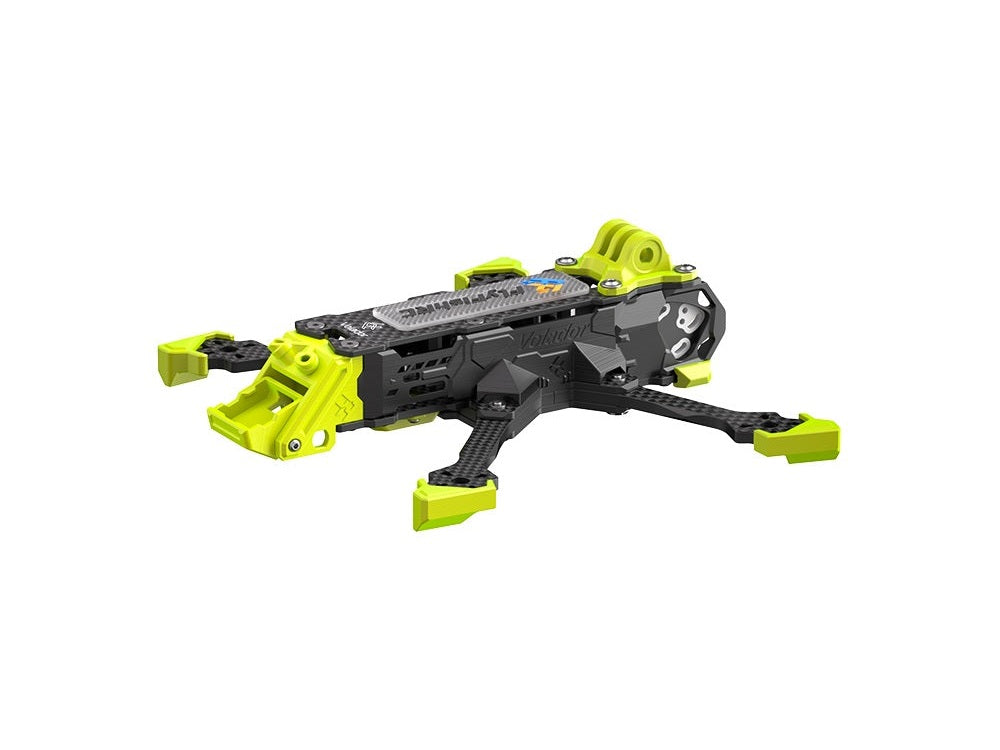

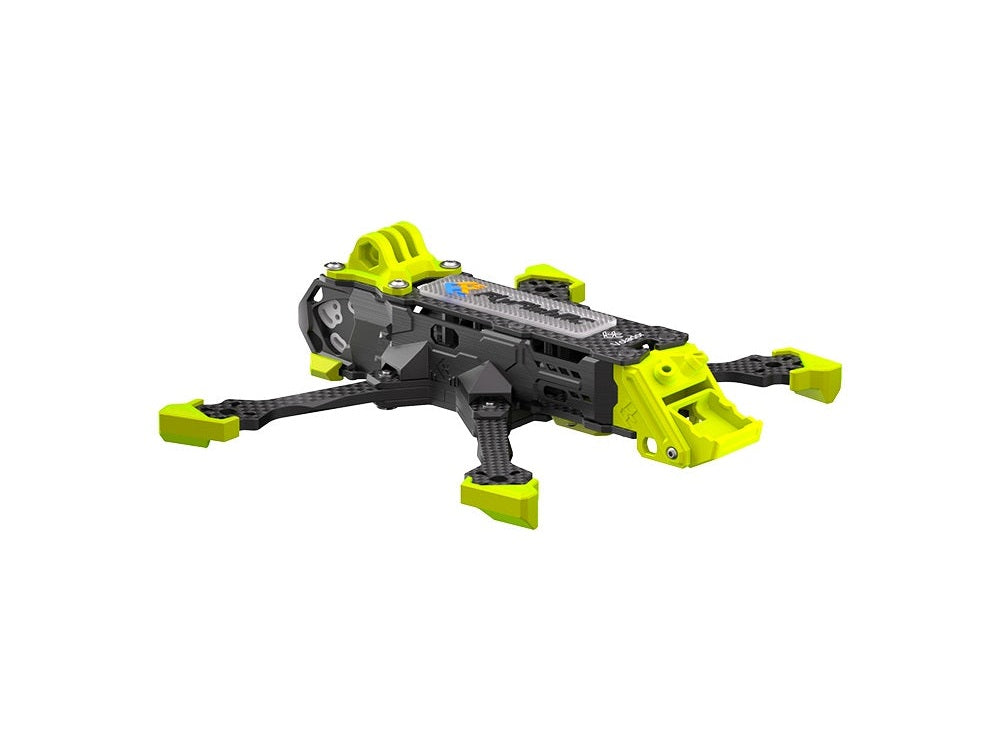

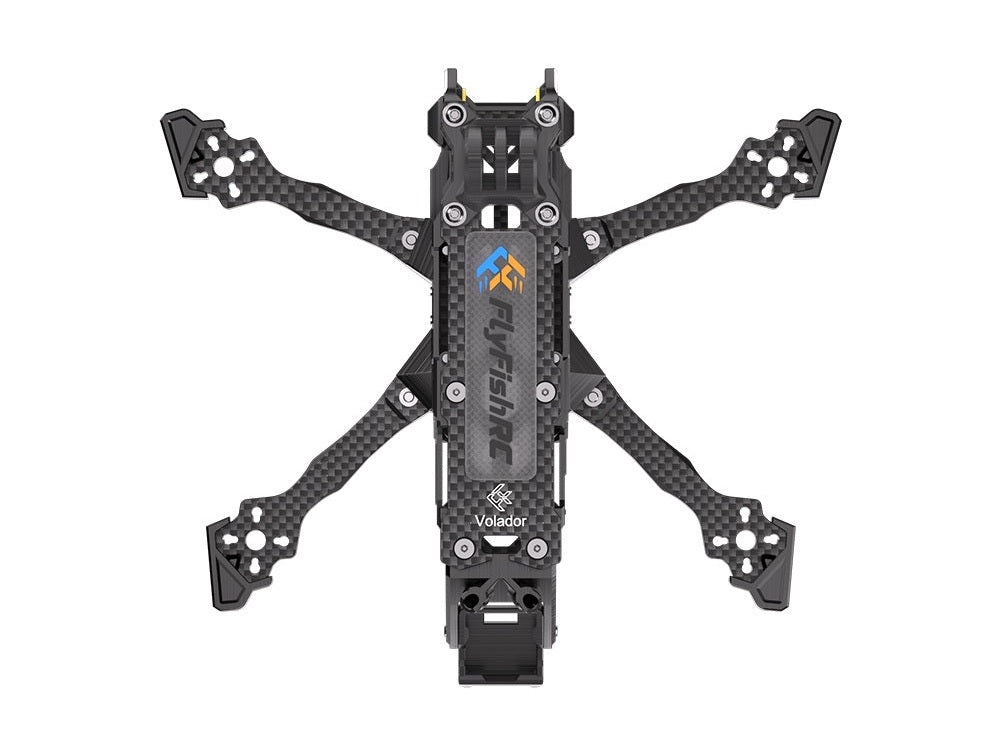

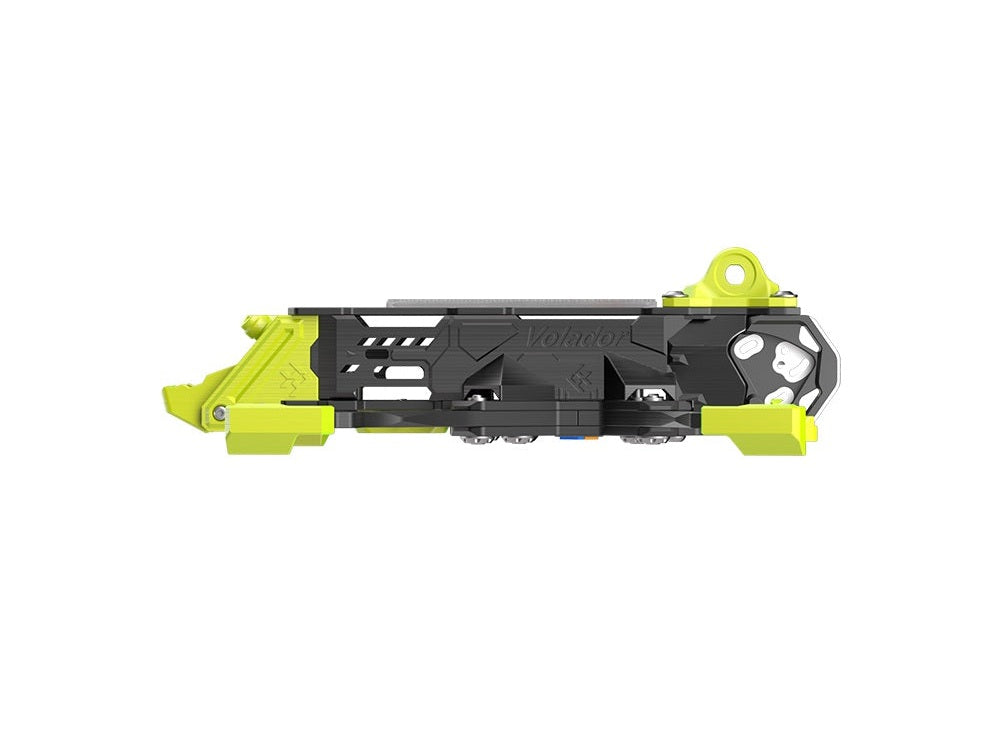

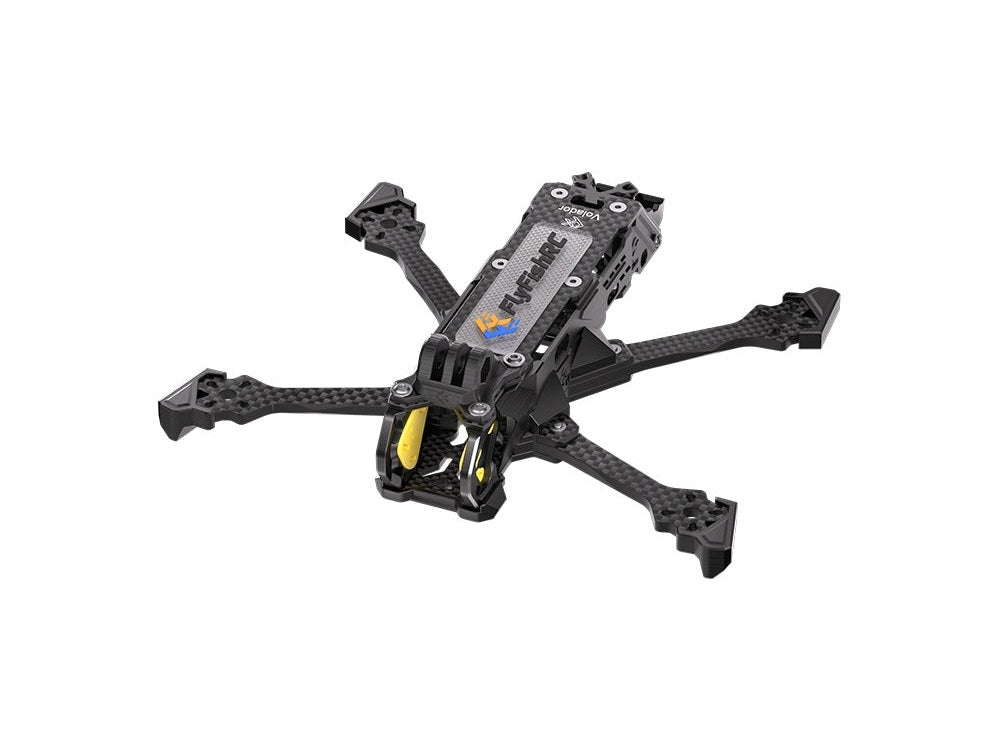

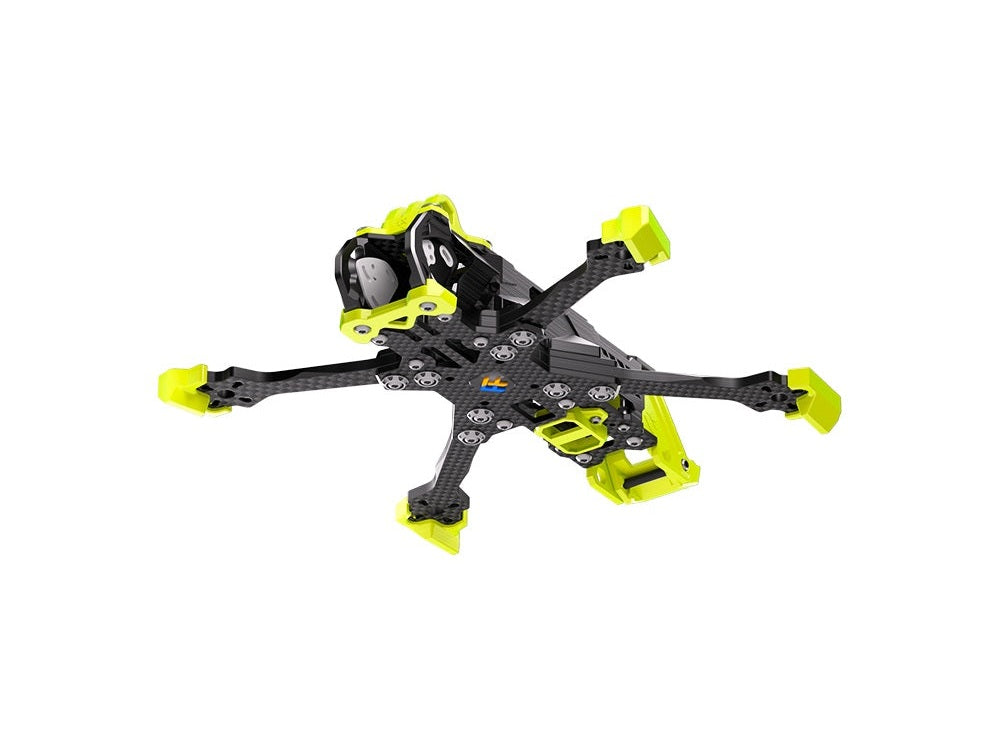

Flyfish RC Volador II VD4 O4 Pro Deadcat Frame Kit

The all-new Flying Fish Volador VD4, weighing 127g, features a DC layout, providing an unobstructed flight view without propellers in view. The newly designed CNC side plates paired with a silicone-damped camera mount perfectly match the O4 VTX, effectively address the jello effect, and delivering a smooth FPV experience.

Strong, Light, Stable, Simple Assembly

The main structure combines T700 carbon fiber with high-strength CNC aluminum alloy. Each edge is precision chamfered, achieving slight weight reduction while protecting cables for a premium, integrated finish. Innovative locking mechanisms physically suppress frame resonance, complemented by custom high-quality TPU components for more robustness and stability.

Versatile Compatibility, Efficient Damping

Dual mounting positions for the stack, VTX, and motors provide more flexibility, easily accommodating various ESCs, FCs, and most analog and HD VTX systems on the market. Includes all necessary accessories for both analog and HD builds. Specially designed silicone damping pads for the VTX camera effectively eliminate the DVR jello effect.

Specifications:

• Arm Thickness: 4mm
• Top Plate Thickness: 2mm
• Middle Plate Thickness: 2.5mm
• Bottom Plate Thickness: 2.5mm
• Brace Thickness: 4mm
• CNC Side Plate Thickness: 5mm
• Propeller Size: 4 inch
• Material: T700 Carbon Fiber
• FPV Camera Spacing: 19mm/20mm
• Weight: Approx. 127g (including printed parts)
• Color: Black/Yellow
• Frame Dimensions: 195*155*33mm
• Wheelbase: 183mm
• Flight Stack Mounting Holes: 20*20mm (M3) / 30.5*30.5mm (M3)
• Flight Stack Mounting Height: 22mm
• VTX Mounting Holes: 20*20mm (M2) / 25.5*25.5mm (M2)
• Motor Mounting Holes: 12*12mm (φ2mm) / 16×16mm (φ3mm)
