Speedy Bee Master 3X 3-Inch O4P Modular Frame Kit

The Master 3X Modular Frame features a refined version of the classic modular design. The standalone VTX unit helps reduce costs and is compatible with the Bee25 and other models, offering greater building flexibility than ever before. Its unique balanced head lock ensures that the props remain clear during flight, allowing for confident maneuvers without the risk of strikes. The new X-frame design has a low center of gravity, providing stable and sharp control that feels just right!

Specifications:

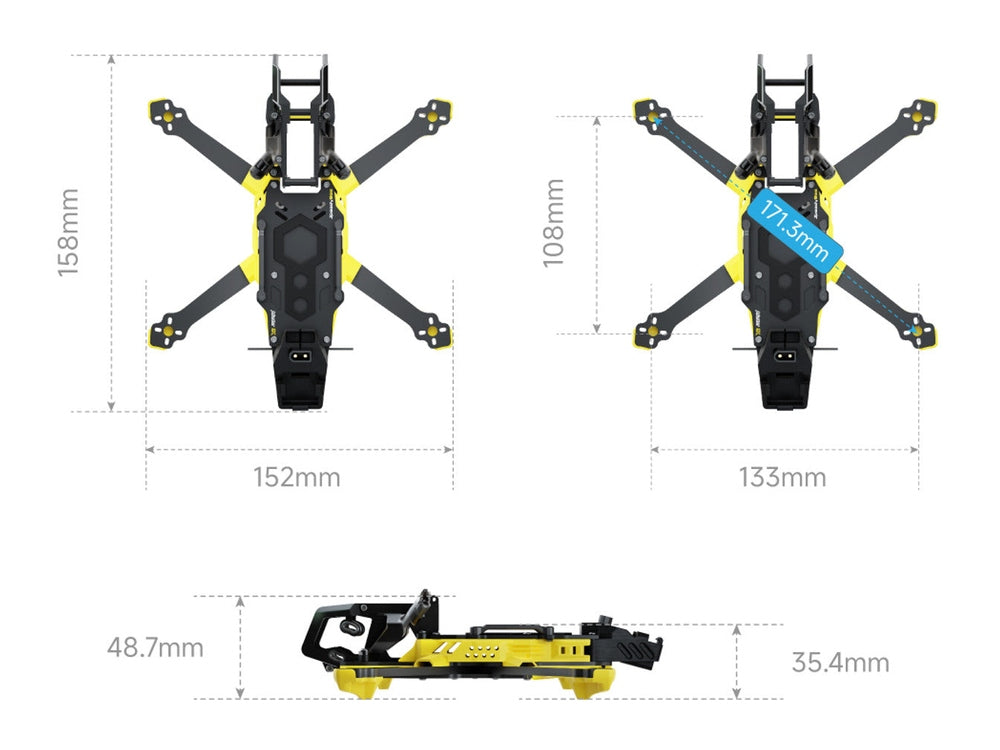

• Wheelbase:  171mm
• Top Plate:  2.0mm
• Middle Plate:  2.0mm
• Bottom Plate:  2.0mm
• Arms:  4.0mm
• Camera Pitch:  19/20mm
• Stack Height Supported:  11mm
• Stack Mounting Holes:  25.5*25.5mm
• Compatible VTX:  O4 Pro
• Propeller Size:  3-3.6 Inches
• Motor Mounting Holes:  9-12mm
• Weight:  87+/- 2g (without head)
• Recommended Motor:  1507/1804/2004/2006/2105.5
• Recommended KV:  4S 3000KV-3600KV, 6S 2200-2750KV
• Max Battery Size:  67mm (L) x 31mm (W) x 40mm (H)
• Recommended Battery:  4S LiPo / LiHv 750mAh-1100mAh, 6S 65-850mAh
• GPS Supported Size:  18.1*18.1mm
