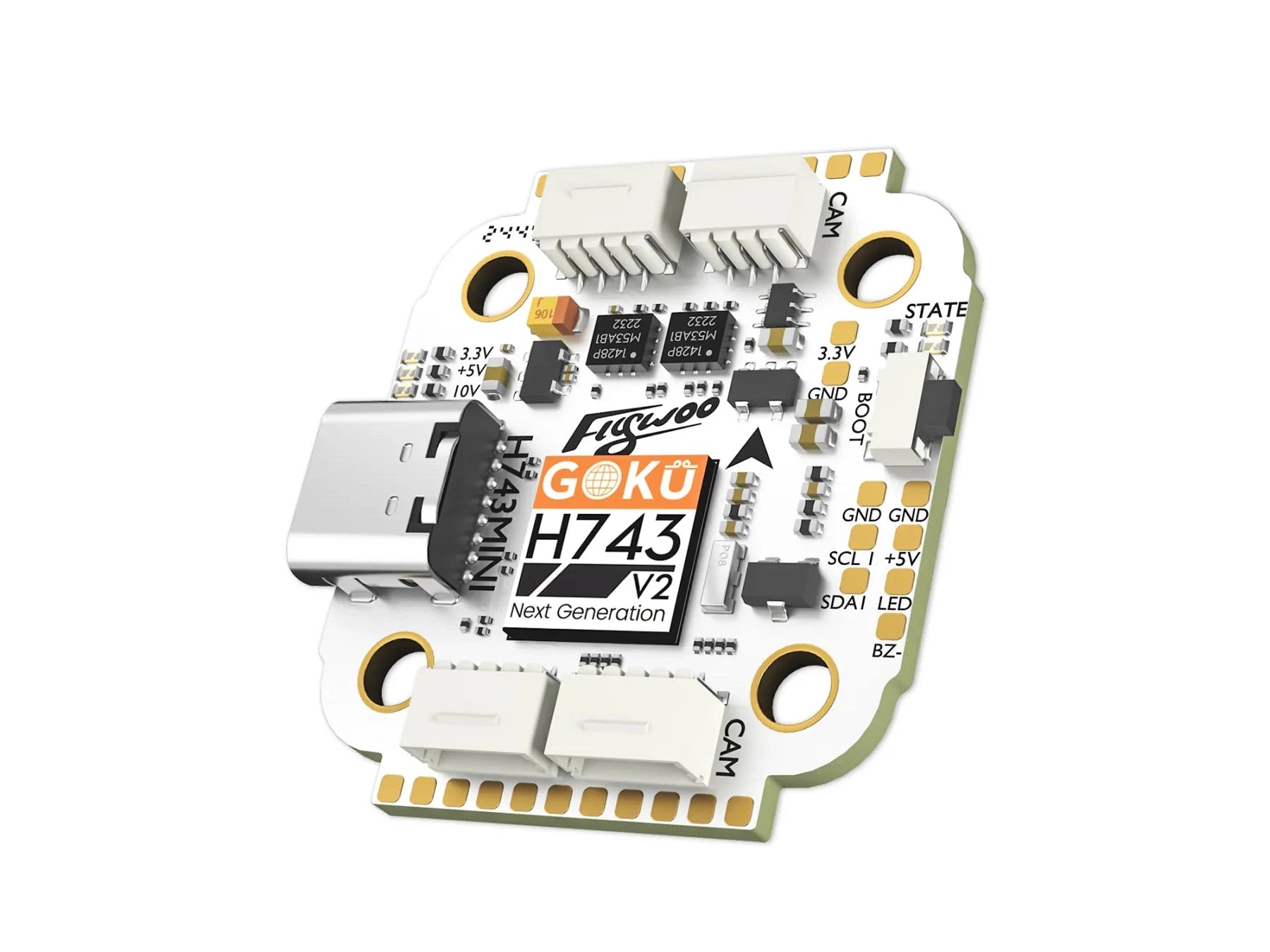

Flywoo Goku H743 Pro Mini V2 20x20 Flight Controller
GOKU H743 Pro Mini V2 is Flywoo’s flagship flight controller.
It features an STM32H743VIH6 chip (480MHz Cortex-M7 core) and dual ICM42688P gyros. It offers 512MB blackbox, 10V2A/5V2A dual BECs, and 8 motor outputs for X8 multi-rotor. It works with Betaflight, INAV, and Ardupilot, and includes a buzzer, dual-camera control, analog/DJI VTX, GPS, RX ports, and dual ESC connectors.
Paired with the GOKU G45M 45A ESC, it delivers fast, precise handling for racing and freestyle.
Features:
- Powerful Computing: 480MHz STM32H743 chip enables future complex feature expansion.
- Dual Gyro Stability: ICM42688P dual gyroscopes reduce noise/latency for smoother flight.
- Efficient Power: Dual 10V/5V 2A BEC provides stable power for peripherals.

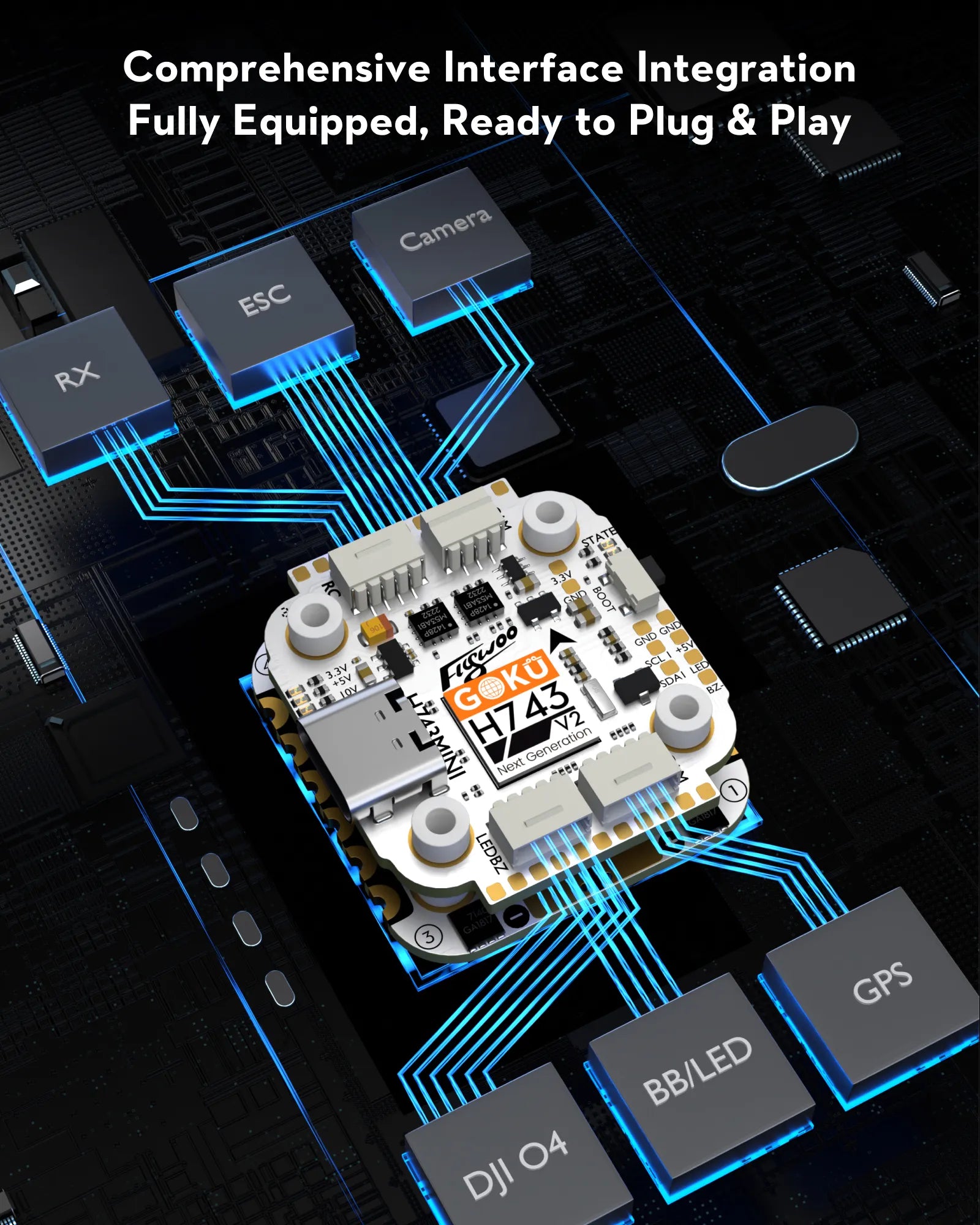

- Versatile I/O: 7 UART ports + 8 motor outputs (X8 multi-rotor support) with integrated dual-camera switching, VTX, GPS, receiver, and dual ESC interfaces.
- Multi-Firmware Compatibility: Works with Betaflight, INAV, and Ardupilot.
- Massive Storage: 512MB blackbox logs full flight data for analysis.
Specifications:
- BetaFlight Firmware: Flywoo H743PRO
- INAV Firmware: Flywoo H743PRO
- APM Firmware: Flywoo H743PRO
- Flash: 512MB
- MCU: STM32H743VIH6
- Gyroscope: ICM42688P*2
- OSD: AT7456E(LGA16)
- Barometer: DPS310/SPL06
- Black Box: 512MB
- UARTS: 1/2/3/4/6/7/8
- I2C:1
- PWM:12
- Input Voltage: 7.4V-26V/2-6S LiPo/LiHV
- BEC: 10V2A/5V2A
- Camera support： CAM1,CAM2

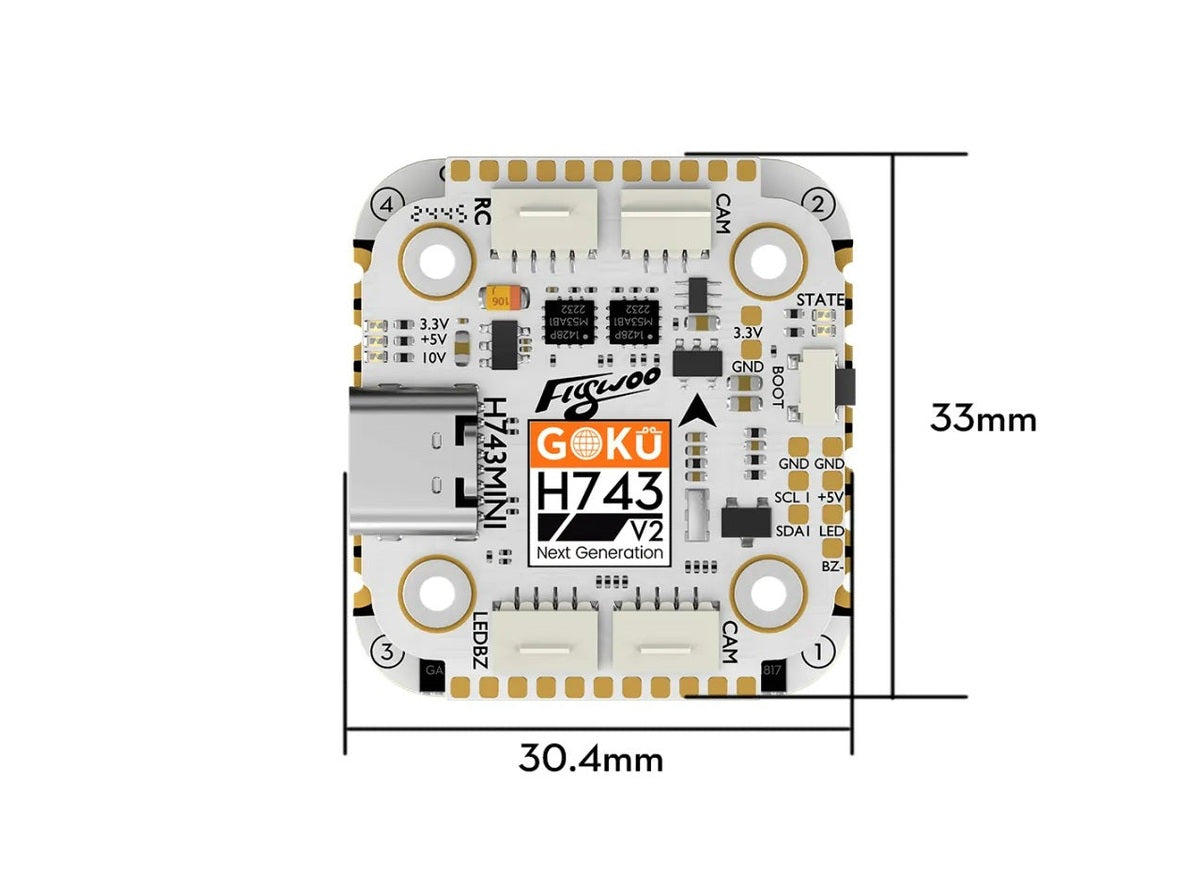

- Flight Controller Size: 32mm x 29mm x 8.4mm（Height including plug）
- Mounting Holes: M2 20x20mm

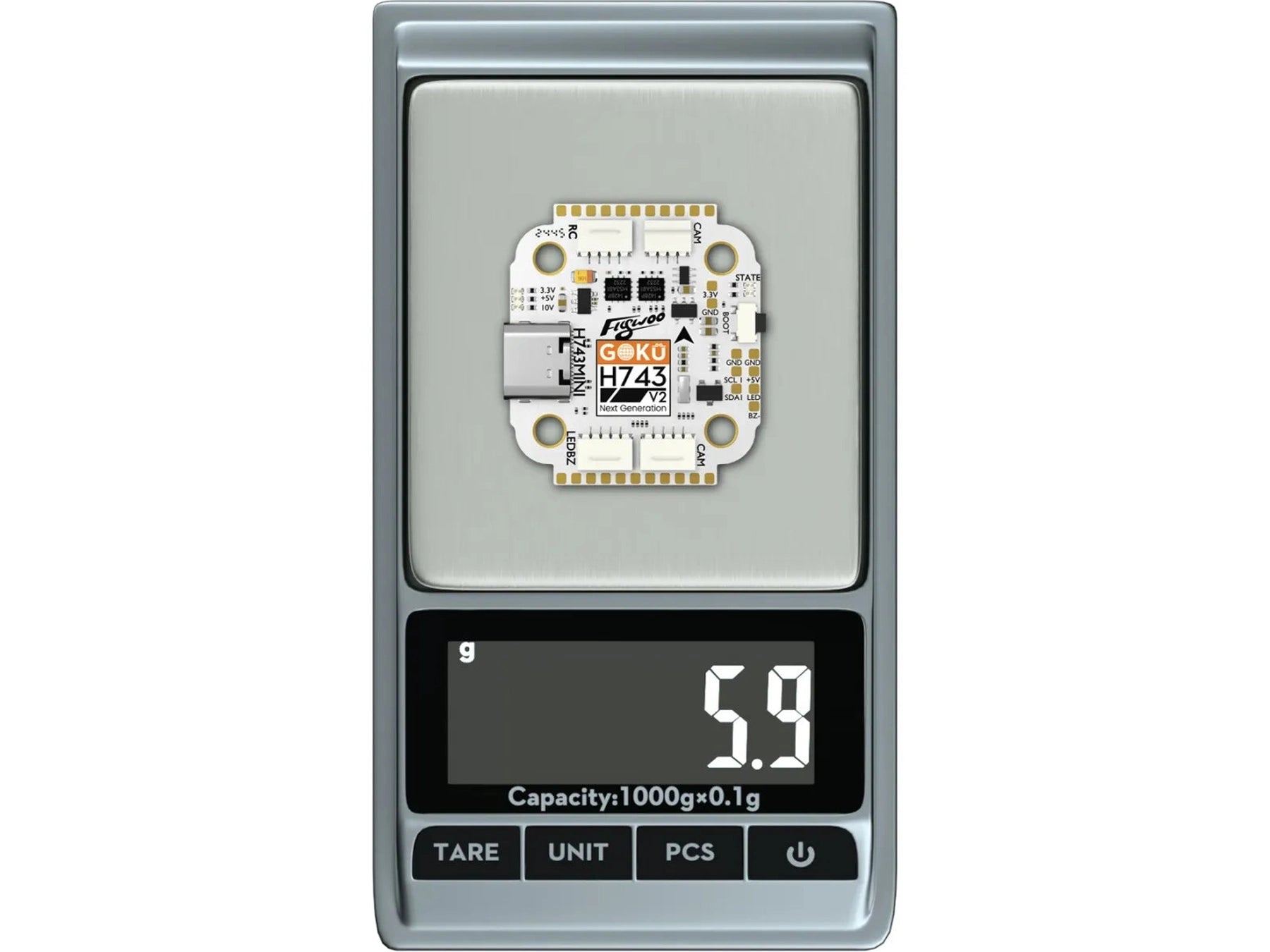

- Weight: 5.8g
Includes:
1x Flywoo Goku H743 Pro Mini V2 20x20 Flight Controller
