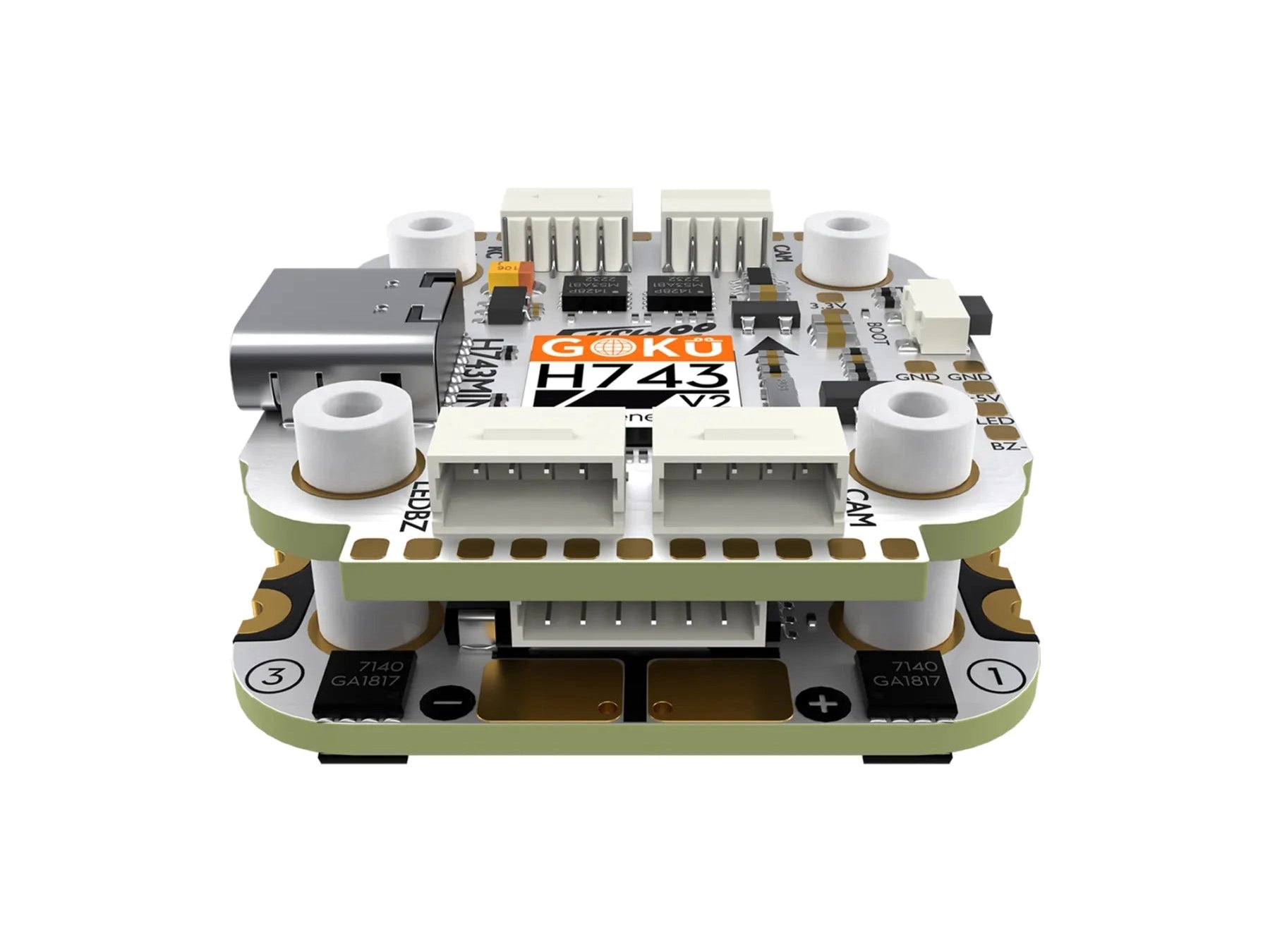

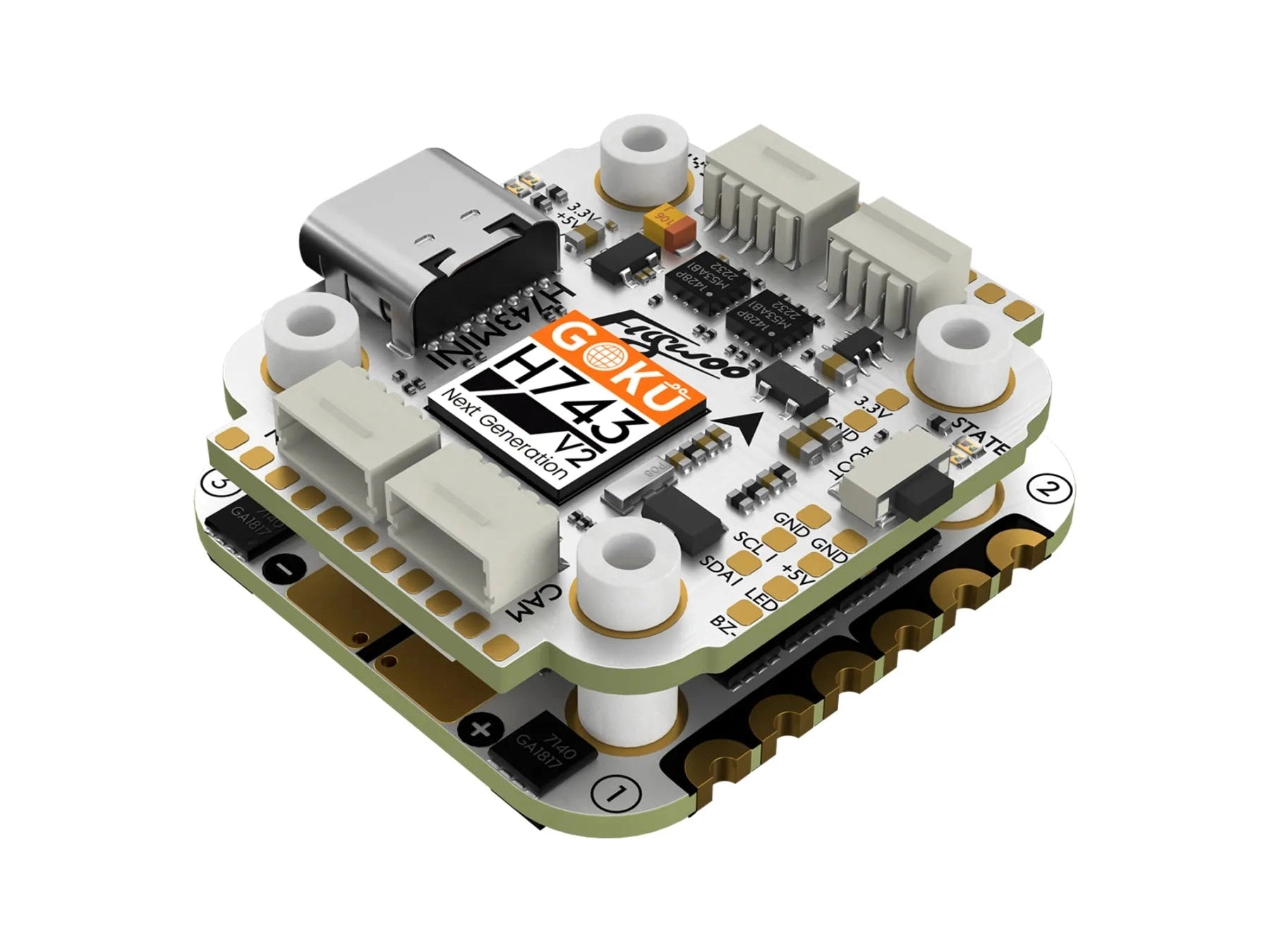

Flywoo Goku H743 Pro Mini V2 45A 128K 20x20 Stack
GOKU H743 Pro Mini V2 45A 128K Stack is Flywoo’s flagship flight controller and ESC combo.
It features an STM32H743VIH6 chip (480MHz Cortex-M7 core) and dual ICM42688P gyros. It offers 512MB blackbox, 10V2A/5V2A dual BECs, and 8 motor outputs for X8 multi-rotor. It works with Betaflight, INAV, and Ardupilot, and includes a buzzer, dual-camera control, analog/DJI VTX, GPS, RX ports, and dual ESC connectors.
Paired with the GOKU G45M 45A ESC, it delivers fast, precise handling for racing and freestyle.
Features:
- Powerful Computing: A 480MHz STM32H743 chip enables future expansion of complex features.
- Dual Gyro Stability: ICM42688P dual gyroscopes reduce noise/latency for smoother flight.
- Efficient Power: Dual 10V/5V 2A BEC provides stable power for peripherals.
- Versatile I/O: 7 UART ports + 8 motor outputs (X8 multi-rotor support) with integrated dual-camera switching, VTX, GPS, receiver, and dual ESC interfaces.
- Multi-Firmware Compatibility: Works with Betaflight, INAV, and Ardupilot.
- Massive Storage: 512MB blackbox logs full flight data for analysis.
Specifications:
- BetaFlight Firmware: Flywoo H743PRO
- INAV Firmware: Flywoo H743PRO
- APM Firmware: Flywoo H743PRO
- Flash: 512MB
- MCU: STM32H743VIH6
- Gyroscope: ICM42688P*2
- OSD: AT7456E(LGA16)
- Barometer: DPS310/SPL06
- Black Box: 512MB
- UARTS: 1/2/3/4/6/7/8
- I2C:1
- PWM:12
- Input Voltage: 7.4V-26V/2-6S LiPo/LiHV
- BEC: 10V2A/5V2A
- Camera support： CAM1,CAM2

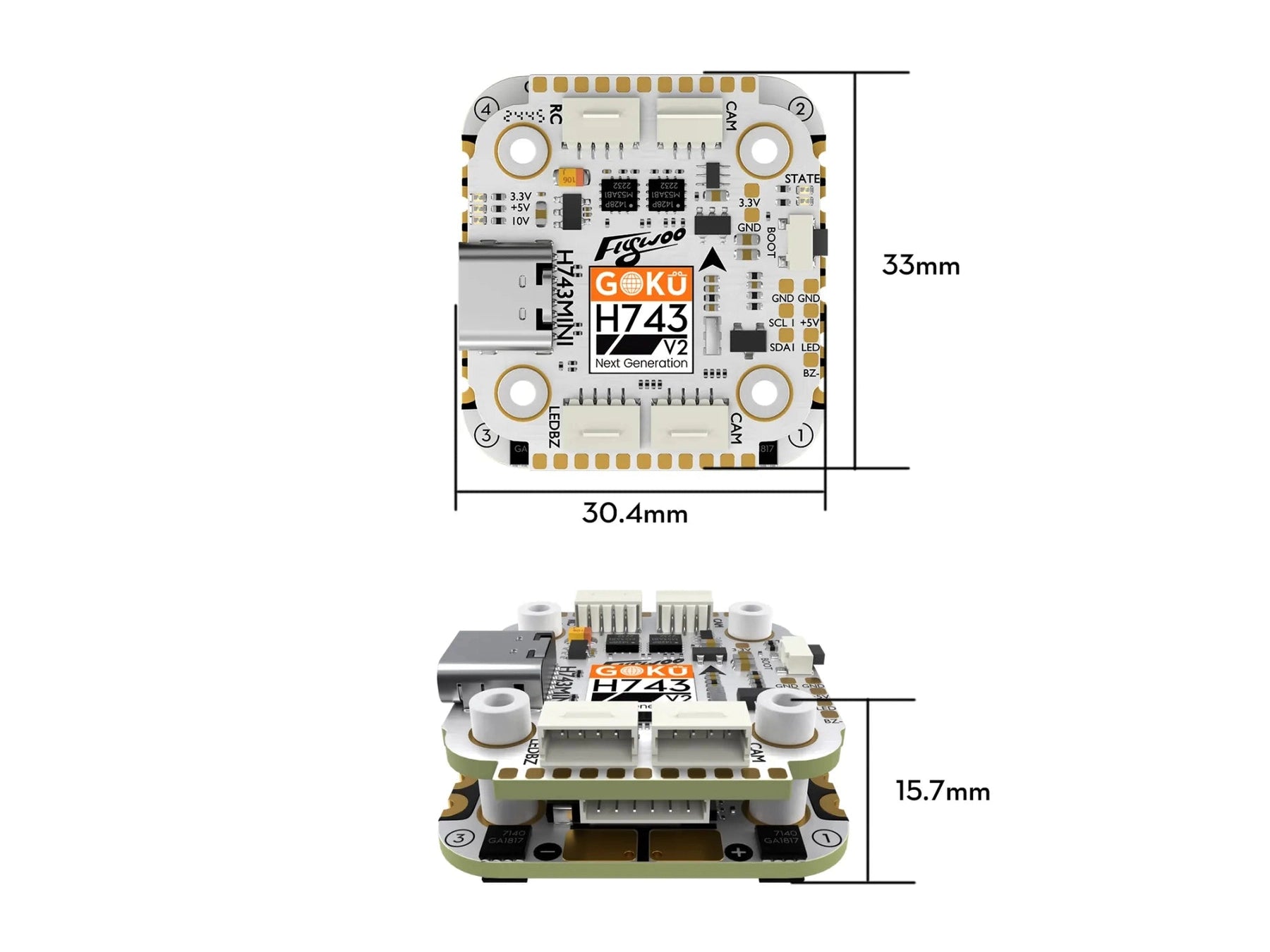

- Flight Controller Size: 32mm x 29mm x 8.4mm（Height including plug）
- Mounting Holes: M2 20x20mm
- Weight: 5.8g

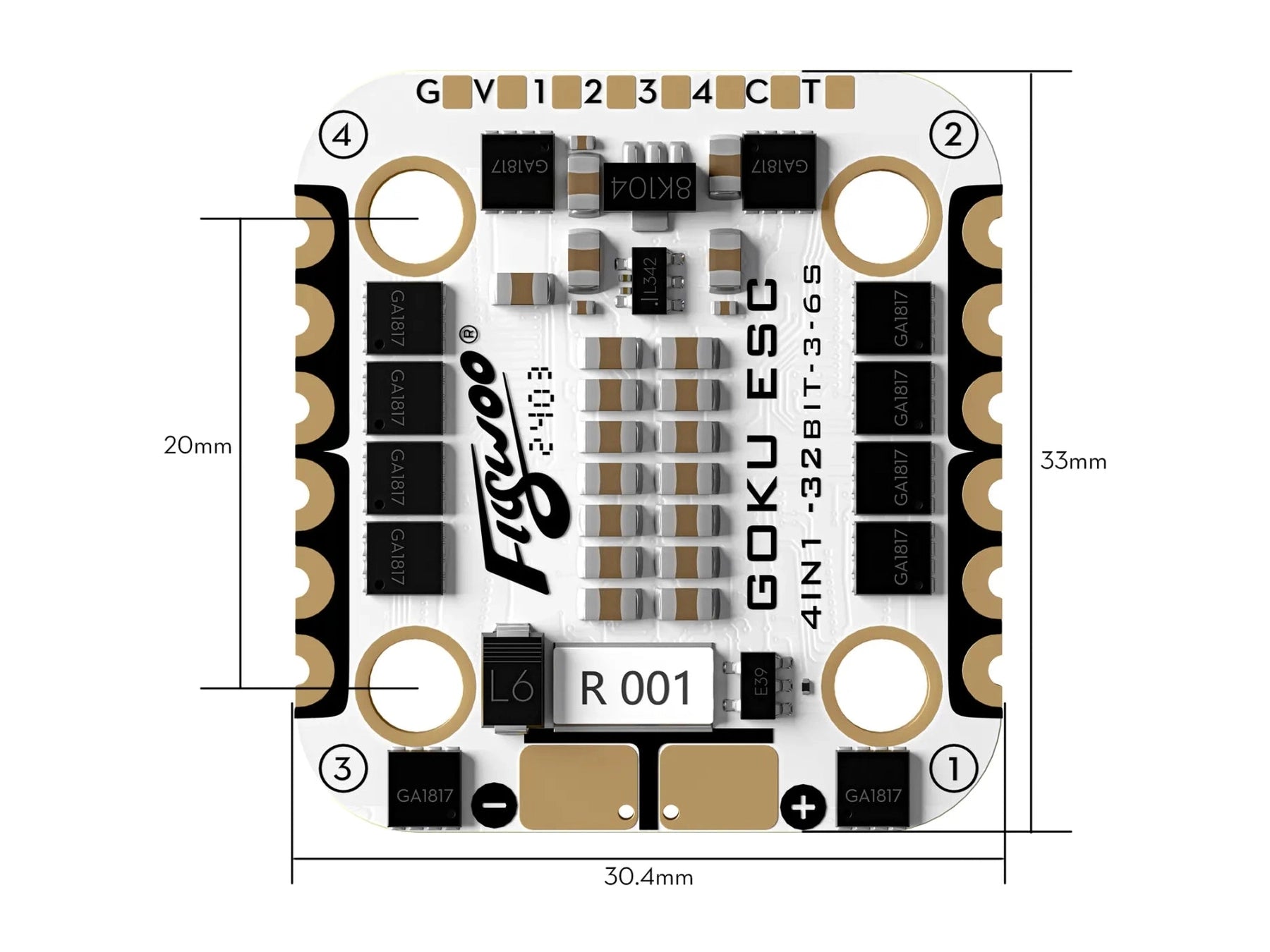

Goku G45M AM32 4-In-1 ESc
- Support BL32 / AM32
- Support Dshot300, Dshot600，Dshot1200
- PWM frequency: 24k-128k
- Input Voltage: 3-6S Lipo
- Continuous Current: 45A
- Firmware: AM32：AT32DEVF421

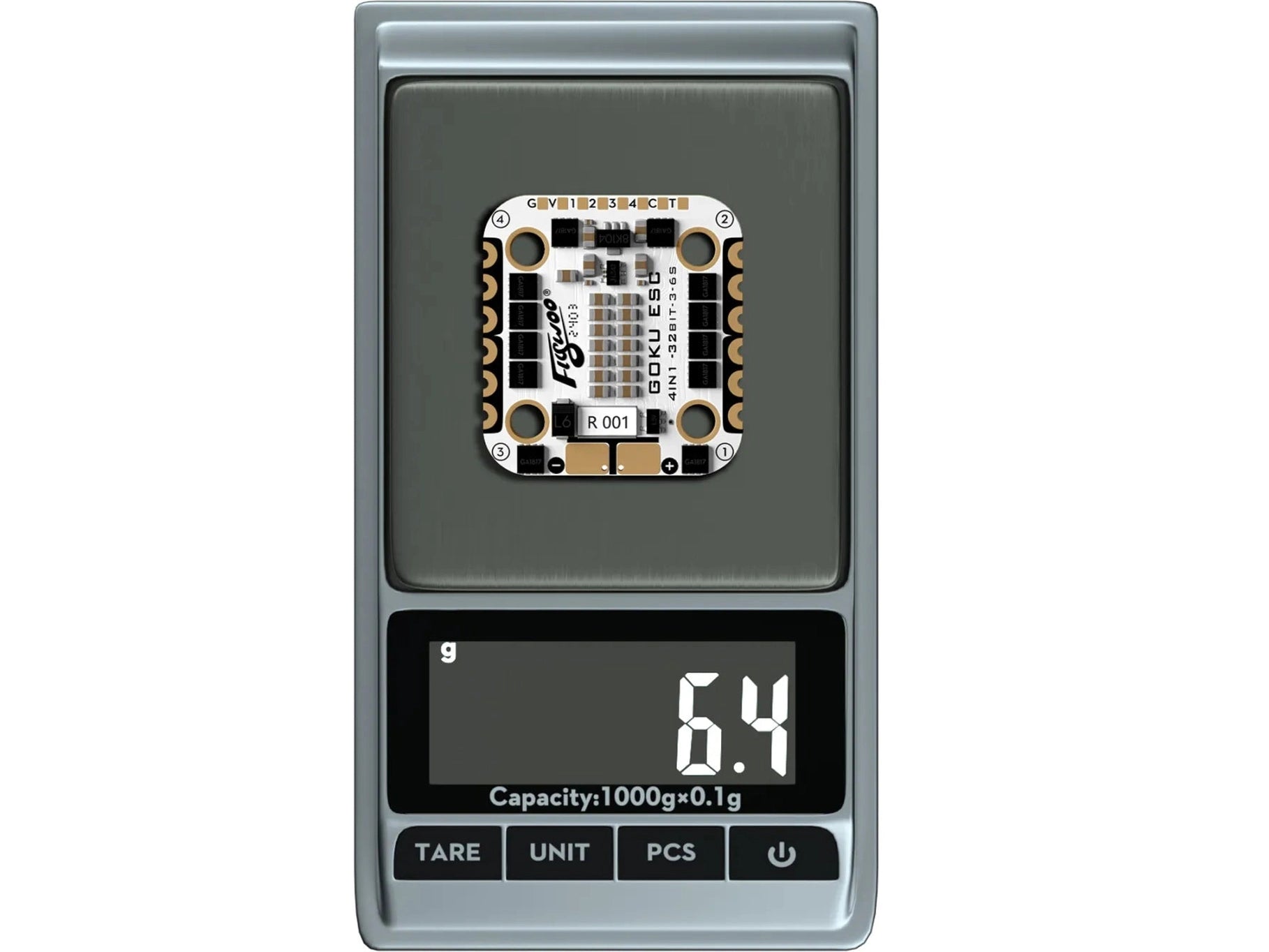

- Weight: 6.4g
Includes:
1x Flywoo Goku H743 Pro Mini V2 20x20 Flight Controller
1x Flywoo Goku G45M 45A 20x20 AM32 4-In-1 ESC
1x FC&ESC Connection Cable
1x DJI O4/O4P Connection Cable
1x Buzzer Connection Cable
1x Receiver Connection Cable
1x GPS Connection Cable
2x Camera Connection Cable
1x XT30 Power Cable
5x M3 Shock-Absorbing Ball
9x M2 Shock-Absorbing Ball
1x Capacitors
5x Anti-Slip Nuts
