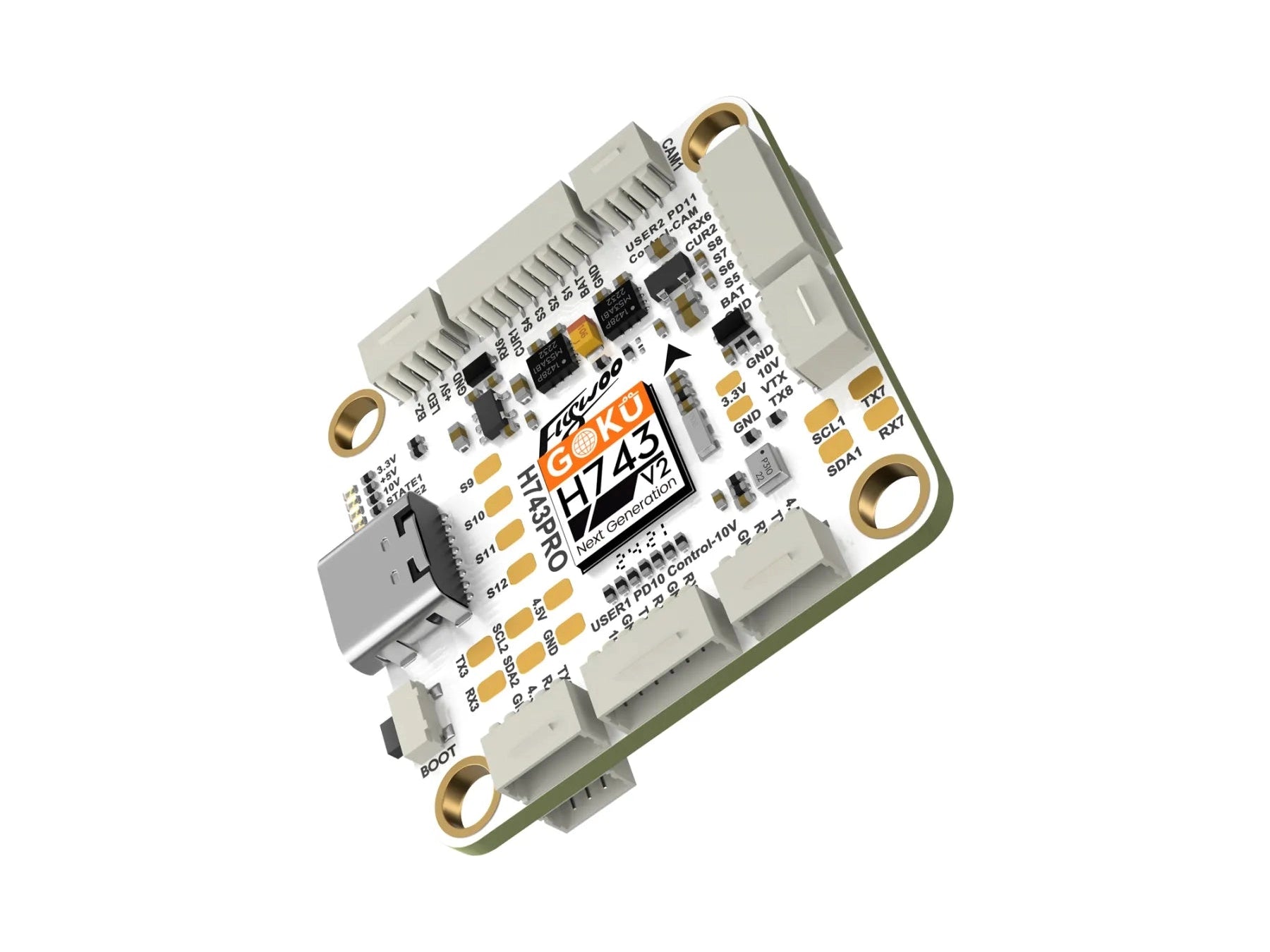

Flywoo Goku H743 Pro V2 30x30 Flight Controller
Goku H743 Pro V2 flight controller features an STM32H743VIH6 chip (480MHz Cortex-M7 core) and dual ICM42688P gyros. It offers 512MB Blackbox, 10V3A/5V3A dual BECs, and 8 motor outputs for X8 multi-rotor. Works with Betaflight, iNav, and Ardupilot, and includes buzzer, dual-camera control, analog/DJI VTX, GPS, RX ports, and dual ESC connectors. Paired with the Goku G55M 55A ESC, it delivers fast, precise handling for racing and freestyle.
Features:
- Powerful Computing: 480MHz STM32H743 chip enables future complex feature expansion.
- Dual Gyro Stability: ICM42688P dual gyroscopes reduce noise/latency for smoother flight.
- Efficient Power: Dual 10V/5V 3A BEC provides stable power for peripherals.
- Versatile I/O: 7 UART ports + 8 motor outputs (X8 multi-rotor support) with integrated dual-camera switching, VTX, GPS, receiver, and dual ESC interfaces.
- Multi-Firmware Compatibility: Works with Betaflight, INAV, and Ardupilot.
- Massive Storage: 512MB blackbox logs full flight data for analysis.
Specifications:
- BetaFlight Firmware: Flywoo H743PRO
- INAV Firmware: Flywoo H743PRO
- APM Firmware: Flywoo H743PRO
- Flash: 512MB
- MCU: STM32H743VIH6
- Gyroscope: ICM42688P*2
- OSD: AT7456E(LGA16)
- Barometer: DPS310/SPL06
- Black Box: 512MB
- UARTS: 1/2/3/4/6/7/8
- I2C: 2
- PWM: 12
- Input Voltage: 7.4V-26V/2-6S LiPo/Lihv
- BEC: 10V3A/5V3A
- Camera support: CAM1,CAM2

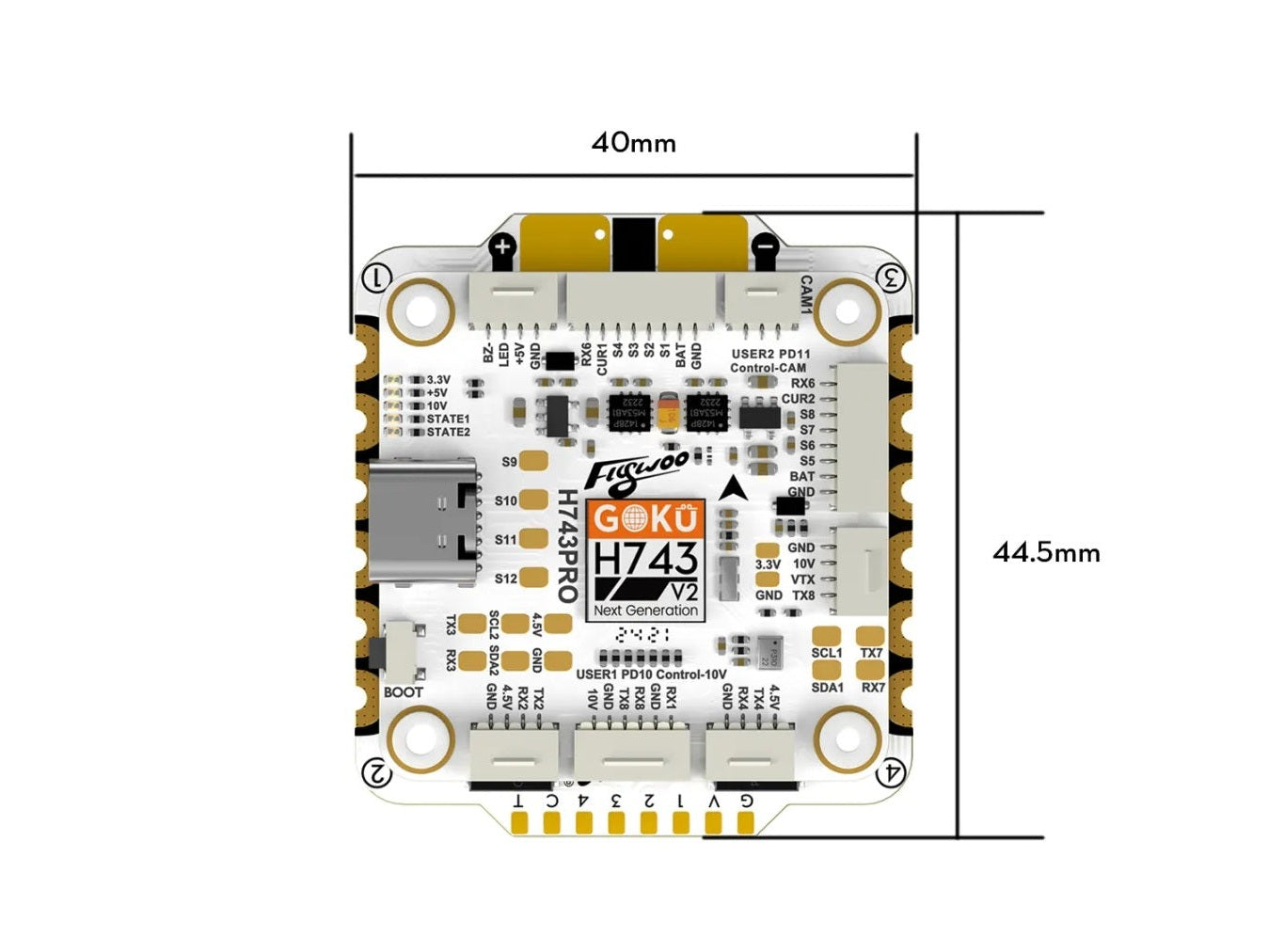

- Flight Controller Size: 36.5mm x 36.5mm x 8.45mm（Height including plug）
- Mounting Holes: M3 30x30mm

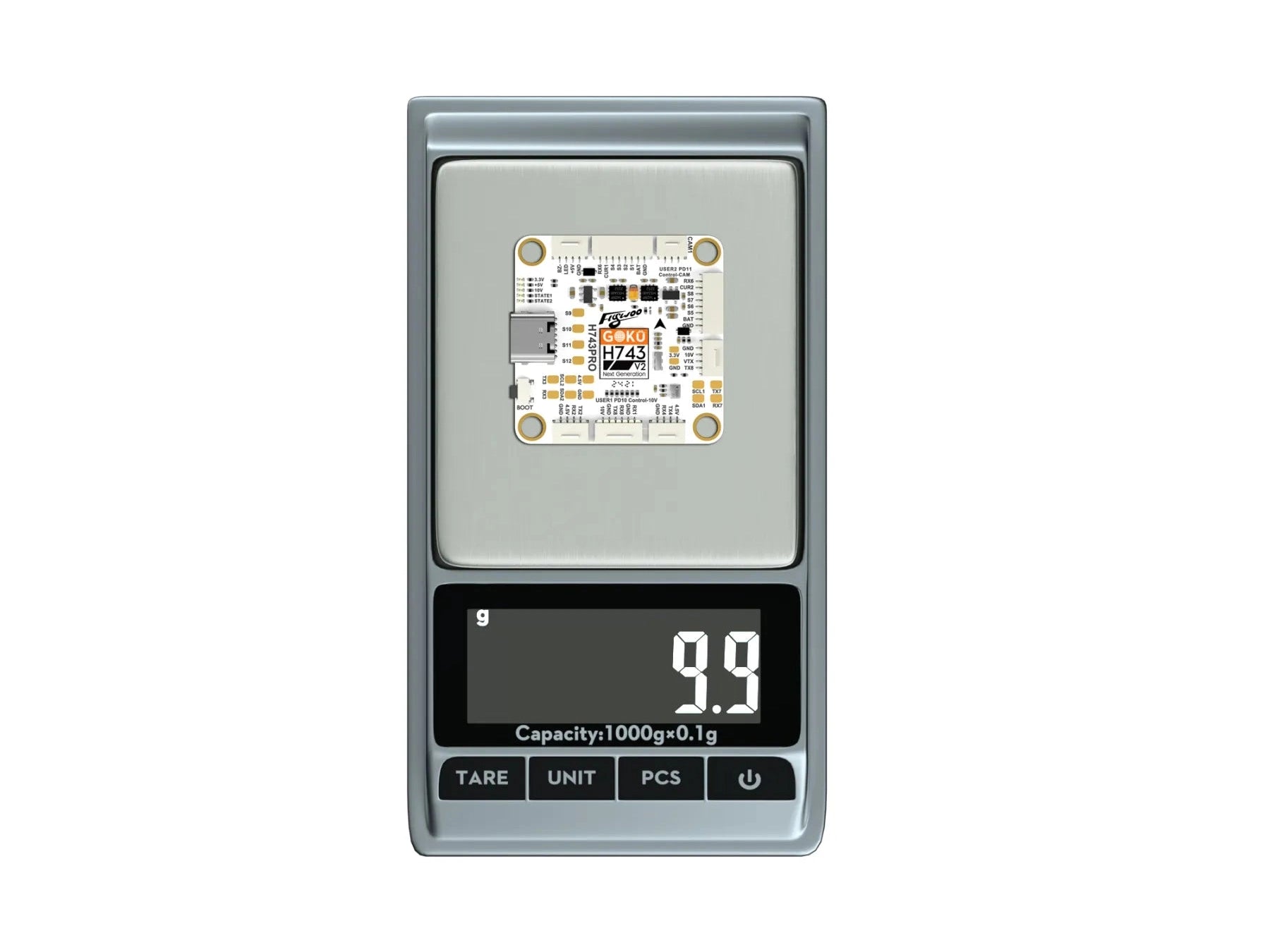

- Weight: 9.9g
Includes:
1x Flywoo Goku H743 Pro V2 30x30 Flight Controller
