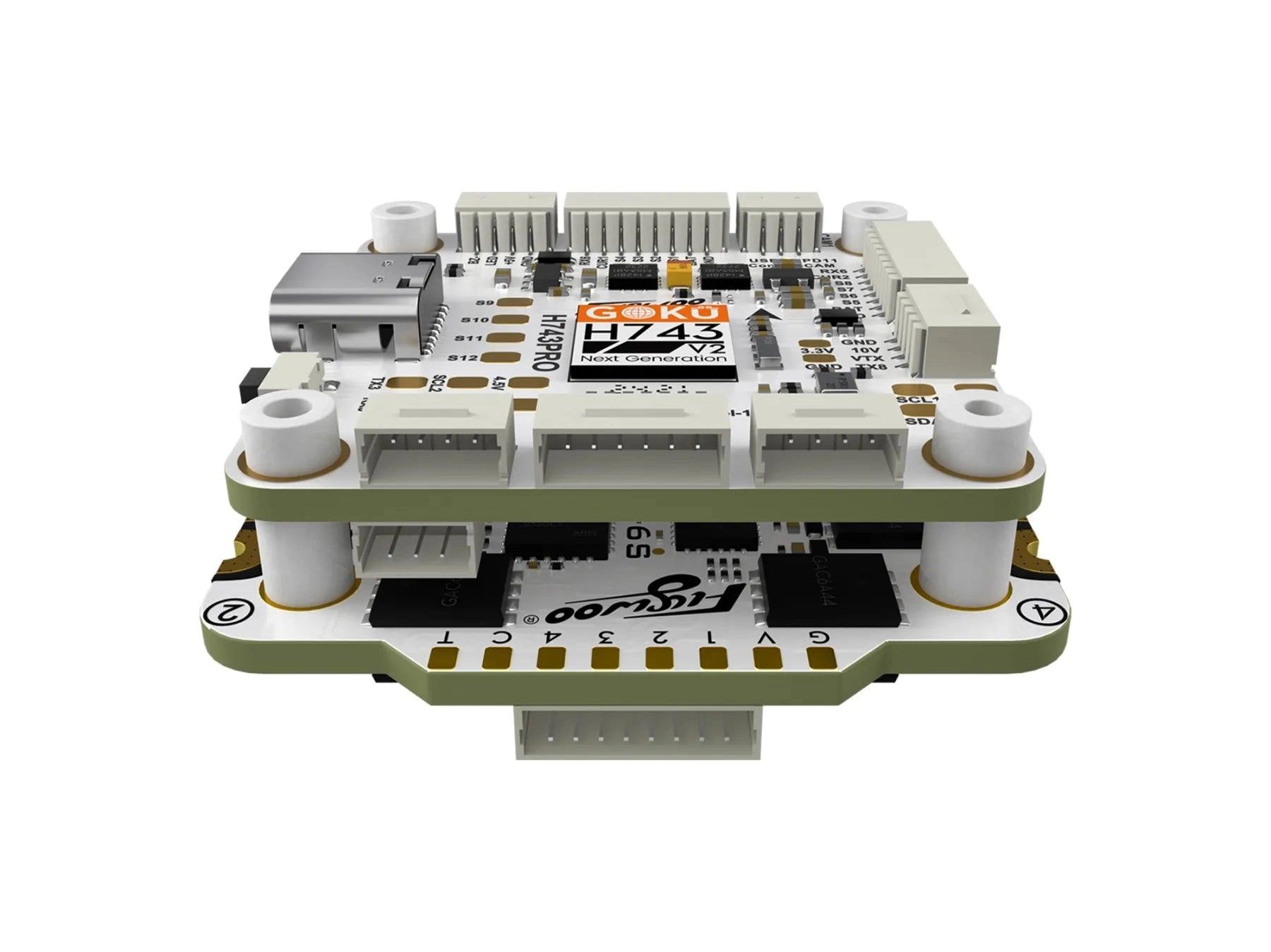

Flywoo Goku H743 Pro V2 55A 128K 30x30 AM32 Stack
GOKU H743 Pro 32-bit 55A Stack is Flywoo’s flagship flight controller and ESC combo.
It features an STM32H743VIH6 chip (480MHz Cortex-M7 core) and dual ICM42688P gyros.
It offers 512MB blackbox, 10V3A/5V3A dual BECs, and 8 motor outputs for X8 multi-rotor.
It works with Betaflight, INAV, and Ardupilot, and includes a buzzer, dual-camera control, analog/DJI VTX, GPS, RX ports, and dual ESC connectors.
Paired with the GOKU G55M 55A ESC, it delivers fast, precise handling for racing and freestyle.
Features:
- Powerful Computing: 480MHz STM32H743 chip enables future complex feature expansion.
- Dual Gyro Stability: ICM42688P dual gyroscopes reduce noise/latency for smoother flight.
- Efficient Power: Dual 10V/5V 3A BEC provides stable power for peripherals.
- Versatile I/O: 7 UART ports + 8 motor outputs (X8 multi-rotor support) with integrated dual-camera switching, VTX, GPS, receiver, and dual ESC interfaces.
- Multi-Firmware Compatibility: Works with Betaflight, INAV, and Ardupilot.
- Massive Storage: 512MB blackbox logs full flight data for analysis.
Specifications:

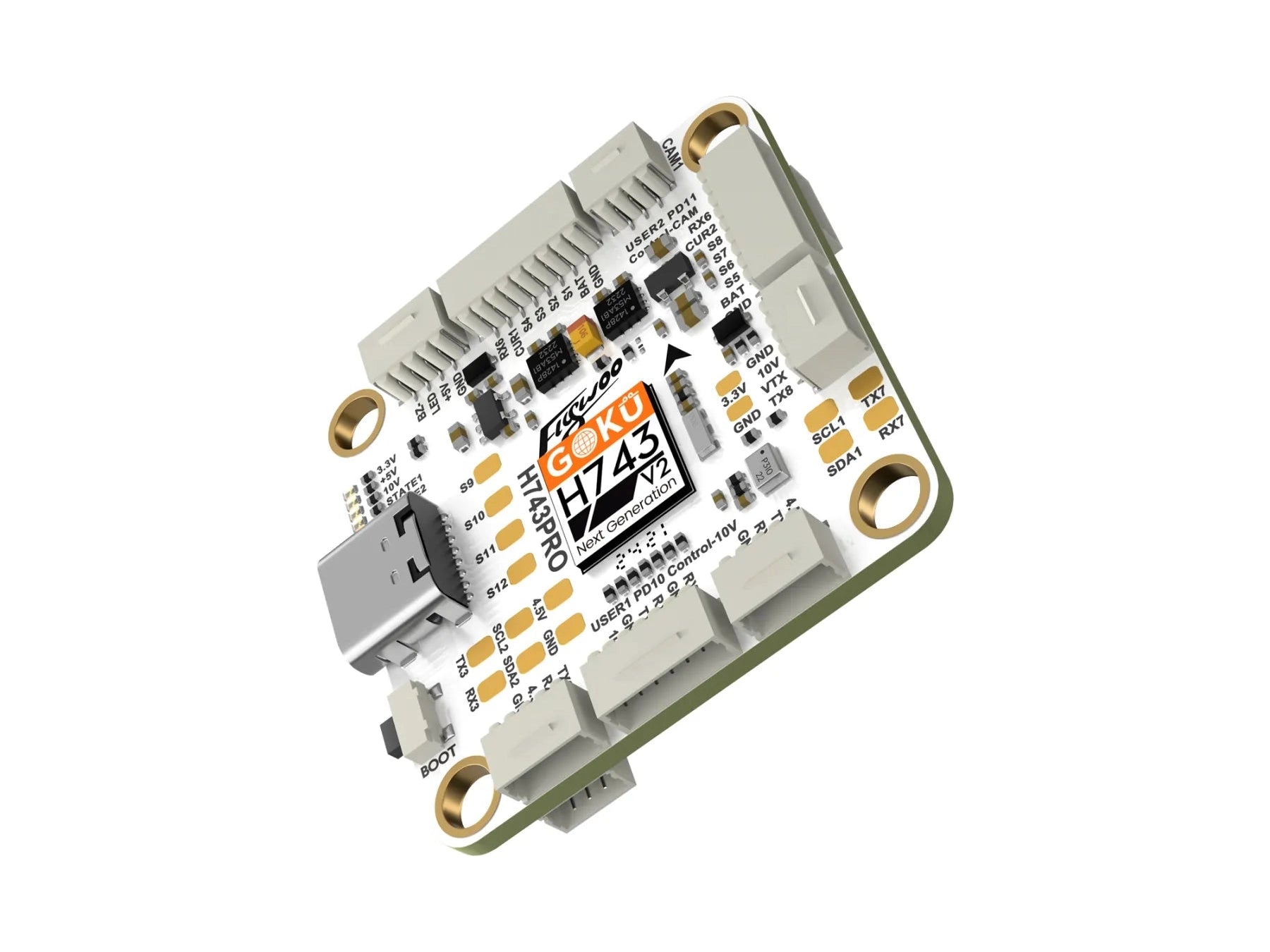

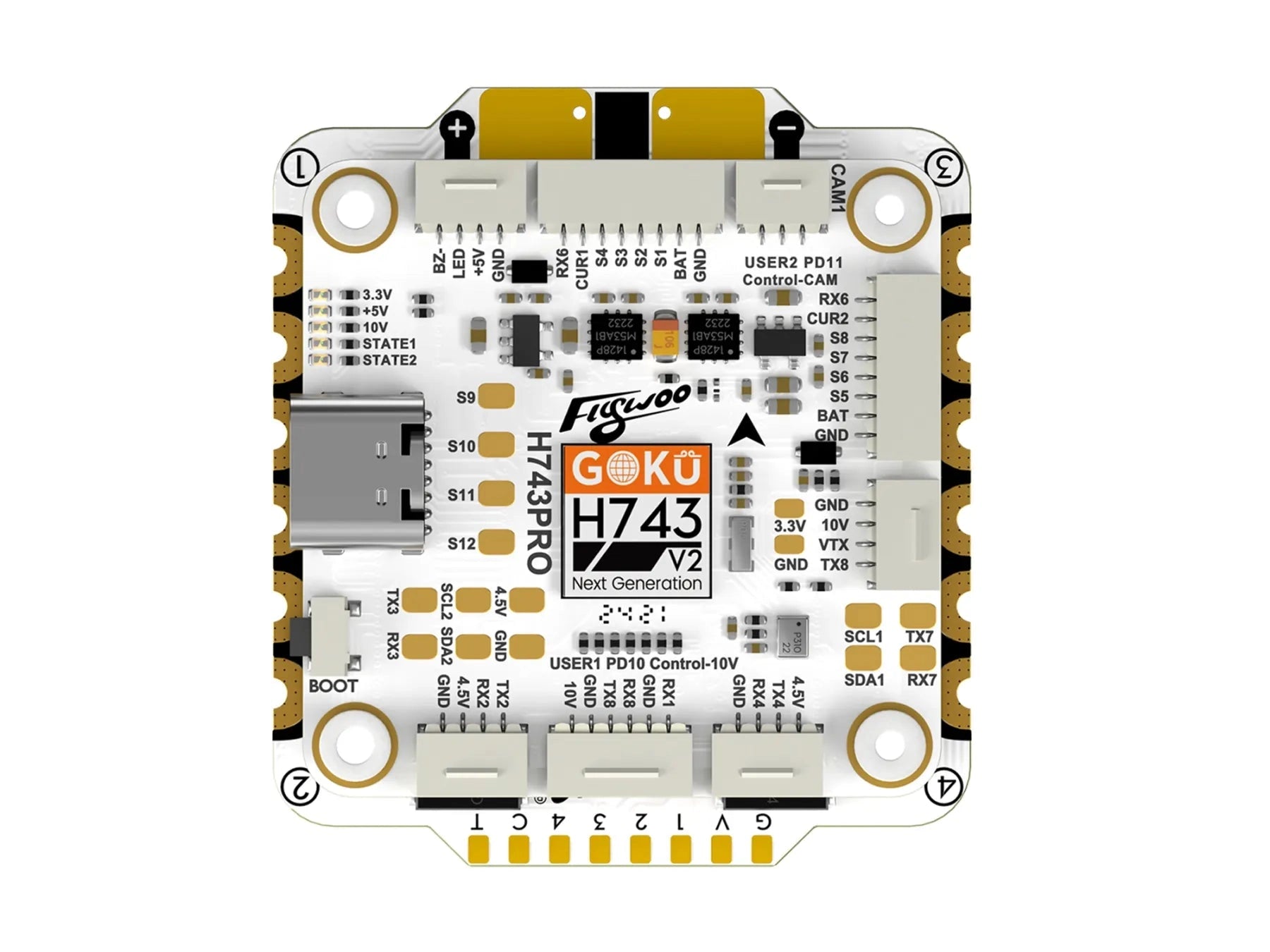

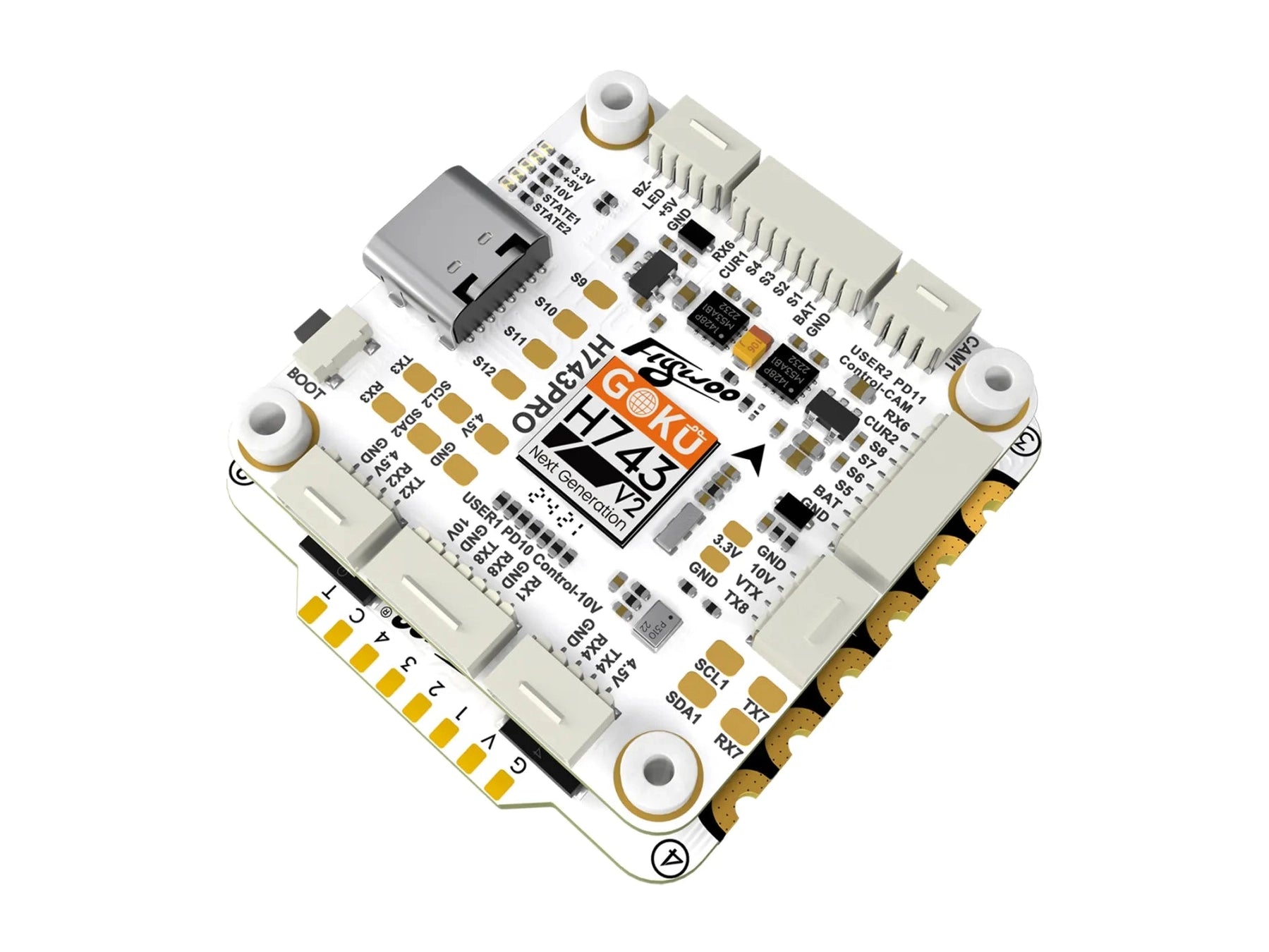

GOKU H743 PRO Flight Controller
- BetaFlight Firmware: Flywoo H743PRO
- INAV Firmware: Flywoo H743PRO
- APM Firmware: Flywoo H743PRO
- Flash: 512MB
- MCU: STM32H743VIH6
- Gyroscope: ICM42688P*2
- OSD: AT7456E(LGA16)
- Barometer: DPS310/SPL06
- Black Box: 512MB
- UARTS: 1/2/3/4/6/7/8
- I2C: 2
- PWM: 12
- Input Voltage: 7.4V-26V/2-6S LiPo/Lihv
- BEC: 10V3A/5V3A
- Camera support: CAM1,CAM2

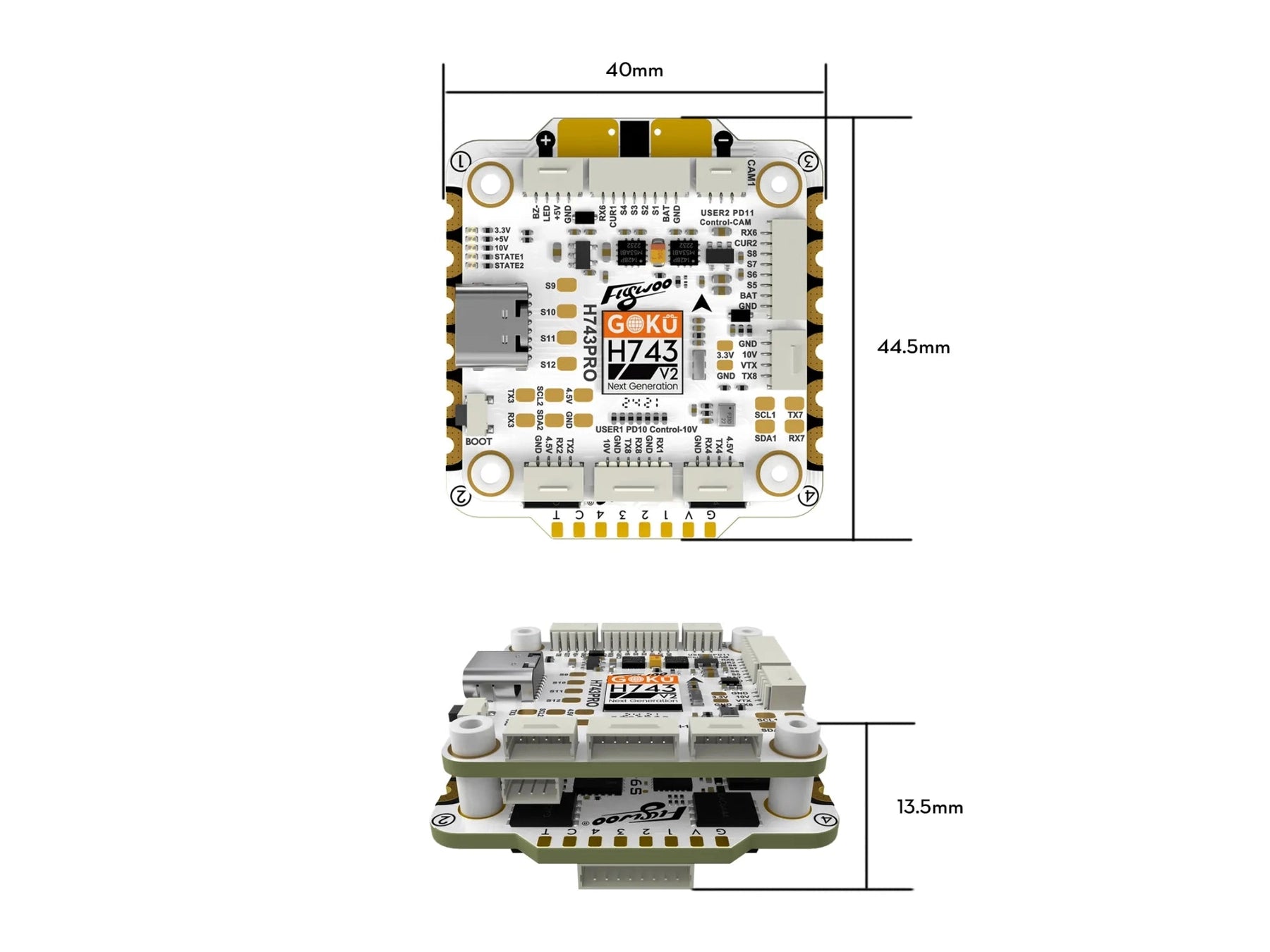

- Flight Controller Size: 36.5mm x 36.5mm x 8.45mm（Height including plug）
- Mounting Holes: M3 30x30mm

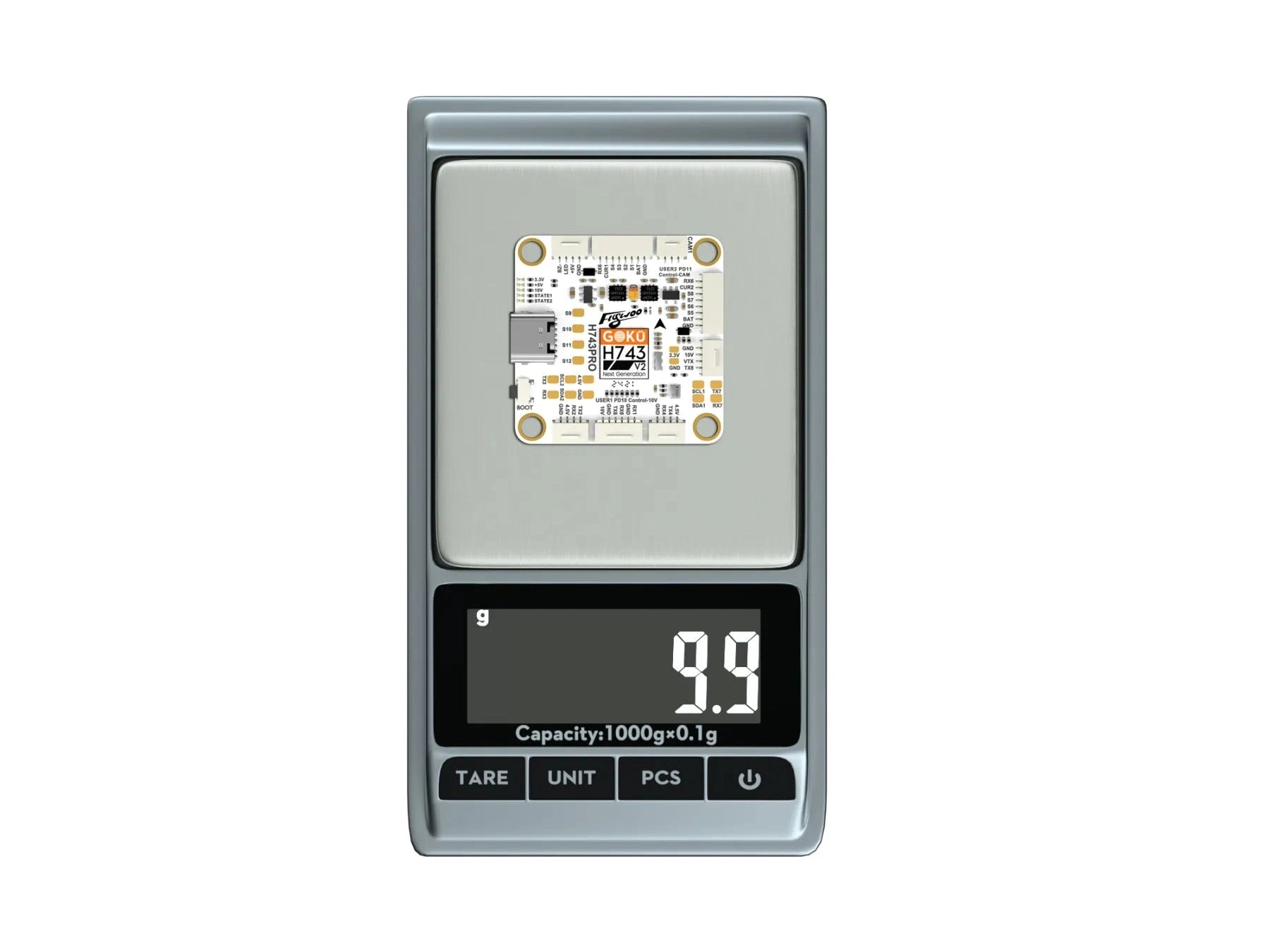

- Weight: 9.9g

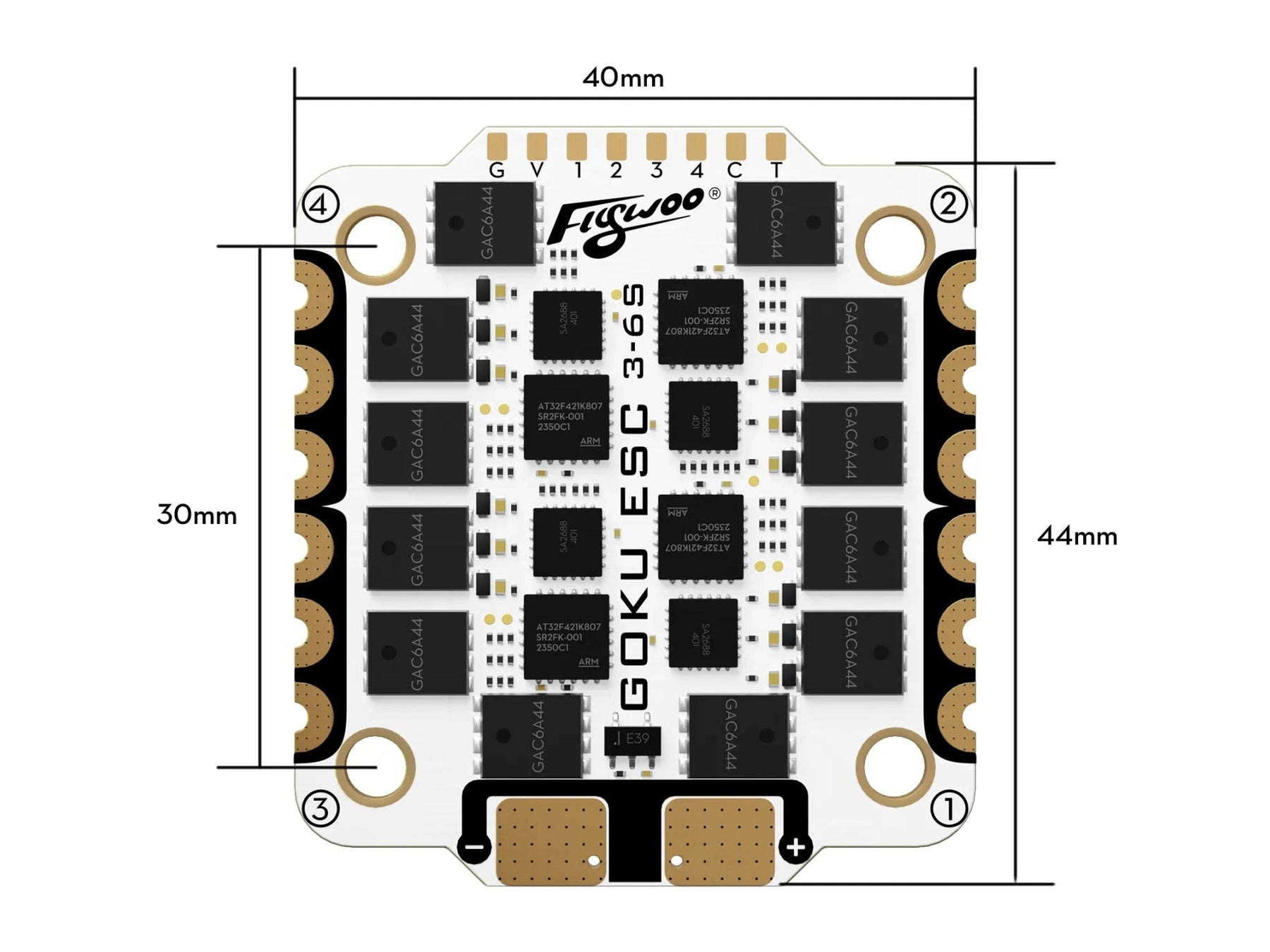

GOKU G55M AM32 4in1 ESC
- Support AM32
- Support Dshot300, Dshot600
- PWM frequency: 24k-128k
- Input Voltage: 3-6S Lipo
- Continuous Current: 55A
- Firmware: AM32：AT32DEVF421

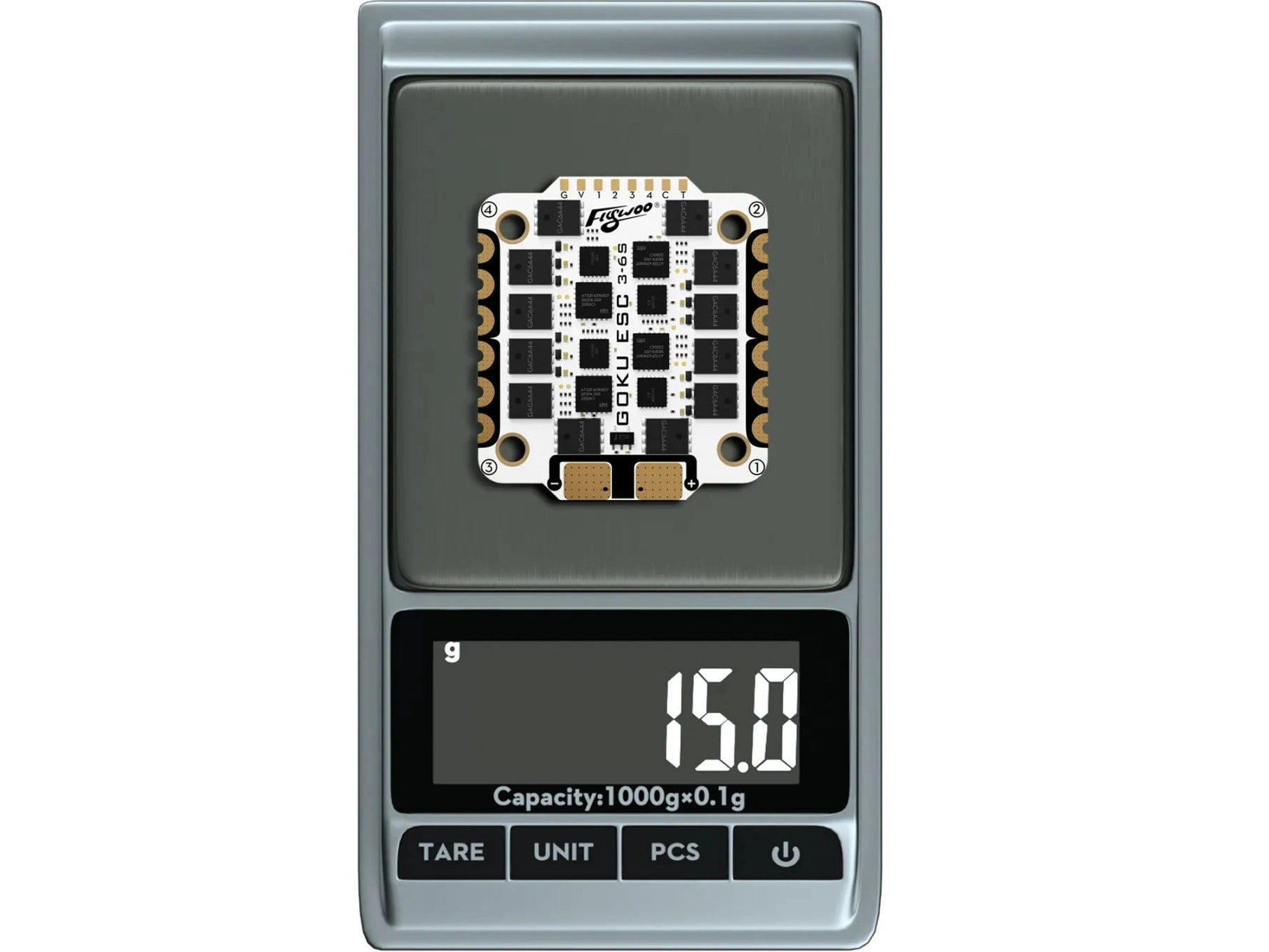

- Weight: 15g

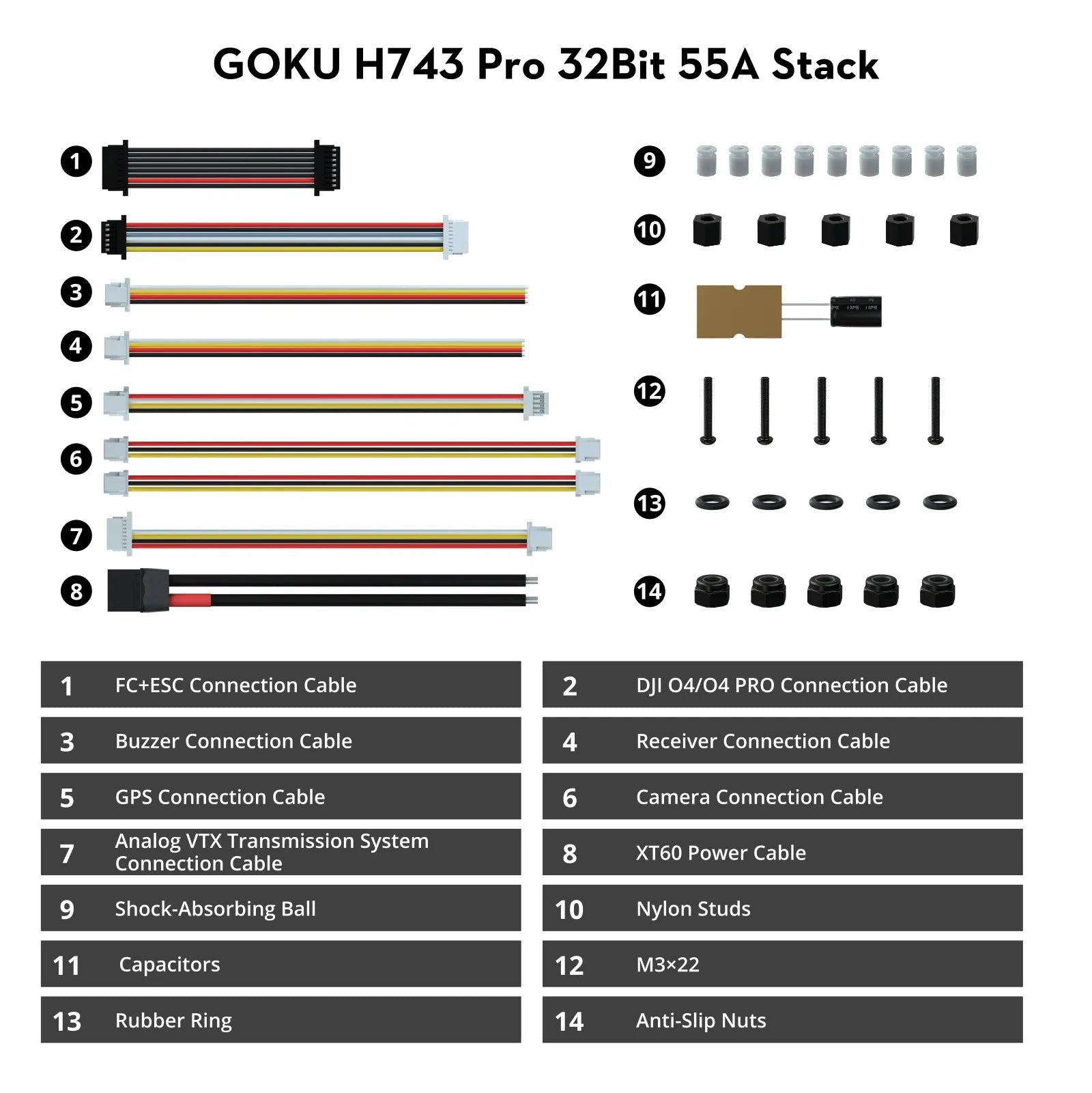

Includes:
1x Flywoo Goku H743 Pro V2 30x30 Flight Controller
1x Flywoo Goku G55M 55A AM32 4-In-1 ESC
1x FC&ESC Connection Cable
1x DJI Or/O4P Connection Cable
1x Buzzer Connection Cable
1x Receiver Connection Cable
1x GPS Connection Cable
2x Camera Connection Cable
1x Analog VTX Connection Cable
1x XT60 Power Cable
9x M3 Shock-Absorbing Ball
5x M3 Rubber Ring
1x Capacitor
5x Nylon Studs
5x Anti-Slip Nuts
