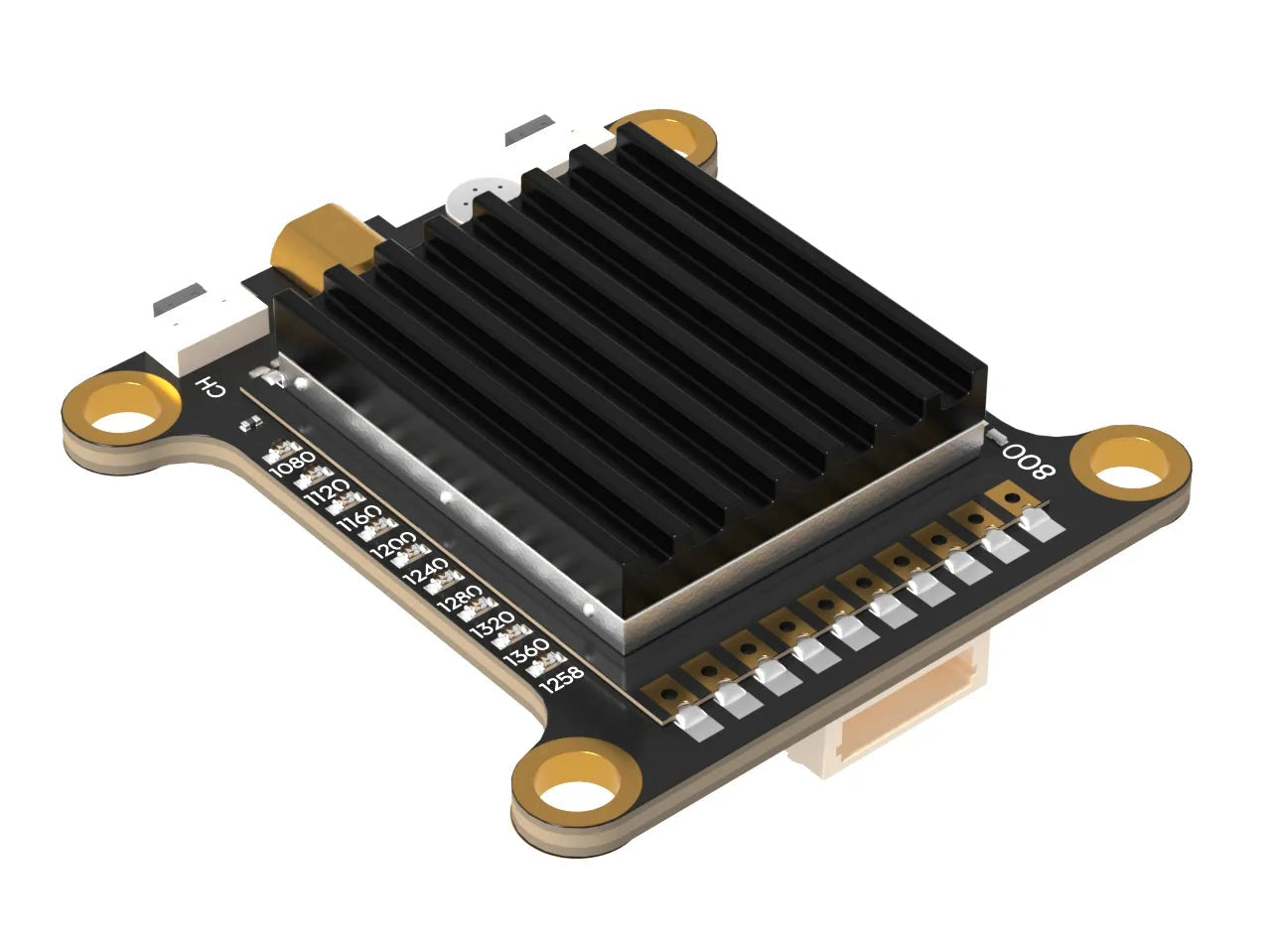

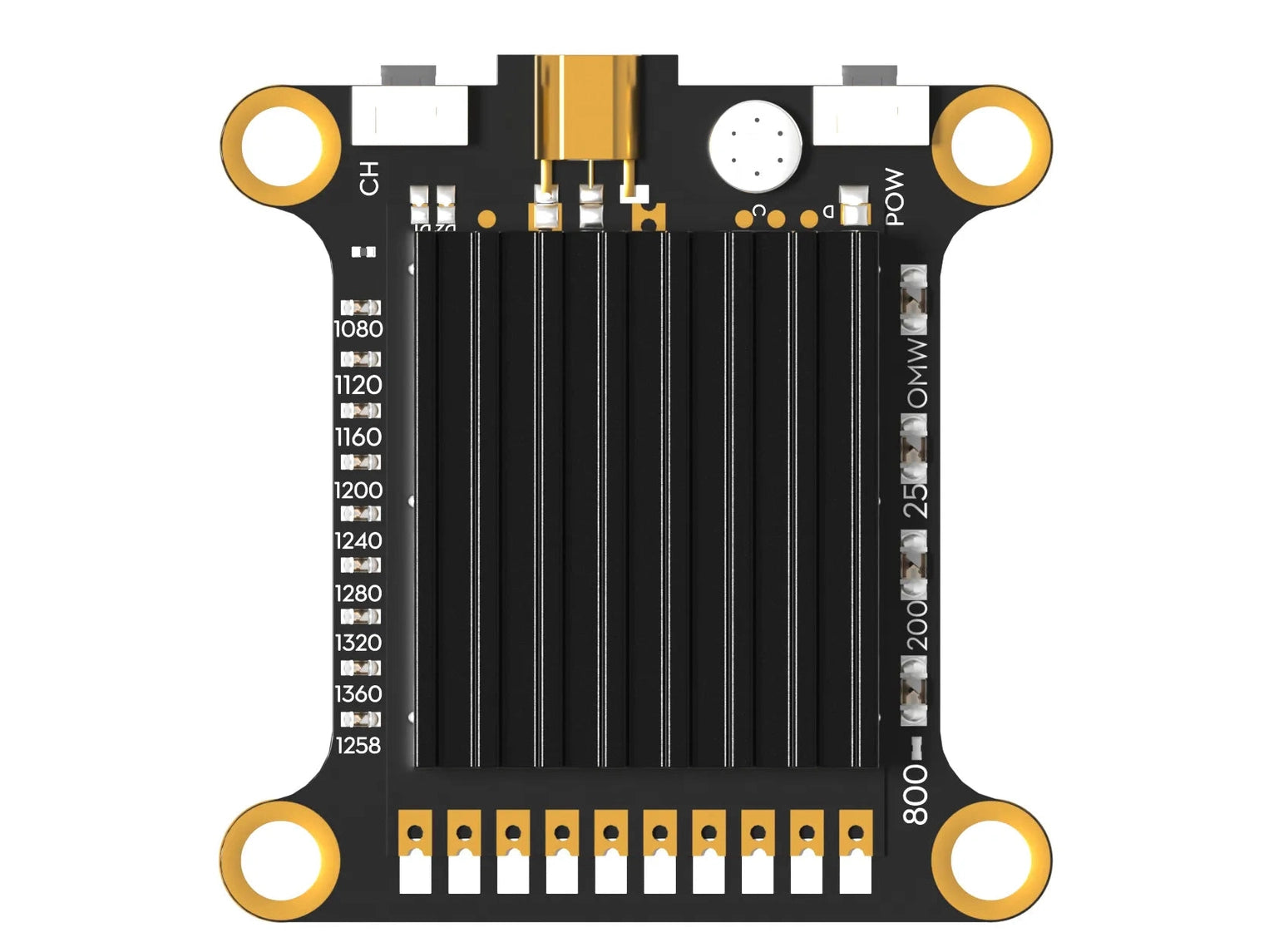

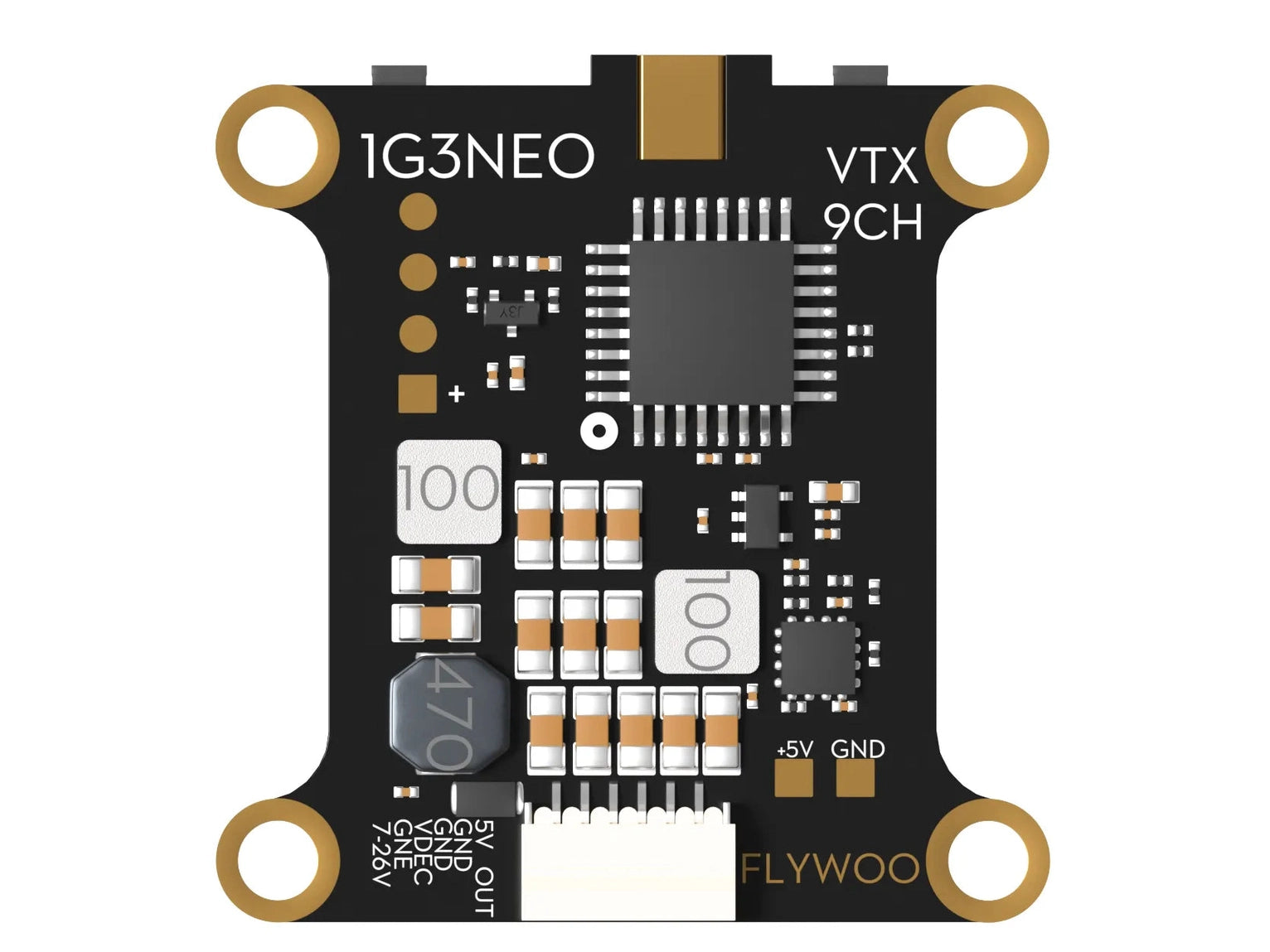

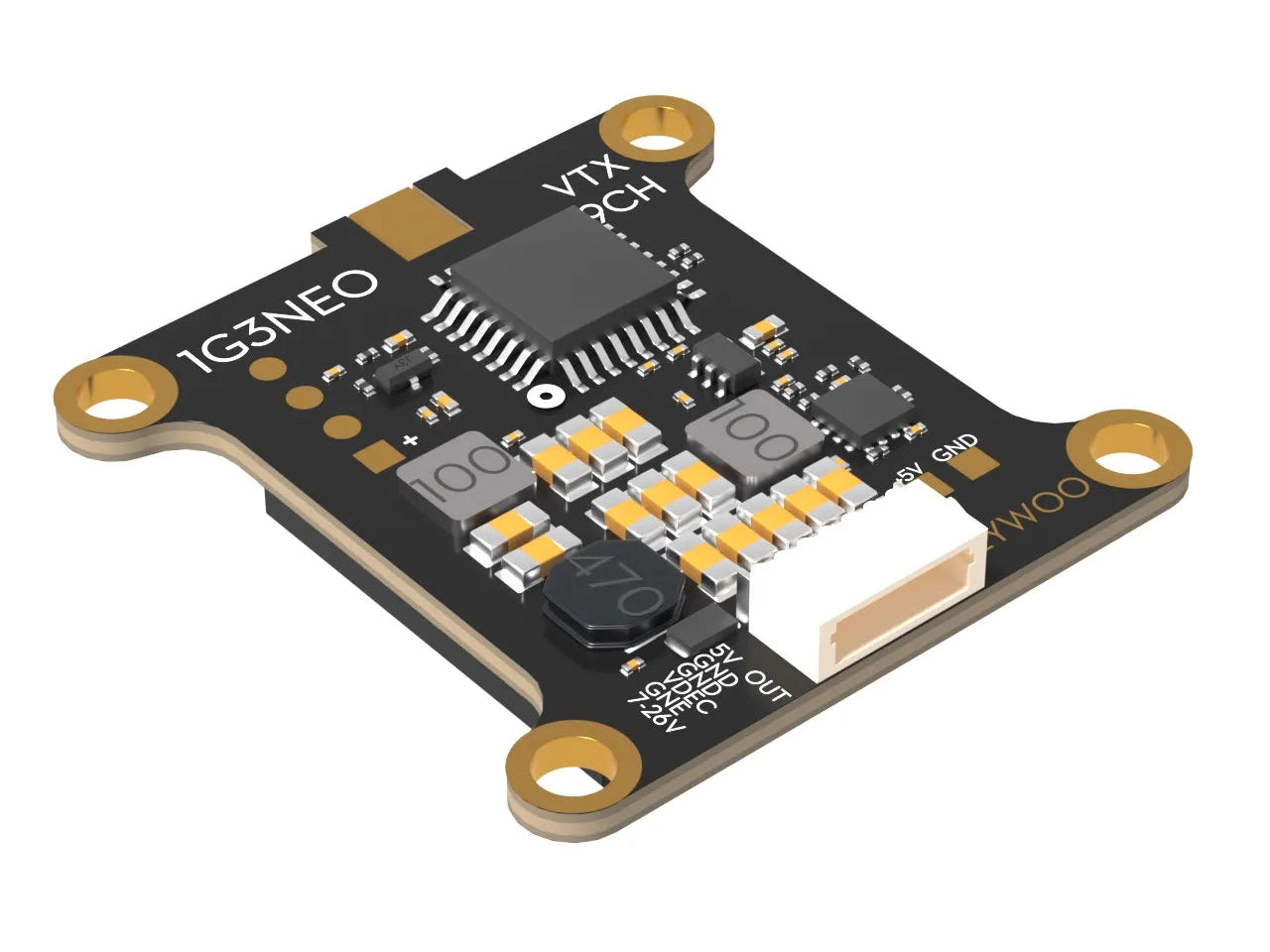

Flywoo VTX-1G3 1.2GHz/1.3GHz Video Transmitter

  • $59.99
    Unit price per



The Flywoo VTX-1G3 Video Transmitter offers exceptional long-range analog performance and impressive power output. The included heatsink ensures your transmitter stays cool, plus the Y-antenna and improved circuitry provide the smoothest, most reliable signal. The 7-26V DC input provides convenience, and the built-in microphone gives the user the option of receiving audio. A modern 1.3GHz VTX.

Specifications:

  • 8CH (1120,1160,1200,1240,1280,1320,1360,1258MHz)
    • US Version limited to 1280MHz and 1258MHz
  • RF power output: 0.1mw(0, pit mode), 25mw(1), 200mw(2), 2000mw(3)
  • Button control and LED indicators
  • Built-in AGC microphone
  • 7-26V DC IN (2-6S LiPo)
  • Power Consumption: 280mA(2000mw) @12V IN
  • Video format: NTSC or PAL
  • Audio Subcarrier: 6.5 MHz & 6.0MHz, onboard microphone on 6.5MHz
  • RF Connector: MMCX
  • Weight: 12.2g
  • Size: board 35*35mm

Settings:

  • Press button-power(red led) to select RF output levels, 0 = 0.1mw pitmode, 1=25mw. 2=200mw, 3=2000mw
  • Press button-CH(blue led) frequency setting 1-8CH

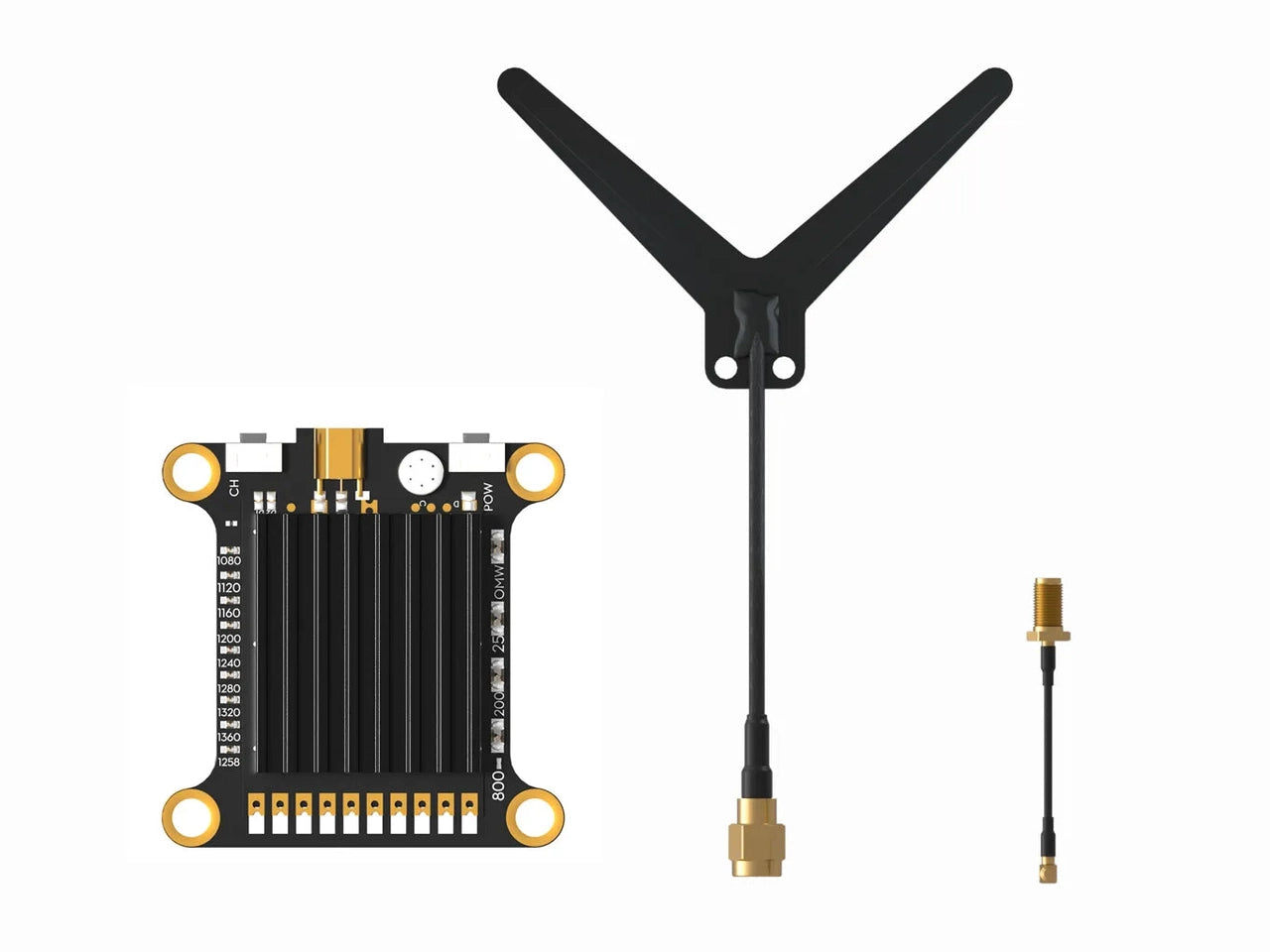

Includes:
1x Flywoo VTX-1G3 1.2GHz/1.3GHz Video Transmitter
1x Dipole Antenna SMA Center Frequency 1240MHz
1x MMCX to SMA Cable
