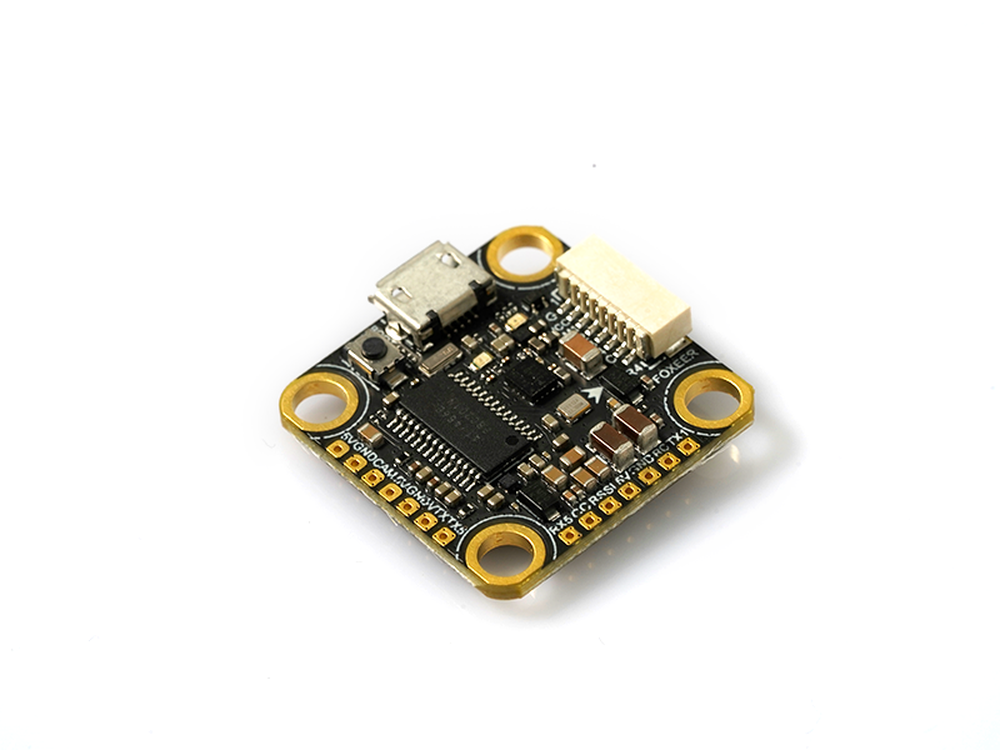

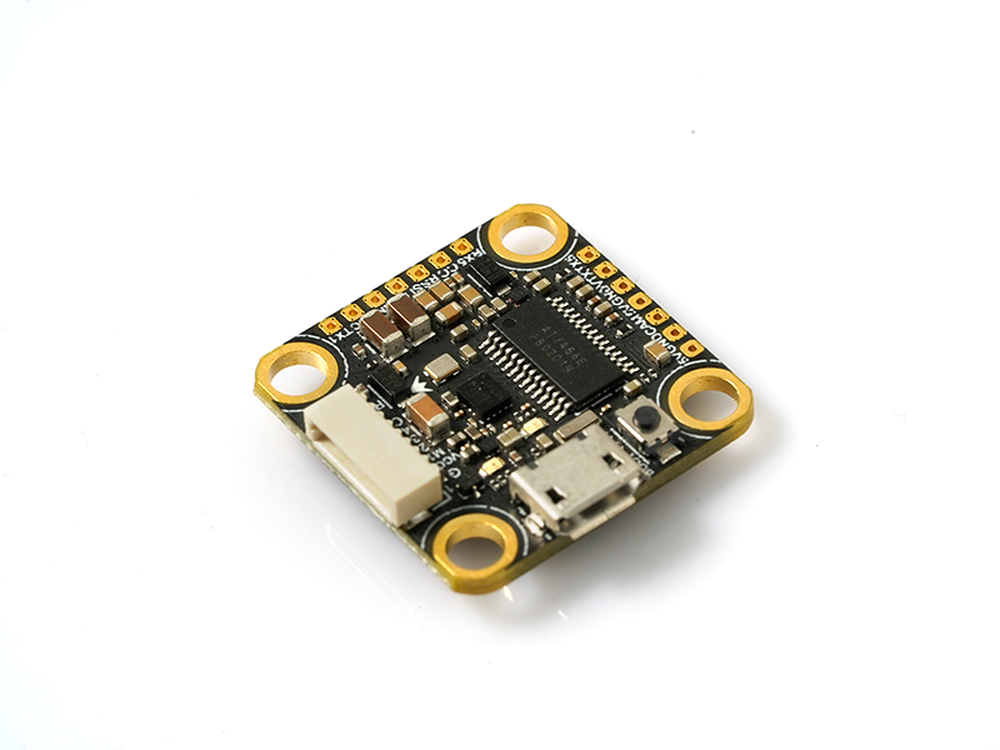

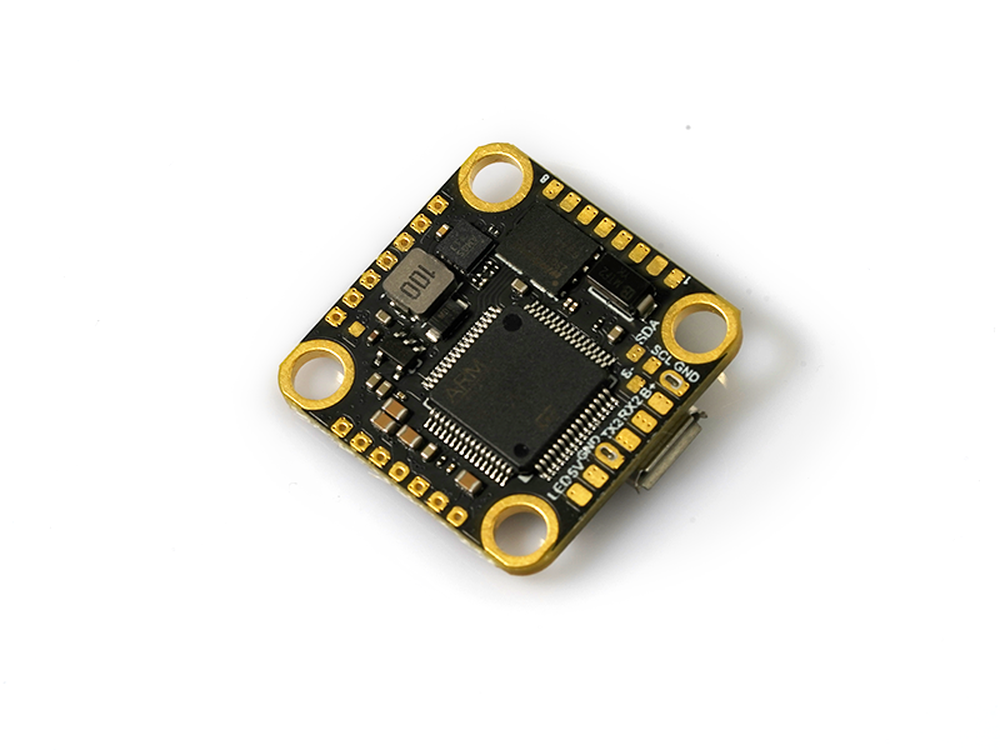

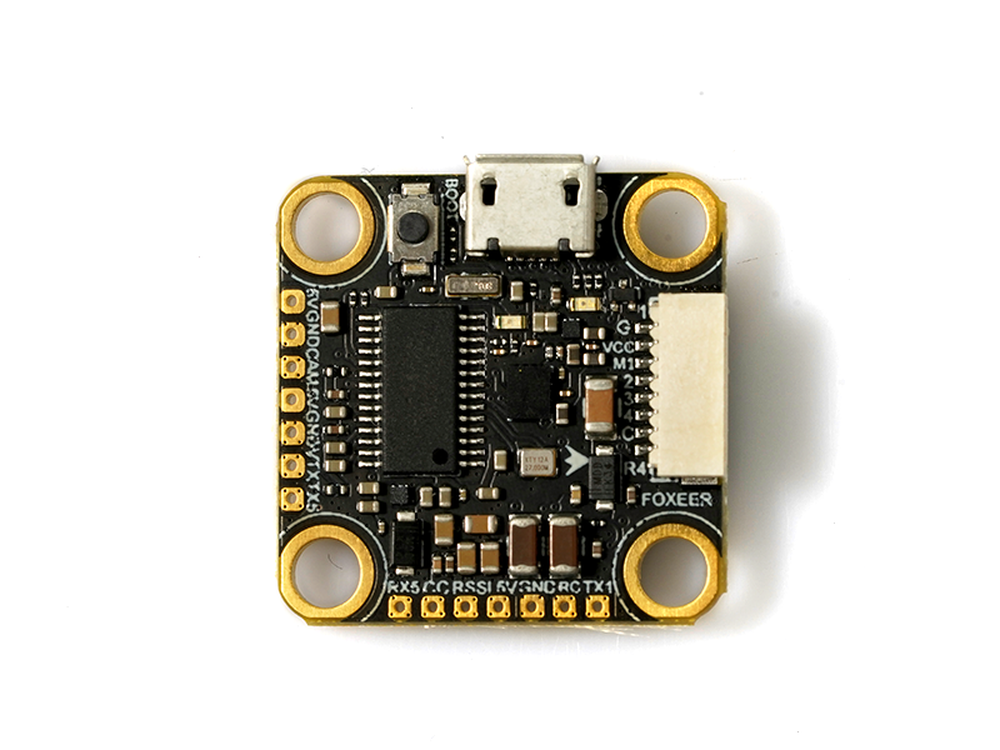

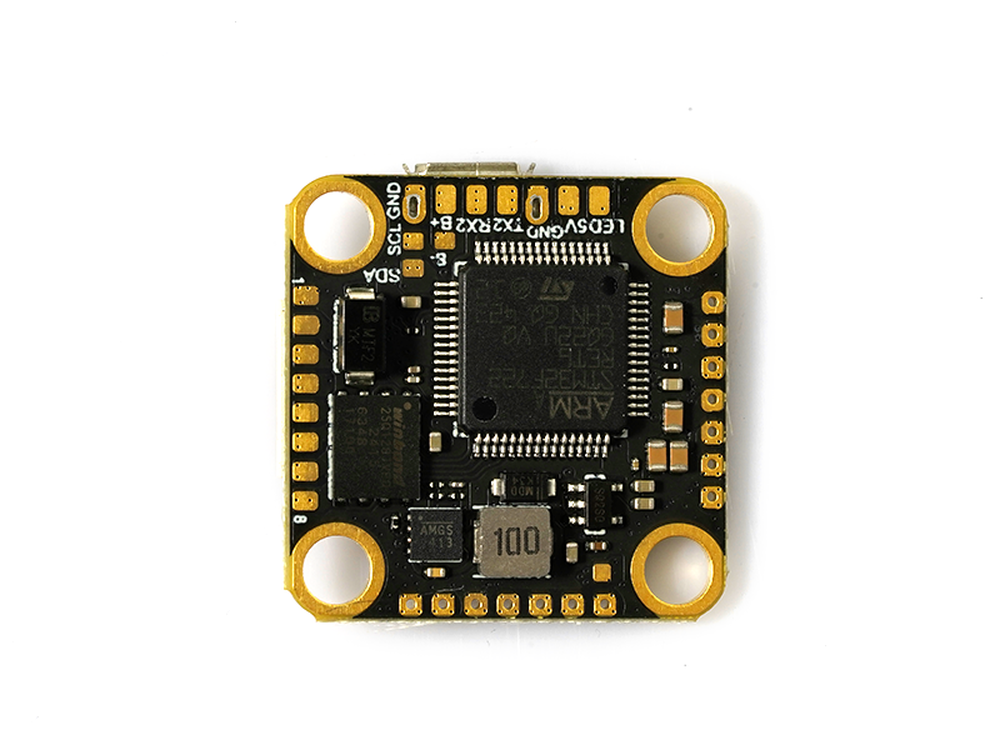

Foxeer F722 Mini V4 FC ICM42688 Flight Controller

The Foxeer F722 Mini V4 Flight Controller integrates the high-performance STM32F722RET6 MCU with the advanced ICM-42688-P gyro, delivering precise and responsive flight control. Designed for demanding pilots, it supports up to 4 UART ports, easily accommodating complex setups. Enhanced power and video filtering ensure stable signal quality and reduced interference, making it an excellent choice for builders seeking reliability and cutting-edge technology in their flight systems.

Specifications:

• Model:  Foxeer F722 V4 Mini ICM42688
• CPU:  STM32F722RET6

• Gyroscope:  ICM42688
• Power Supply:  2~6S Lipo
• BEC Output:  DC5V/2.5A
• OSD:  BF OSD
• Black Box:  16M Flash Memory
• UARTs:  4 Sets
• ESC Telemetry:  RX4
• Buzzer:  YES
• Smart Audio:  YES
• LED:  1 Set 2812 LED
• USB:  Micro-USB

• Firmware:  BF:  FOXEERF722V4
• Size:  26x26mm
• Mounting Hole:  20X20mm,Φ4mm
• Weight:  4g
• Working Temperature:  -20℃ ~ +55℃
• Working Humidity:  20～95%
• Storage Temperature:  -20℃ ~ +70℃

Includes:
1x Foxeer F722 Mini V4 FC ICM42688 Flight Controller
4x Rubber Anti-Vibration Columns
