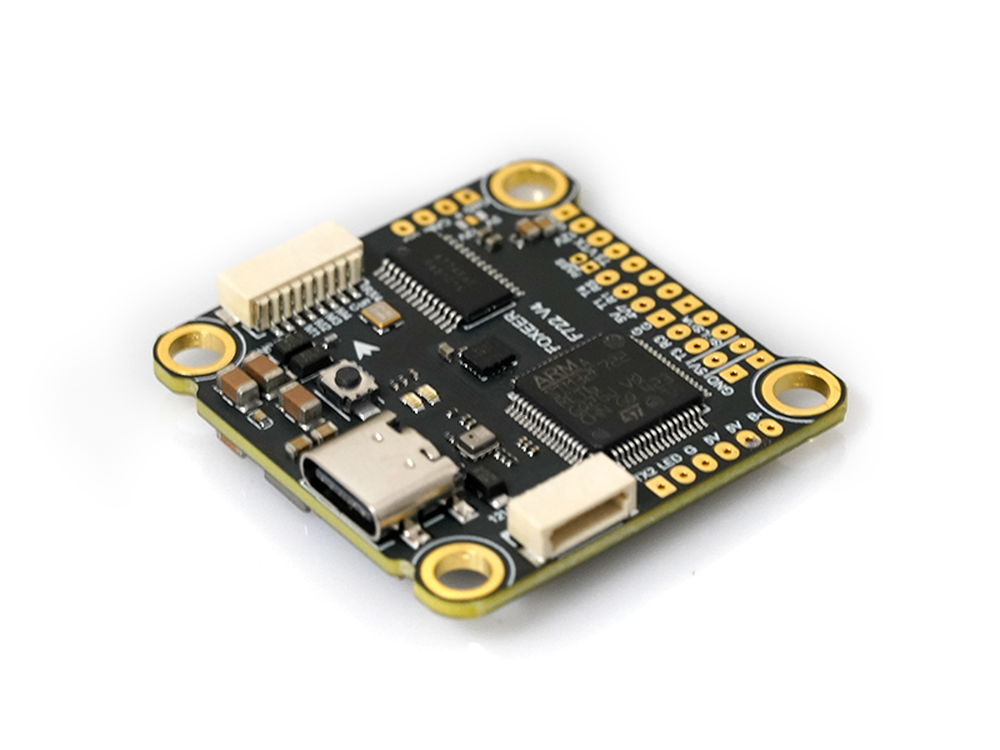

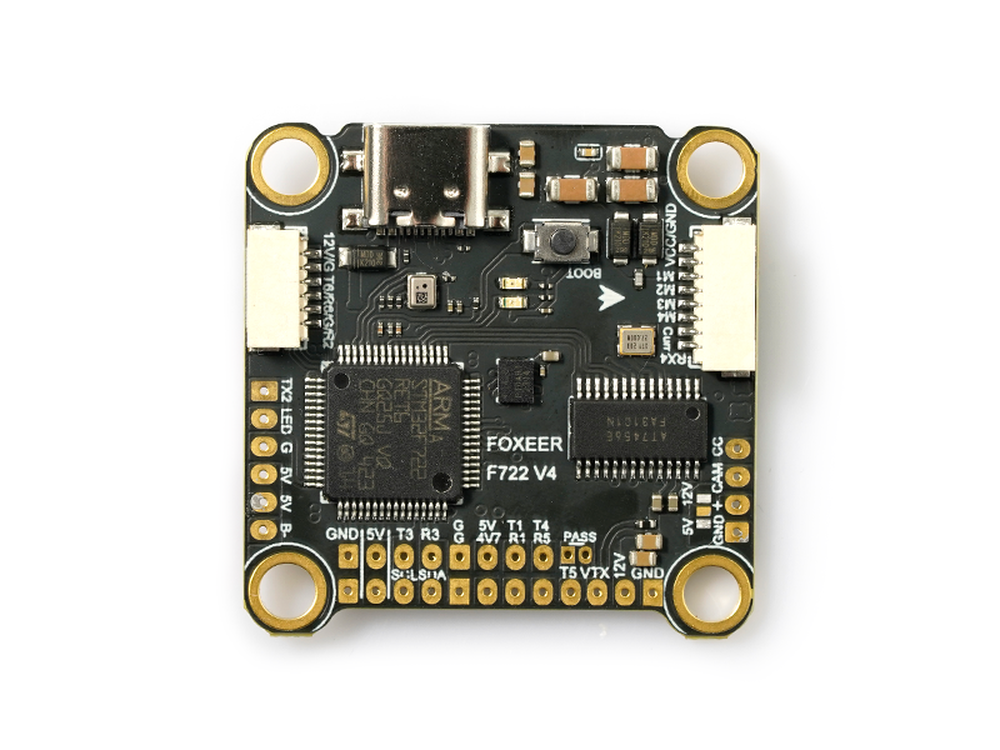

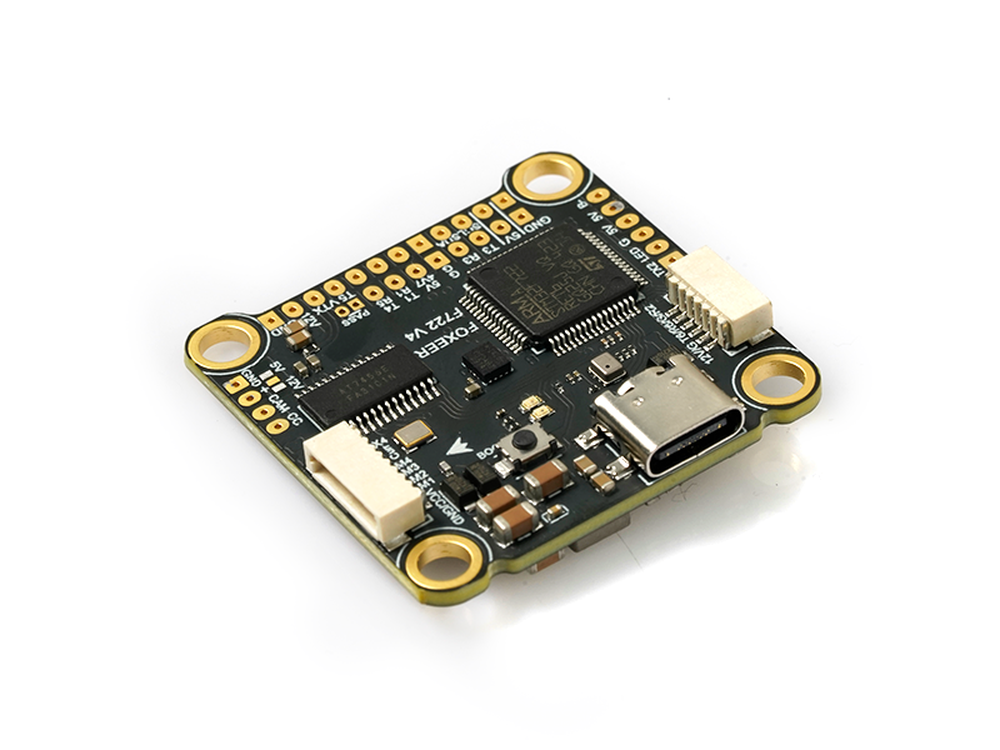

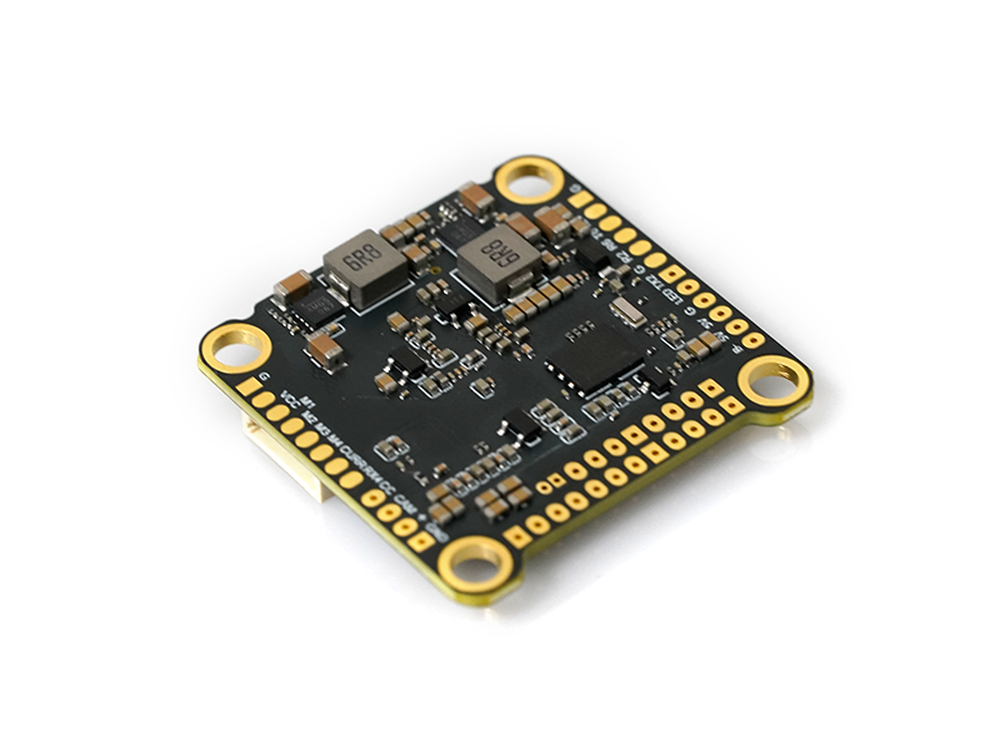

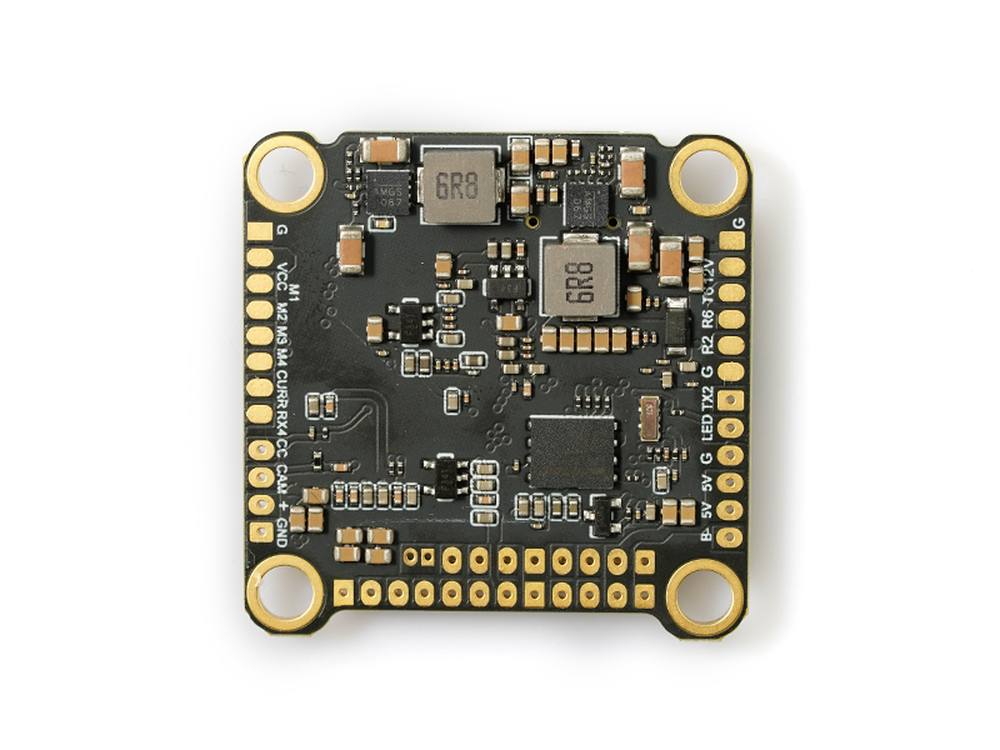

Foxeer F722 V4 FC ICM42688 Flight Controller
The Foxeer F722 V4 Flight Controller integrates the high-performance STM32F722RET6 MCU with the advanced ICM-42688-P gyro, delivering precise and responsive flight control. Designed for demanding pilots, it supports up to 8 motors and 6 UART ports, accommodating complex setups with ease. Enhanced power and video filtering ensure stable signal quality and reduced interference, making it an excellent choice for builders seeking reliability and cutting-edge technology in their flight systems.
Specifications:
- Model: F722 V4
- CPU: STM32F722RET6
- Barometer: DPS310
- Gyroscope: ICM42688
- Power Supply: 4~6S Lipo (14V~28V)
- BEC Output: DC5V/3A; DC12V/3A
- OSD: BF OSD
- Black Box: 16M Flash Memory
- UARTs: 6 Sets
- ESC Telemetry: RX4
- Buzzer: YES
- Smart Audio: YES
- LED: 1 Set 2812 LED
- USB: Type-C
- X8 Supported: Need CLI
- Firmware: BF: FOXEERF722V4
- Size: 37X37mm
- Mounting Hole: 30.5X30.5mm,Φ4mm
- Weight: 8g
- Working Temperature: -20℃ ~ +55℃
- Working Humidity: 20～95%
- Storage Temperature: -20℃ ~ +70℃
Includes:
1x Foxeer F722 V4 FC ICM42688 Flight Controller
4x Rubber Anti-Vibration Columns
