Foxeer Reaper Nano V2 VTX 5.8GHz 72CH 350mW

$29.99
Unit price per

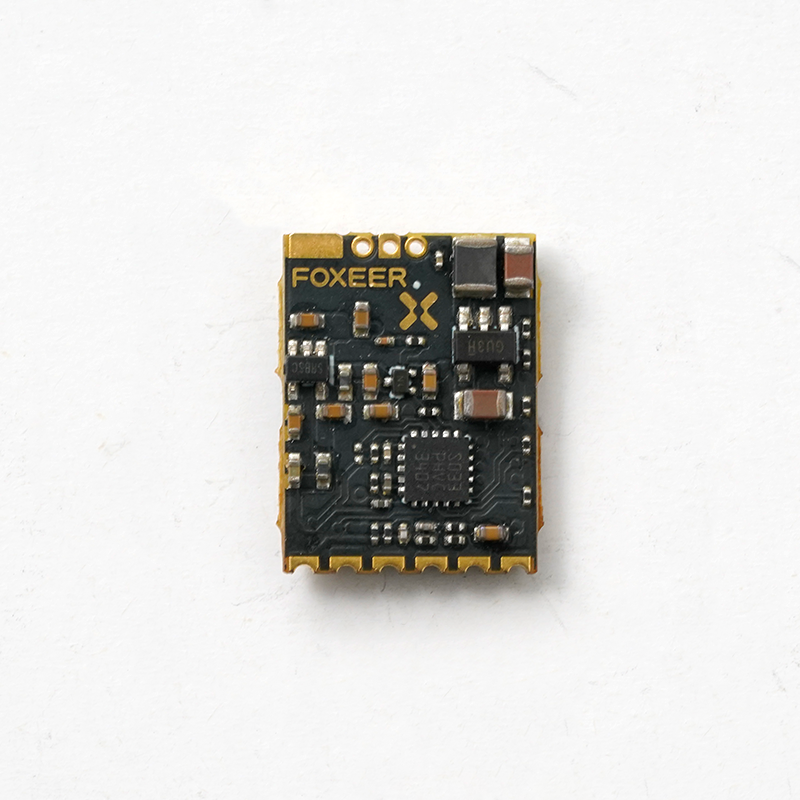

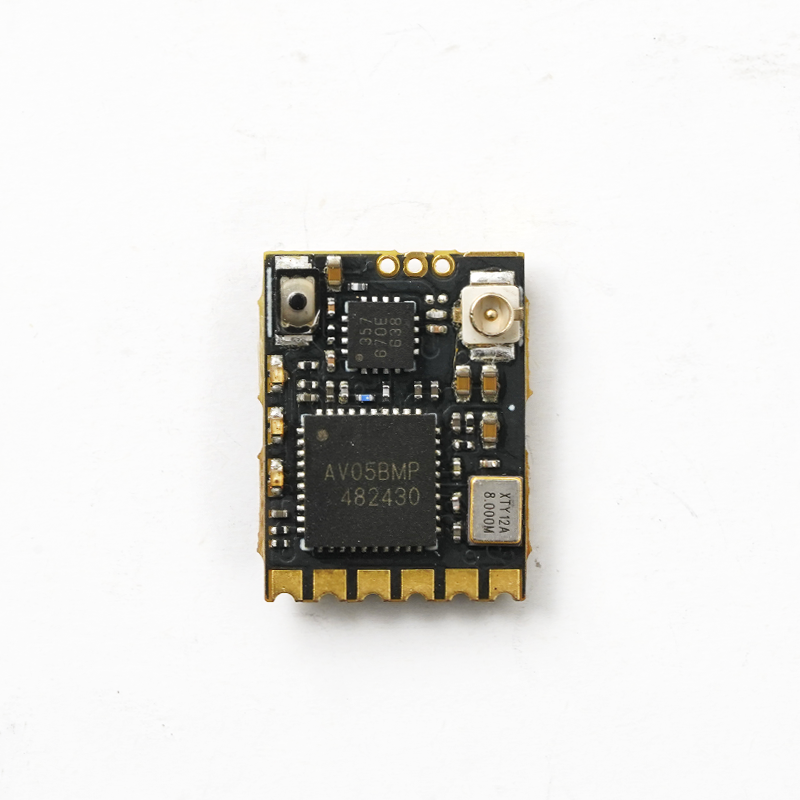

The Foxeer Reaper Nano V2 VTX is a tiny-sized transmitter that can fit just about anywhere. Although it measures just 12*16mm and weighing 0.8g, it can still output up to 350mW, has no frequency drift, has built-in filter for clean video, and even supports Tramp telemetry/OSD control for easy setup and channel changing from your OSD.

Specifications:

Input Voltage: 5V
Output Voltage: 5V
Channels: 72
Power Output: 25mW/100mW/200mW/350mW
Weight: 0.8g
Size: 12*16mm
Consumption: 340mA @ 350mW

Unlock the frequencies and power levels

Long press the "KEY" button until the Red LED (PWR) is constant on, off, then on again, release the button unlock the all frequencies and power levels, flashed Red LED means in unlocked status, constant Red LED means in locked status.

PIT Mode On/Off

Double-click the "KEY" button to turn on/off the PIT Mode. Red LED (PWR) off means PIT mode on; Red LED (PWR) on means PIT mode off。In PIT mode, VTx outpout extreme low power.

Note:

If tramp cable is connected, button will not work, can not adjust frequency and power, controller will take over.

BetaFlight only can accept 64 channels at most, so the O band is removed from the frequency table default.

Includes:
1x Foxeer Reaper Nano V2 VTX 5.8GHz 72CH 350mW

REGULATORY NOTICE

The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a "HAM" amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government's rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. Defiance RC, Inc cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.
