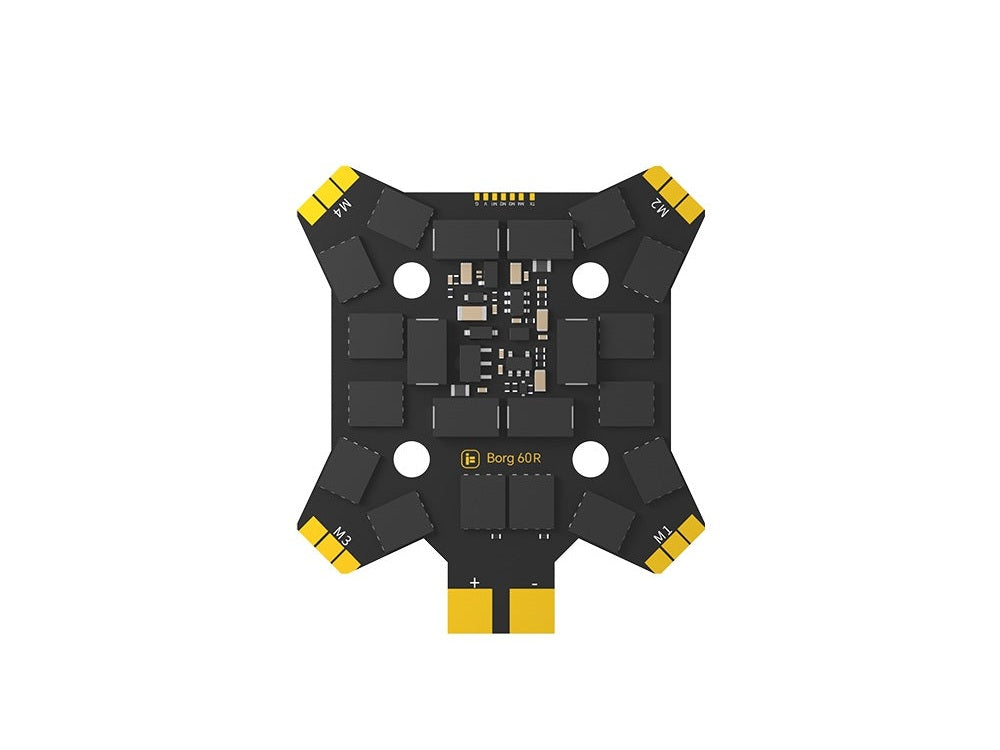

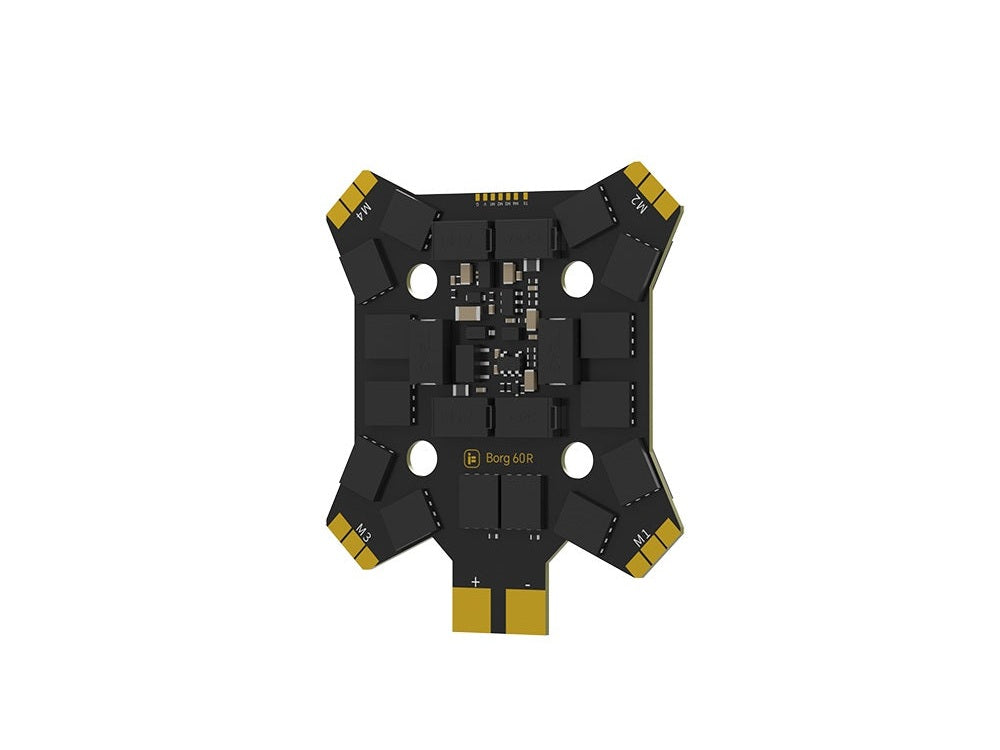

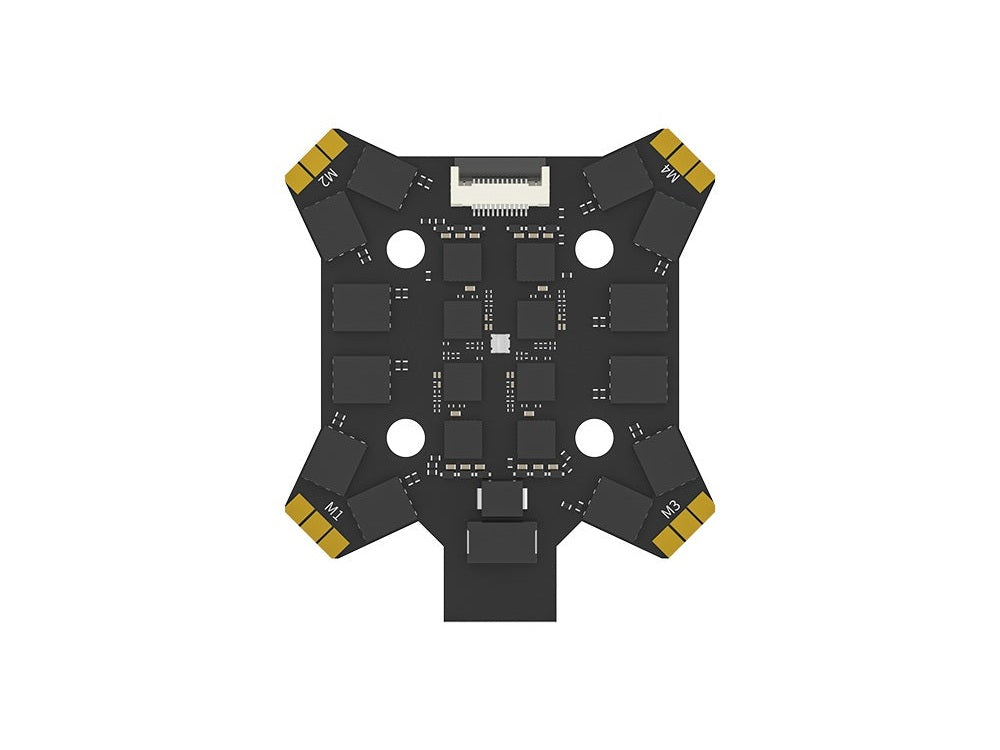

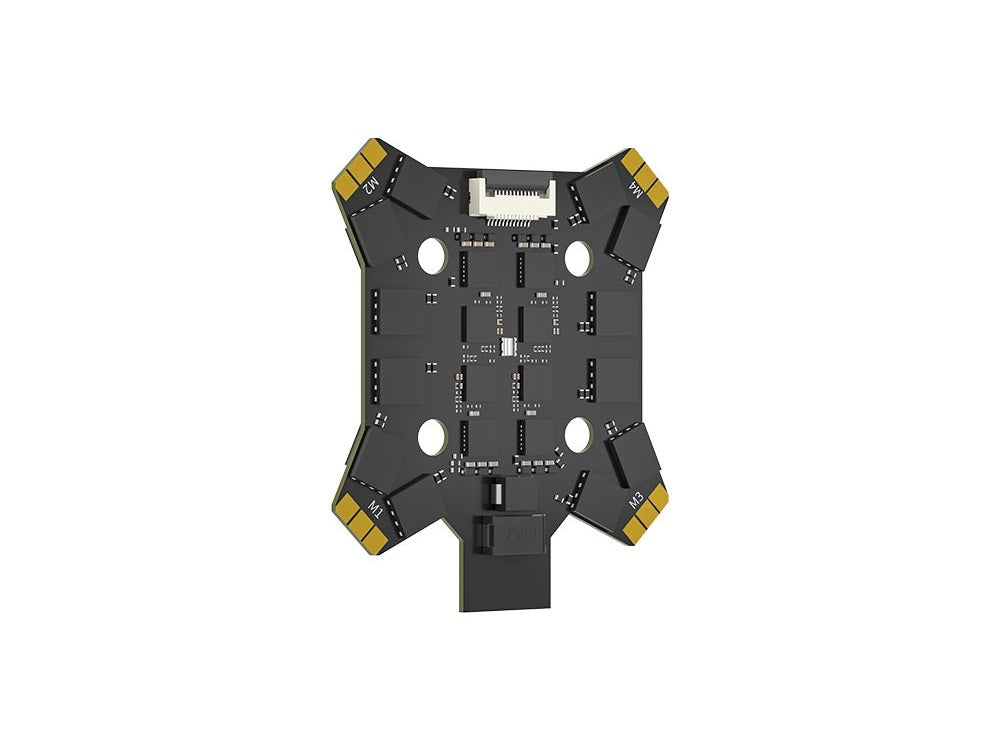

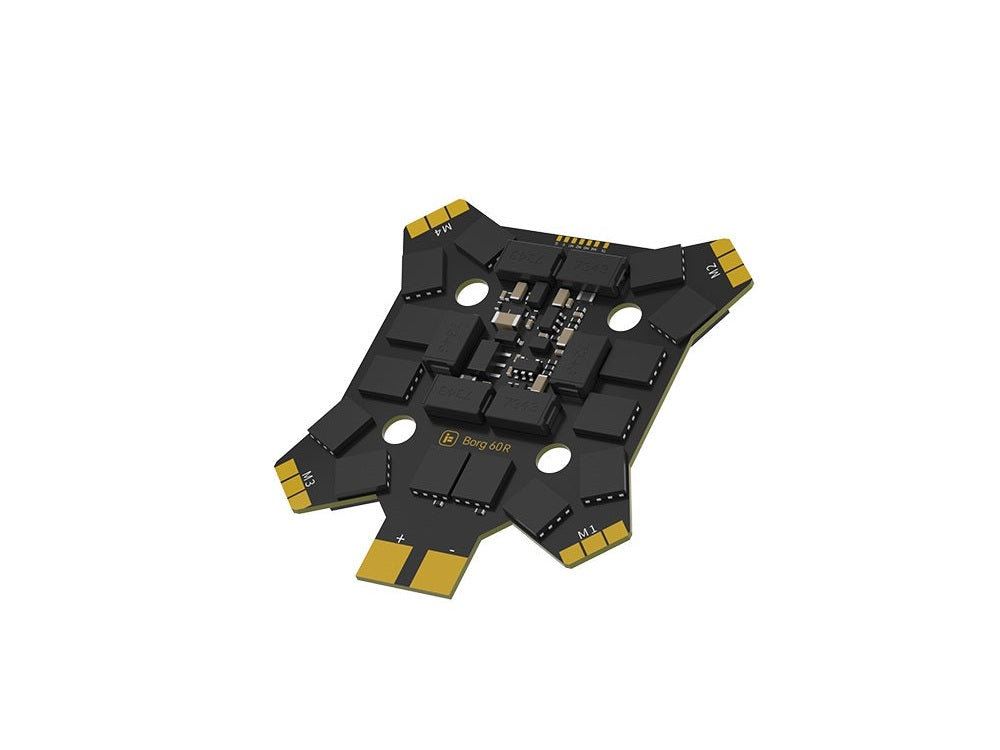

iFlight Borg 60R 4-In-1 ESC

$52.99
Unit price per

Introducing the All-New Borg Series – Power Meets Precision!

The new ESCs feature an integrated anti-spark circuit and a TVS transient voltage suppressor, providing double protection against voltage spikes that can damage your equipment. Designed with high polymer capacitors, these ESCs eliminate the need for external capacitors in 5-inch racing models, simplifying installation and reducing weight. Experience enhanced reliability and performance with this cutting-edge technology, tailored for the demands of competitive racing.

Features:

Supports 3-8S Battery Input for versatile power options.
6-Layer 3OZ PCB allows for continuous current handling of 60A, with a peak current of 65A.
Integrated Anti-Spark Filter protects your equipment from voltage spikes.
Built-in High Polymer Capacitors eliminate the need for external capacitors in racing models.
FPC Ribbon Cable Connection ensures a more reliable link between the flight controller and ESC.

Specifications:

Product Name: Borg 60R ESC
Input Voltage: 3-8S; Support LIHV battery
Max. Continuous Current: 60A
Max. Burst Current: 65A (10s)
MCU: STM32G071N
Driver: FD6288
Firmware: BL32 (32bit ESC)
Target: IFLIGHT_BLITZ_G3 32.9
Current Sensor: No
BEC: No
Telemetry: Supported
Bidirectional DSHOT: Supported
Dimensions: 45*52mm±1
Mounting Holes: 20 x20 mm/Φ4mm
Weight: 14.5g±1
Protocol: Supports DShot150/300/600、MultiShot、OneShot etc.

Includes:
1x iFlight Borg 60R 4-In-1 ESC
1x Cable Set
4x Silicon Grommets
