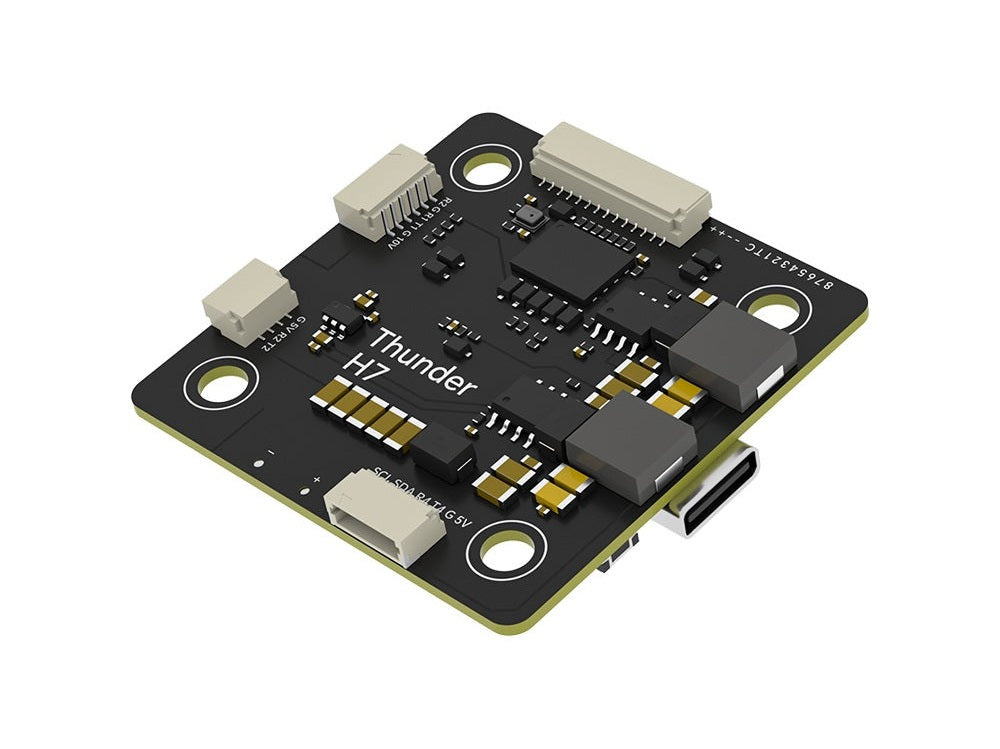

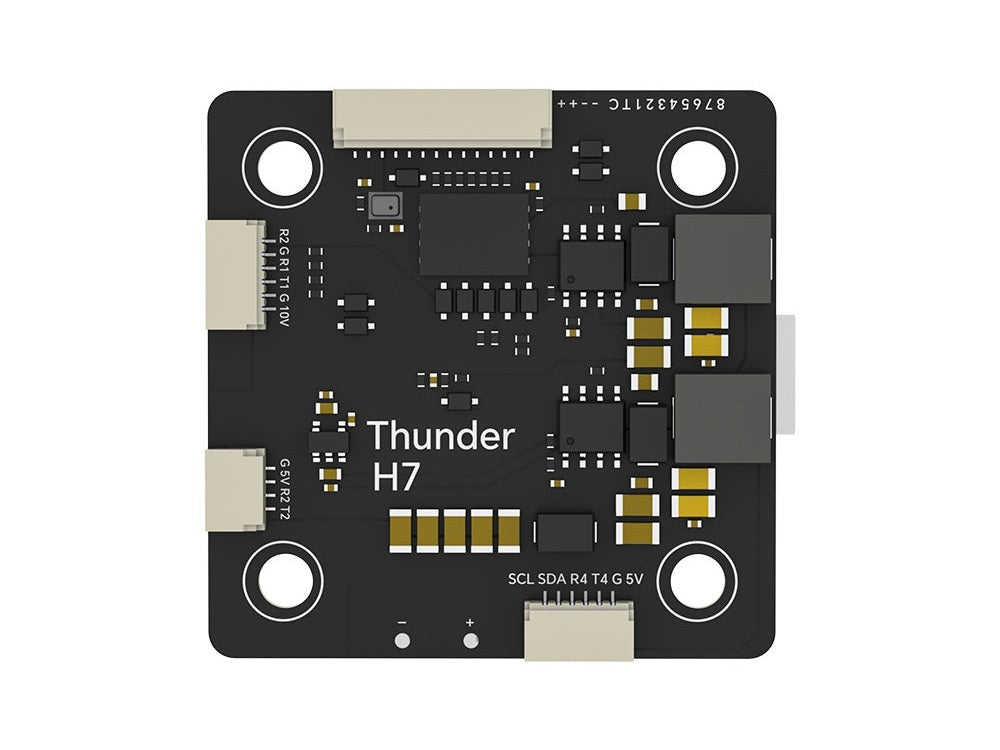

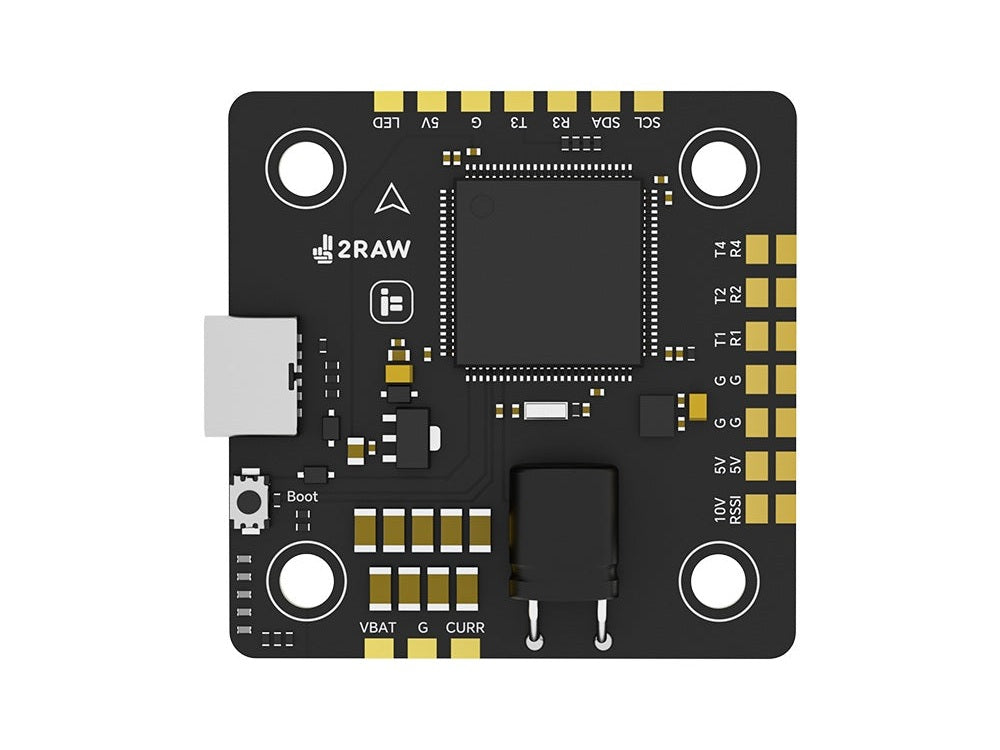

iFlight Thunder H7 Flight Controller
The 2RAW H7 Thunder represents a pioneering development in drone technology. It is distinguished as the first flight controller engineered to accommodate direct 12s input. The 2RAW H7 Thunder is crafted with an emphasis on durability and high performance, setting a new standard in flight controller design.
Features:
- High-Speed H7 Processor
- Powered by a high-speed H7 processor chip, it provides precise D-shot timings for enhanced performance, even with x8 motor configurations.

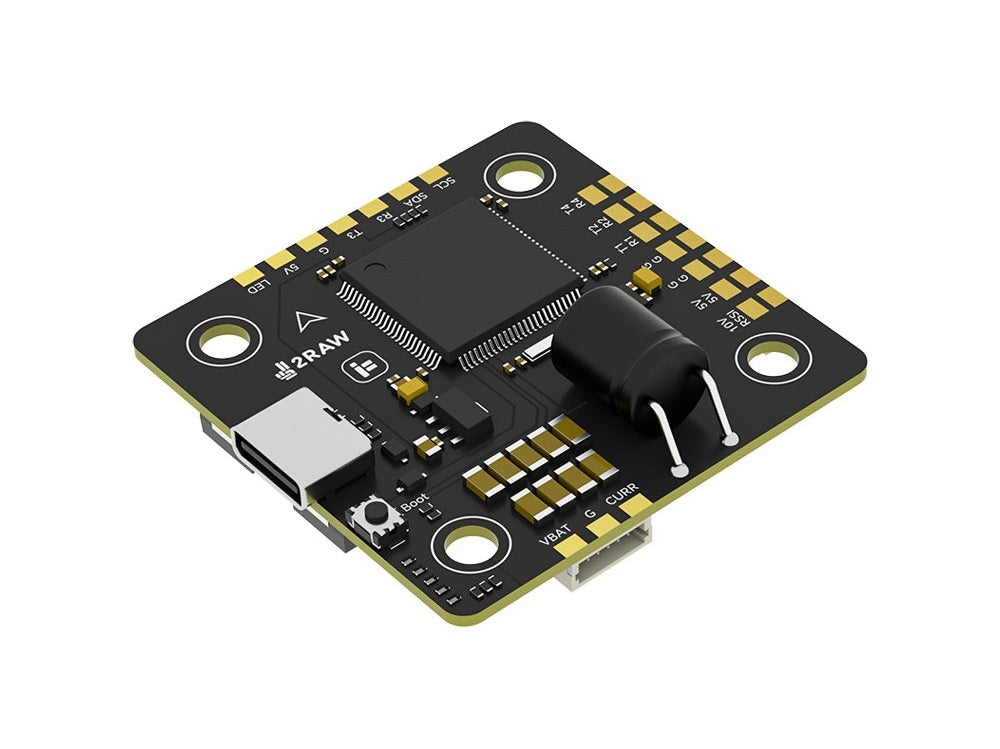

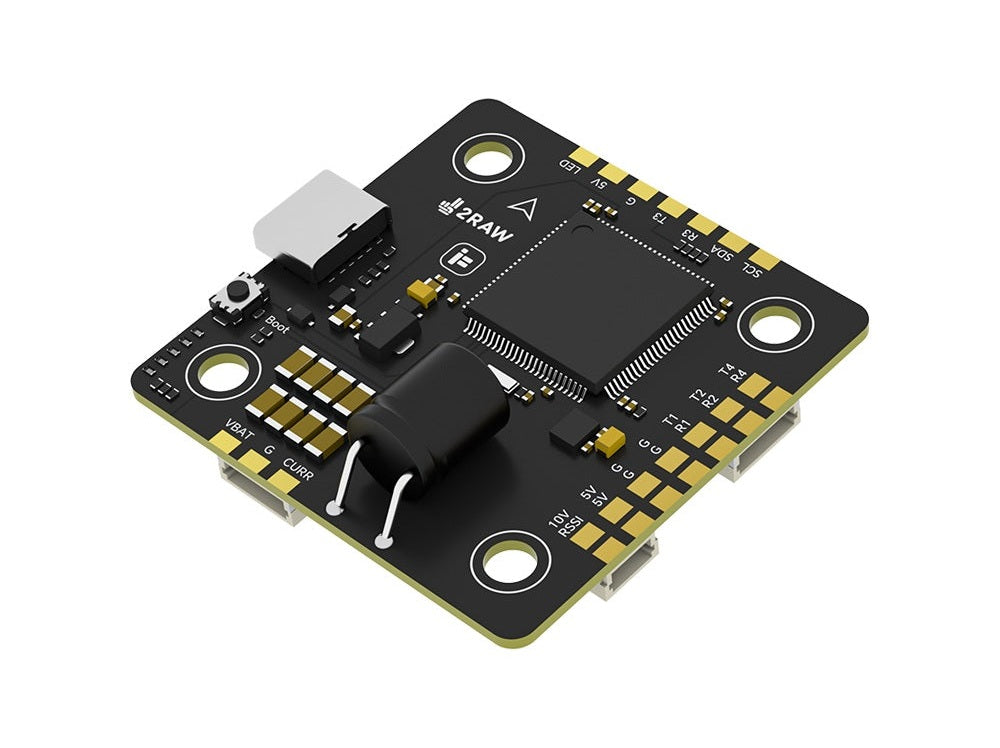

- Exclusive Capacitor Filtration Slot
- Features a unique capacitor filtration slot with a 63V 100uF capacitor for a clean electrical signal.
- Versatile Design
- Designed for versatility, it offers both plug-and-play options and solder pads, meeting the stringent requirements of any professional build.
Specifications:
- MCU: STM32H743
- Gyro: ICM42688P
- Barometer: SPL06-001
- OSD Chip: No
- Flash: 512MB (Blackbox flash)
- UARTS: 6
- Motor outputs: 4x (SH1.0 connector)
- I2C serial: SDA / SLA pads
- LED controller: Yes
- Beeper pad: Yes
- BF Firmware: 2RAW_THUNDER_H7
- INAV Firmware: 2RAW_THUNDER_H7
- Mount pattern: 30.5*30.5mm / φ4mm
- Dimensions: 42*42 mm
- Weight: 14g
- BEC: 5V 1.5A / 10V 1.5A (Burst: 2A/120s)
Wiring Suggestions:
- UART1 for VTX HD
- UART2 for Receiver
- UART3 for Other sensors that require a serial port
- UART4 for GPS
- UART6 for ESC Telemetry
Includes:
1x iFlight Thunder H7 Flight Controller
1x FC Connectors
1x Set of Silicon Grommets
