TBS Lucid Flight Controller Pro 20x20

  • $49.95
    Unit price per



** Pre-Order - Arriving Soon **

The TBS Lucid line of FPV electronics is the latest in product engineering at TBS. Built for racing and freestyle applications and developed to cater to the needs of both seasoned pilots and enthusiastic newcomers.

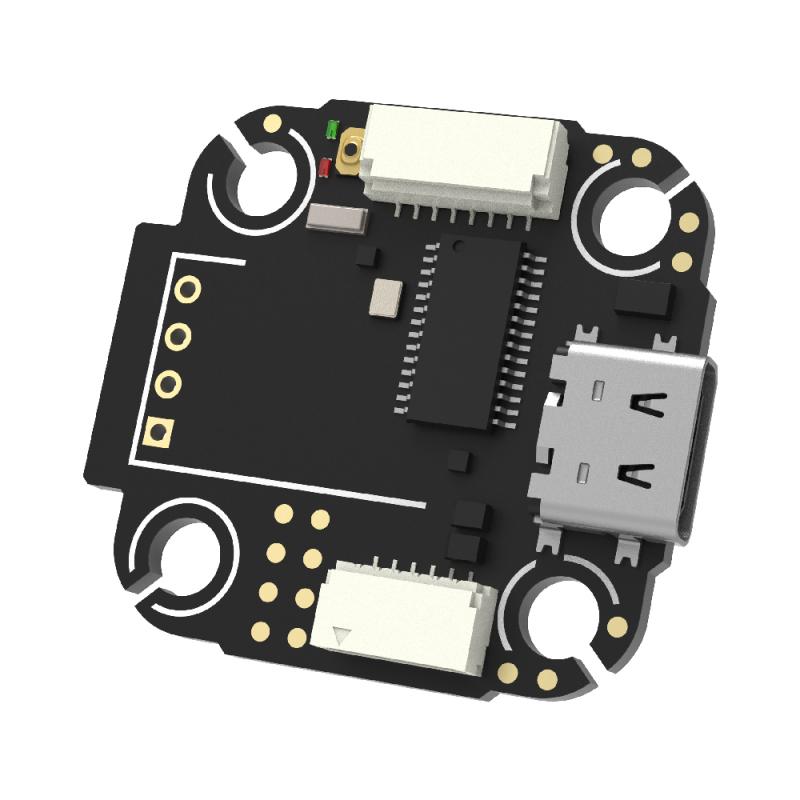

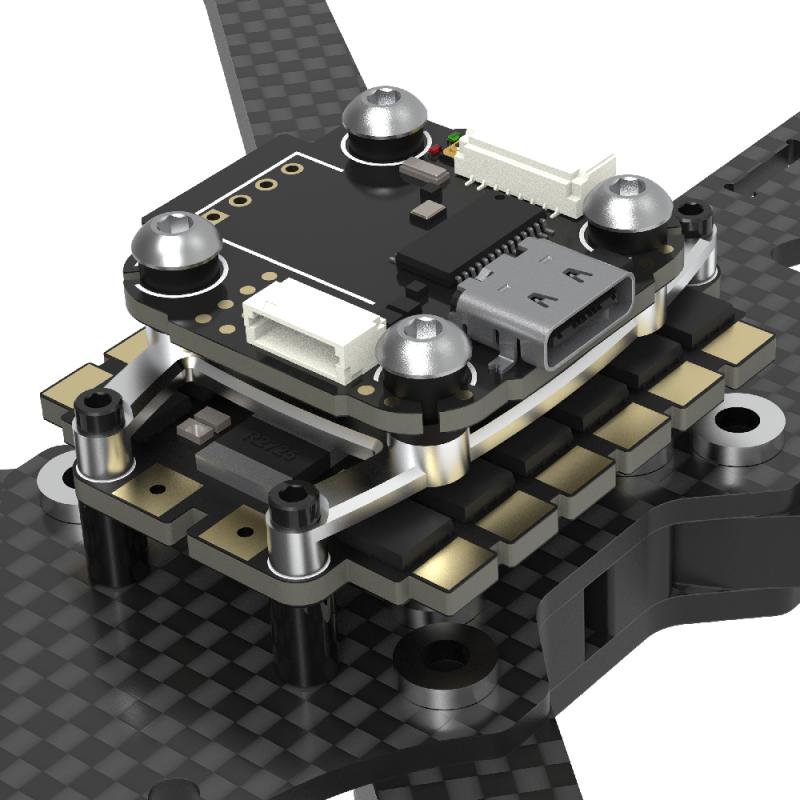

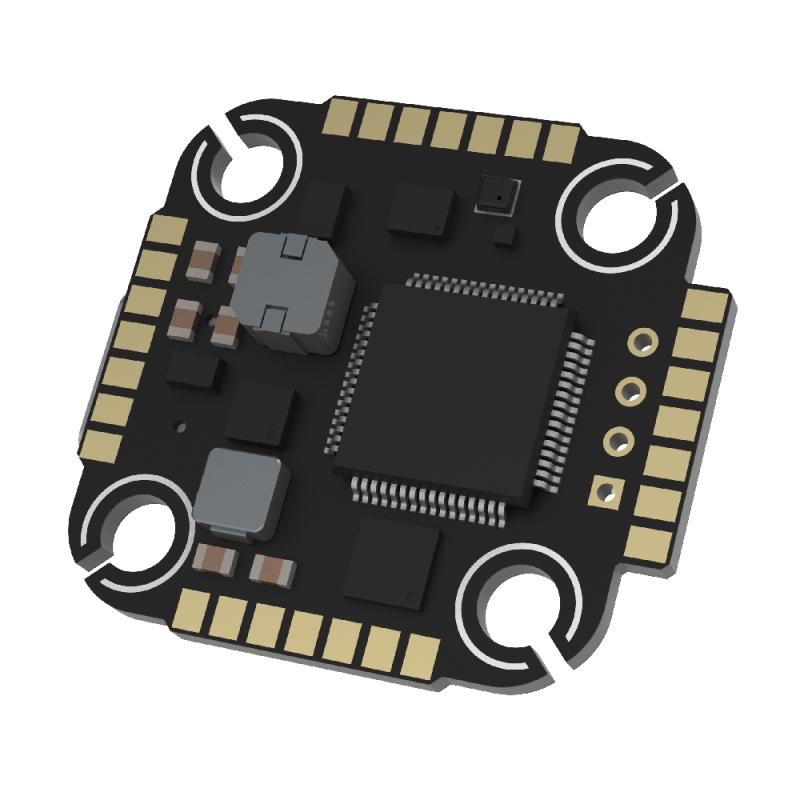

The TBS Lucid Flight controller is a 20x20 masterpiece that is built for the Lucid flight stack, but compatible with all 20x20 ESCs. It is similarly designed for the TBS Crossfire & TBS Tracer ecosystem, but will work with any radio receiver - we don't judge :)

There are plug & play connectors for the DJI O3 digital system and 4in1 ESCs, following the Betaflight connector standard. The solder pads for auxiliary devices are designed and arranged to be easy to solder and logical for installation in your favorite drone frames, such as the TBS Source One.

For the professional pilot, a MPU6000 (Pro) variant is available (those who know, will know), while the ICM-42688P (Freestyle) based version offers a state-of-the-art gyro solution at a better price.

Specifications:

  • MCU:  AT32F435RMT7, 288MHz
  • Gyro:  MPU-6000
  • Motors:  4 Motors, with telemetry and current sensor
  • BEC:  9V, 2.5A 5V 2A
  • OSD:  AT7456E
  • Blackbox:  8M
  • UARTs:  6 (UART1/UART3/UART4/UART5/UART7/UART8)
  • Input:  3S-6S
  • Dimensions:  31mm*29mm
  • Mounting:  20mm*20mm
  • Weight:  4.51g

Default/Recommended Port Assignment:

  • UART2: ESC Telemetry
  • UART3: DJI O3 Air Unit
  • UART4: DJI O3 SBus
  • UART5: CRSF Rx
  • UART7: GPS
  • UART8: Smart Audio

TBS Lucid Series

Includes:
1x TBS Lucid Flight Controller Pro 20x20
1x FC-to-ESC Cable
1x DJI O3 Cable
4x M3 Rubber Dampers
4x M3x8 Screws

Download Manual
