iFlight Blitz Wing H743 Flight Controller
Our high-quality flight controller, designed specifically for Fixed Wing UAV enthusiasts, is compatible INAV, and Ardupilot. This controller is tailored to meet the needs of hobbyists who are passionate about model aviation, providing a reliable and efficient solution for their aircraft. With advanced features and compatibility with popular software platforms, our flight controller offers a superior flying experience for enthusiasts looking to take their Fixed Wing UAVs to the next level.
Features:

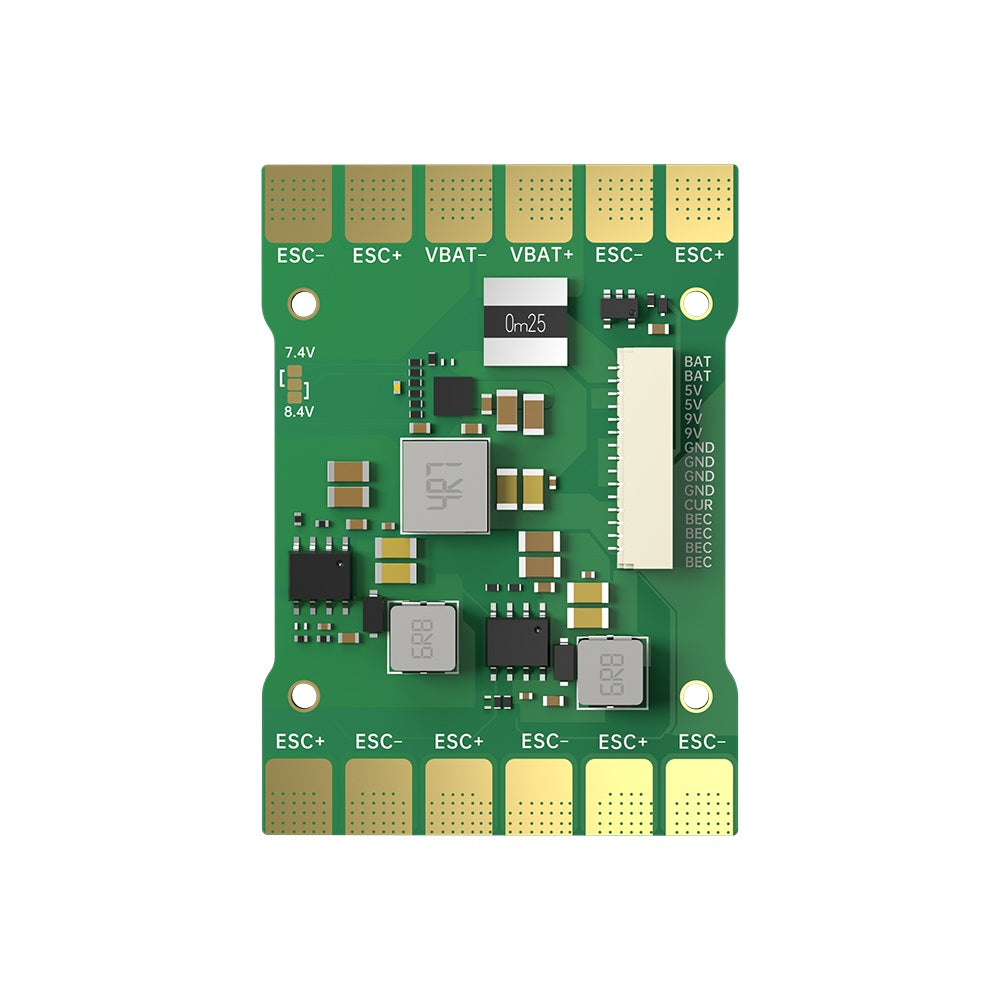

- Up to 5 groups of ESC power supply soldering pads
- Equipped with dual analog camera input function, which can be switched by remote control
- Independent 6A servo power supply BEC, providing powerful power protection for servos, compatible with servos of different voltages.

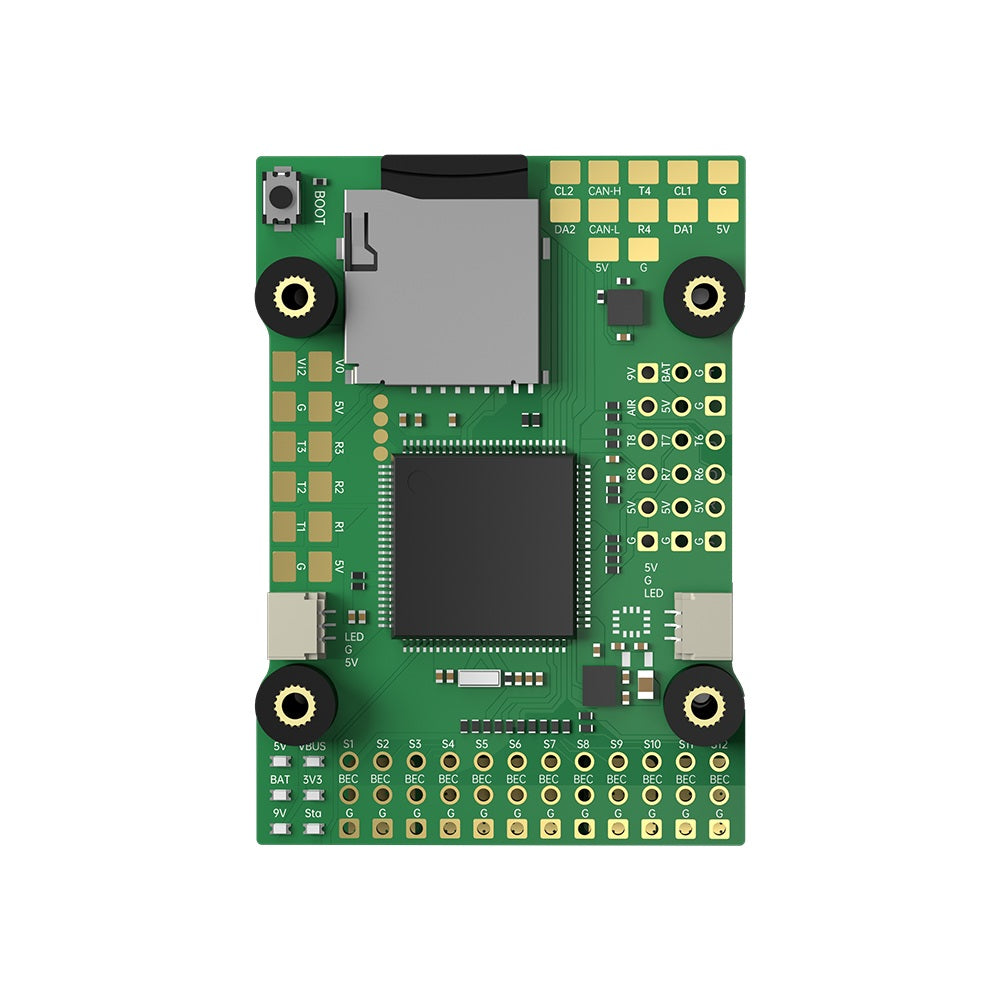

- Utilizes STM32H743 main MCU, offering powerful processing performance and feature support.
- Onboard SD card slot, providing large capacity storage space for data recording.
- Soldering pad reserved design
- Onboard current meter, real-time monitoring of flight current.
- Supports external airspeed sensor for more accurate data.

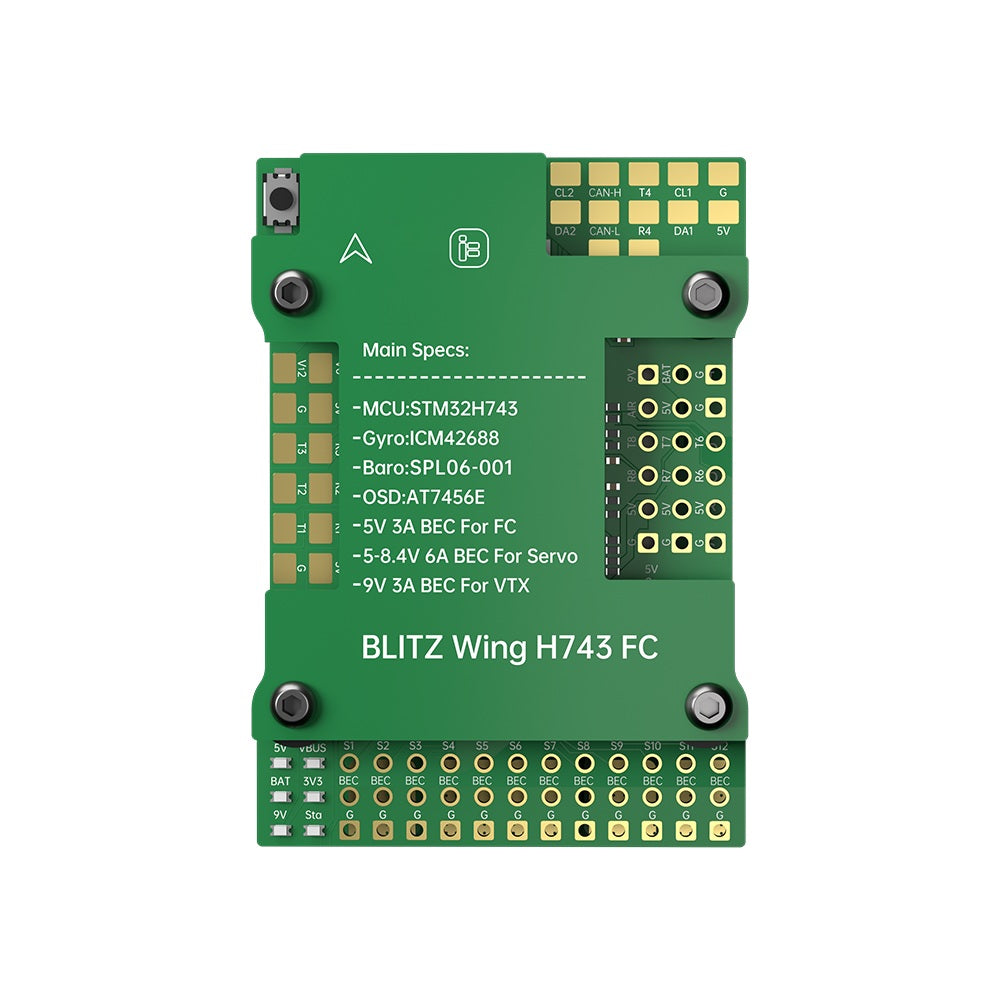

Specifications:
- MCU: STM32H743
- Gyro: ICM42688P
- Baro: SPL06-003
- OSD: AT7456E
- BlackBox: MicroSD card
- UARTS: 8
- Smartaudio / IRC Tramp VTX protocol supported
- WS2812ledStrip: Yes
- Beeper pad: Yes
- Switchable dual camera inputs
- Switchable 5V/7.4V/8. 4V outputs
- 7-36V DC IN (2-8S)
- Mount pattern: 30.5*30.5mm/φ4
- Dimensions: 36.9*52mm
- Weight: 35g
- INAV Firmware: IFLIGHT_BLITZ_H7_WING
- Ardupilot Firmware: BlitzWingH743
- BEC: 5V 2.5A / 9V 2.5A / 5-8.4V 6A
- PDB current resistance: 100A continuous, 160A peak (10 seconds)
- Power (continuous): 33.6V*100A＝3360W
- Power (peak): 33.6*160A=5376W
- Current measurement range: 0-176A
Wiring Suggestions:
- UART1 for VTX HD/Analog
- UART2 for Receiver
- UART4 for GPS
- UART2、UART5、UART6、UART7 free
- 5V 3A BEC for FC
- 9V 3A BEC for VTX
- 5-8.4V 6A BEC for Servo
Includes:
1x iFlight Blitz Wing H743 Flight Controller
1x Silicon Grommet Set
