Sequre ExpressLRS 2.4GHz Receiver
The Sequre ELRS 2.4GHz Receiver features a high-performance design with excellent anti-interference capabilities. It offers ultra-high-speed data transmission, supporting refresh rates of F1000Hz and F500Hz. Equipped with a TCXO (temperature-compensated crystal oscillator) and an output power of 100mW, this receiver is an ideal choice for your ELRS 2.4GHz system. You can rely on low latency, impressive range, strong signal penetration, and consistent performance.
Features:
- High-frequency anti-interference, 2.4GHz frequency, strong signal penetration.
- High-speed data transmission, supports F1000Hz and F500Hz ultra-high refresh rates, meeting the low-latency requirements of racing players.
- Onboard temperature-compensated crystal oscillator (TCXO), rejects the impact of ambient temperature on flight, maintains stable operation in high or cold environments, making flight safer.
- Integrated with a high-power PA+LNA low-noise amplifier and 100mW (20dBm) telemetry return, returning the flight data is more stable.
- Supports SH1.0-4P socket and 2.54-4P pad, two connection methods to meet various scenarios.
Specifications:
- Model: Sequre ELRS 2.4GHz Single RX
- Factory Firmware: Sequre 2.4GHz Single RX_3.4.0

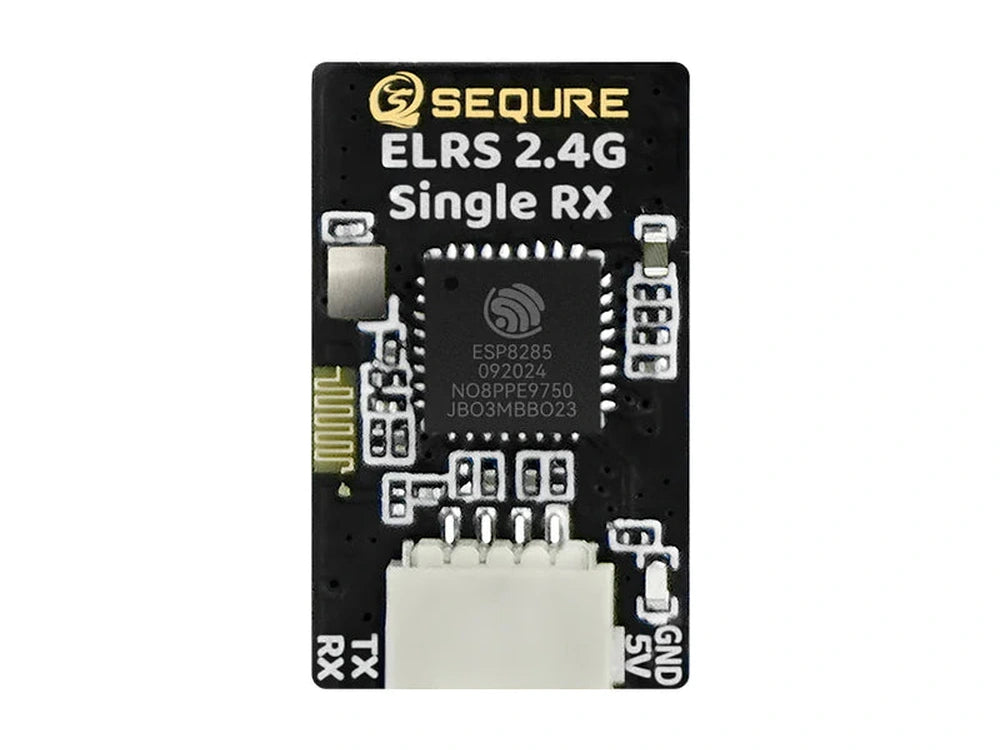

- MCU: ESP8285
- RF Chip: SX1281
- Crystal Oscillator Type: TCXO
- Telemetry Power: 100mW (20dBm)
- LNA: YES
- Indicator Light: LED
- Frequency Band: 2.4GHz ISM
- Protocol: CRSF
- RF Mode: Single Antenna
- Antenna Interface: IPEX
- Antenna Length: 80mm

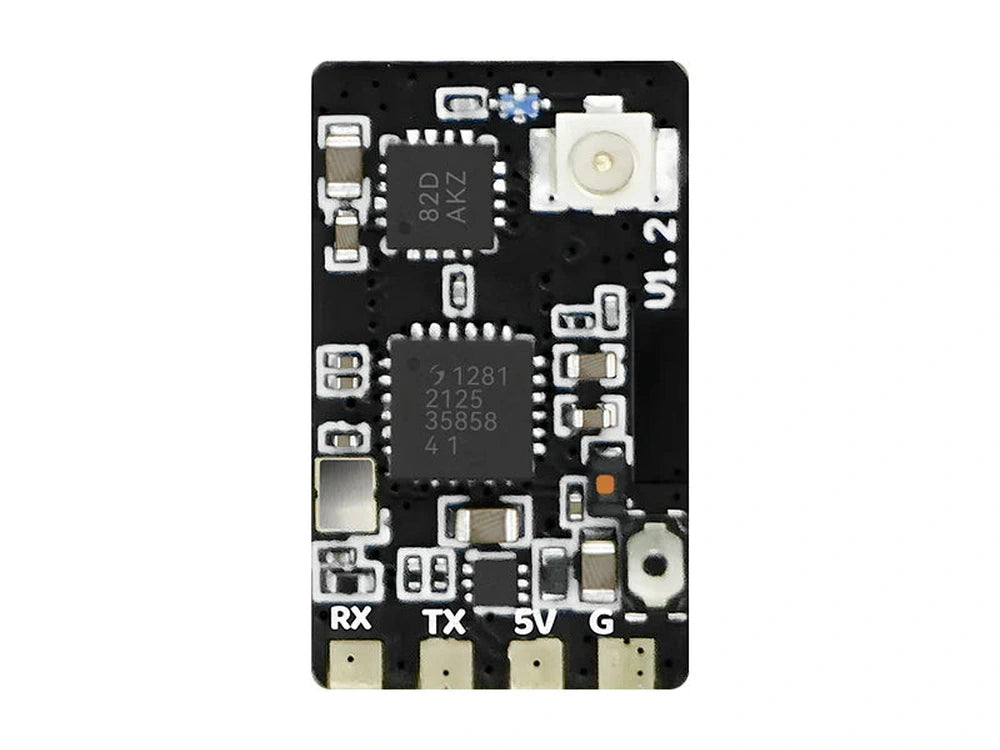

- Receiver Interface: SH1.0-4P Connector, 2.54-4P Pad
- Working Voltage: 5V

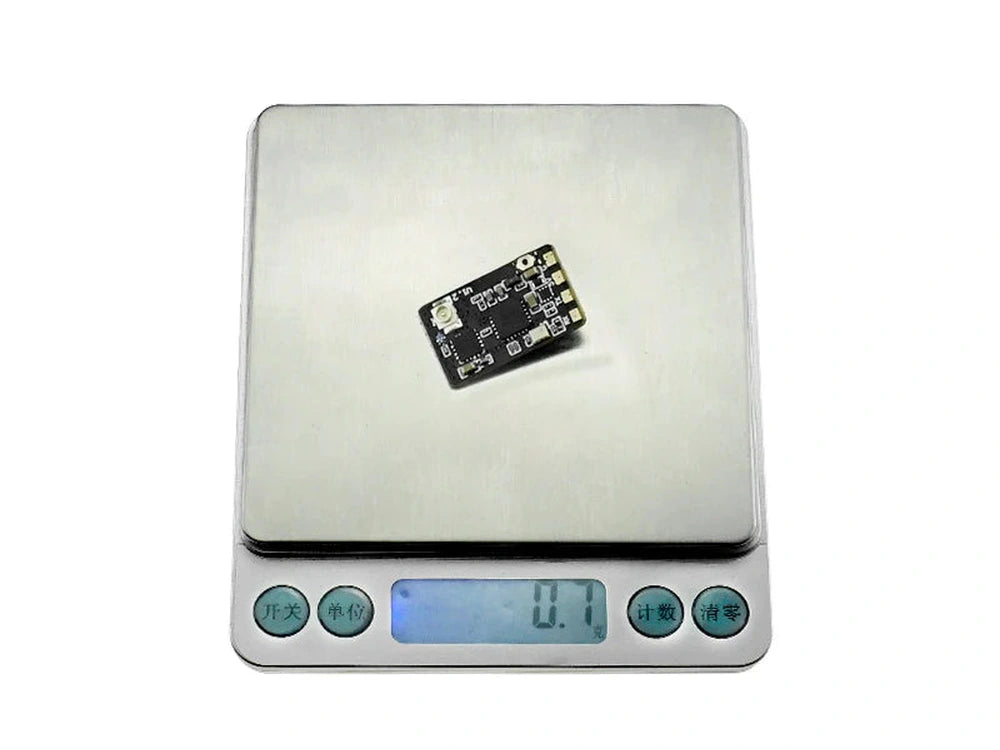

- Weight: 0.7g

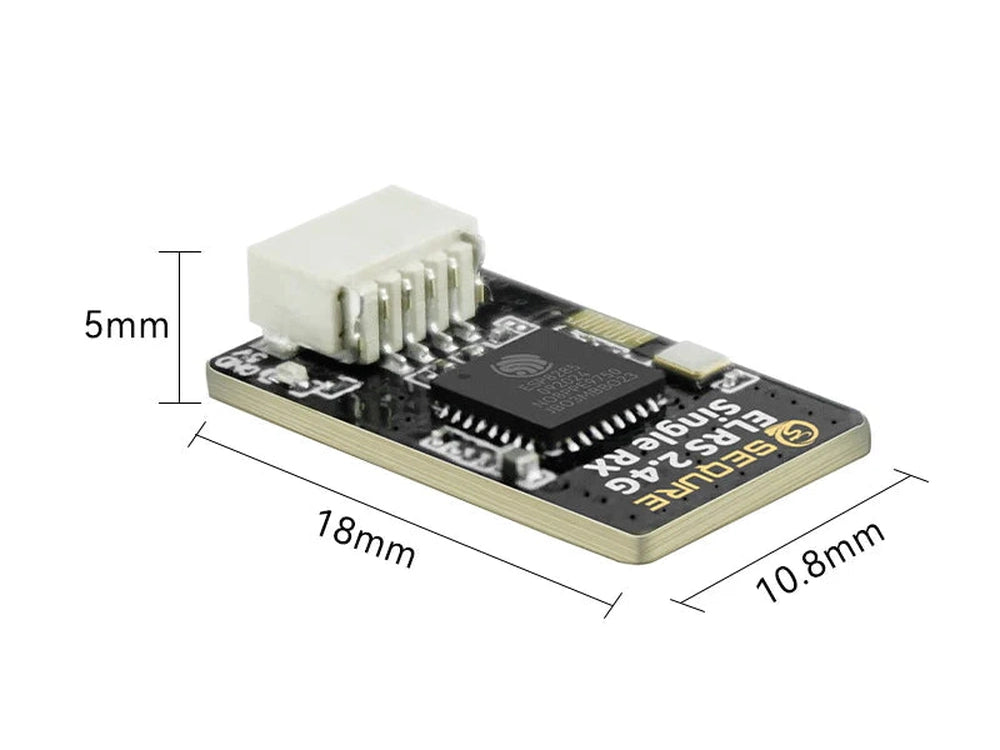

- Size: 18*10.8*5mm

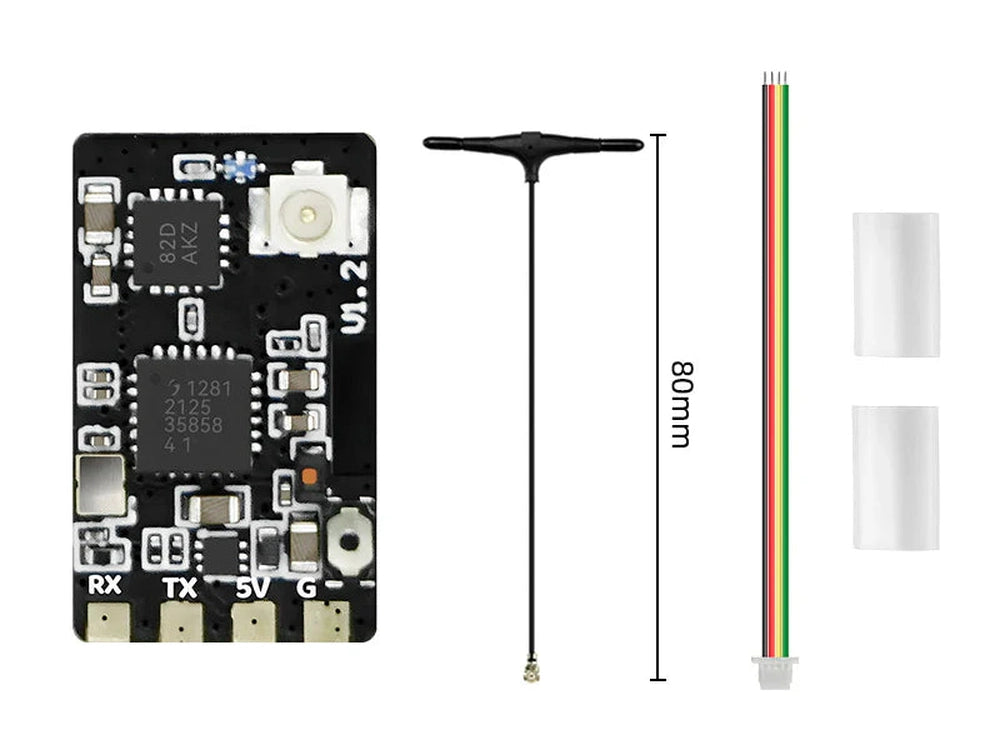

Includes:
1x Sequre ExpressLRS 2.4GHz Receiver
1x 2.4GHz Antenna (80mm)
1x 30AWG 100mm Cable
2x 12*30mm Heat Shrink Tube
