Sequre ExpressLRS 2.4GHz True Diversity Receiver

$21.99
Unit price per

The Sequre ELRS 2.4GHz True Diversity Receiver comes with dual high-performance receivers and two antennas. Equipped with a TCXO temperature-compensated crystal oscillator and 50mW of output power, it’s an ideal match for your ELRS 2.4GHz system. You can count on excellent range, strong signal penetration, and reliable performance.

Features:

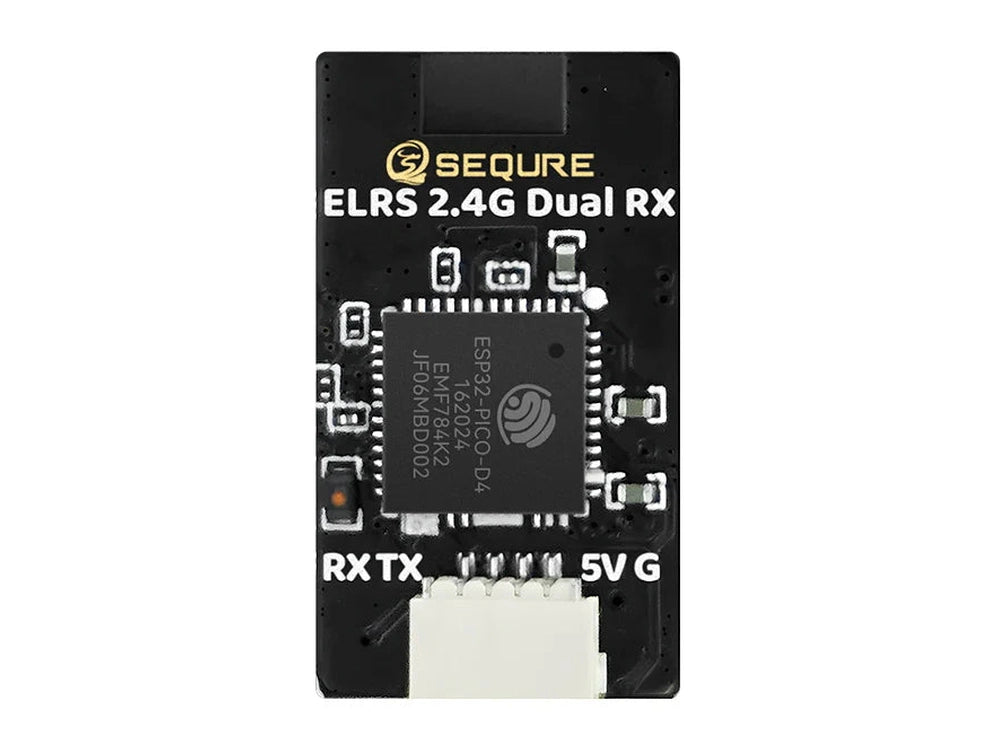

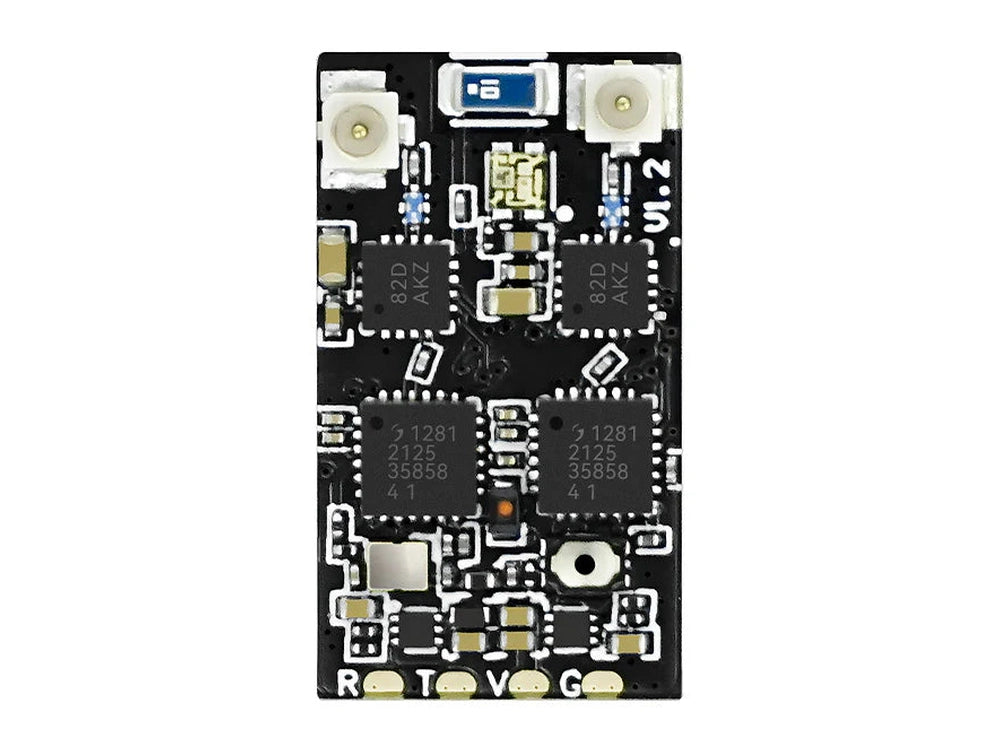

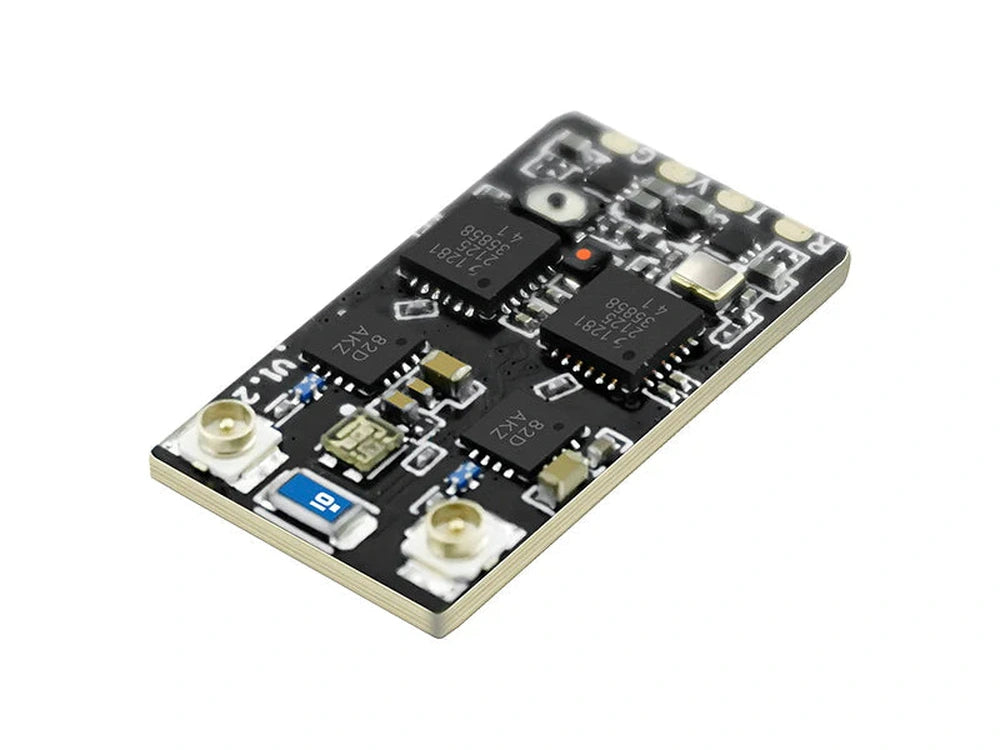

High-performance ESP32-PICO-D4 master control, dual-frequency SX1281 chip, true diversity dual antenna receiver.
High-frequency anti-interference, 2.4GHz frequency, strong signal penetration.
High-speed data transmission, support F1000Hz and F500Hz ultra-high refresh rates, meet the low latency requirements of racing players.
Onboard temperature-compensated crystal oscillator (TCXO), refuses ambient temperature to affect flight, maintains stable operation in high or cold environments, making flight safer.
Integrated with dual-channel high-power PA+LNA low-noise amplifier and 100mW (20dBm)*2 telemetry return, the return of flight data is more stable.
Onboard RGB color indicator, quickly identify different working status.
Support SH1.0-4P socket and 2.54-4P pad, two connection methods to meet various scenarios.

Specifications:

Model: Sequre ELRS 2.4GHz Dual RX
Factory Firmware: Sequre 2.4GHz Dual RX_3.4.0
MCU: ESP32-PICO-D4
RF Chip: SX1281
Crystal Oscillator Type: TCXO
Telemetry Power: 100mW (20dBm) *2
LNA: YES
Indicator Light: LED
Frequency Band: 2.4GHz ISM
Protocol: CRSF
RF Mode: Dual / True Diversity / True Diversity Dual Antenna
Antenna Interface: IPEX

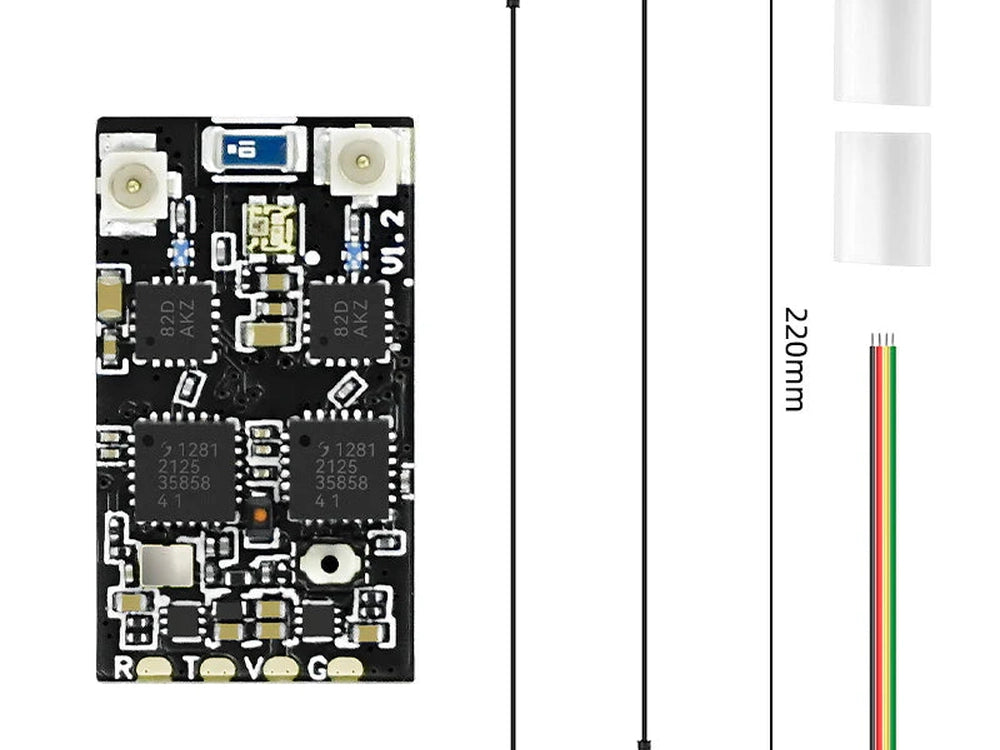

Antenna Length: 220mm

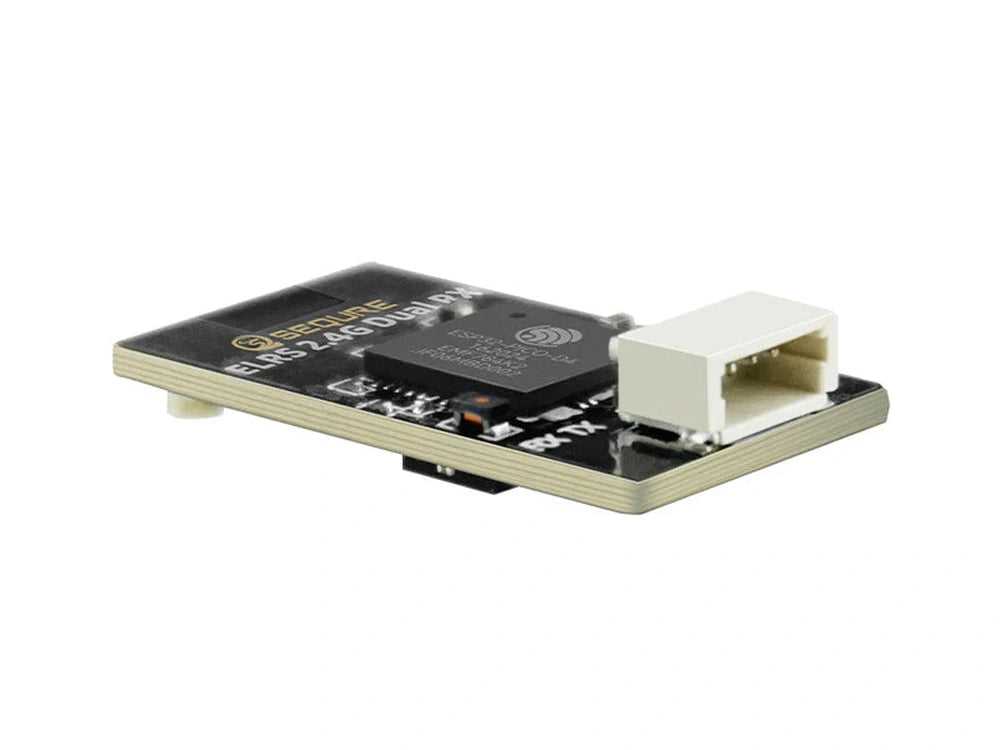

Receiver Interface: SH1.0-4P Connector, 2.54-4P Pad
Working Voltage: 5V

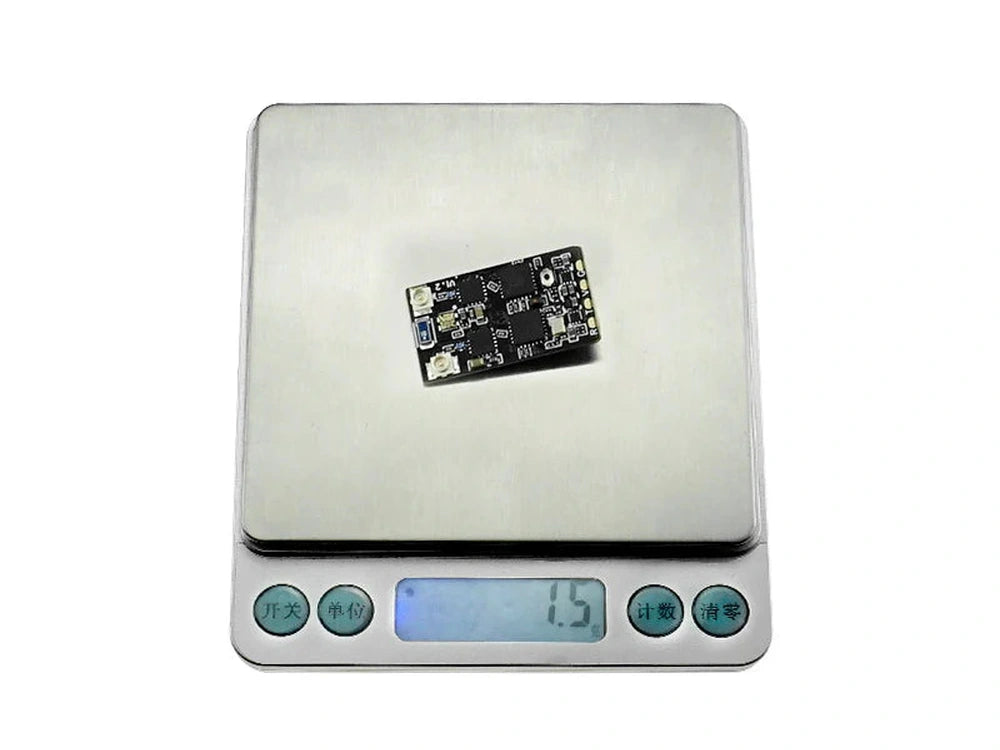

Weight: 1.5g

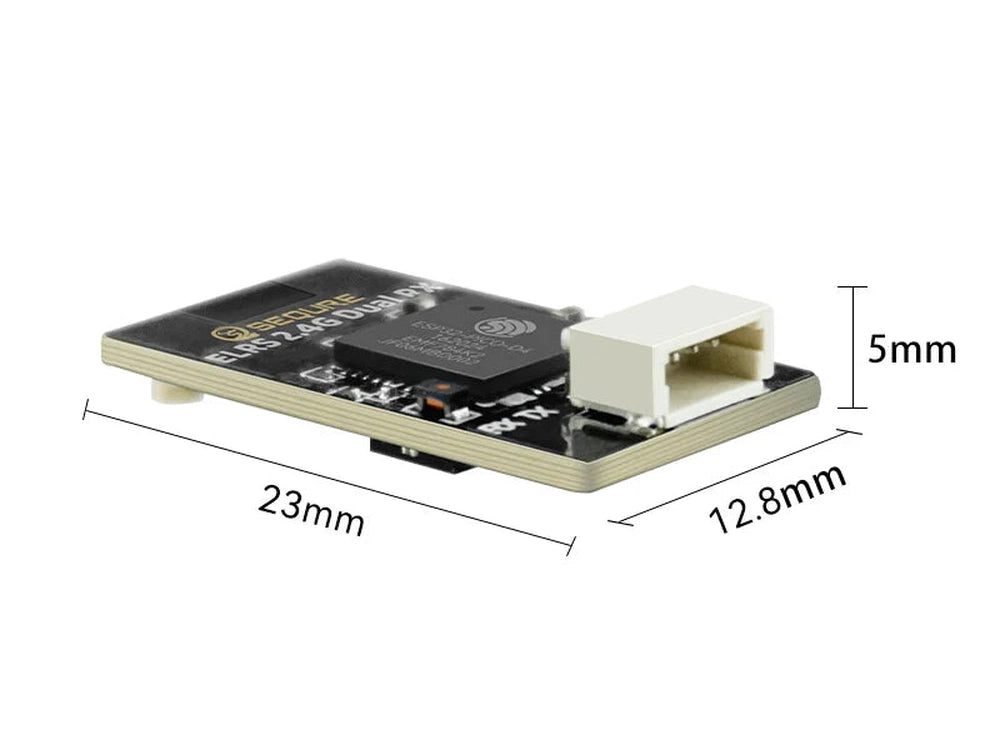

Size: 23*12.8*5mm

Includes:
1x Sequre ExpressLRS 2.4GHz True Diversity Receiver
2x 2.4GHz Antennas (200mm)
1x 30AWG 100mm Cable
2x 12*30mm Heat Shrink Tube
