Sequre H743 V2 ICM42688P 4-8S Flight Controller



The Sequre H743 V2 4-8S Flight Controller is equipped with a powerful STM32H743 processor that operates at 480 MHz, ensuring rapid control response. It utilizes the ICM42688P gyroscope to enhance stability, reliability, and overall performance. Additional features include six UART ports, a barometer, an On-Screen Display (OSD), and a 16MB black box for data logging. The board's unique design allows for installation on both 20x20 mm and 30x30 mm mounting holes.

Features:

  • Equipped with a high-performance STM32H743 processor, the operation frequency is up to 480MHz, offering rapid control response.
  • Adopts ICM42688P gyroscope, this FC realizes precise gesture sensing and stable control, improving the reliability of the system.
  • SEQURE H743 has an onboard barometer, OSD, and 16MB large capacity black box, which effectively records the flight data.
  • Reserve 6 UARTS to meet the needs of most devices.
  • It can control up to 8 motors, easily constructing X8.
  • Equipped with a plug-in connector and dual BEC outputs, the FC provides independent 10V voltage, allowing the DJI O3/O4/O4 Pro and analog VTX to plug in for use directly.
  • Supports wide voltage input of 4-8S Lipo, mounting holes of 20mm and 30.5mm. Mini design, suitable for various types of racks like racing, aerial photography, freestyle, etc.

Specifications:

  • Product Name:  Sequre H743 V2
  • Processor:  STM32H743
  • Gyroscope:  ICM-42688-P
  • Barometer:  BMP280/DPS310/DPS368
  • OSD Chip:  AT7456E
  • Black Box:  16MB
  • Firmware Type:  Betaflight (default), iNav, ArduPilot
  • Firmware Name:  SEQUREH7V2
  • Input Voltage:  4-8S LiPo/LiHV
  • BEC Output:  5V/2.5A, 10V/2A
  • UARTS:  6
  • Control Motor:  M1-M8
  • LED:  WS2812 LED Strip
  • Buzzer:  Supported
  • ESC Telemetry:  RX8
  • USB:  Type-C

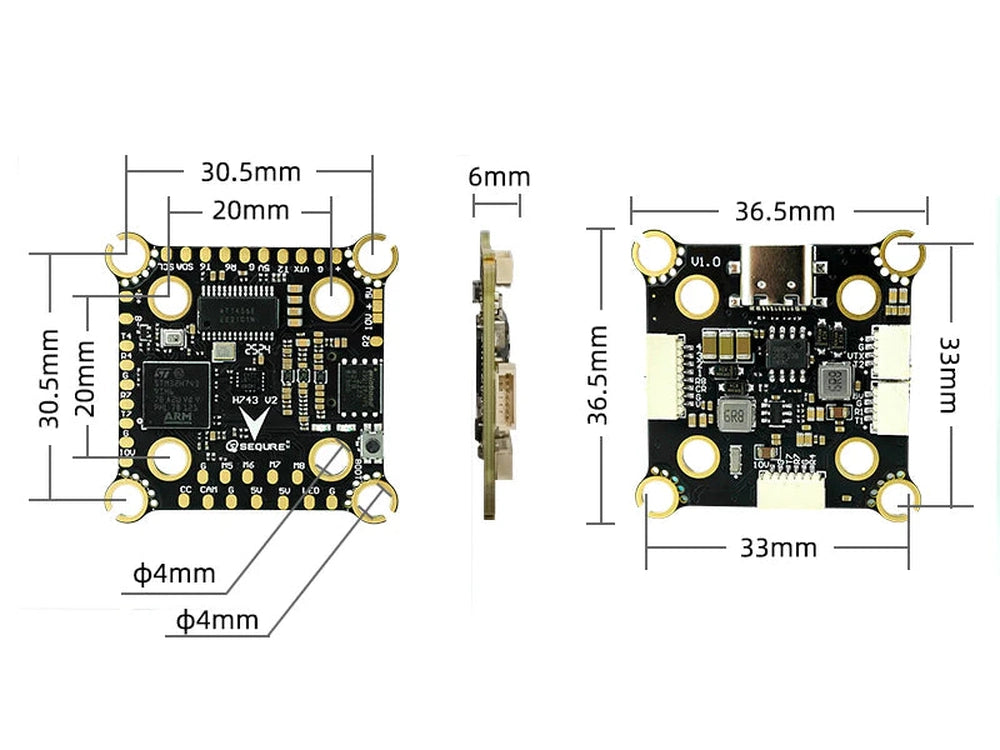

  • Installation Hole Distance:  20x20mm,Φ4mm/M3 | 30.5x30.5mm,Φ4mm/M3
  • Product Size:  36.5*36.5*6mm

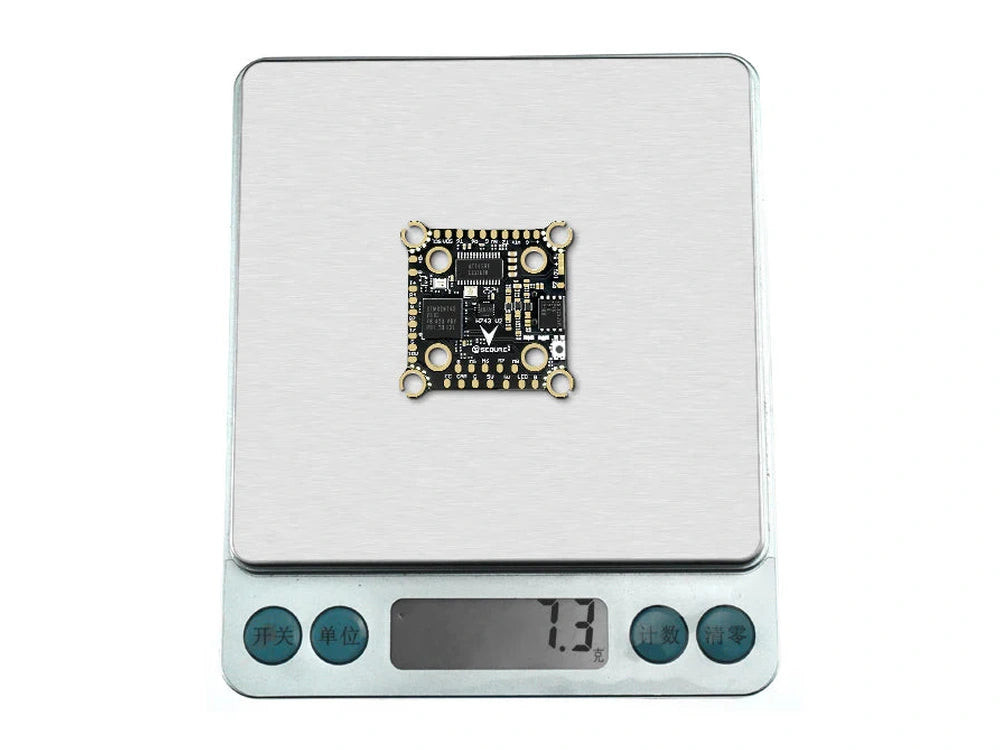

  • Product Weight:  7.3g
Sequre H743 V2 ICM42688P 4-8S Flight Controller
Sequre H743 V2 ICM42688P 4-8S Flight Controller

Includes:
1x Sequre H743 V2 ICM42688P 4-8S Flight Controller
1x 30AWG 40mm Cable
2x 30AWG 100mm Cable
1x 60mm Length 12059 5V Buzzer
5x M3*8mm Shock-absorbing Ball
5x M3*6.6mm Shock-absorbing Ball
