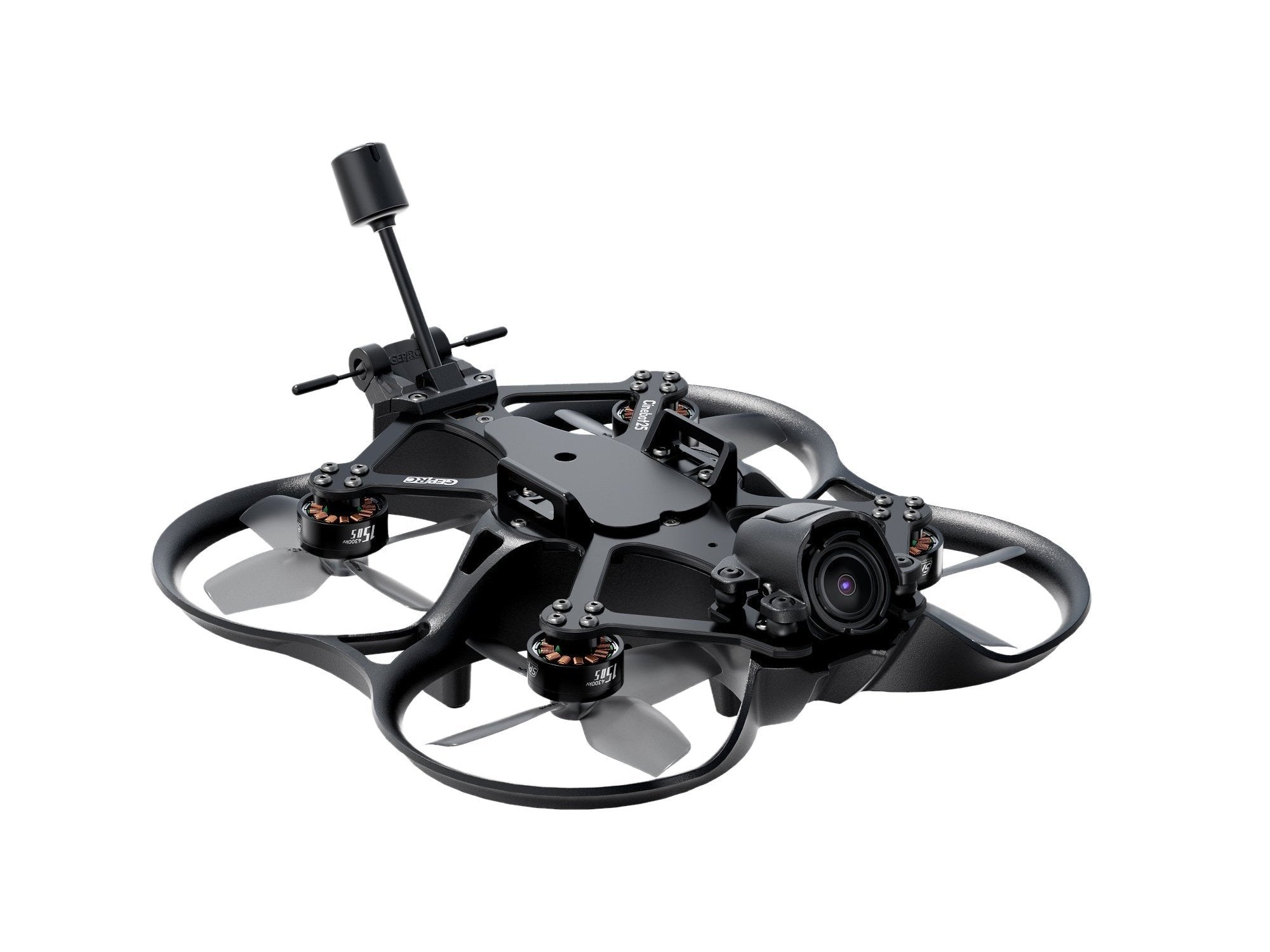

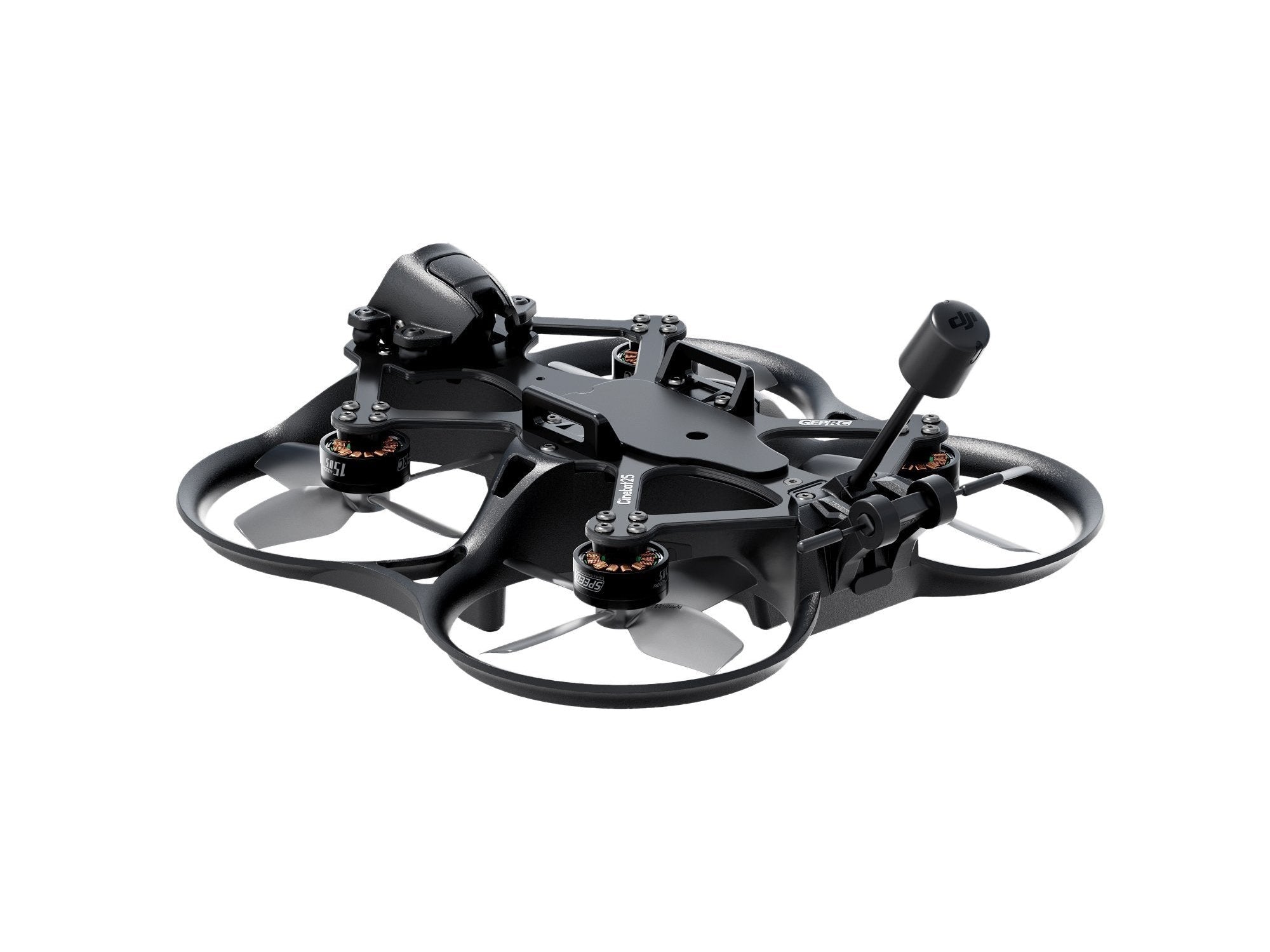

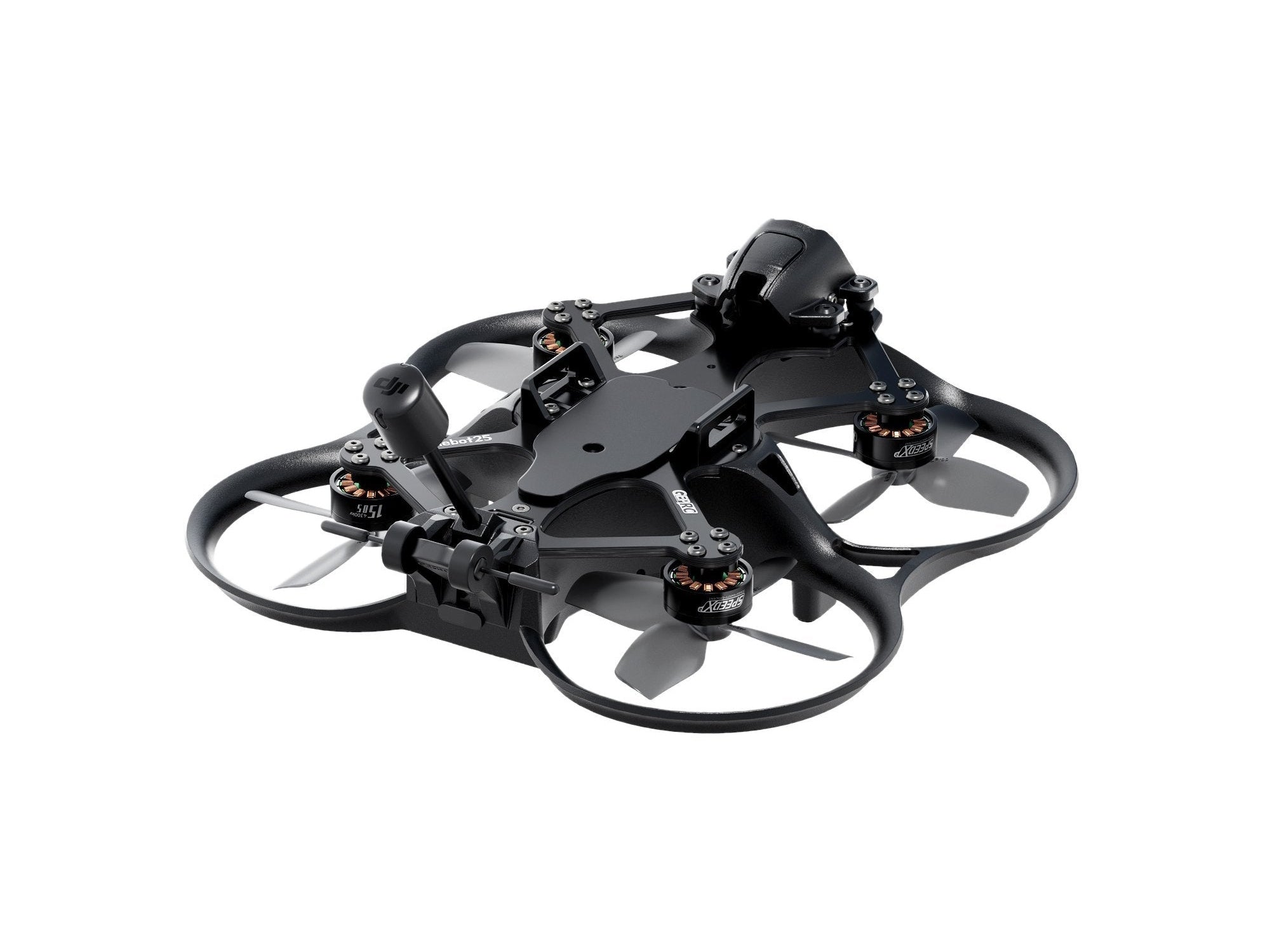

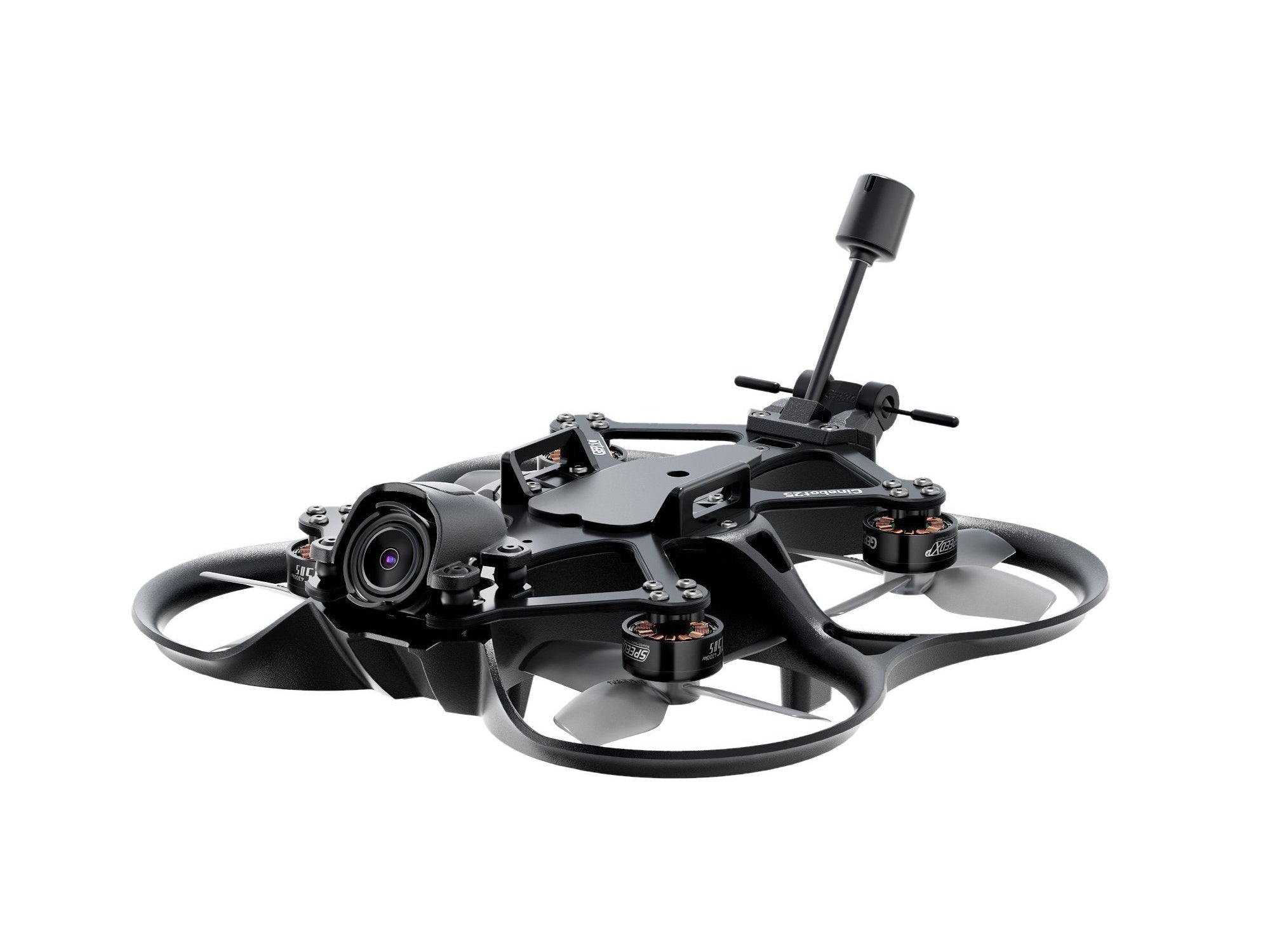

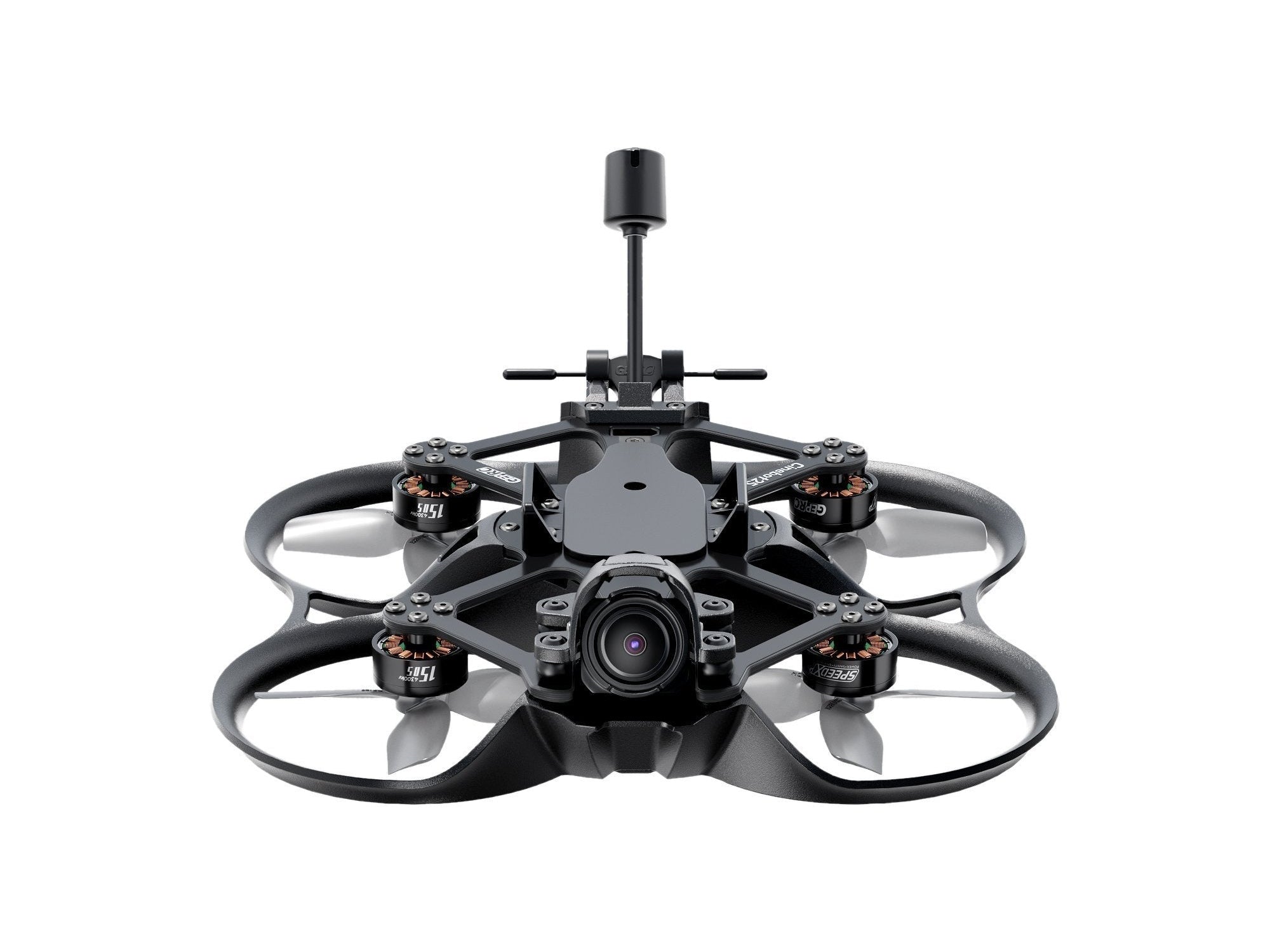

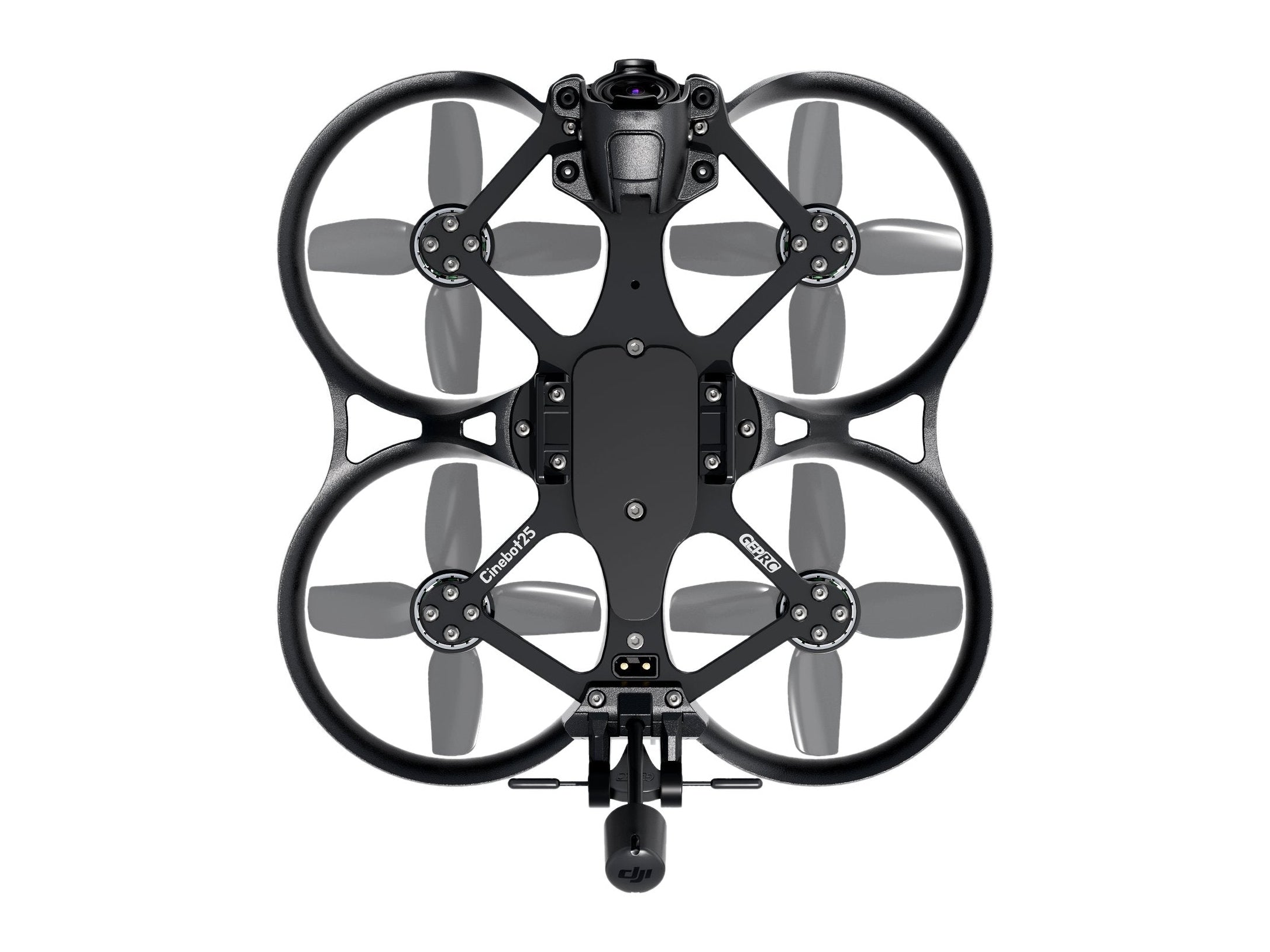

GEPRC Cinebot 25 S HD O3 Cinewhoop

Cinebot25 is a model that possesses unparalleled controllability and steady aerial footage shooting capability. It will debut with a revolutionary external design and unbelievable performance.

The O3 anti-shake design applies four silicone damping balls to reduce vibration and filter jello, providing high-performance videos. The integrated structure adopts revolutionary modified materials to satisfy the need for rigidity and flexibility, reducing the possibility of damage to a minimum. The fuselage space is highly compatible with various video transmission systems like the O3 Air Unit， and it is equipped with a convenient outlet to make the use of the SD card slot and USB faster and more effective.

After a host of testing on parameters, Cinebot25 adopts a TAKER G4 45A 8Bit AIO FC that will breathe new life into the footage-shooting experience.

Features:

• Integrated external design. Equipped with reinforced carbon plate and modified material for one-piece injection molding at the bottom.
• The shock-absorbing protection cover of the camera provides better stability for footage shooting.
• The TYPE-C and BOOT button on the rear makes parameter adjustment convenient.
• Optimized silicone T-shaped antenna fixing component.
• Cinebot25 Lite quadcopter equipped with a LiHV 4S 720mAh battery that weighs less than 250g.
• Equipped with the new TAKER G4 45A 8Bit AIO, the G4 main controller ensures stable flight computations, while its integrated 8Bit 45A ESC boasts robust over-current capability.
• The compatibility between O3 VTX and Cabinet makes the installation of memory cards and footage loading easier.
• The customized fixing stand of the receiver simplifies the internal space.
• Diversify the selectivity of the battery with the comprehensive fixing method of aluminum components and straps.

Specifications:

• Model: Cinebot25 S HD O3 Quadcopter
• Frame: GEP-CT25 Black
• Wheelbase: 115mm
• FC: TAKER G4 45A AIO
• MCU: STM32G473CEU6
• Gyro: ICM 42688-P
• FC firmware: TAKERG4AIO
• ESC: 45A 8Bit ESC
• Motor: SPEEDX2 1505 4300KV
• Propellers:  HQprop DT63mm x4
• Connector: XT30
• VTX: O3 Air Unit
• Camera: O3 Camera
• Antenna: O3 Antenna
• Receiver: ELRS2.4G
• Weight: Cinebot25 S HD O3 PNP version 170g+1g
• Recommended battery: LiPo 4S 650mAh-850mAh
• Flight Time：5′-7’30"（The reference time is based on low-speed flight. The actual time depends on individuals’ flying methods.)

Includes:
1x GEPRC Cinebot 25 S HD O3 Cinewhoop
1x HQ-Prop DT63mmx4 Propellers
2x Battery Anti-Slip Pads
1x 15*150mm Battery Strap
1x 15*180mm Battery Strap

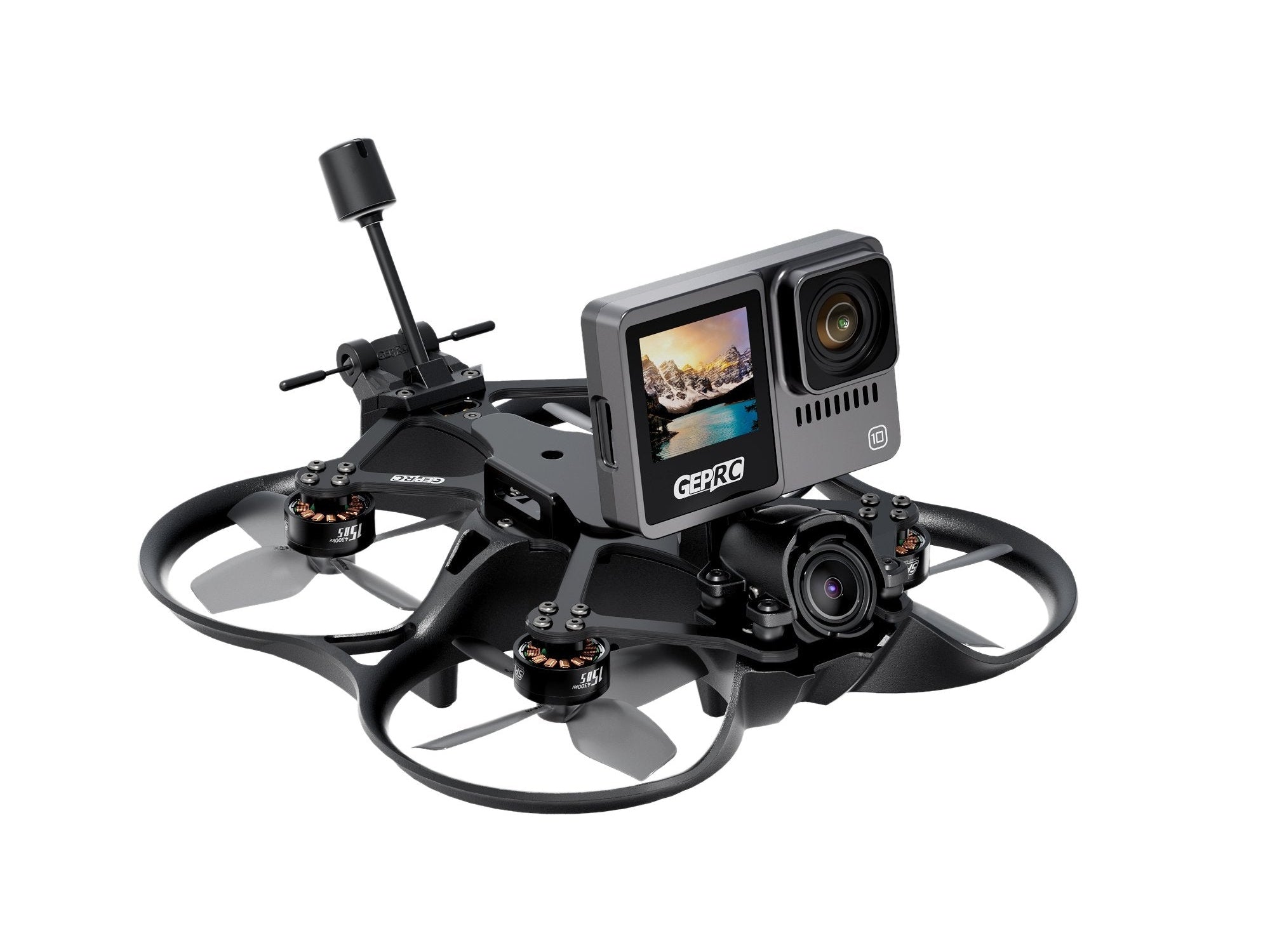

1x Naked GoPro Base
1x Reserved Screw Pack
1x L-Shaped Screwdriver 1.5mm
1x Frequency Paring Pointer
1x Damping Ball Puncher
