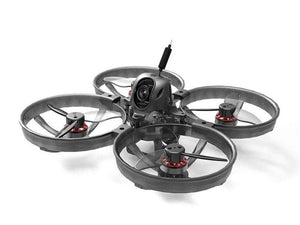

Happymodel Mobula8 2S 85mm Walksnail HD Micro FPV Whoop Drone

  • $239.00
    Unit price per



The Happymodel Mobula8 2S 85mm Walksnail HD Micro FPV Whoop Drone provides a digital HD experience with high-performance power to rip through the air. Enjoy the ultimate in FPV whoop drone performance with a reliable video system and an incredibly fast power system.

Features:

  • Digital HD FPV experience
  • New CrazyF405 ELRS HD flight controller
  • Powerful and Smooth
  • UART ExpressLRS 2.4GHz receiver
  • Built-in blackbox for Gyroflow and PID Tune

Specifications:

  • Frame:  Happymodel Mobula8
  • Flight Controller:  CrazyF405HD UART ELRS AIO
  • Motor:  EX1103 KV11000 Brushless
  • Propellers:  Gemfan Hurricane 2023 tri-blade
  • HD System:  Walksnail Avatar HD Mini Lite

MOTOR

  • Mode: EX1103 KV11000
  • Configu-ration:9N12P
  • Stator Diamter:11mm
  • Stator Length:3mm
  • Shaft Diameter:Φ1.5mm
  • Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm
  • Weight(g):3.8g
  • No.of Cells(Lipo):1-2S

FLIGHT CONTROLLER

  • MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH)
  • GYRO Sensor: BMI270 (SPI connection)
  • Mount hole size: 25.5mm*25.5mm
  • Power supply: 1-2S battery input (DC 2.9V-8.7V)
  • Built-in 12A(each) Blheli_S 4in1 ESC
  • Built-in Serial ExpressLRS 2.4G
  • Built-in BMP280 Barometer
  • Built-in 8MBp blackbox
  • Built-in voltage meter sensor, voltage meter scale 110
  • Built-in current meter sensor, current meter scale 470

ONBOARD 4-IN-1 ESC

  • Power supply: 1-2S LiPo/LiPo HV
  • Current: 12A continuous peak 15A (3 seconds)
  • Support BLHeli_S Bluejay firmware
  • Factory firmware: Bluejay ESC V0.19
  • Firmware target: Z-H-30
  • Default protocol: DSHOT300
  • When use 1s battery and high KV 0702/0802 motors, should set startup power to 1100/1200

ONBOARD UART ELRS 2.4GHZ RECEIVER

  • Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
  • RF Frequency: 2.4GHz
  • Antenna: enameled copper wire 31mm length
  • Telemetry output Power: <12dBm
  • Default firmware version: ExpressLRS V3.0.1
  • Firmware target: HappyModel EP 2400 RX
  • Could update firmware via ExpressLRS configurator

WALKSNAIL AVATAR DIGITAL SYSTEM

  • Camera:  Avatar Lite Camera
  • Resolution:  1080P/60fps, 720P/120fps, 720P/60fps
  • Ratio:  16/9 4/3
  • FOV:  170 degrees
  • Lens:  2.1mm
  • VTX:  Avatar Mini 1S Module
  • Frequency:  5.725-5.850GHz
  • Recording:  1808p/720p
  • Storage:  8G

Includes:
1x Happymodel Mobula8 2S 85mm Walksnail HD Micro FPV Whoop Drone
