GEPRC ExpressLRS Nano 915MHz PA500 Receiver

  • $21.99
    Unit price per



The GEPRC ExpressLRS Nano 915MHz PA500 receiver is an advanced reception system based on the ExpressLRS open-source project. ExpressLRS offers long-range operation, low latency, high refresh rates, and affordability.

The ExpressLRS Nano 915MHz PA500 receiver features a TCXO (temperature-compensated crystal oscillator) to prevent frequency shifts caused by temperature changes. It adopts an integrated high-power PA chip, boasting a telemetry power of up to 500mW. It features a built-in WIFI antenna, facilitating firmware upgrades effortlessly via WIFI, and offers convenient installation with its sh1.0 connector.

Features:

  •  Compact size of 13x23x5.5mm
  •  Weighing only 1.9g
  •  WIFI firmware upgrade
  •  ELRS open-source project, long-range remote control
  •  Maximum refresh rate of 200Hz
  •  Uses a temperature-compensated crystal oscillator (TCXO) for stable performance in extreme temperatures, ensuring control stability during long operations
  •  Features a built-in high-power PA chip, providing a maximum Telemetry power of 500mW
  •  Equipped with an sh1.0 connector for easy installation
  •  Adopts an aluminum alloy CNC shell to optimize heat dissipation

Specifications:

  • Model: GEPRC ELRS Nano 915M PA500 receiver
  • Dimension: 13x23x5.5mm
  • Weight: 1.9g (RX only)
  • Chips: ESP8285, SX1276
  • Crystal Oscillator: TCXO
  • Frequency Band: 915MHz FCC /868MHz EU
  • Refresh Rate: 25Hz-200Hz
  • Operating Voltage: 5V
  • Antenna Connector: ipex1
  • Telemetry Power: 500mW
  • Firmware: GEPRC Nano 915M PA500 RX
GEPRC ExpressLRS Nano 915MHz PA500 Receiver
GEPRC ExpressLRS Nano 915MHz PA500 Receiver
GEPRC ExpressLRS Nano 915MHz PA500 Receiver

Includes:
1x GEPRC ExpressLRS Nano 915MHz PA500 Receiver

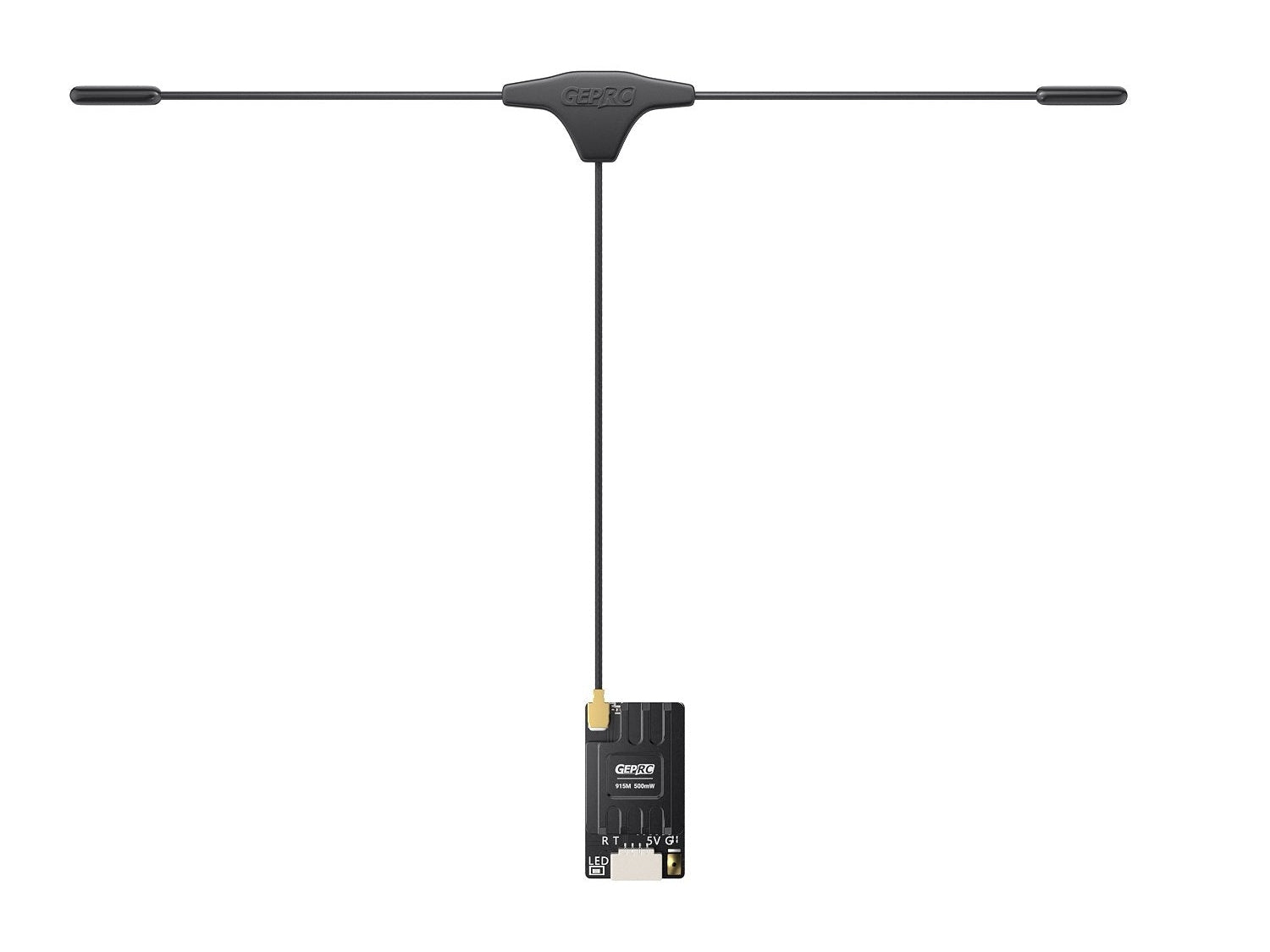

1x Antenna
1x Heat Shrink Tube
1x 4pin Silicone Cable
1x User Manual
