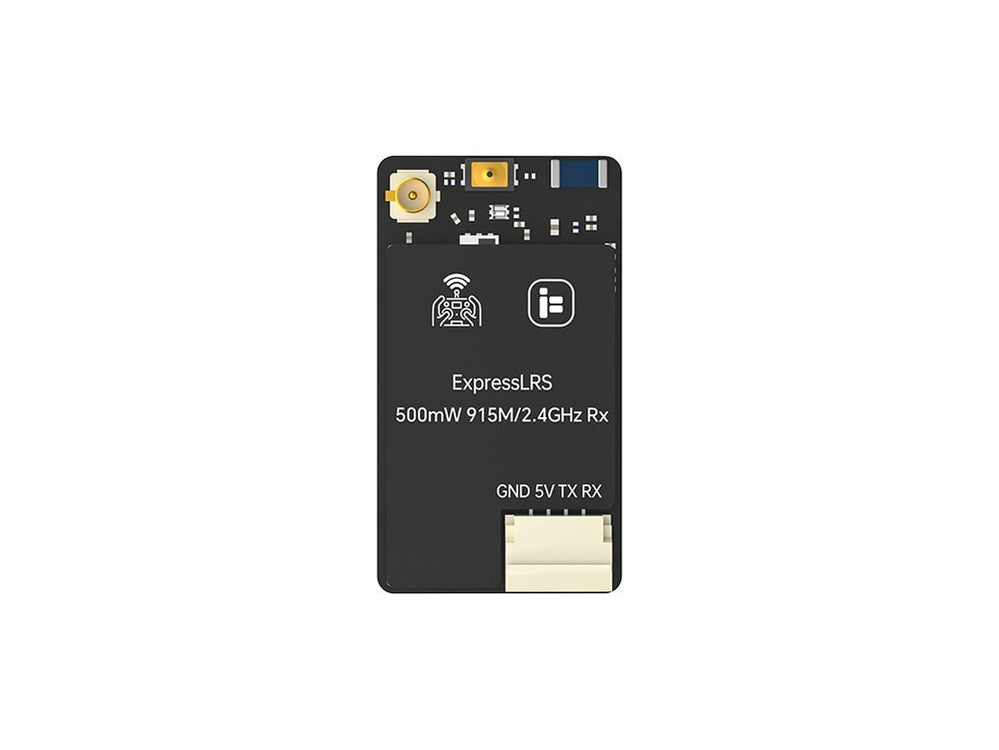

iFlight ExpressLRS Dualband TCXO Receiver 500mW
The iFlight ELRS Receiver redefines reliability with its dualband technology, supporting 2.4GHz, 868MHz, and 900MHz frequencies. Featuring a temperature-compensated crystal oscillator (TCXO), it ensures stable performance in any environment. Perfect for long-range flights, aerial photography, and FPV freestyle, this receiver delivers unmatched precision and reliability for all your flying needs. Elevate your experience with iFlight.
Features;
- TCXO Technology: Minimizes frequency deviation for precise and stable performance.
- Multi-Frequency Support: Compatible with 2.4GHz, 868MHz, and 900MHz for versatile use.
- Compact Design: Space-saving and lightweight for easy integration.
- Single-Sided Components: Optimizes space efficiency.
- Aluminum Heat Sink: Protects electronics and enhances interference resistance.
- SH1.0 Connector: Easy installation with robust connectivity.
- High-Power Telemetry: Supports 500mW telemetry return for stronger signals and reduced telemetry loss.
Specifications:
- MCU: ESP32 C3
- RF: LR1121
- Frequency Bands: 2.4GHz、868MHz、900MHz
- Receiver Type: Single antenna
- Telemetry power: 100-500mW (20-27dBm)
- LNA: YES
- Dimension:14*25*4.3mm(±0.5）
- Weight: 1.9g(±0.5g)
- Lua Script: iF DB 500mW RX
- TCXO: Yes
- Firmware Version: ELRS 3.5.3
Band Option:
The 900MHz as well as 2400MHz bands have outstanding performance and long-range capabilities. If you're not sure what to get, please check out the official ELRS Long Range Competition to see what has been achieved.
https://www.expresslrs.org/2.0/info/long-range/
What can you expect? Due to local regulations, the 900MHz FCC region seems to have a better performance than the 868MHz EU region. The 2400MHz band works great in any region, has a higher packet rate up to 500Hz. This is not a common 2400MHz protocol and cannot be compared to anything prior on the market.
Includes:
1x iFlight ExpressLRS Dualband TCXO Receiver 500mW

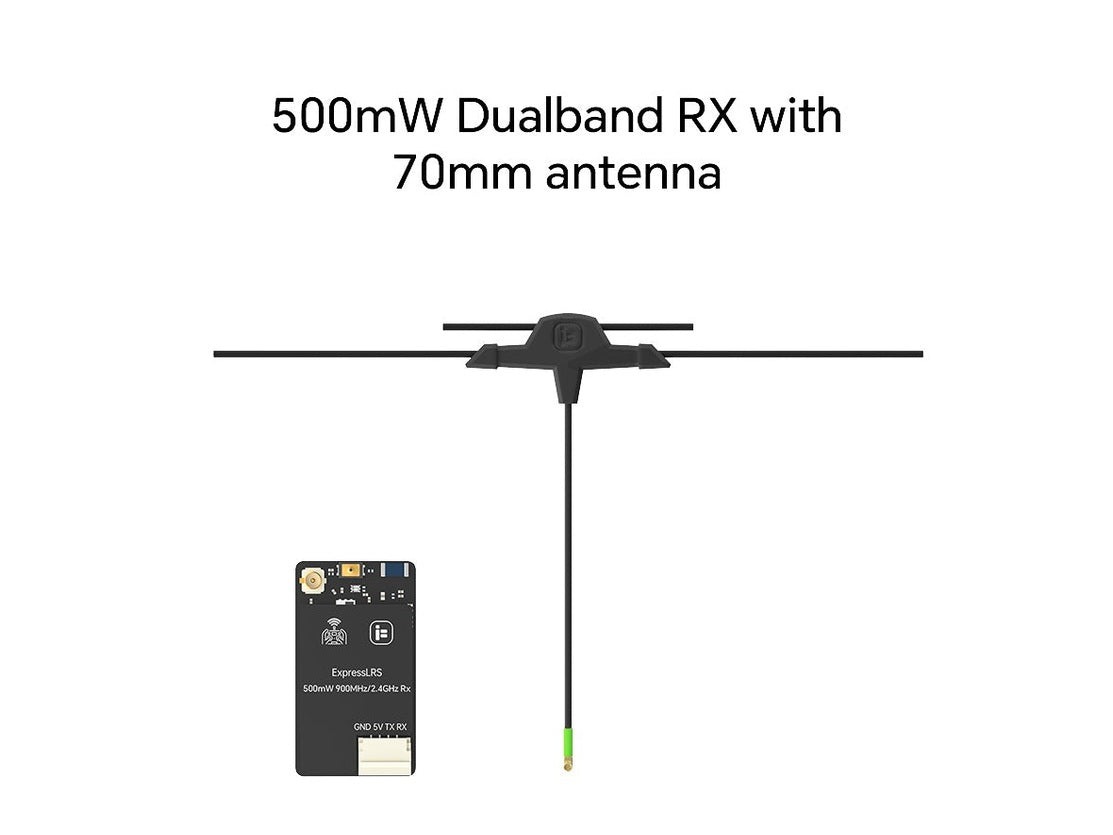

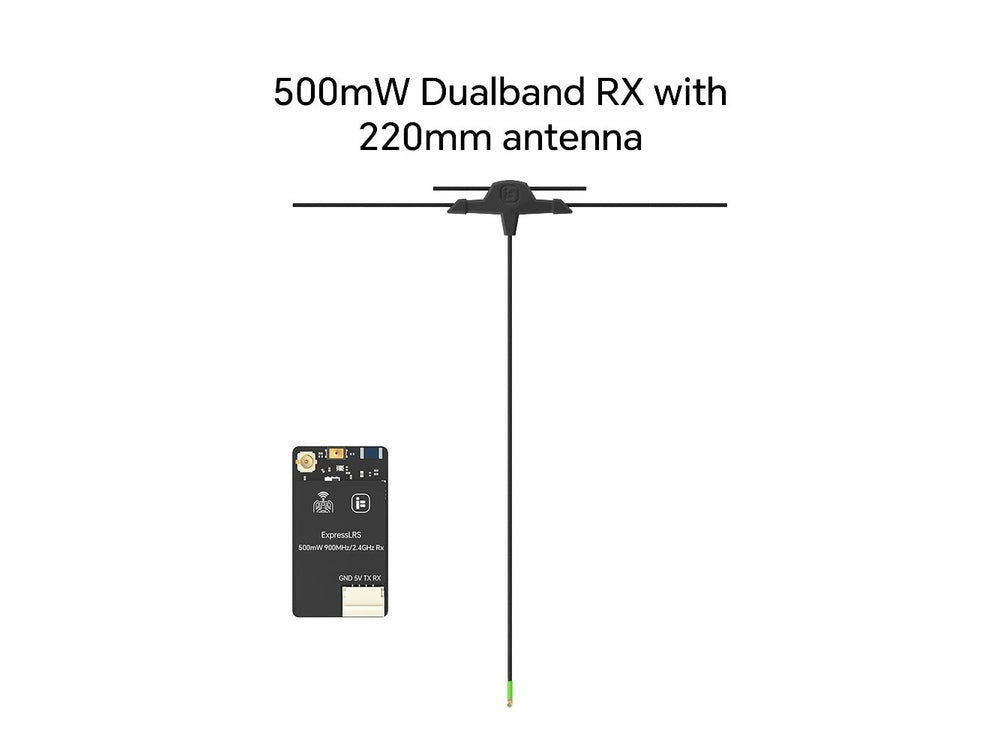

1x Dualband Antenna
1x Cable Set
