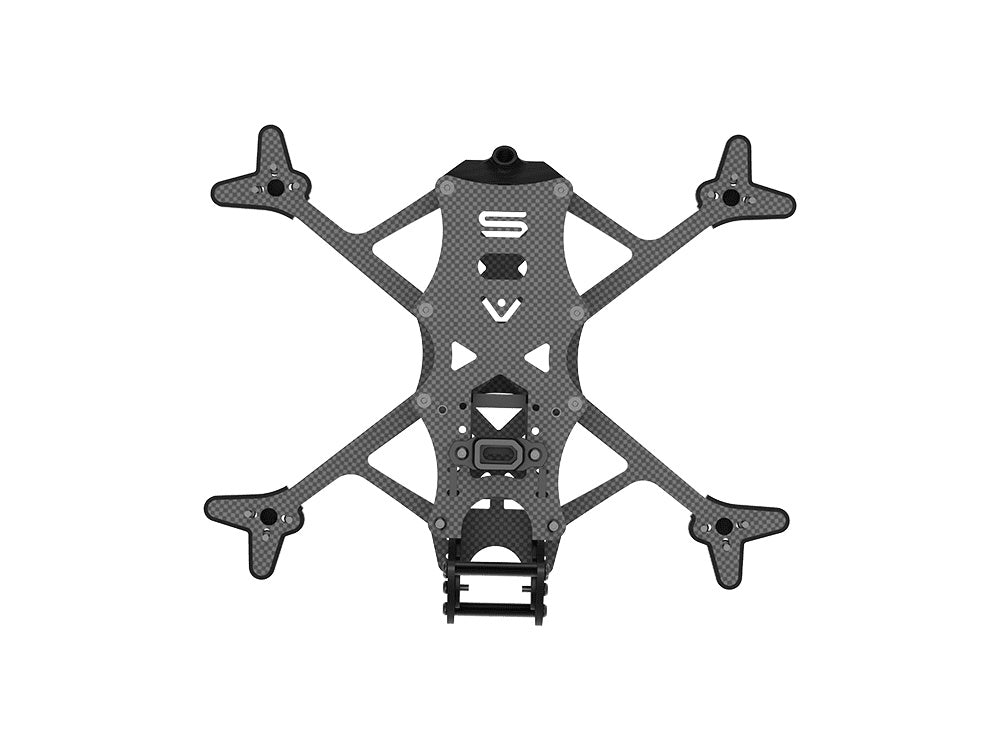

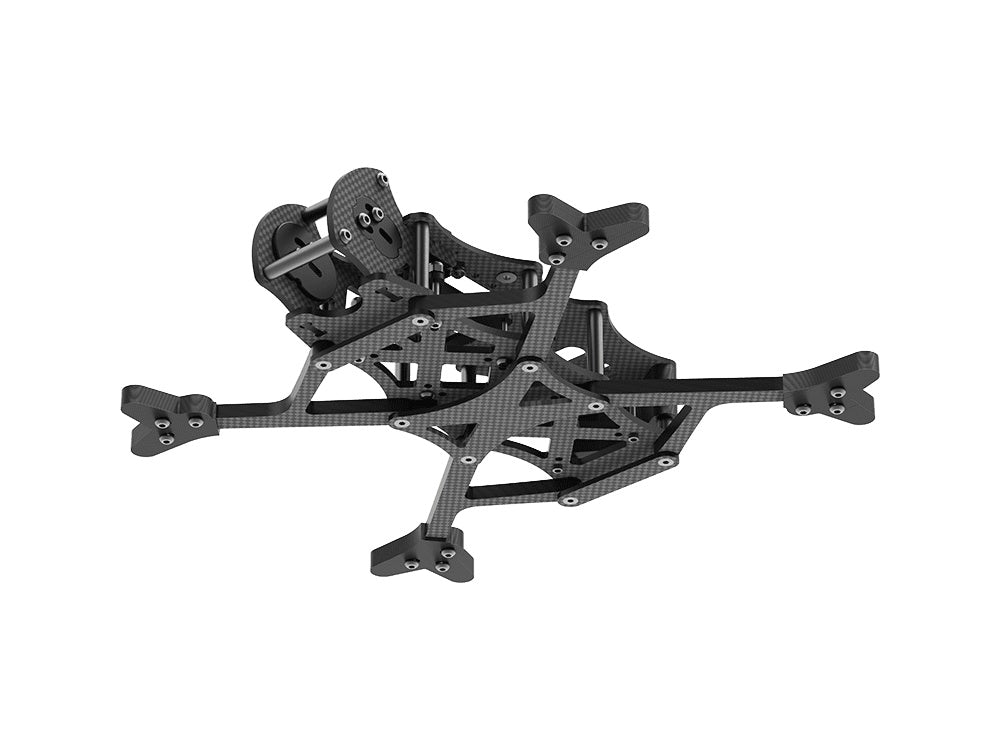

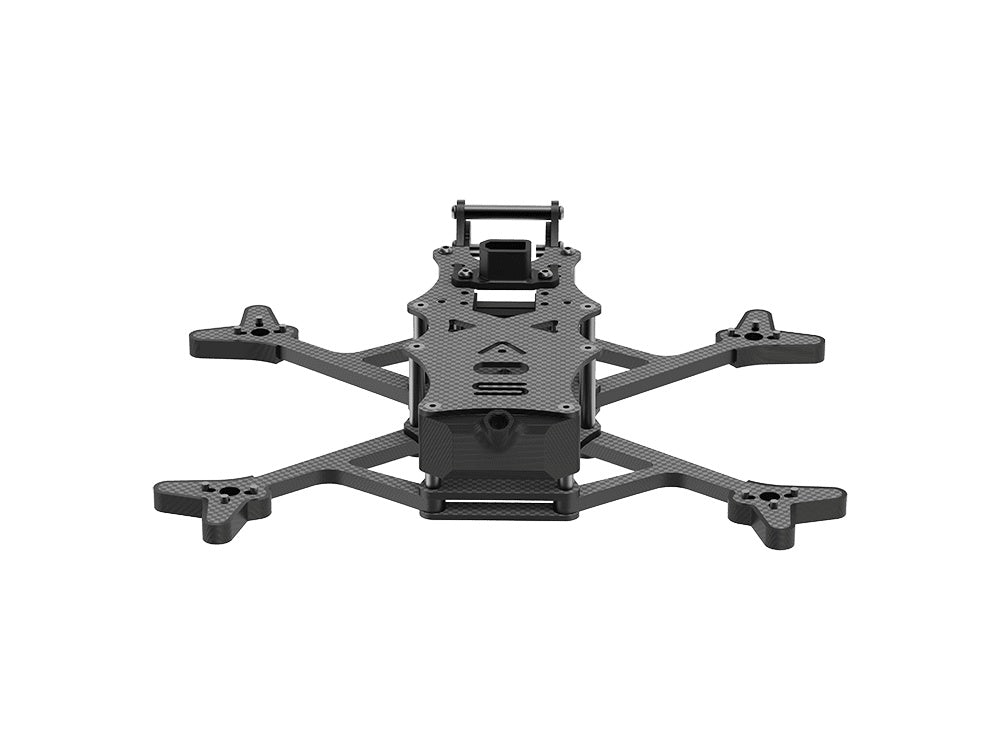

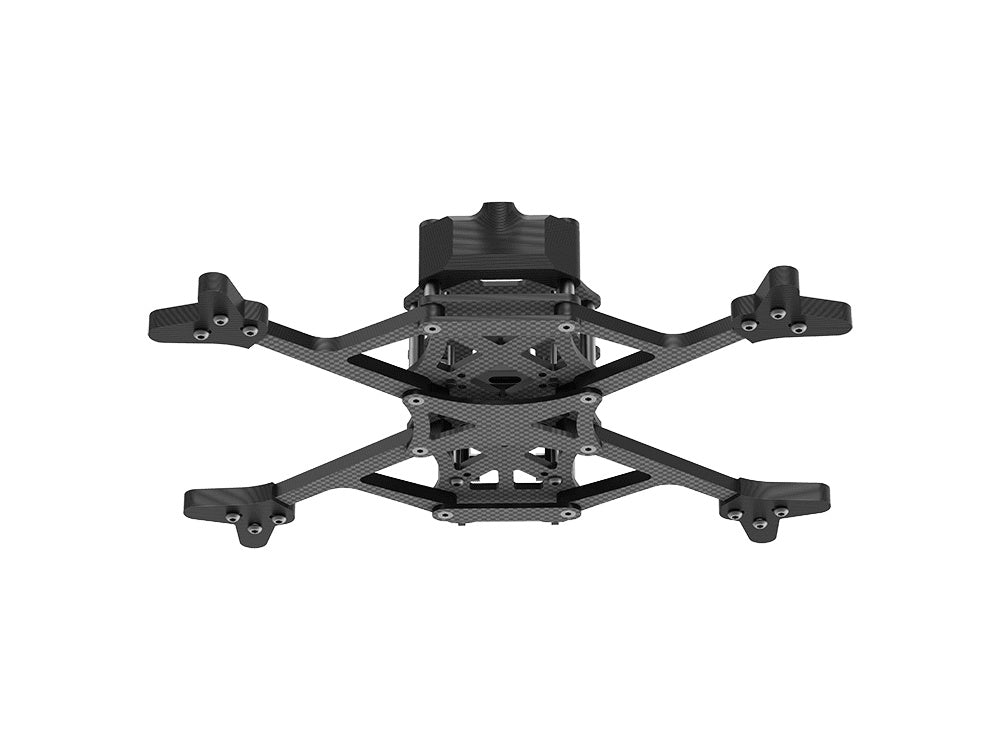

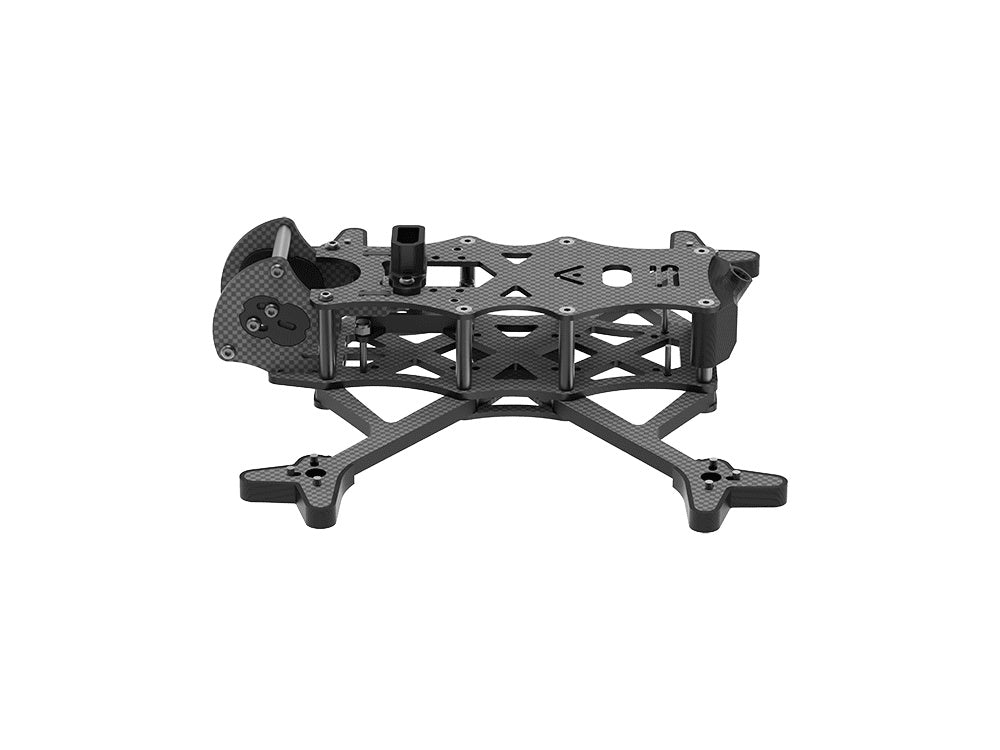

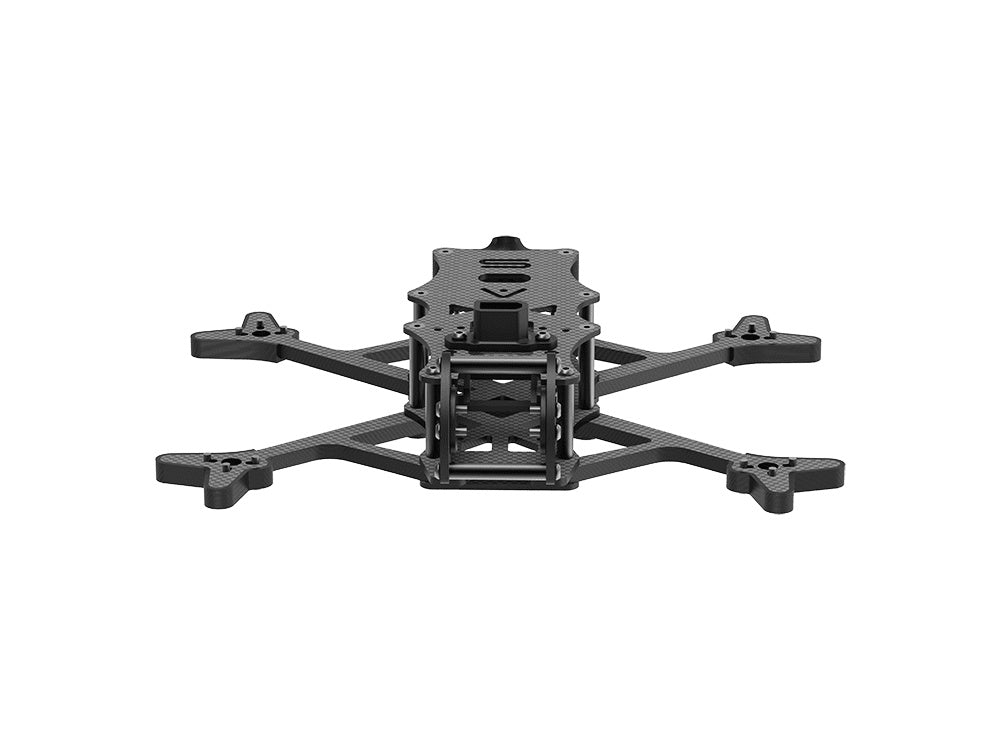

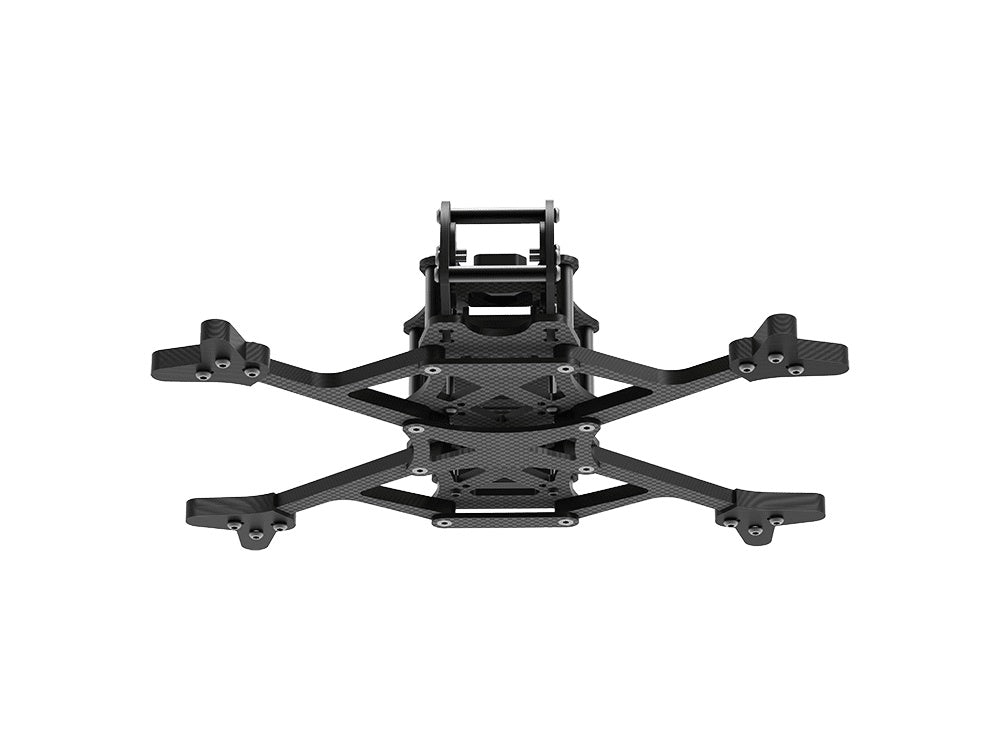

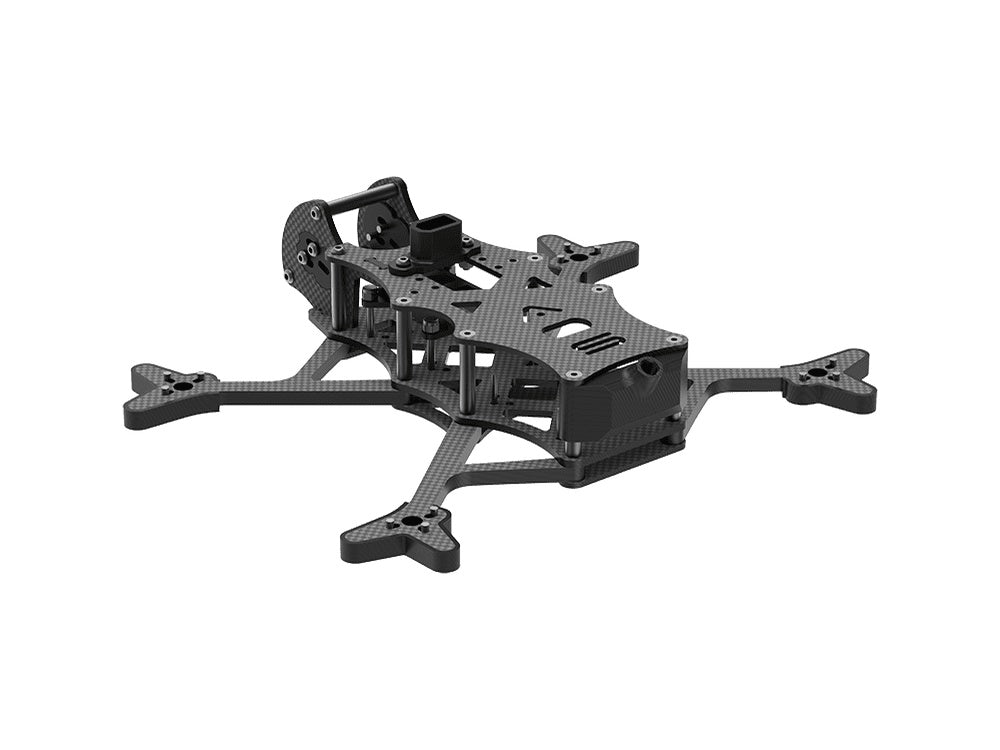

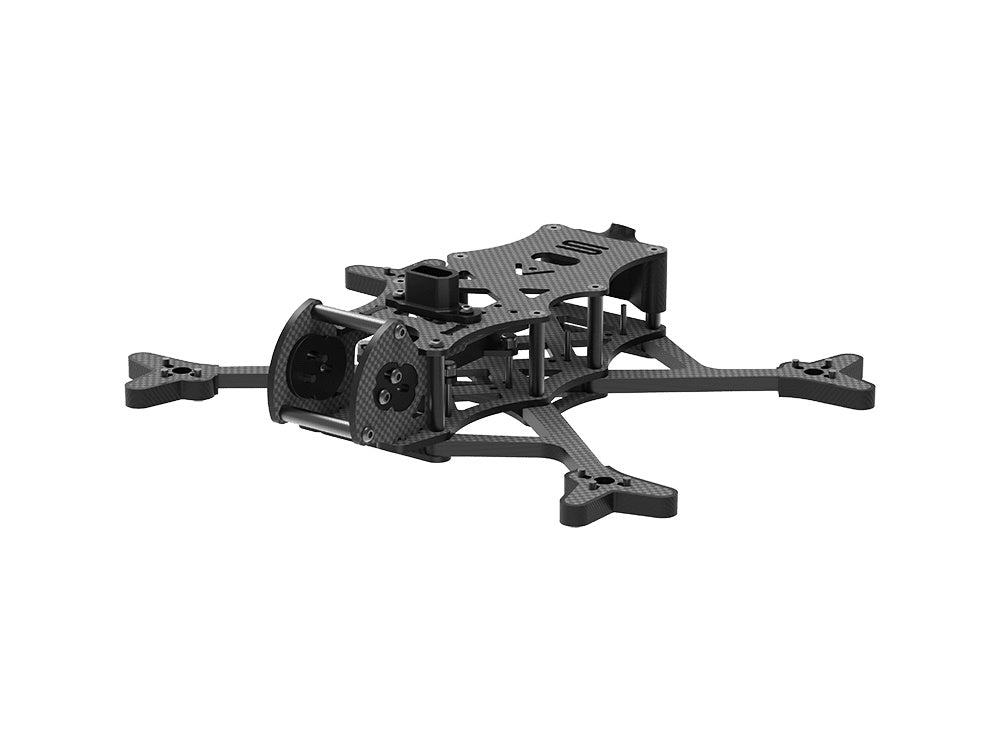

AOS RC AOS 3.5 EVO V1.2 FPV Frame Kit

$54.00
Unit price per

Built to go toe to toe with 5" Freestyle quads whilst weighing under 250g. The AOS 3.5 EVO has been updated to be compatible with the new DJI O3 Air Unit as well as existing 20x20mm and 25.5x25.5mm electronics. The camera cage and arms have been reinforced to improve durability. Also, the frame has been updated with silicone dampers and XT30 mounting hardpoints. As with all AOS frames exceptional vibration and resonance performance is guaranteed, eliminating IMU resonance issues with O3 image stabilisation.

Specifications:

Product Name: AOS 3.5 EVO Frame Kit
Frame wheelbase: 162mm
Frame Dimension: L94.5*W131*H29 mm
Arm Thickness: 4mm
Top Plate Thickness: 1.5mm
Bottom Plate Thickness: 2mm
Upper Plate Thickness: 1.5mm
Motor Mounting: 9x9mm-φ2mm
VTX Mounting: 20*20/Φ2mm / 25.5*25.5/Φ2mm

Includes:
1x AOS RC AOS 3.5 EVO V1.2 FPV Frame Kit
1x TPU Parts
4x Motor Wire Shield Tube
1x Screw Bag
2x Battery Strap
2x Battery Pad
