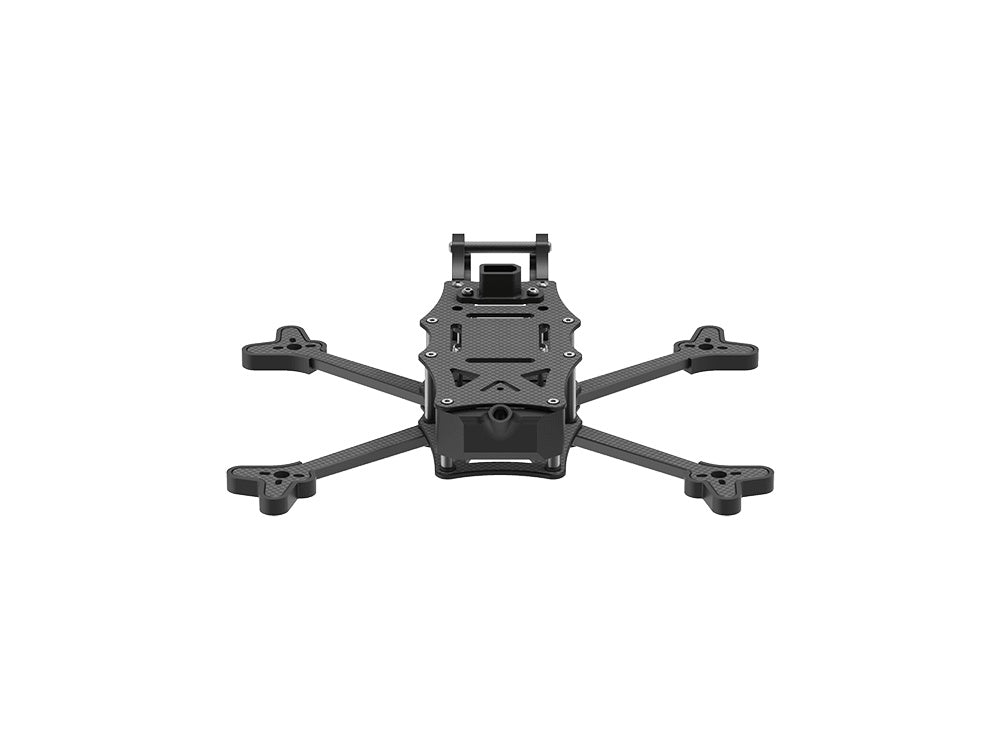

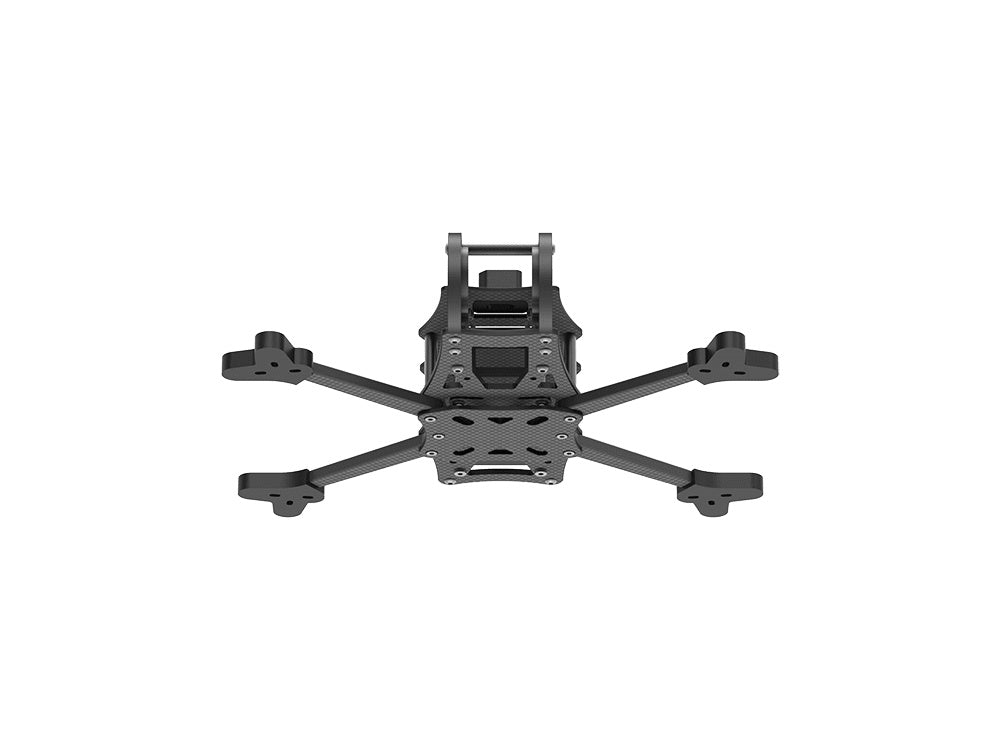

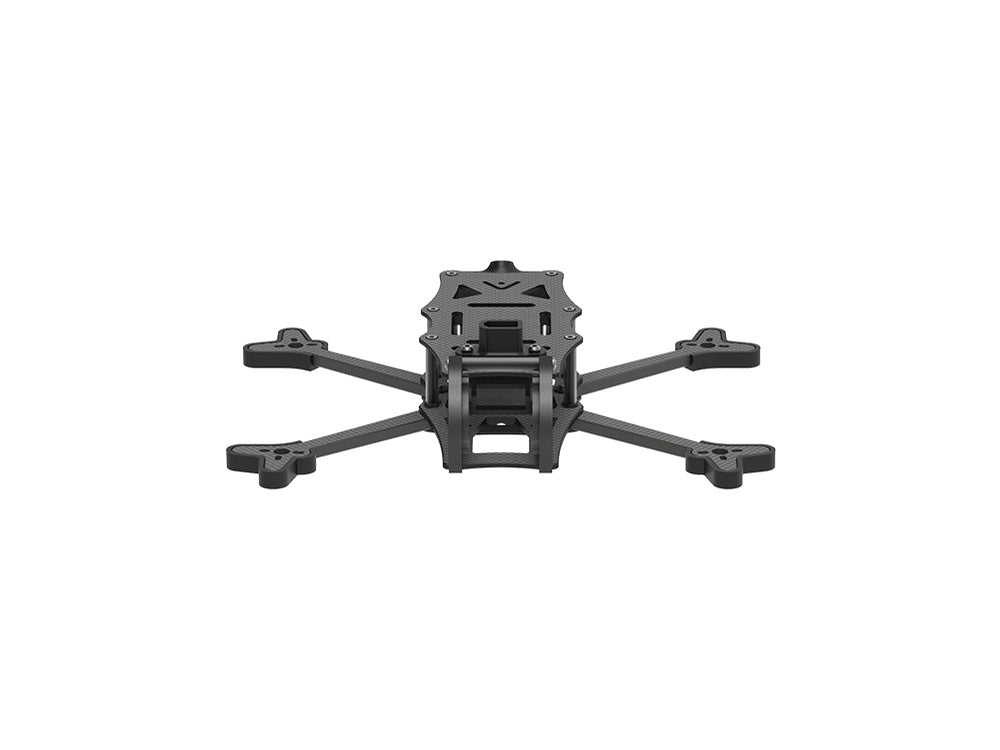

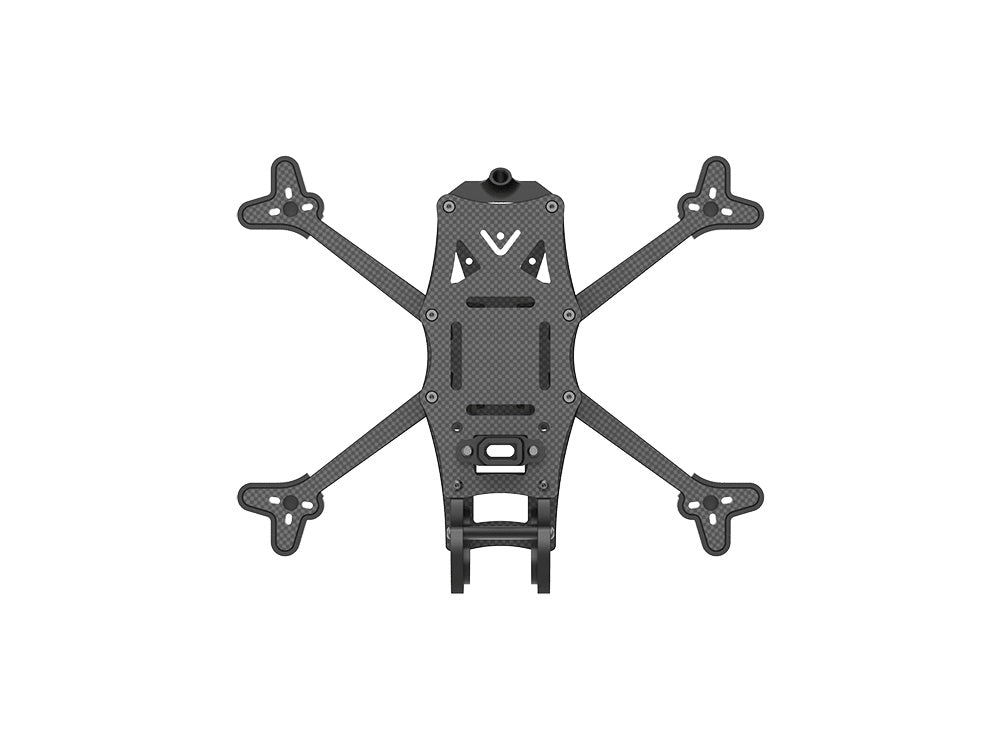

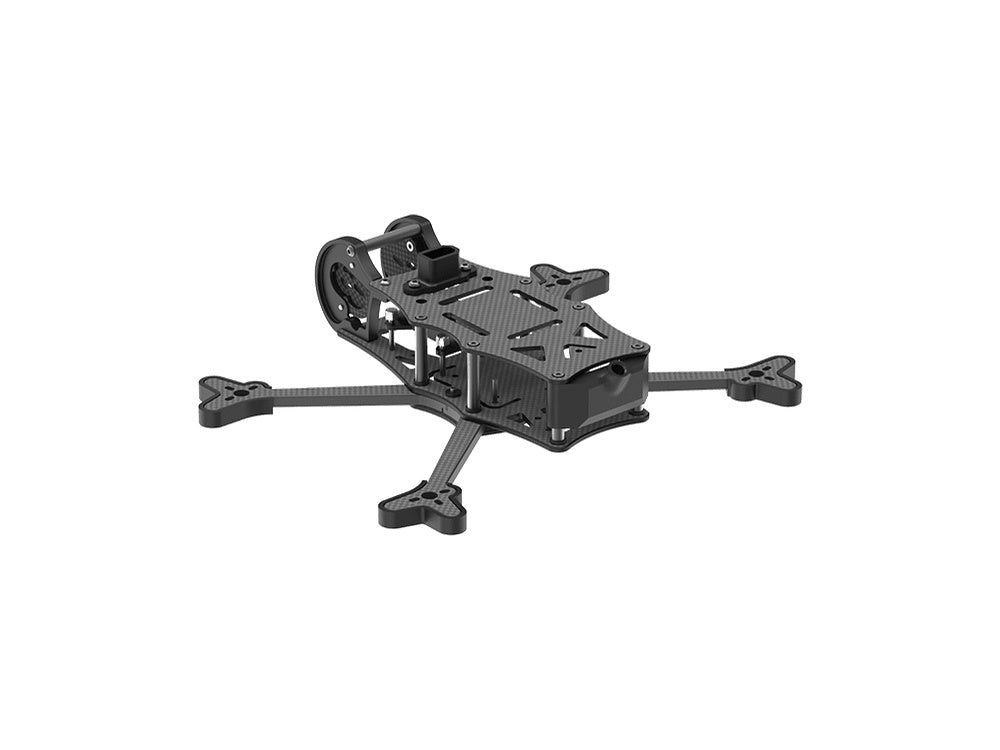

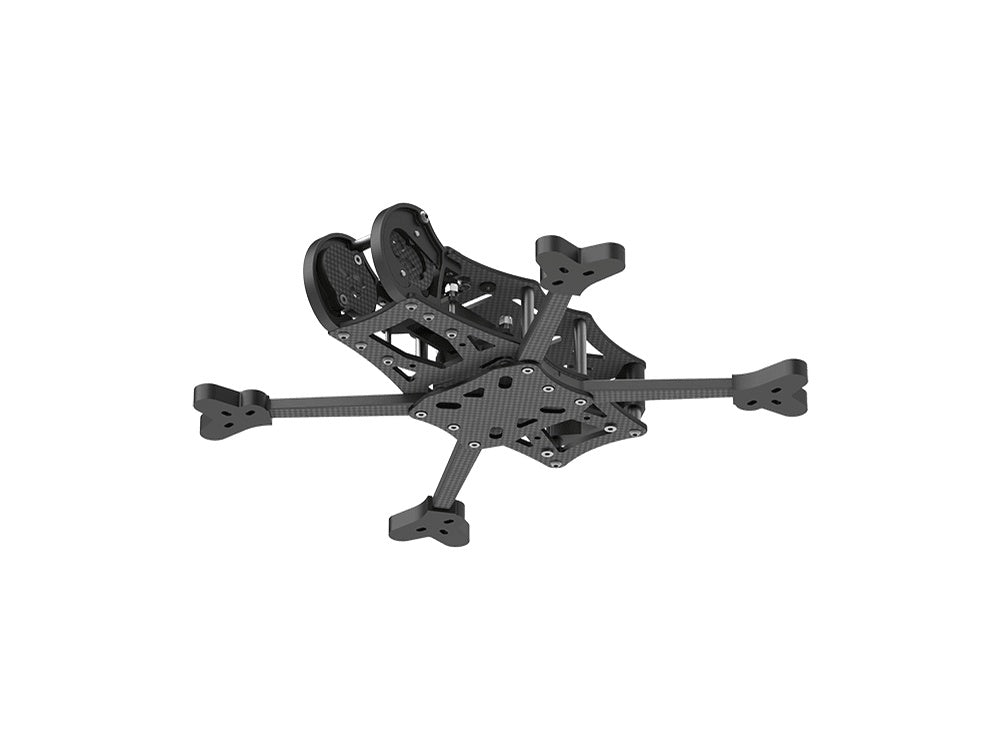

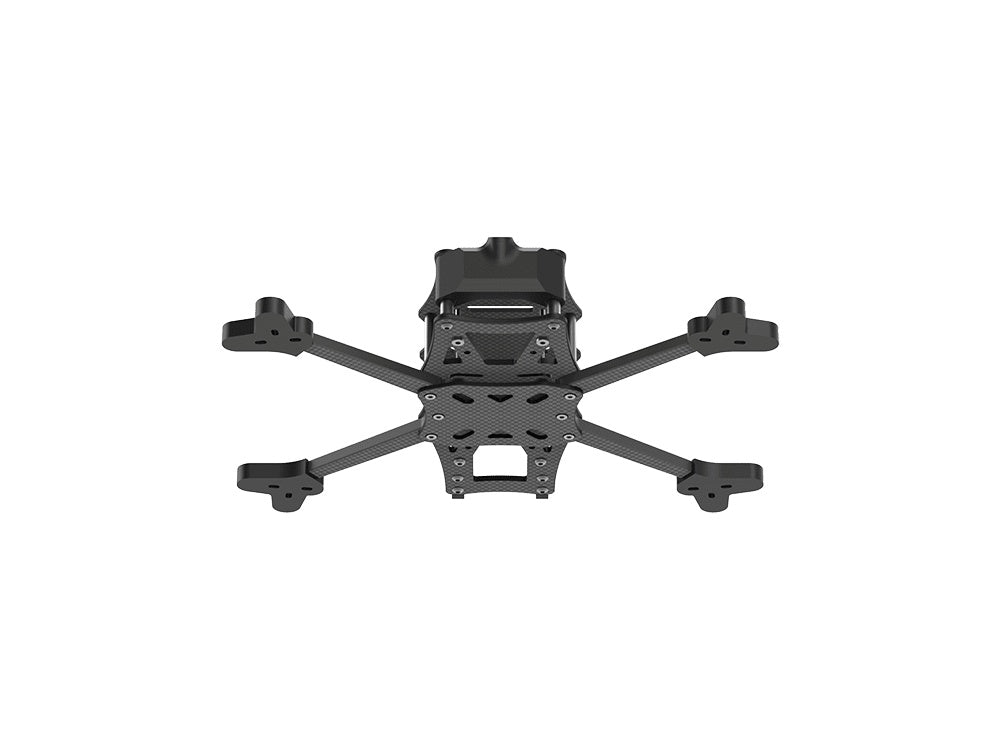

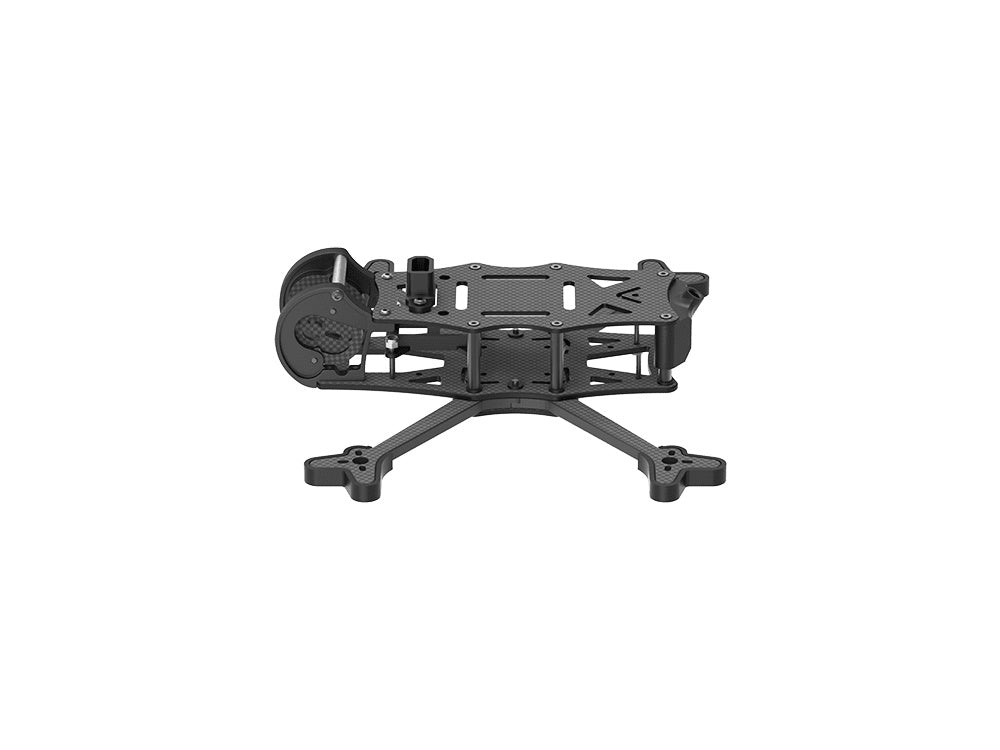

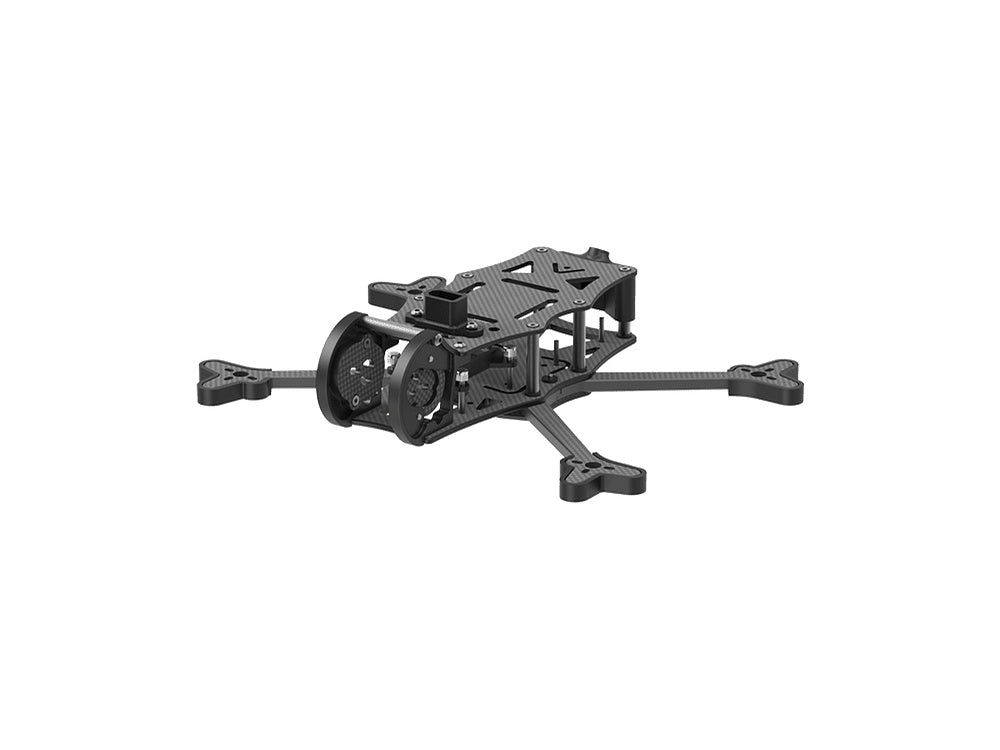

AOS RC AOS 3.5 V5 Frame Kit

  • $64.00
    Unit price per


Discover the future of sub 250g FPV with the AOS 3.5 V5, engineered to revolutionize your freestyle experience. Designed with cutting-edge patent pending technology and premium materials, here's why the AOS 3.5 V5 is the ultimate choice for drone enthusiasts.

Elevate your sub 250g FPV game with the AOS 3.5 V5. Designed to deliver the ultimate in performance, durability, and customization in a smaller form factor, it's the perfect choice for professionals, enthusiasts, and beginners alike. Unleash your creativity and push the boundaries of what's possible in the world of freestyle flying. Upgrade to the AOS 3.5 V5 and take your FPV experience to the next level.


Easy to build

  • The AOS 3.5 V5 is designed to be the easiest and most user-friendly FPV frame to build. It's perfect for beginners with plenty of space, easy access to every stack screw, and even fewer parts than the very user-friendly AOS 3.5 EVO!

Advanced Patent Pending Anti-Vibration Technology

  • Say goodbye to unwanted vibrations that can hinder your drone's performance. The AOS 3.5 V5 boasts the new patent pending AOS X-Cell anti-vibration mount for the flight control stack, reducing vibrations by up to 50% (compared to AOS 3.5 EVO). This groundbreaking feature enables you to run lower filtering, dial in higher PID gains, and achieve unparalleled flight performance.

Durable and Versatile 7075 Aluminium Camera Cage

  • The AOS 3.5 V5 is equipped with an ultra-durable 7075 Aluminium Camera Cage that accommodates all 19-20mm cameras, ensuring perfect compatibility with a wide range of camera systems. It includes an integrated soft mount specifically designed for the DJI O3 camera, with full support for ND filters. If you use a different FPV system, the frame also allows for hard mounting of all popular camera systems including Analog, WS Avatar, HDZero, and DJI.

Immersive 155° FPV Experience

  • Immerse yourself in the action with a full 155-degree field of view (FOV) for the FPV camera with no props in view. This expansive view is perfect for DJI O3 users and guarantees an immersive flight experience for both professionals and enthusiasts.

Unrivaled Stack and VTX Compatibility

  • With two stack positions, each supporting 25.5x25.5mm, and 20x20mm mounting the AOS 3.5 V5 ensures complete compatibility with a huge range of flight controllers, ESCs, and other electronics (including DJI O3 Air Unit and HDZero Freestyle V2 VTX), giving you the freedom to customize your drone to your heart's content.

Reinforced arm and stack mounting

  • Say goodbye to stripping threads! The arm mounts on the AOS 3.5 V5 are reinforced with steel press-nuts for easy assembly and enhanced durability.

Flexible Battery Mounting

  • Experiment with different battery configurations by choosing between lengthwise or toilet tank battery mounting options. This flexibility allows you to optimize your drone's balance and performance based on your flying style and preferences.

Flexible stack positions

  • Choose between a front and rear stack or a single central stack. Mountings are M2 but can be drilled out to M3 as required.


  • Supports up to 3.5" Props
  • AOS X-Cell Anti-Vibration Technology
  • Up to two 25.5x25.5, or 20x20 mm stacks
  • 155° FOV no props in view
  • Fully DJI O3 compatible (soft mount + ND filters)
  • Supports 19-20mm cameras (hard or soft mounted)
  • Reinforced 7075 Aluminium Camera Cage
  • Supports Lengthwise or Toilet Tank battery mounting
  • ⌀9 - ⌀12mm motor mounting (supports all standard 3 - 4" motors)
  • 53g including hardware and camera cage
  • 27x21mm M2 GoPro Mounting Pattern
  • 32mm Rear Standoff Spacing (compatible with all AOS 3.5 antenna mounts)

1x AOS RC AOS 3.5 V5 Frame Kit
1x TPU Parts
1x Screw Bag
2x Battery Straps
2x Battery Pads
