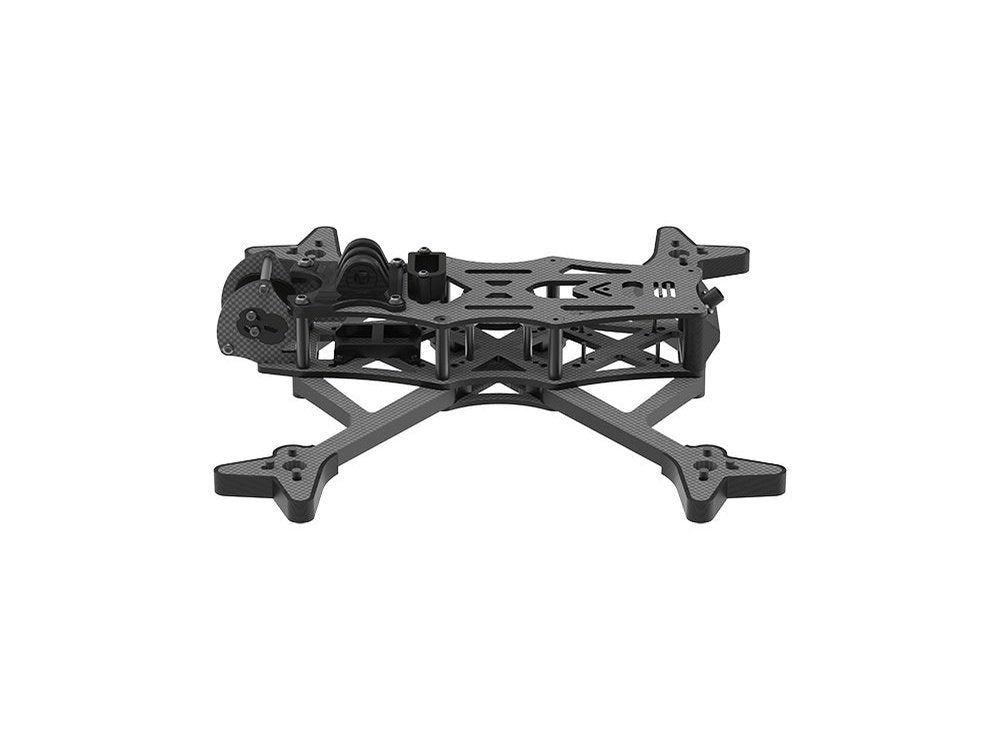

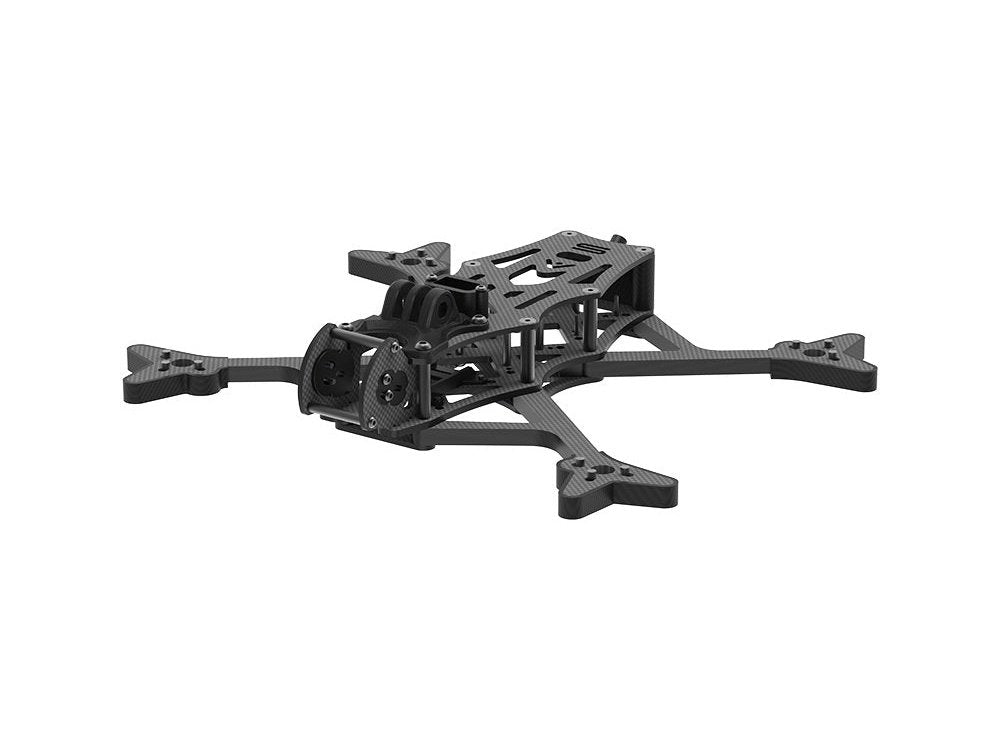

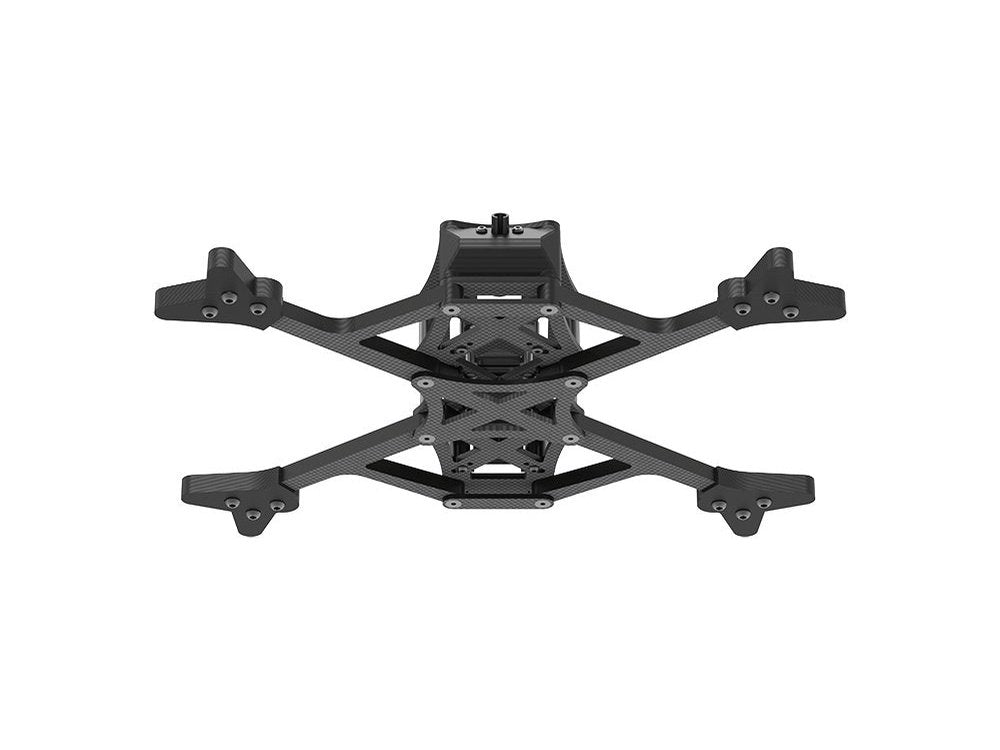

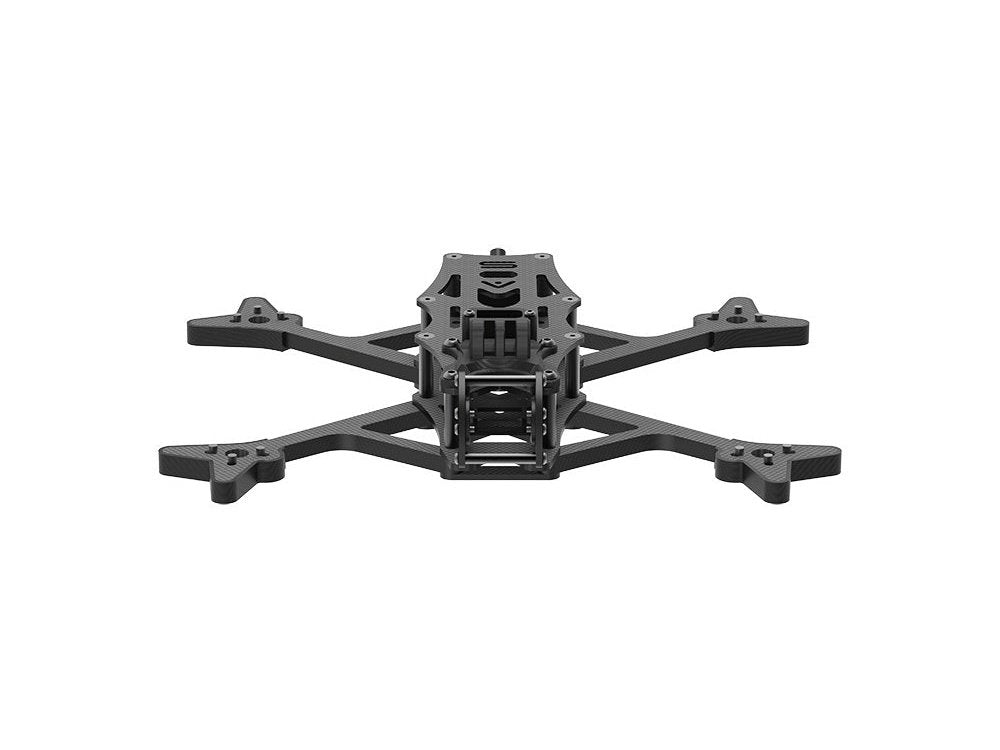

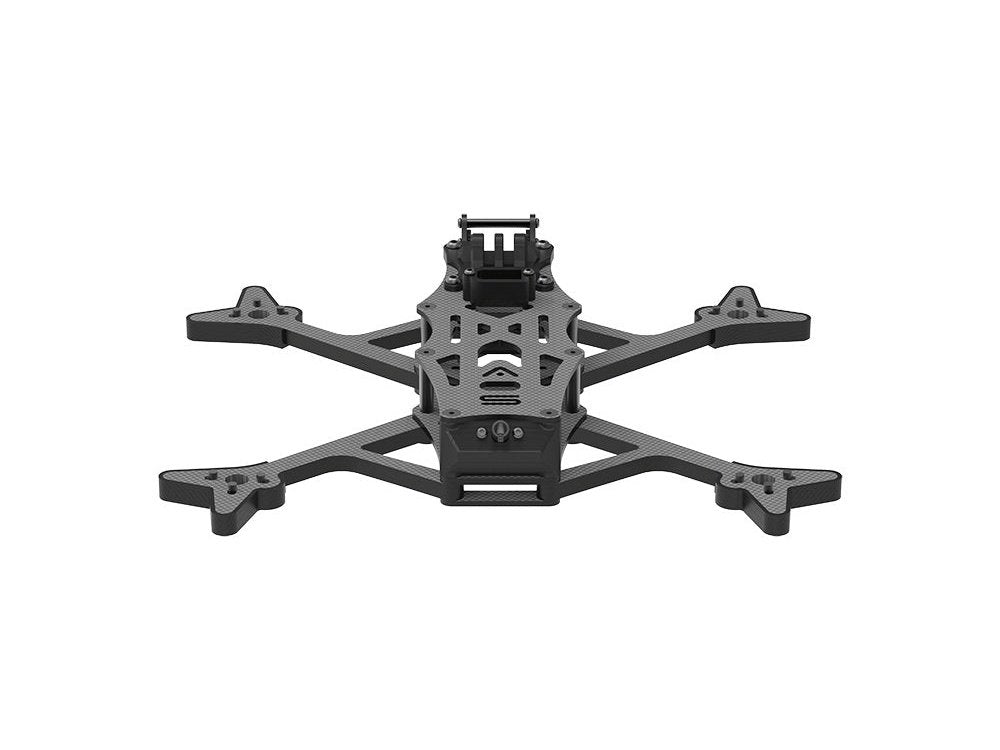

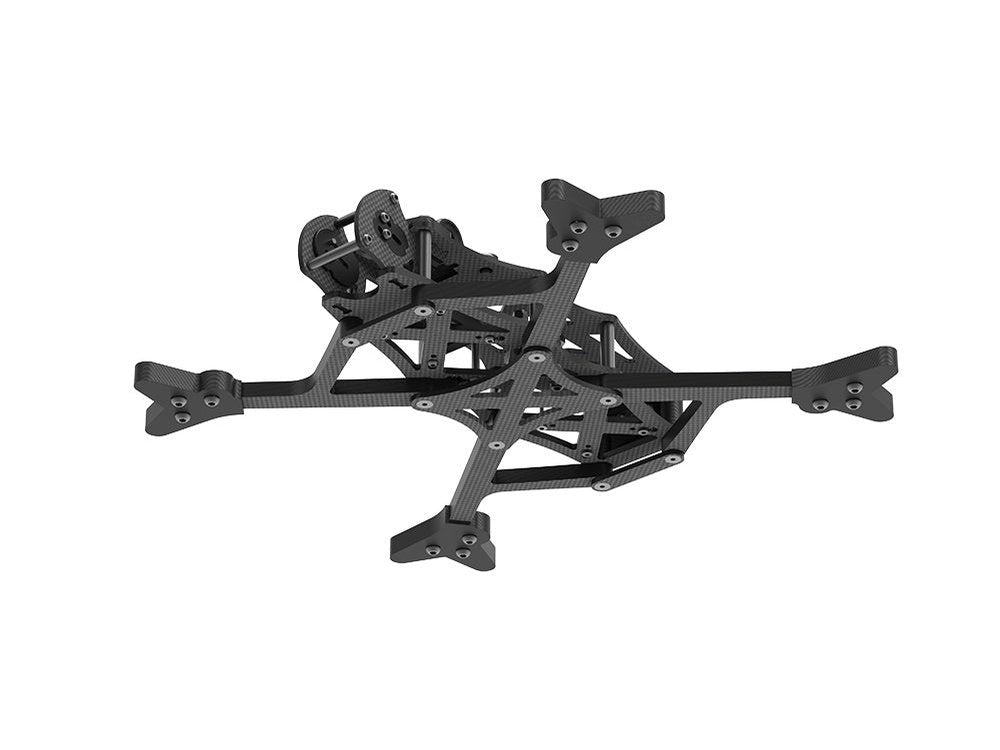

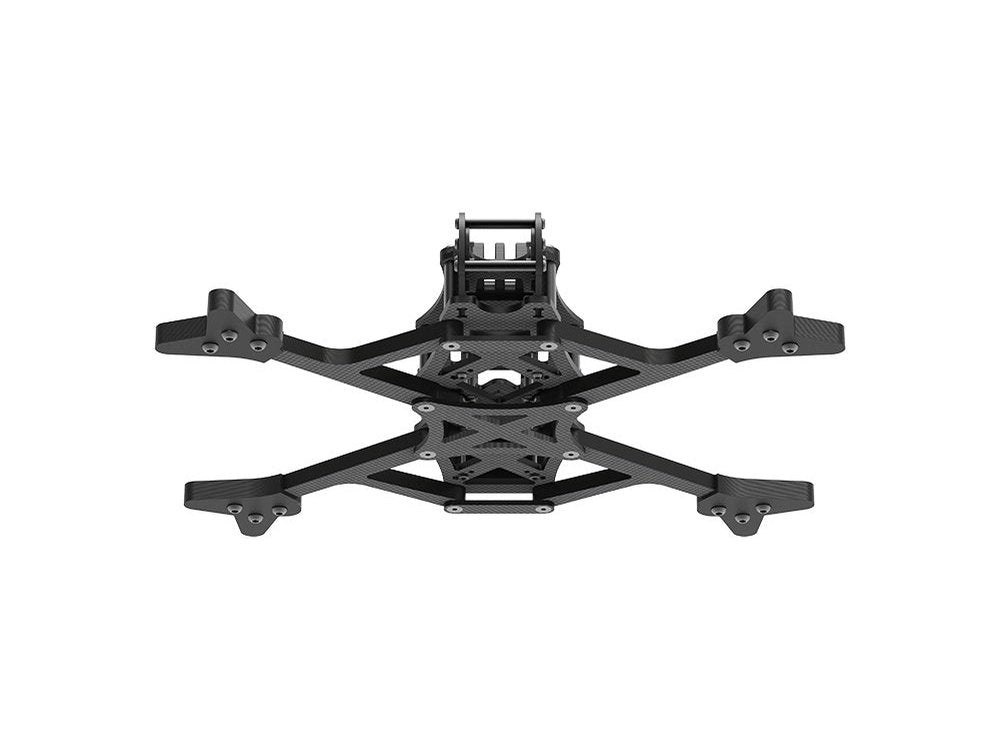

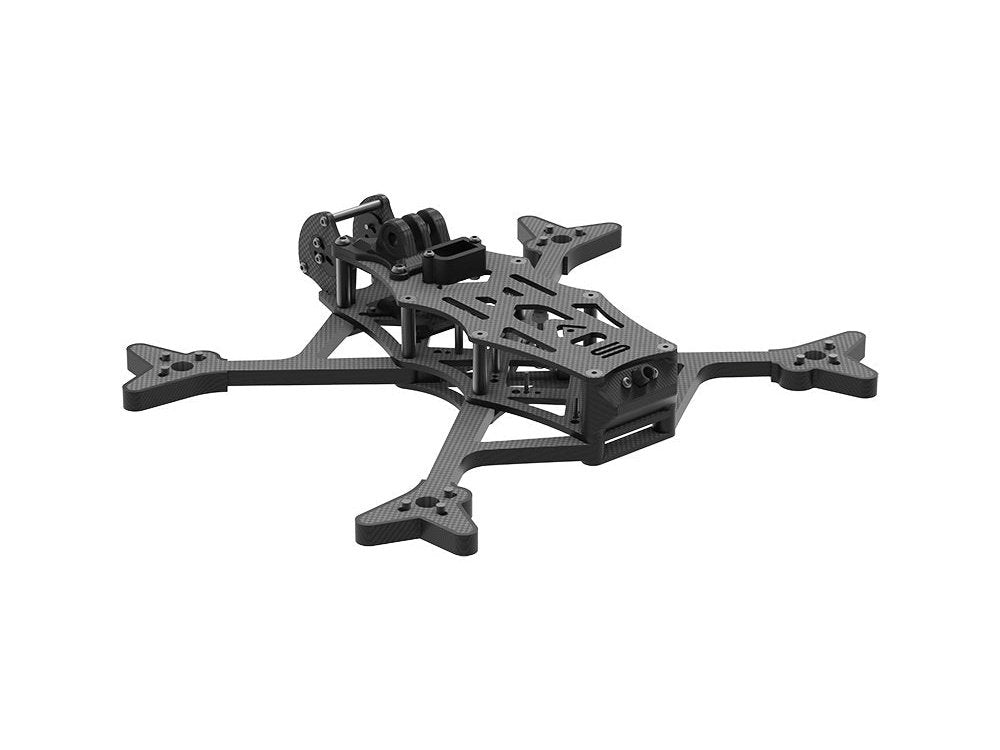

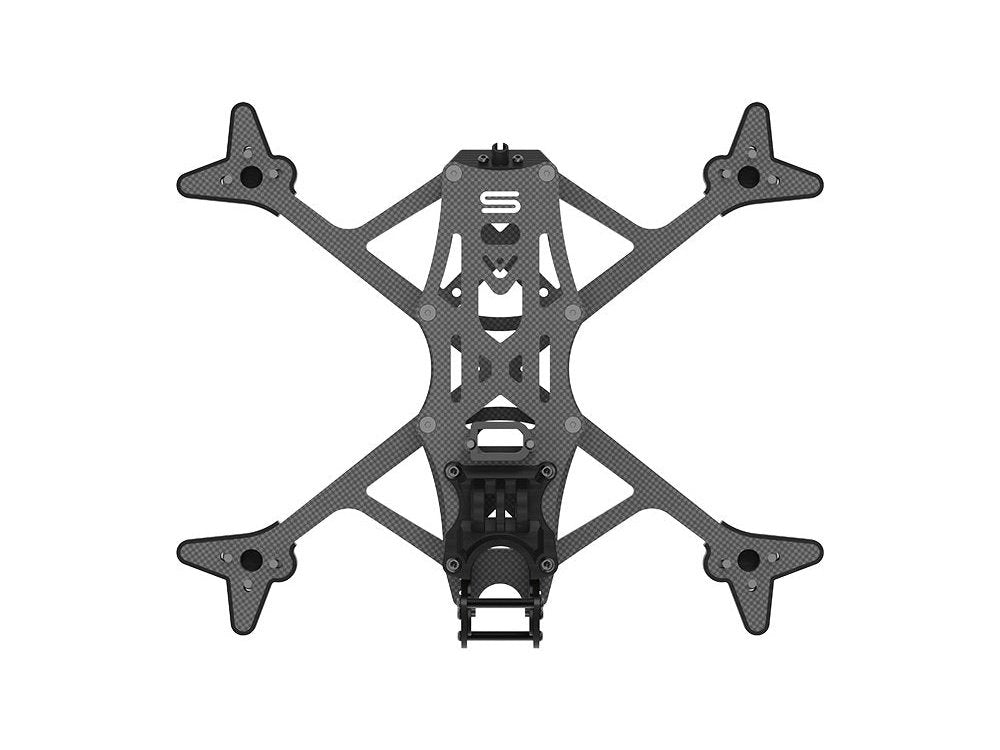

AOS RC AOS 5 EVO V1.2 FPV Frame Kit

  • $74.00
    Unit price per


Built to be the ultimate 5" freestyle platform. The AOS 5 EVO has been updated to be compatible with the new DJI O3 Air Unit as well as existing 30.5x30.5mm, 25.5x25.5mm and 20x20mm electronics. The camera cage and arms have been reinforced to improve durability. Also, the frames have been updated to support DJI O3 ND filters, a soft mount for the FPV camera, and hard points for XT60 mounting. As with all AOS frames exceptional vibration and resonance performance is guaranteed, eliminating IMU resonance issues with O3 image stabilization.


  • Approx. 120g with all hardware
  • Designed for up to 5.1 inch props
  • 220mm wheelbase
  • 6 mm Arms
  • 30.5x30.5mm, 25.5x25.5 or 20x20 mm stack mountings in the front, centre and rear.
  • Fits the DJI O3 Air Unit, Caddx Vista or HDZero Freestyle VTX perfectly
  • Fits both 20mm (DJI and O3 camera) and 19mm (Micro sized) cameras
  • Motor mounting 16x16 up to 19x19 (2306, 2207 recommended)
  • Standoffs, frame and screws included


  • Product Name: AOS 5 EVO Frame Kit
  • Frame wheelbase: 220mm
  • Frame Dimension: L175*W135*H32.5 mm
  • Arm Thickness: 6mm
  • Top Plate Thickness: 2mm
  • Bottom Plate Thickness: 2.5mm
  • Upper Plate Thickness: 2mm
  • Motor Mounting: 16x16mm
  • VTX Mounting: 20*20/Φ2mm / 25.5*25.5/Φ2mm

1x AOS RC AOS 5 EVO V1.2 FPV Frame Kit
1x TPU Parts
4x Motor Wire Shield Tube
1x Screw Bag
2x Battery Straps
