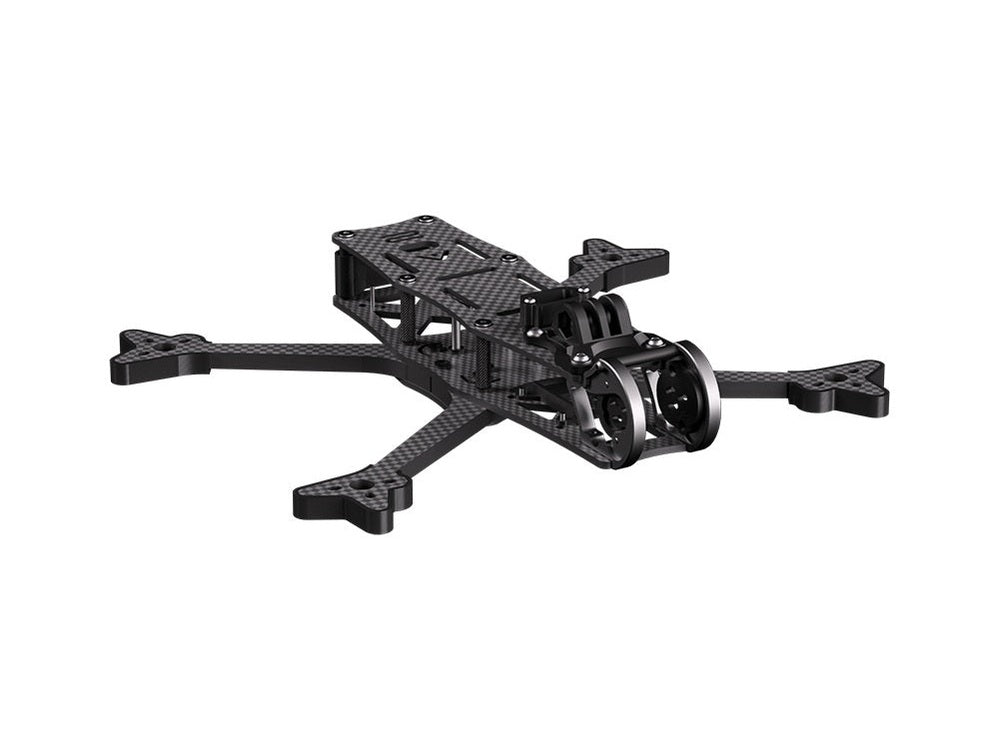

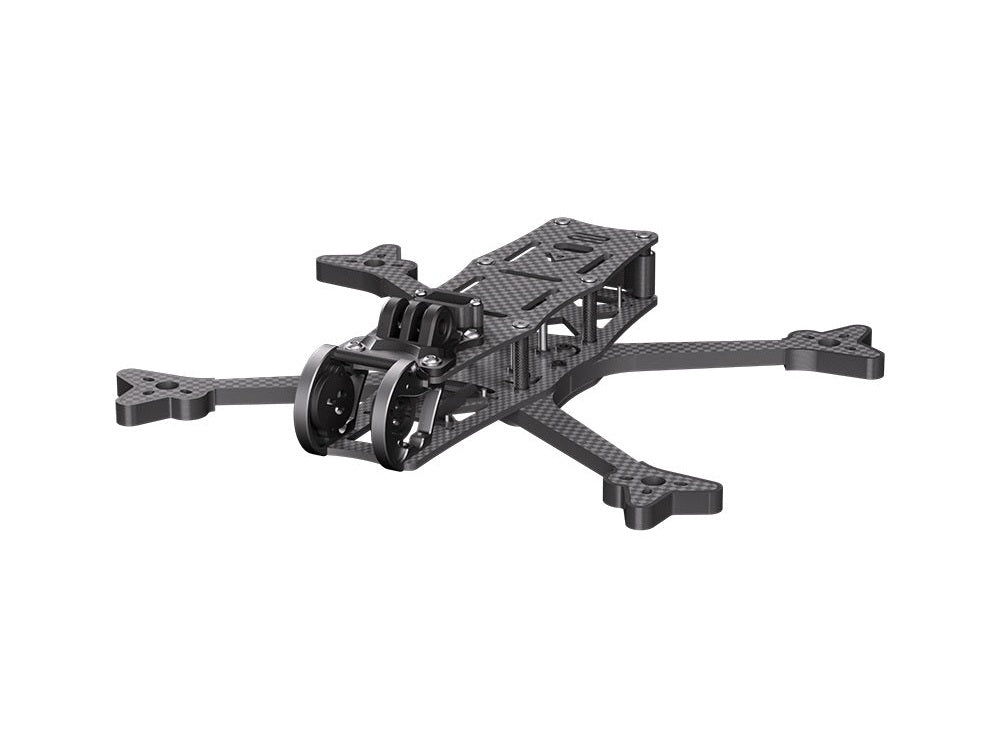

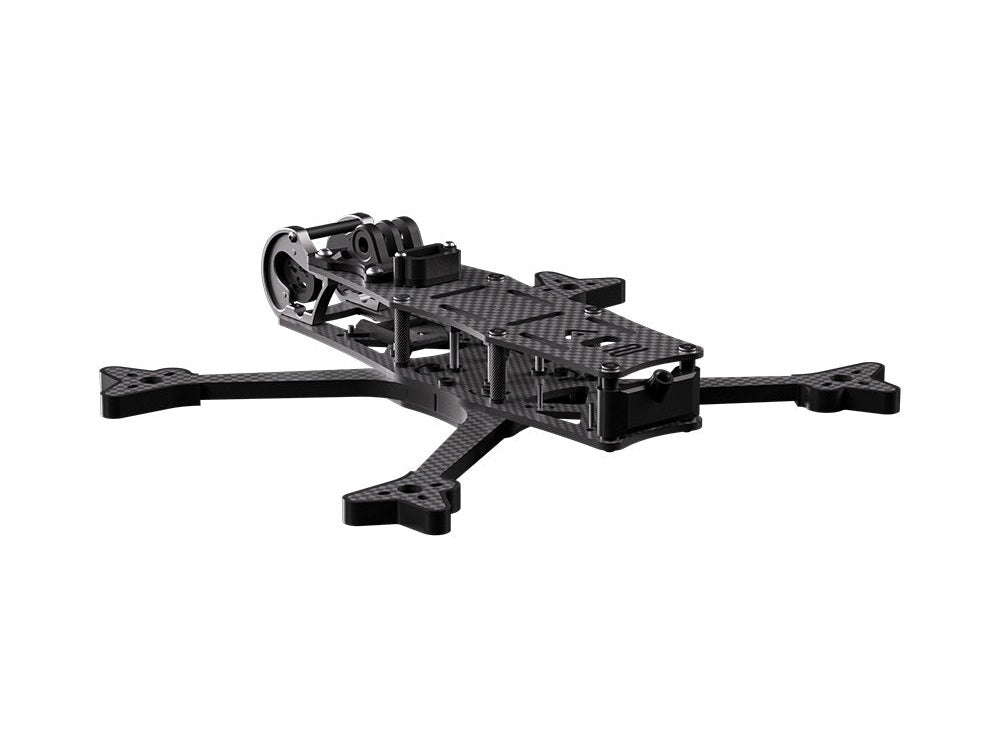

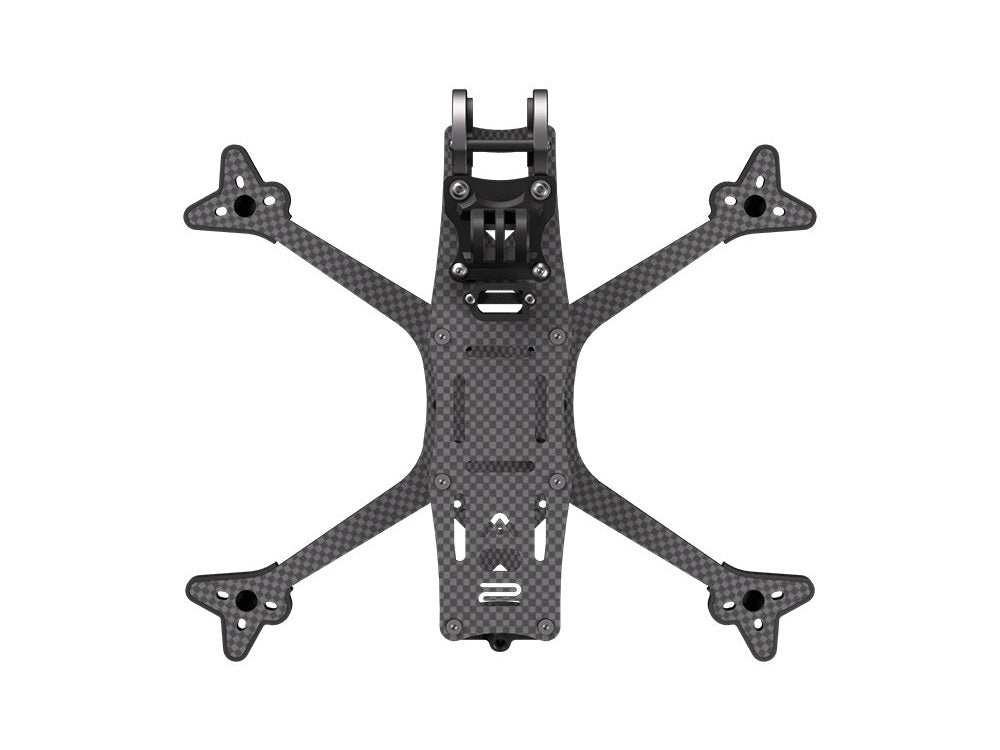

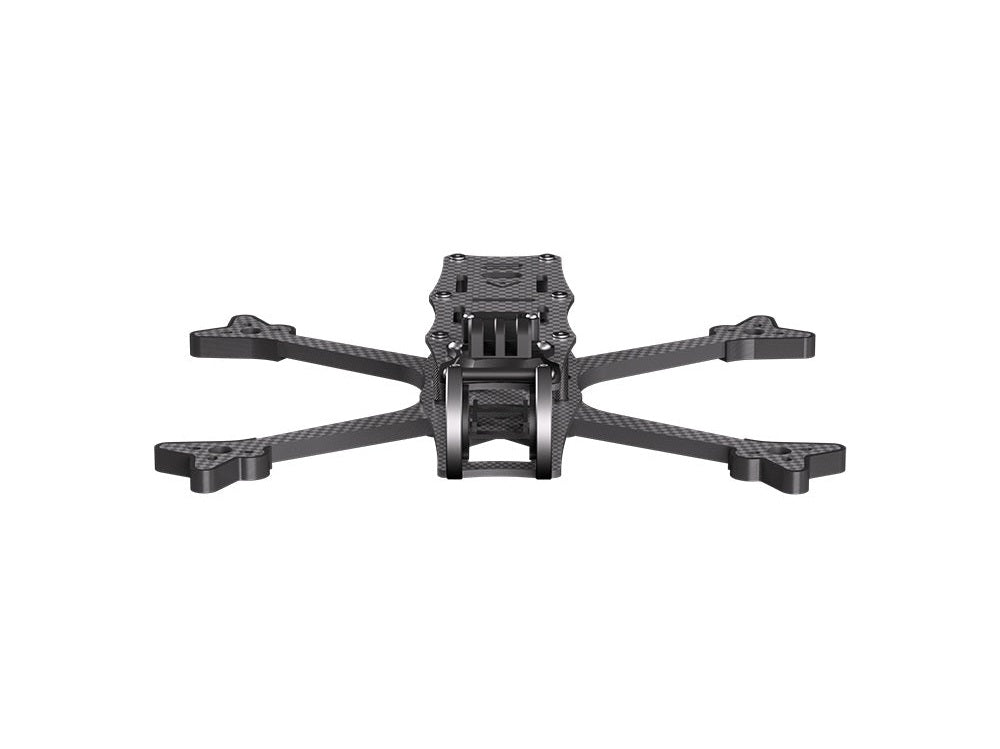

AOS RC AOS 5 V5.1 Frame Kit

Discover the future of 5" FPV with the AOS 5 V5.1, designed to revolutionize your freestyle flying experience. Built with cutting-edge, patent-pending technology and premium materials, the AOS 5 V5.1 is the ultimate choice for drone enthusiasts.

Enhance your FPV skills with the AOS 5 V5.1. Engineered to provide exceptional performance, durability, and customization, it is ideal for professionals, enthusiasts, and beginners alike. Unleash your creativity and push the boundaries of what’s possible in your freestyle flying. Upgrade to the AOS 5 V5.1 and elevate your FPV experience to the next level.

The Version 5.1 upgrade enhances the geometry of the interlocking arms and introduces a central spine to reinforce the arms, further stiffening the flight controller mount. It increases durability and improves vibration performance while maintaining full compatibility with all AOS 5 V5 frames. To upgrade from the AOS 5 V5 to the V5.1, you only need to replace the four arms and add the central spine.

Easy to build

• The AOS 5 V5.1 is designed to be the easiest and most user-friendly FPV frame to build. It's perfect for beginners with plenty of space, easy access to every stack screw and even fewer parts than the user-friendly AOS 5 EVO!

Advanced Patent Pending Anti-Vibration Technology

• Say goodbye to unwanted vibrations that can hinder your drone's performance. The AOS 5 V5.1 boasts the new patent-pending AOS X-Cell anti-vibration mount for the flight control stack, reducing vibrations by up to 50% (compared to AOS 5 EVO). This groundbreaking feature enables you to run lower filtering, dial in higher PID gains, and achieve unparalleled flight performance.

Durable and Versatile 7075 Aluminium Camera Cage

• The AOS 5 V5.1 is equipped with an ultra-durable 7075 Aluminium Camera Cage that accommodates all 19-20mm cameras, ensuring perfect compatibility with a wide range of camera systems. It includes an integrated soft mount specifically designed for the DJI O3 and O4 cameras, with full support for ND filters. If you use a different FPV system, the frame also allows for hard mounting of all popular camera systems, including Analog, WS Avatar, HDZero, and DJI. 14mm cameras are supported using a 3D printed mount (not supplied, STL file on aos-rc.com).

Unrivaled Stack and VTX Compatibility

• With three stack positions, each supporting 30.5x30.5mm, 25.5x25.5mm, and 20x20mm mounting the AOS 5 V5 ensures complete compatibility with a huge range of flight controllers, ESCs, and other electronics (including DJI V1 Air Unit and HDZero Freestyle V1 VTX), giving you the freedom to customize your drone to your heart's content.

Flexible Battery Mounting

• Experiment with different battery configurations by choosing between lengthwise or toilet tank battery mounting options. This flexibility allows you to optimize your drone's balance and performance based on your flying style and preferences.

Specifications:

• Product Name: AOS 5 V5.1 Frame Kit
• Frame wheelbase: 228mm
• Frame Dimension: L180*W140*H34 mm
• Arm Thickness: 6mm
• Top Plate Thickness: 2mm
• Bottom Plate Thickness: 2mm
• Upper Plate Thickness: 2.5mm
• Max Flight Stack Height: 20mm
• Max VTX Height: 20mm
• Flight Stack Mounting: 20*20 Φ3mm / 30.5*30.5 Φ3mm
• VTX Mounting: 20*20 ⌀2mm / 25.5*25.5 Φ2mm/30.5*30.5 Φ3mm
• Motor Mounting: 19x19-φ3mm/16x16-φ3mm
• Weight: 165±5g
• Compatible: DJI O3 air unit/ Vista HD system/ BLITZ Whoop 1.6W VTX/DJI O4 Air Unit Pro

Includes:
1x AOS RC AOS 5 V5.1 Frame Kit
1x TPU Parts
1x Screw Bag
2x Battery Straps
2x Battery Pads
