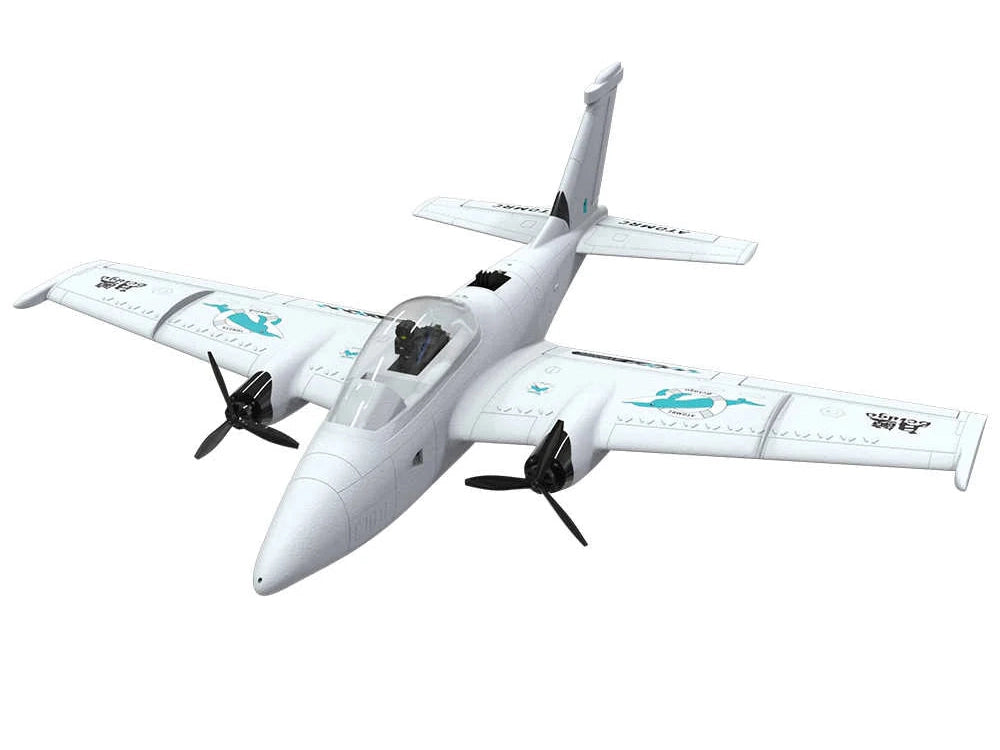

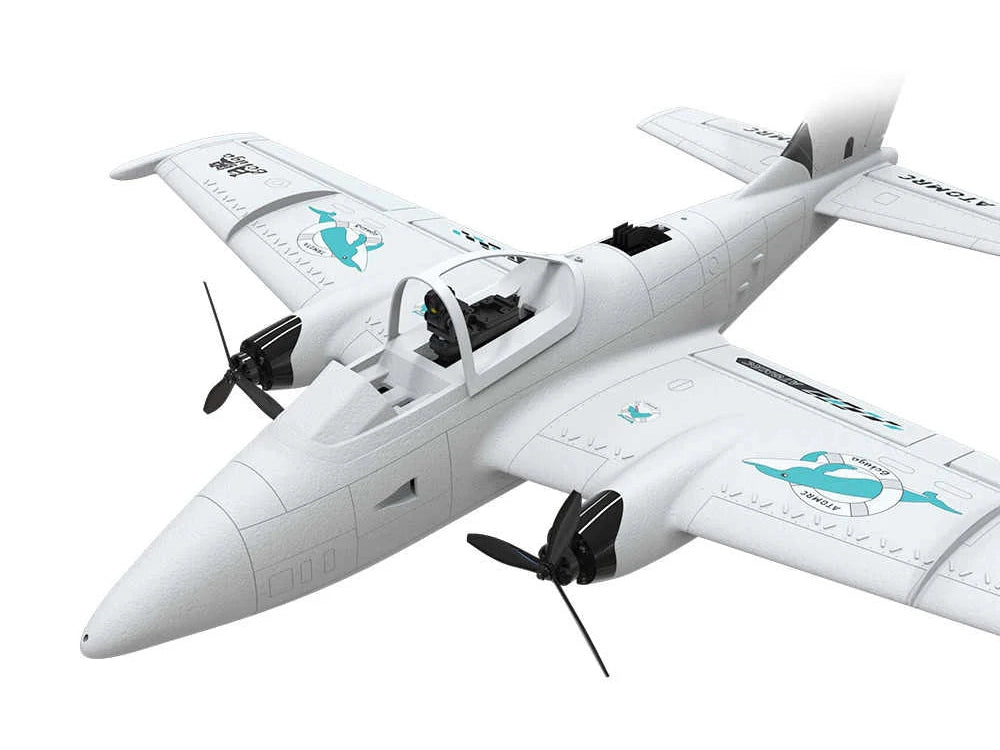

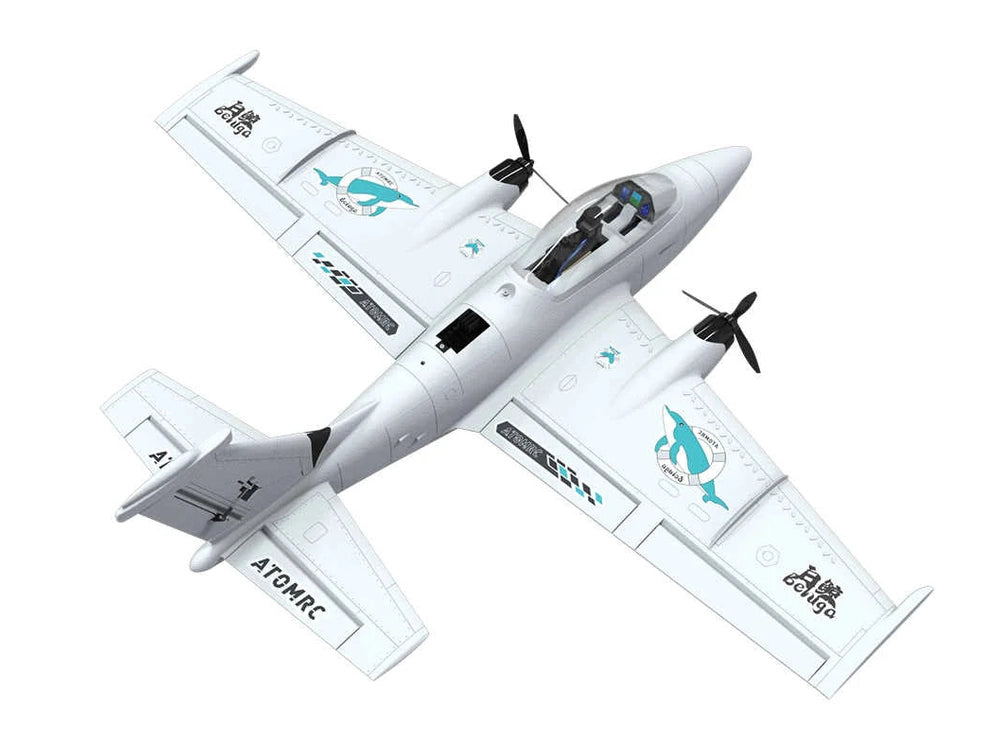

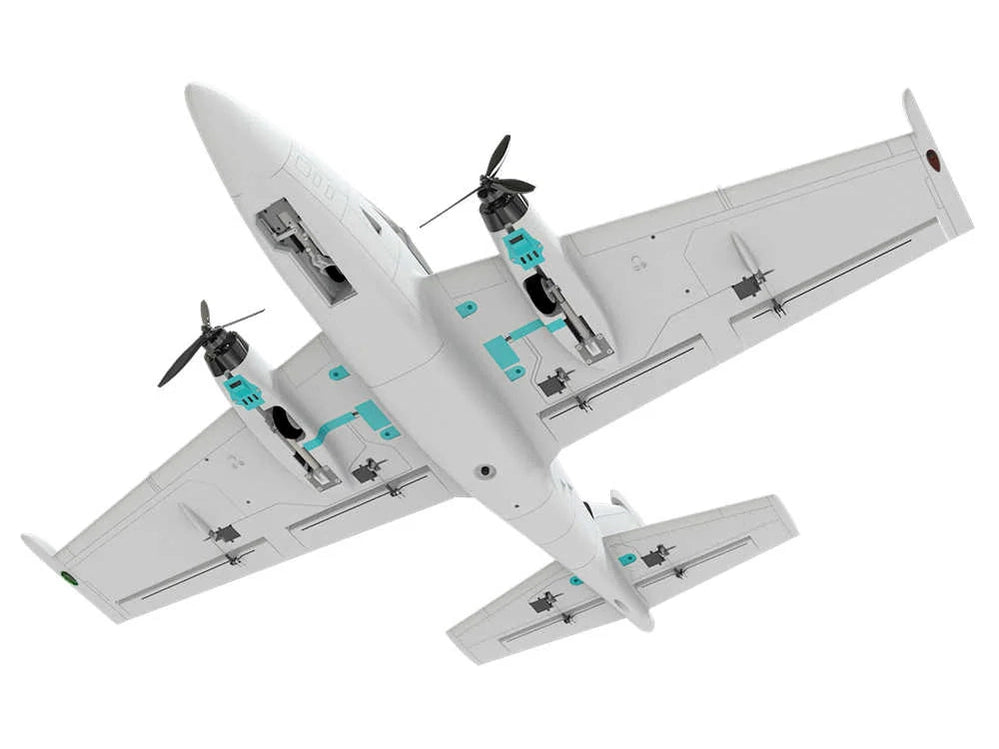

AtomRC Beluga Twin Motor 1270mm FPV Fixed Wing

The Beluga is a medium-low-speed FPV (First Person View) twin-engine multifunctional fixed-wing aircraft with a wingspan of 1270 mm and a conventional layout. It features independent double elevators, rudders, and flaps, which provide an exceptional control experience. The streamlined, large-capacity fuselage offers ample cabin space and reduces flight resistance. Additionally, the classic shape and trapezoidal design of the aircraft enhance its endurance.

The wing is pre-embedded with reinforced solid carbon rods, which enhance its torsional rigidity during flight and improve structural strength when carrying heavy loads. This construction aids in achieving precise flight control. The mid-wing layout makes the propeller more durable and less prone to damage. A reserved installation position for the retractable landing gear maximizes the enjoyment of takeoffs and landings. Additionally, the open canopy allows players to experience flight from a first-person perspective, enhancing their imaginative experience.

In typical FPV flight setups, which consist of a flight controller, DJI air unit (analog VTX), camera, and GPS, the total weight is around 1800g, plus or minus 200g. The Beluga aircraft achieves balanced wing loading during takeoff and cruising speed, making it easy to assemble and convenient to maintain.

Specifications:

• Wingspan: 1270mm
• Length: 1110mm
• WingArea: 29d㎡
• Material: EPP
• Servo: S09M 9g Metal Servo
• Motor: 2807 1300KV
• ESC: BLS 6S 50A ESC
• Propeller: 7040-3
• Flight controller: F405 NAVI Dulex
• GPS: BE220

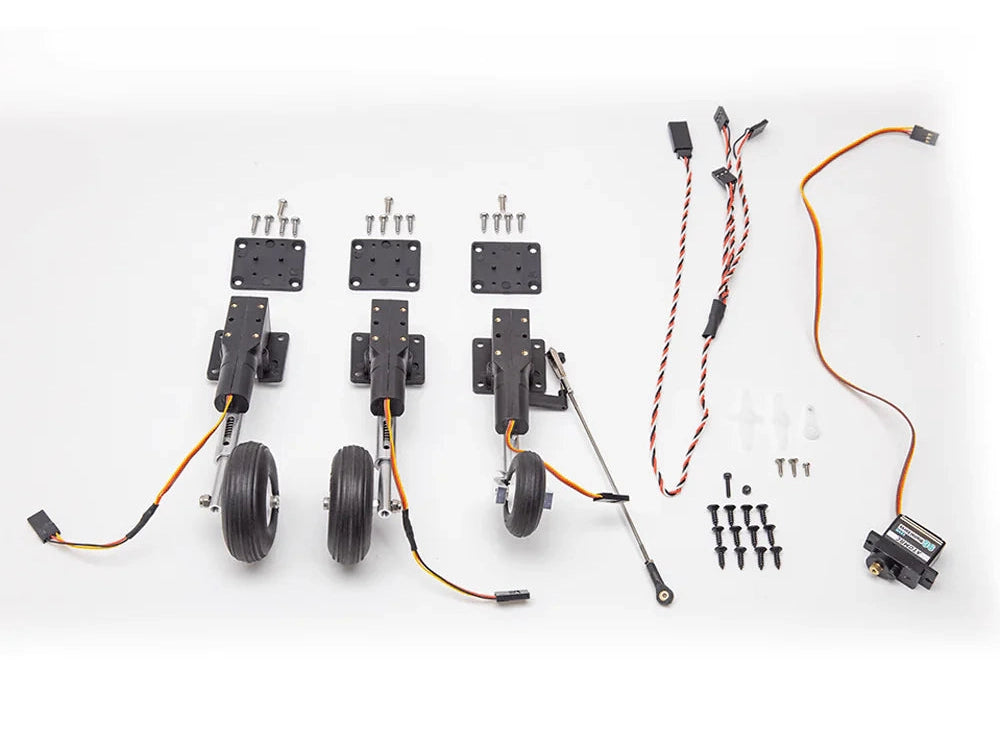

• Landing Gear: Electric Retractable
