BrainFPV Radix Wing Power Board

  • $24.99
    Unit price per


GET YOUR WING ON! Use the radix wpb (wing power board) and combine it with the radix fc for a simple and clean fixed-wing solution. Servos can be directly connected to the radix wpb and the integrated 5V 2A (3A burst) voltage regulator can optionally power them as well. Of course also the wpb can handle serious power, supporting 8S  and up to 160Aburst current. An integrated filter makes sure that you always have clean video and the current sensor provides accurate current measurement so you don't run out of battery on top of a mountain!


  • Battery Voltage: 3S to 8S (9V to 35V)
  • Maximum Current: 100A constant, 160A burst.
  • Voltage Regulator: Integrated 5V, 2A, 3A burst. By default, servos are powered by the ESC. The WPB has a jumper to enable powering small servos.
  • Noise Filter: Integrated filter for clean video.
  • Current Measurement: Up to 160A (20mV/A).
  • ESC Output: Output for ESC on servo headers.
  • Servo Outputs: Outputs for up to 3 servos on headers (RADIX FC has pads for 2 additional servos).
  • LEDs: Output for programmable RGB  LEDs.

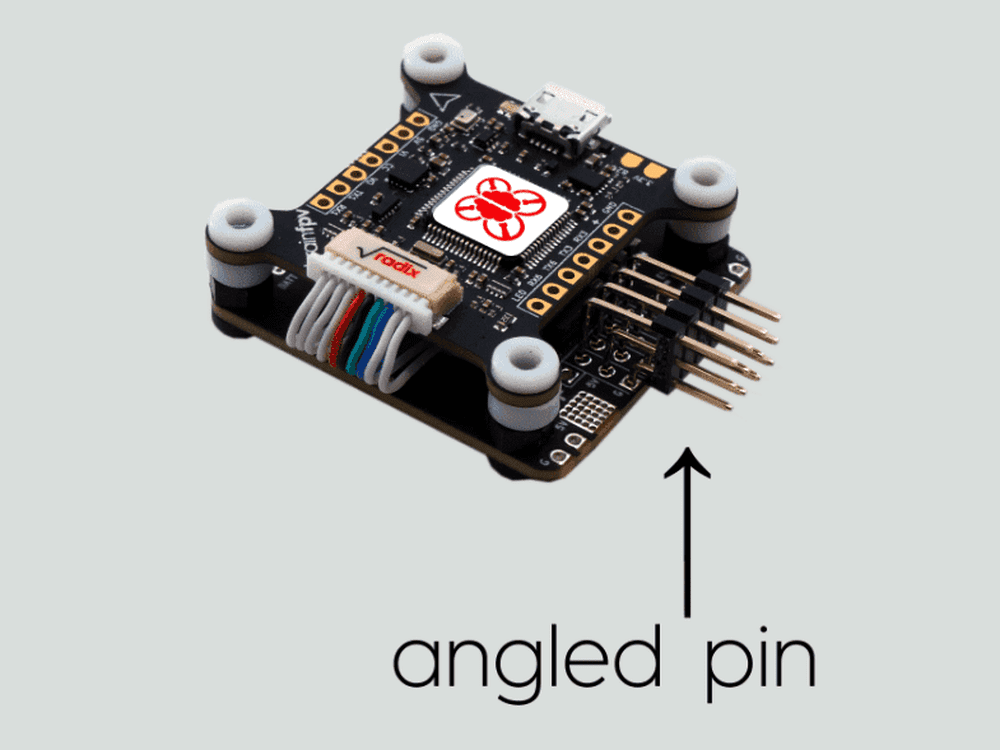

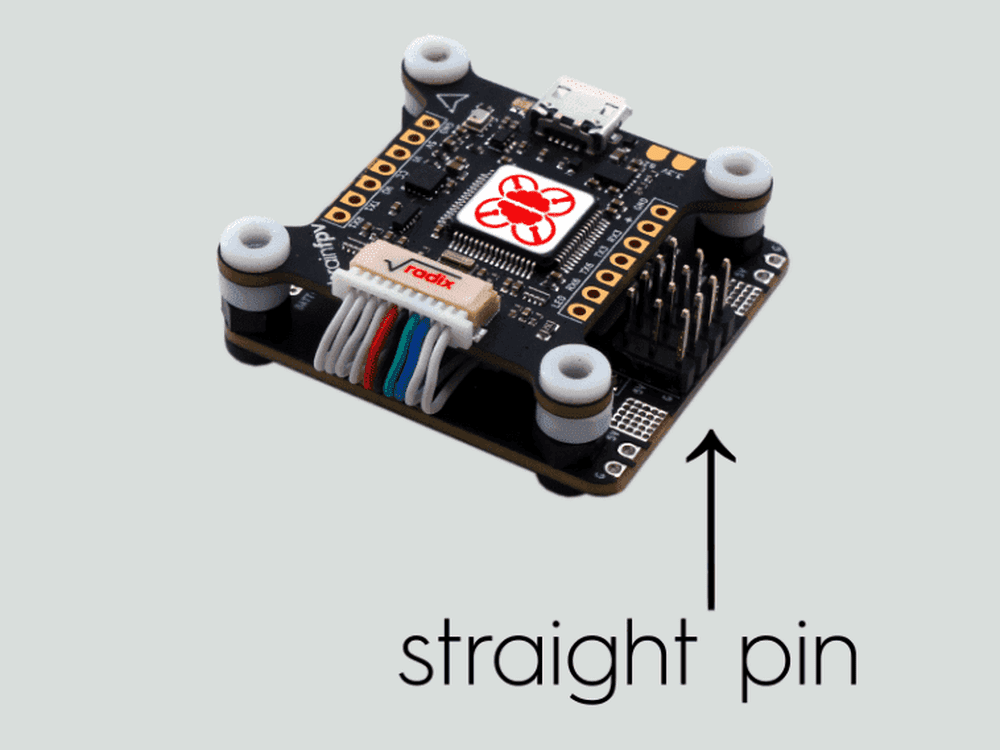

  • Stacking height: 5.5mm (space between RADIX FC and RADIX WPB).
  • PCB: 4 layer, 3oz (105um) copper per layer. HASL plating (lead-free).
  • Dimensions: 36mm x 39mm.
  • Weight: 8g

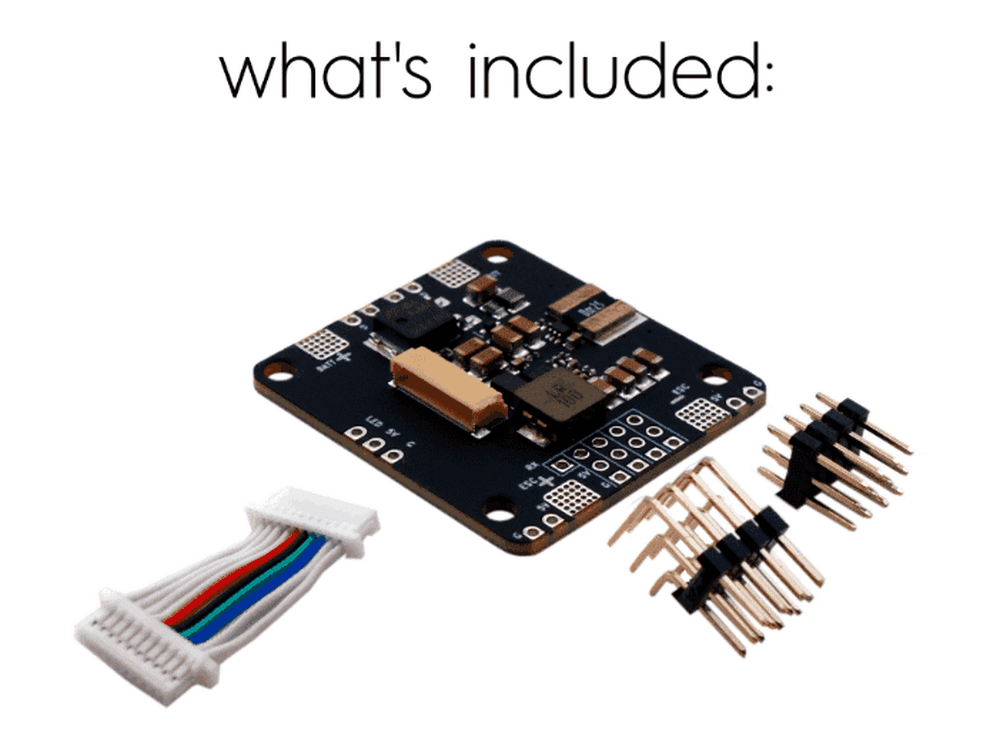

1x BrainFPV Radix Wing Power Board
