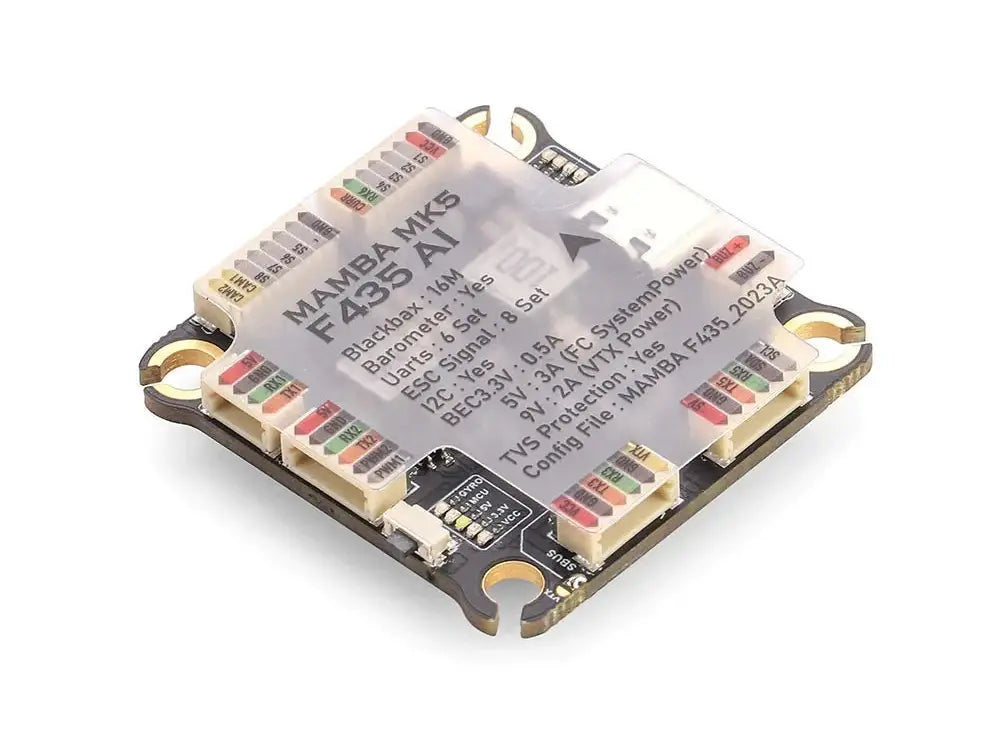

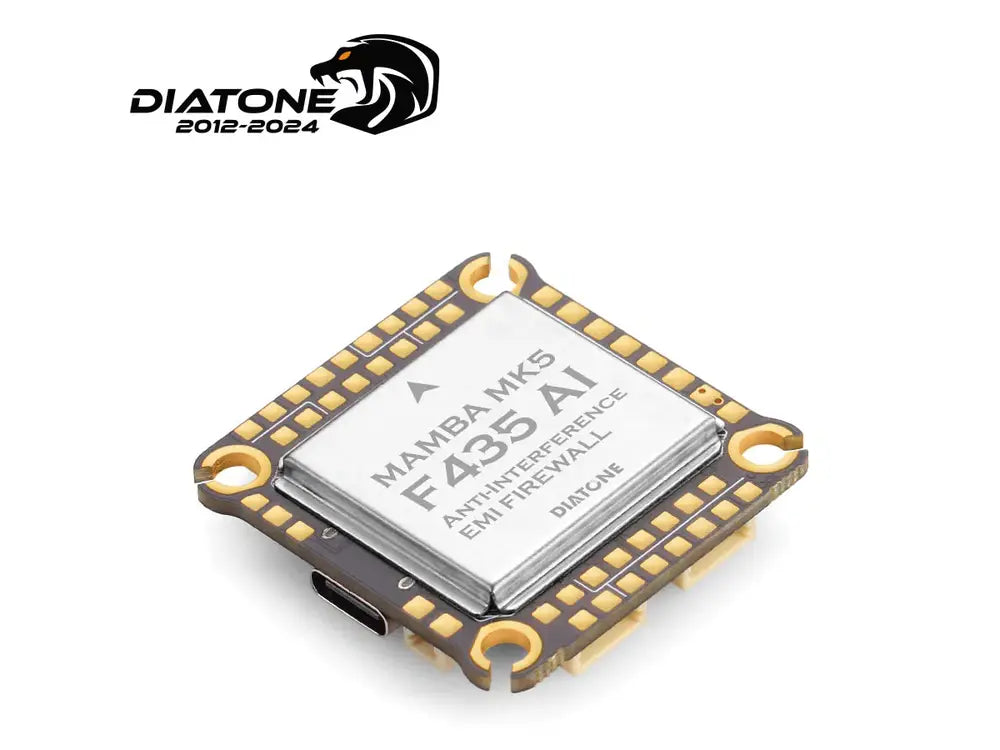

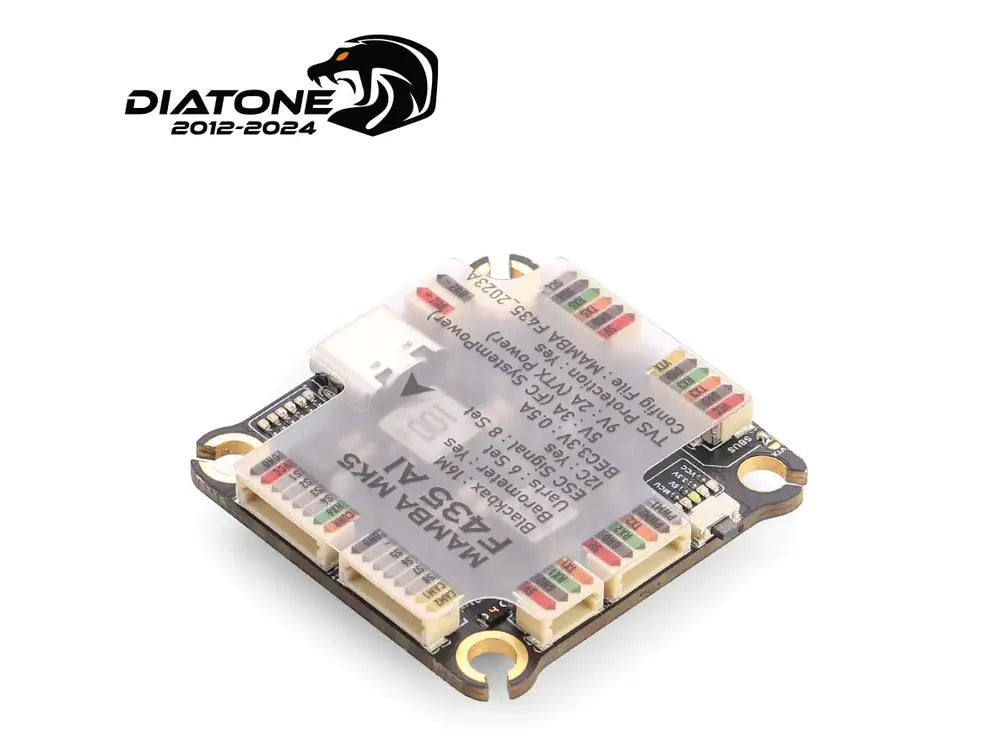

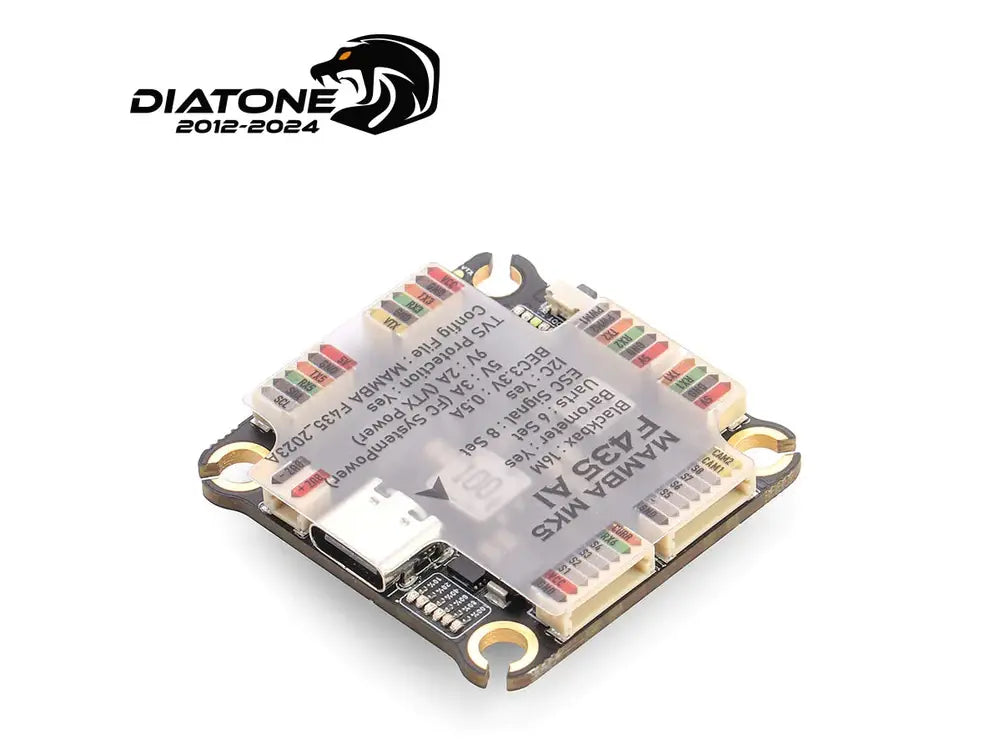

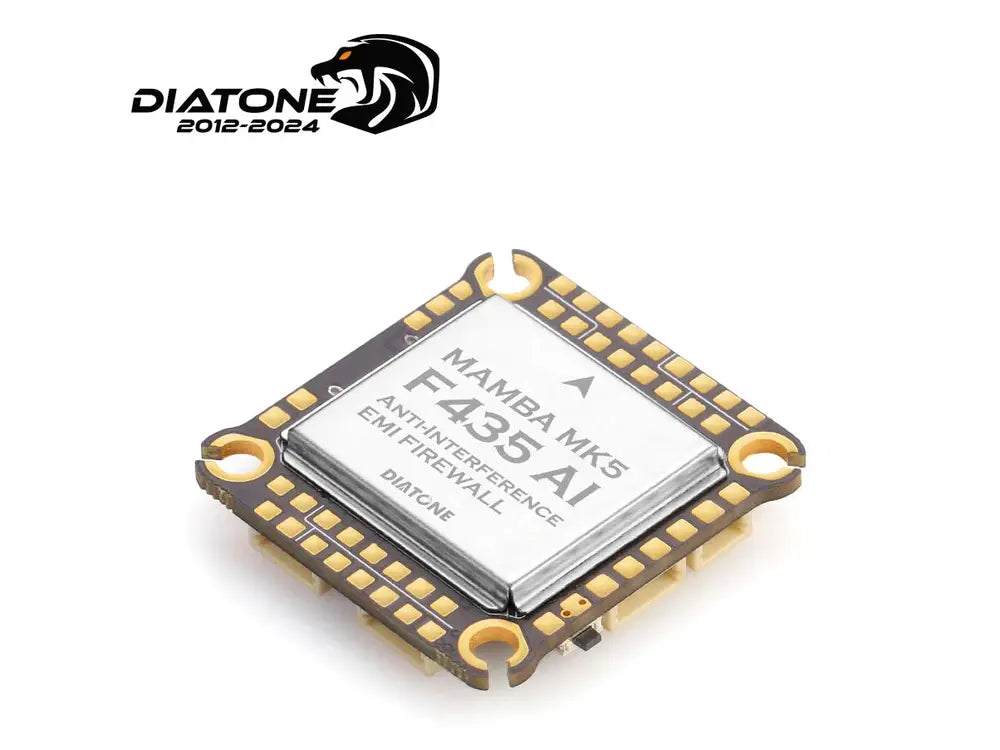

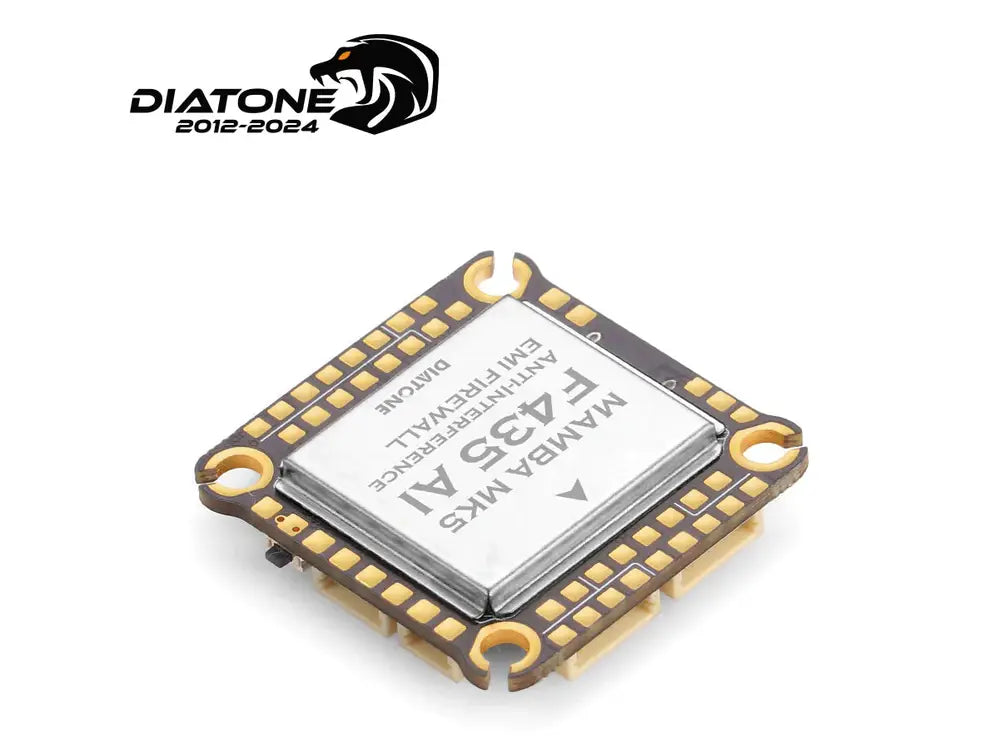

Diatone Mamba MK5 ATF435AI Flight Controller

  • $21.99
    Unit price per
  • Save $11.00


As a powerful and full-featured flight controller, the Diatone Mamba MK5 ATF435AI is a valuable addition to any drone. With its low price and top-notch technology, this flight controller offers exceptional value for those looking for an efficient and high-performing option. It's essential for any serious drone enthusiast looking to maximize their hobby budget.

This flight controller is based on the ATF435 MCU made by ArteryTek. It is an alternative to the traditional STM32 MCU found on most Betaflight flight controllers. With performance somewhere between the STM32 F405 and F722, it is a great option for flight controller manufacturers looking for value and availability. The price-performance ratio is simply unmatched.


  • F435 AI Flight Controller 30.5MM/M3
  • MCU: 288MHz AT32F435
  • GYRO: ICM-42688-P
  • Target:MAMBA F435_2023A
  • OSD: Yes
  • Blacbox: 16M Flash Memory
  • Barometer: SPL06
  • UARTs: 5 Sets
  • I2C: Yes
  • RSSI: No
  • Buzzer Pad: Yes
  • CURR Pad: Yes
  • ESC Signal: 8 Set
  • ESC Soft: Dshot300/600
  • ESC Telemetry: Yes
  • Power Led: Yes
  • LED Controller:BF LED
  • AIR UNIT Port: Yes
  • CAM2 Port: Yes
  • Receiver Protection: Yes
  • TVS Protection: Yes
  • BEC:3.3V 0.5A& 5V 3A& 12V 2A
  • Input voltage: 4~6S Lipo(14.8~25.2V)
  • Mounting size: 30.5mm, M3

Diatone Mamba MK5 ATF435AI Flight Controller

1x Diatone Mamba MK5 ATF435AI Flight Controller
