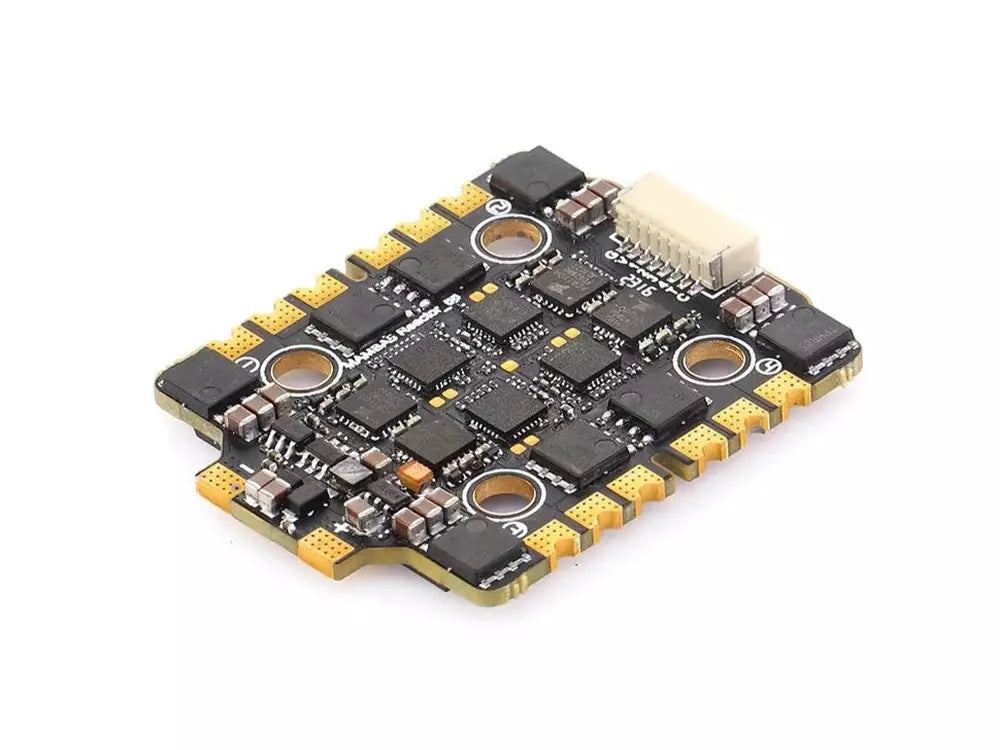

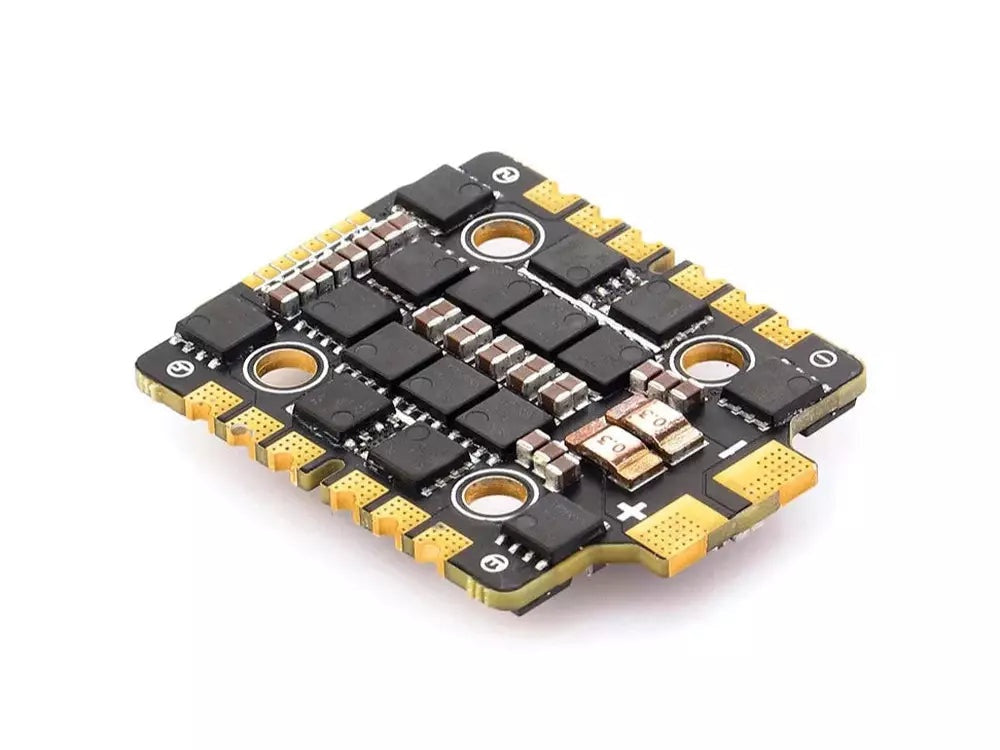

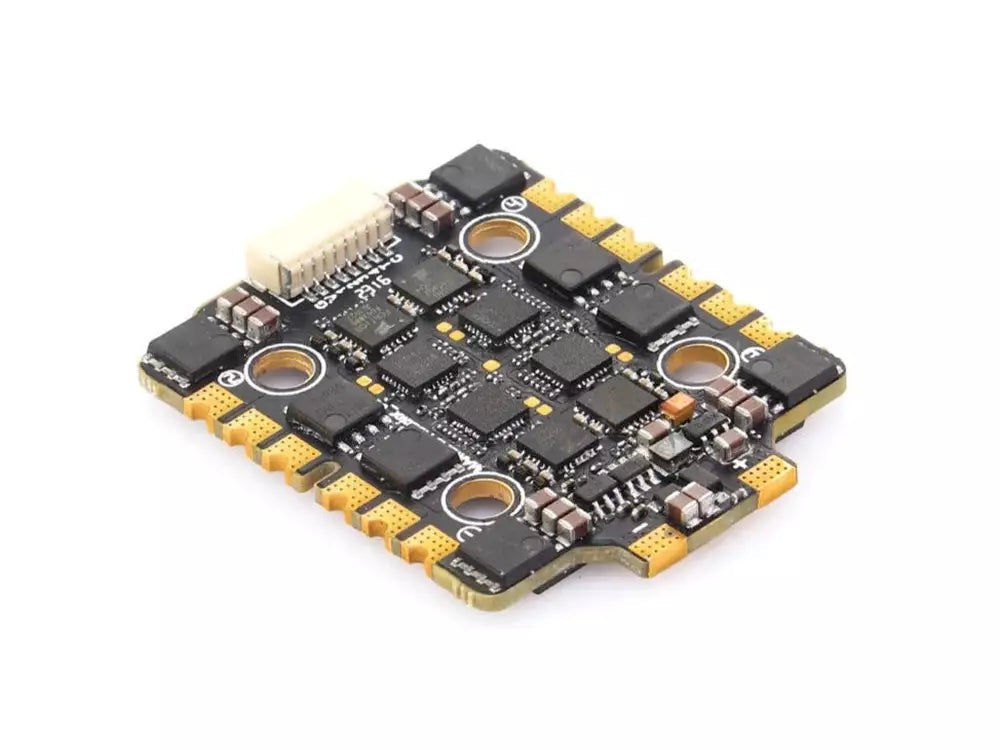

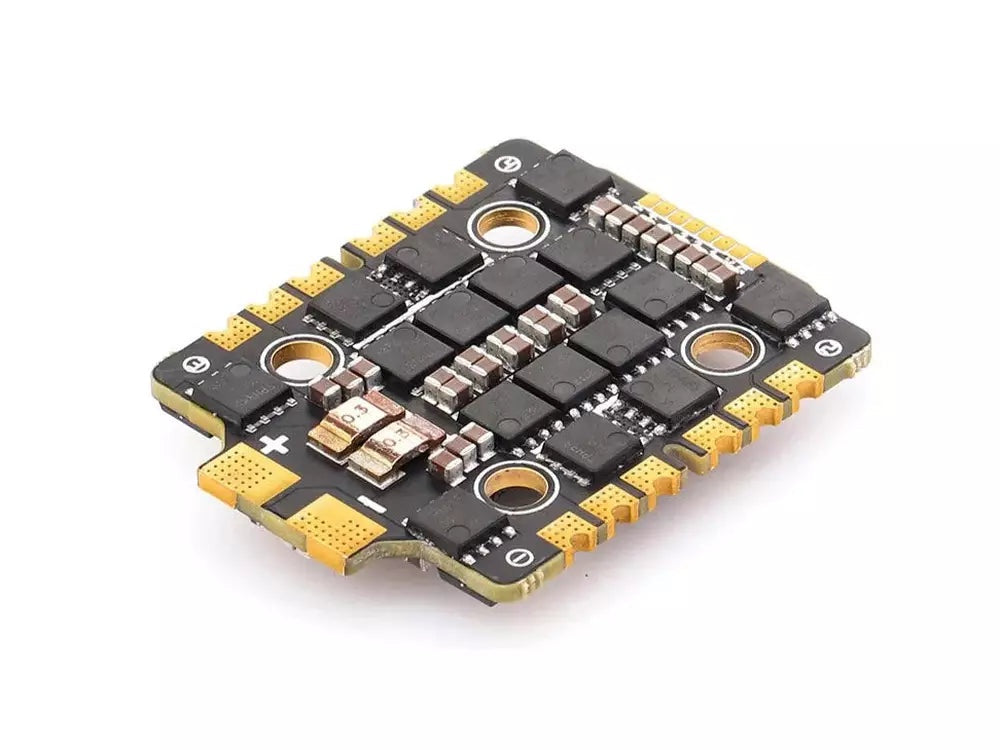

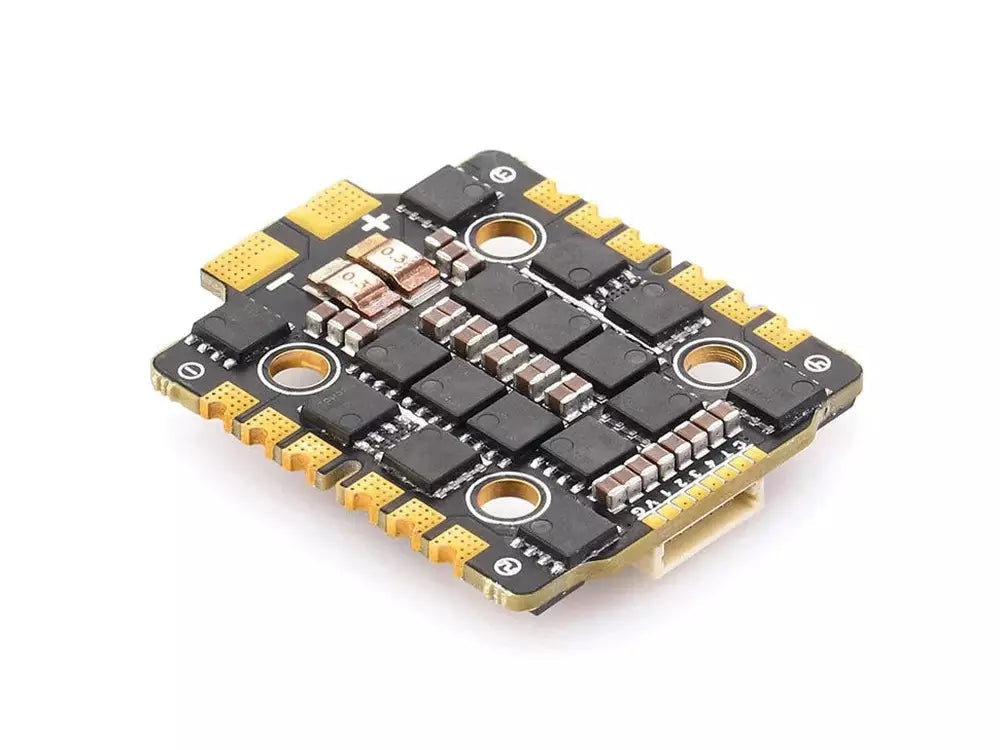

Diatone Mamba Reactor 66A BLHeli_32 4-In-1 ESC 20x20



The Diatone Mamba Reactor 66A BLHeli_32 4-In-1 ESC is designed for superior performance with robust MOSFETs and advanced DShot 300/600/1200 signal communications with a 128K refresh rate. This small 20x20 ESC is an ideal choice for experienced pilots looking for reliable performance.

Specifications:

  • Input voltage: 4~6S Lipo (16.8V~25.2V)
  • Continue current: 66A×4
  • Burst current: 105A (10S)
  • BEC: No
  • Target: BLHeli_32 MAMBA5_Reactor_66
  • SOFT: Dshot300/600/1200
  • PWM: 24~128K
  • Mounting size: 20mm,M2/M3

Diatone Mamba Reactor 66 BLHeli_32 4-in-1 escIncludes:
1x Diatone Mamba Reactor 66A BLHeli_32 4-In-1 ESC
1x AMASS Original XT60
1x High Frequency 1000uF/35V Capacitor
