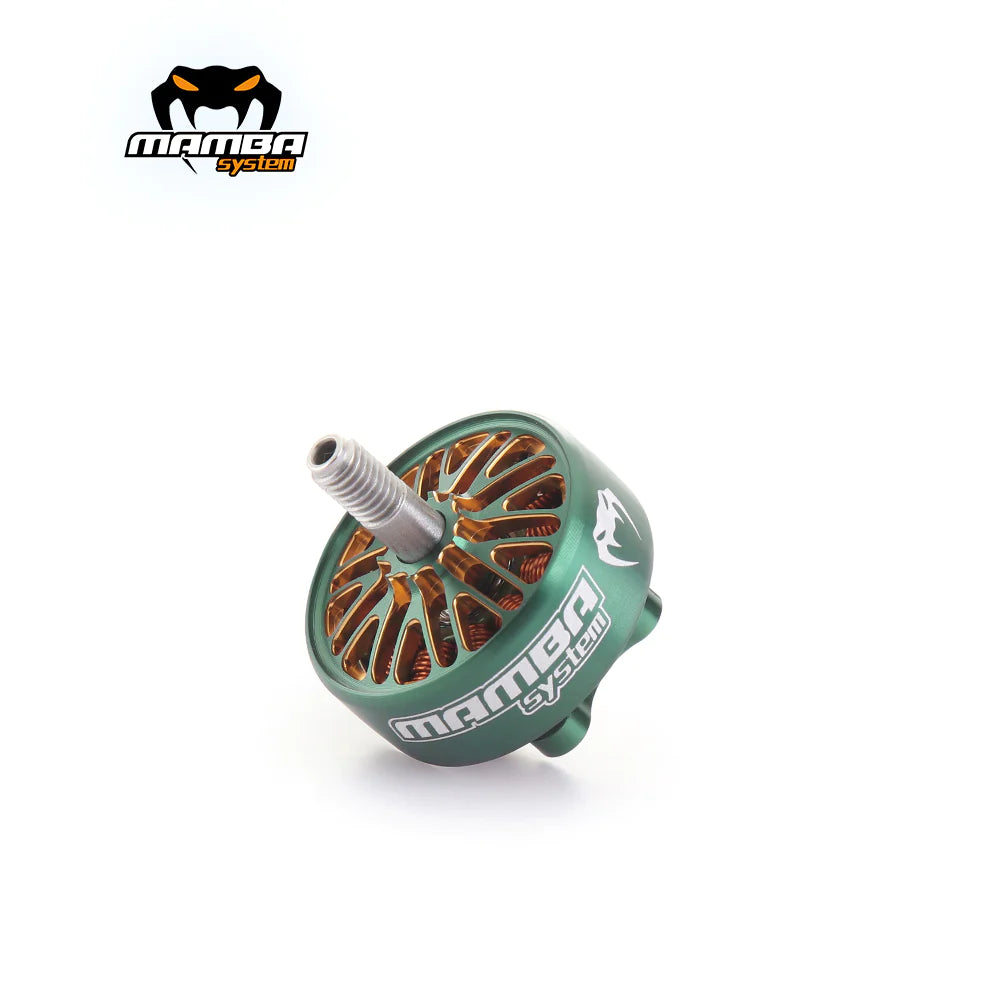

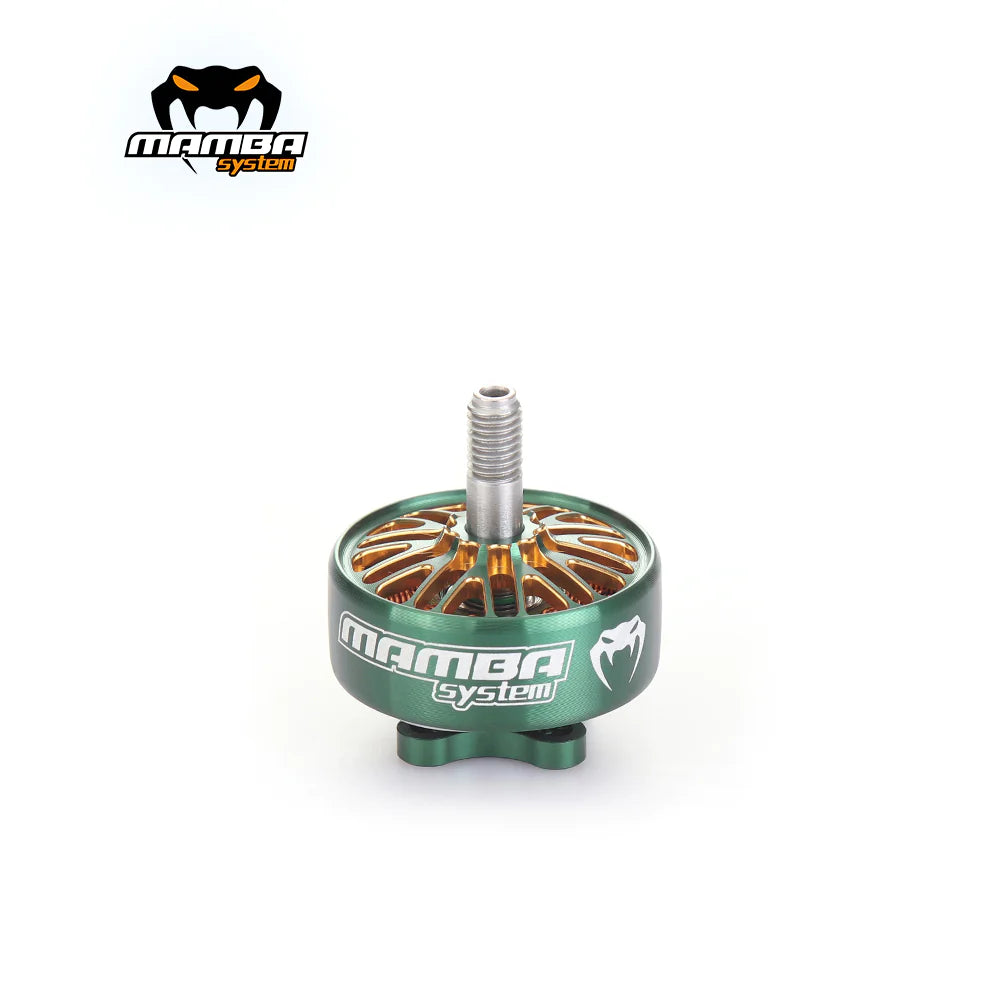

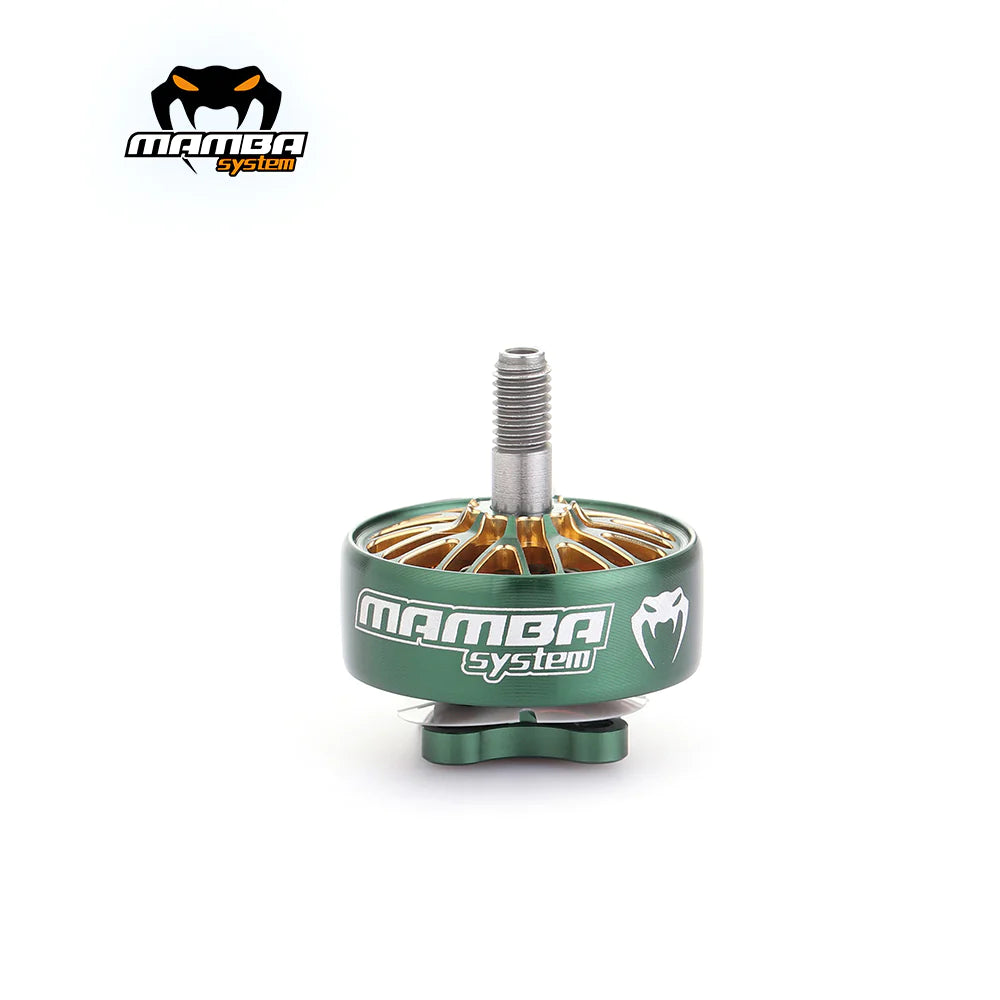

Diatone Mamba Toka 2306.5 Motors

  • $23.99
    Unit price per



The Diatone Mamba Toka 2306.5 Motors combine powerful performance and lightweight construction, offering 1650kv and 1770kv versions for racing or freestyle. Experience rapid acceleration, smooth power delivery, and reliable efficiency with these motors.

Specifications:

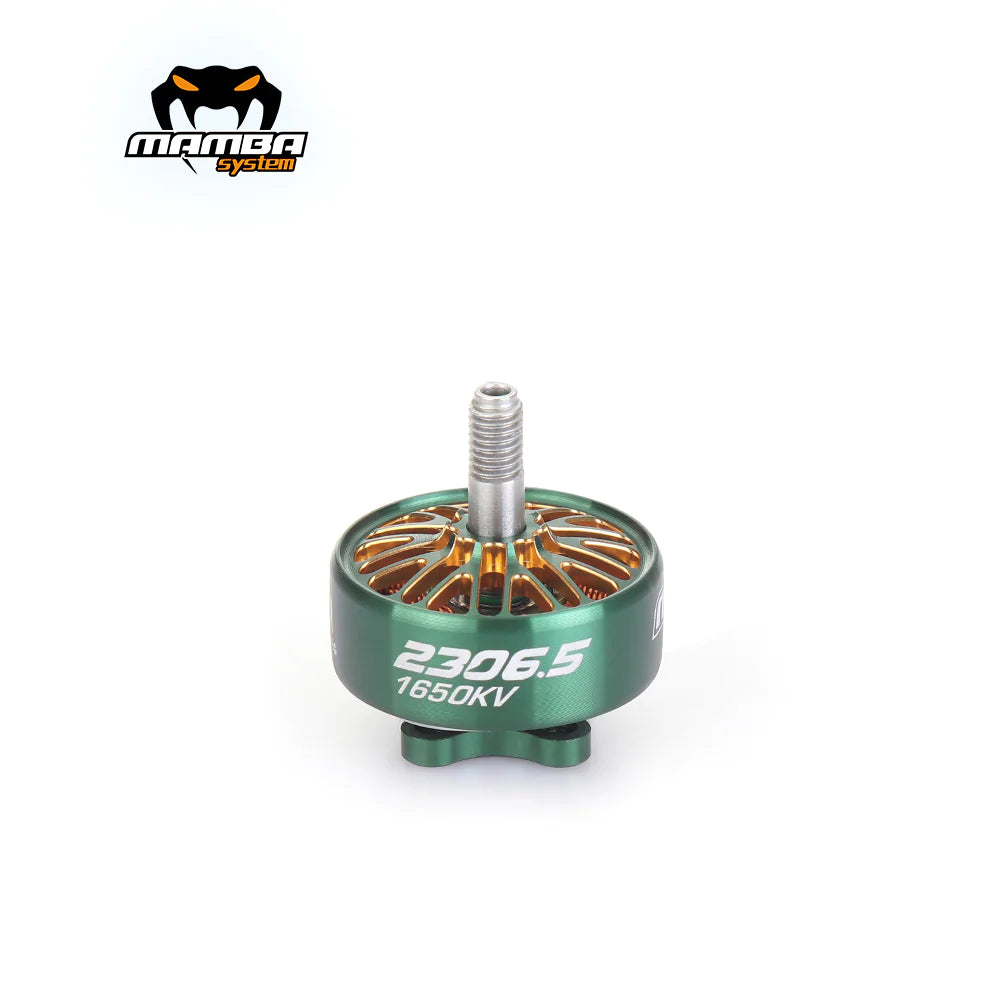

Toka 2306.5 1650KV Motor

  • Motor KV:  1650KV
  • Overall Dimension:  Φ29.8×33.2mm
  • prop mounting shaft diameter:  5mm
  • Installation hole position:  16×16mm,M3
  • Prop:  6inch
  • Bearing:  681ZZ 9*4*4mm
  • Shaft Diameter:  4.0mm
  • Lead Wire Size:  20AWG×190mm
  • slots/poles:  12N14P
  • Magnet Wire:  240℃ Enameled Wire
  • Magnet:  N52H
  • Stator Diameter:  23mm
  • Stator Height:  6.5mm
  • Rated Voltage:  4~6S (16.8V~25.2V)
  • Peak Current:  40.5A
  • ladle Current:  0.7A
  • Maximum Power:  970.05W
  • Internal Resistance:  78mΩ

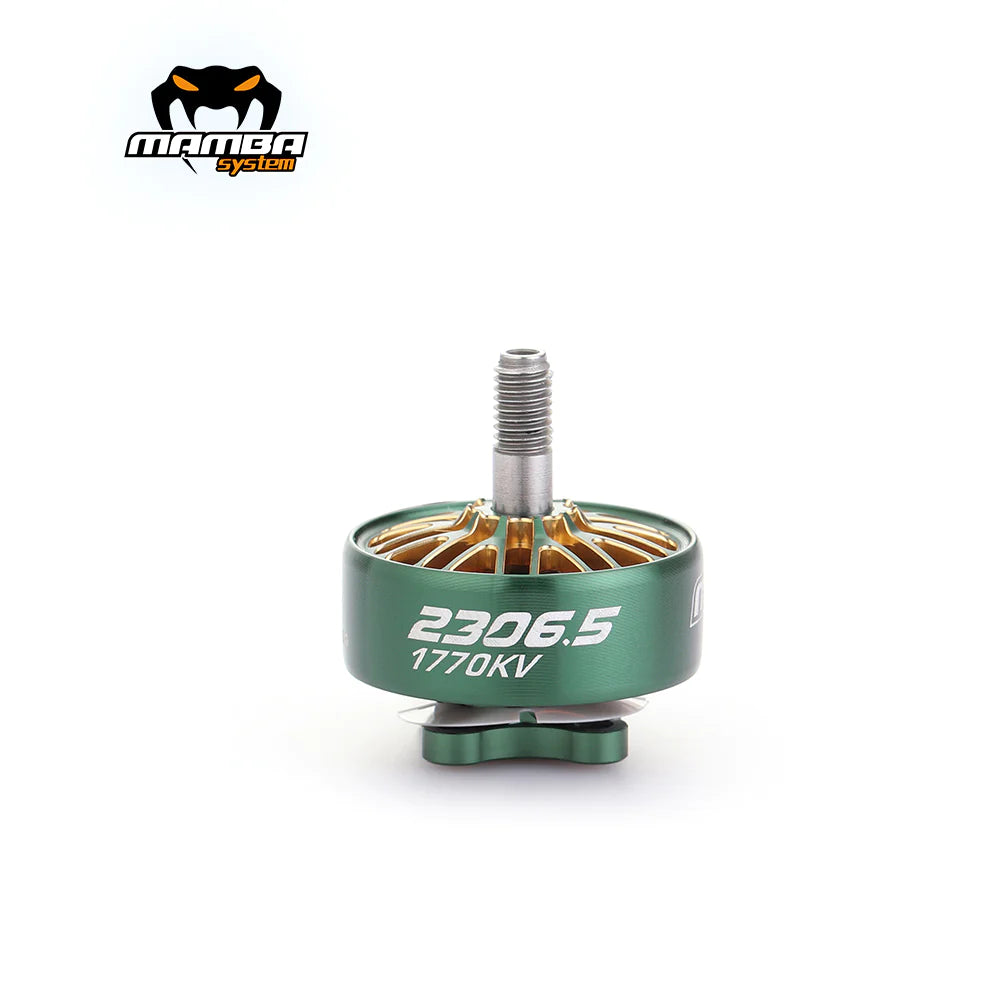

Toka 2306.5 1770KV Motor

  • Motor KV:  1770KV
  • Overall Dimension:  Φ29.8×33.2mm
  • prop mounting shaft diameter:  5mm
  • Installation hole position:  16×16mm,M3
  • Prop: 5 inch
  • Bearing:681ZZ 9*4*4mm
  • Shaft Diameter:  4.0mm
  • Lead Wire Size:20AWG×190mm
  • slots/poles:  12N14P
  • Magnet Wire: 240℃ Enameled Wire
  • Magnet:  N52H
  • Stator Diamter:23mm
  • Stator Height:  6.5mm
  • Rated Voltage:  4~6S (16.8V~25.2V)
  • Peak Current:  39.12A
  • ldle Current:  1A
  • Maximum Power:  938.97W
  • Internal Resistance:  65mΩ

Includes:
1x Diatone Mamba Toka 2306.5 Motor
