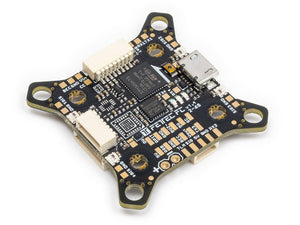

FETtec KISS G4 - N Flight Controller V1.7

  • $69.99
    Unit price per



The next generation of FETtec's popular KISS flight controller has arrived! Featuring the latest STM32 G4 MCU with math accelerator for the ultimate in flight performance, IIM-42652 gyro, 2 dedicated BECs for 5V and 16V switchable power, DSHOT2400 outputs for support of up to 8 motors, and dual 20x20 and 30x30 mounting holes.

This new "N" version simply means there is no onboard analog OSD chip.  Due to global shortages, the OSD chip was removed.  This only affects analog systems, there are no other restrictions and you can use the full potential of this FC as you are used to.  The use of external OSD boards and digital FPV systems still work fine.

The FETtec OSD Board is perfect for analog users still wanting OSD.

Comparison:

FETtec KISS G4 - N Flight Controller V1.7


FETtec KISS G4 - N Flight Controller V1.7
FETtec KISS G4 - N Flight Controller V1.7

Specifications:

  • Latest STM32G4 Processor
    • 180Mhz + Math accelerator
    • Gyro IIM-42652 SPI
  • Supply voltage 6-27V (2S-6S Lipo)
  • 2x dedicated onboard BEC (2A each)
    • 5V BEC for RX
    • 5V/16V BEC for VTX (switchable and real Pit*)
  • Improved IO protection
    • All IOs of the microcontroller e.g. in connectors or solder pads are protected against voltage or current spikes
  • 2x 8 pin connector for solder free ESC connection
    • Connector 1: ESC signal 1-4, telemetry, VCC, GND
    • Connector 2: ESC signal 5-8 (depending on UAV type 1-4), telemetry, VCC, GND
  • 1x 8 pin connector for solder free VTX, cam connection and OSD or digital systems
    • real Pit* VCC, GND, Video in, Video out, BEC 5V/16V, VCS/TX3, RX3
  • 2x 6 pin connectors for serials
    • RX1, TX1, 3.3V, VCC, 5V, GND
    • RX3, VCS/TX3, RGB LED, VCC, 5V, GND
  • 1x 4 pin connector for receiver
    • Signal, TLM, 5V, GND
  • 5 UART serials
    • UART 1 free
    • UART 2 used for Receiver
    • UART 3 free
    • UART 4 free
    • UART 5 used for ESCs / TLM / Onewire
  • 4 ESC solder pads (Signal/GND) in each corner
    • Buzzer pads
  • 4 tiny RGB LEDs (selectable color)
  • Supported ESC protocols
    • PWM, Oneshot125, Oneshot42, Dshot150/300/600/1200/2400, FETtec Onewire
  • FETtec Alpha FC firmware (KISS FC firmware flashable)
  • Connector type: JST-SH-1mm

*real Pit-Mode: A power supply pin which is remotely switchable

Dimensions:

FETtec KISS G4 - N Flight Controller V1.7
  • Maximum outside dimensions: 37,2 x 37,2mm, without outside tips 30 x 30mm
  • Mounting hole arrangement:
    • 20 x 20mm with M2 mounting hole (expandable to M3)
    • 30 x 30mm with M3 mounting hole
    • 30 x 30mm mounting hole tips are removable to reduce overall FC size
  • Overall height: 7,9mm
  • Weight: 5,37g

Includes:
1x FETtec Flight Controller G4 - N V1.7
1x 8 pin cable
1x 6 pin cable
1x 4 pin cable

Download Manual

FETtec Toolset (ESC Configurator and ALPHA Configurator)
