We are pleased to announce the second version of our 5” frame, Volador II. Thanks to the numerous suggestions and feedback (special shoutout to Ryan Harell and Kai Lin) from V1 users and testers, we’ve made many optimizations in the V2 version to better suit the needs of pilots.
The Volador II Frame maintains high compatibility and a simple construction design, equipped with the necessary accessories for easy, convenient, and organized assembly.
The Volador II VX Frame comes in the Squashed X configuration for maximum control, while the Volador II VD Frame features the popular Deadcat style configuration with no props in view. It is compatible with a variety of analog and HD systems on the market, and the independently detachable arm and tight-fitting structure design minimize frame resonance. The high-quality TPU parts are cleverly designed for a more integrated and neat installation. We guarantee, that pilots with the Obsessive-Compulsive Disorder of any degree will be highly satisfied as Volador II is the only frame on the market that allows users to have the cleanest-looking builds possible.
We have also designed a silicone shock-absorbing camera plate insert specifically for the DJI O3 Air Unit camera installation, that’ll eliminate any possible jello in your DVR, while also being compatible with 19mm/20mm format cameras.
The frame is made of high-strength CNC aluminum alloy parts and highest quality T700 carbon fiber sheets, with a super smooth surface and uniform chamfered edges. Say no to damaged cables and battery straps. And, well, it just looks aesthetically more pleasing, doesn’t it?

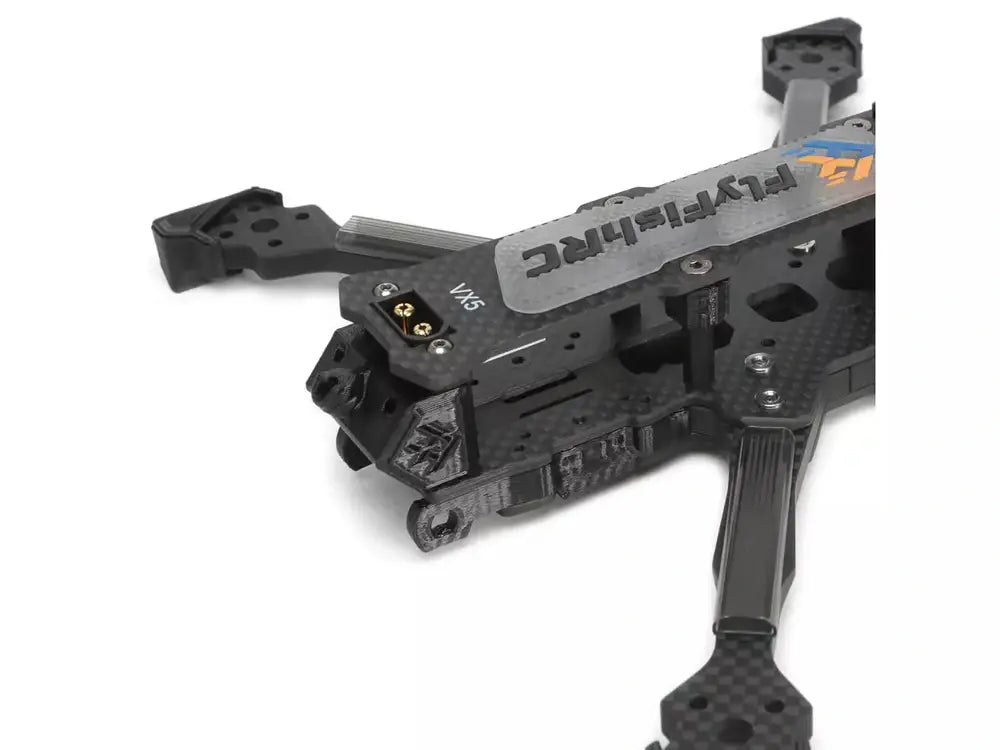

The redesigned battery pad with an added grid has now an even better anti-slip effect and is using a stronger adhesive. The XT60 connector integrated at the tail of the frame eliminates the probability of the power lead getting damaged by props in a crash while allowing easy, single-hand plugging of the battery.
The frame comes with all the accessories needed for analog and HD builds, and is equipped with hardware with Loctite thread-locking agent for additional reliability. The tight structure design fully minimizes resonance.
Great efforts have been made on the TPU parts. They fit the frame perfectly, improve the overall durability of the frame, look very smooth and, oh my, the Tropical Mix Set is just out of this world! This is something we take a lot of pride in!
- Arm Thickness: 6mm
- Top plate thickness: 2.5mm
- Middle plate thickness: 2.5mm
- Bottom plate thickness: 2.5mm
- Keystone thickness:5mm
- Side plate thickness:2mm
- CNC Side plate thickness:5mm
- Propeller size: 5~5.1 inch
- Material: T700 carbon plate
- FPV cam spacing: 19mm/20mm

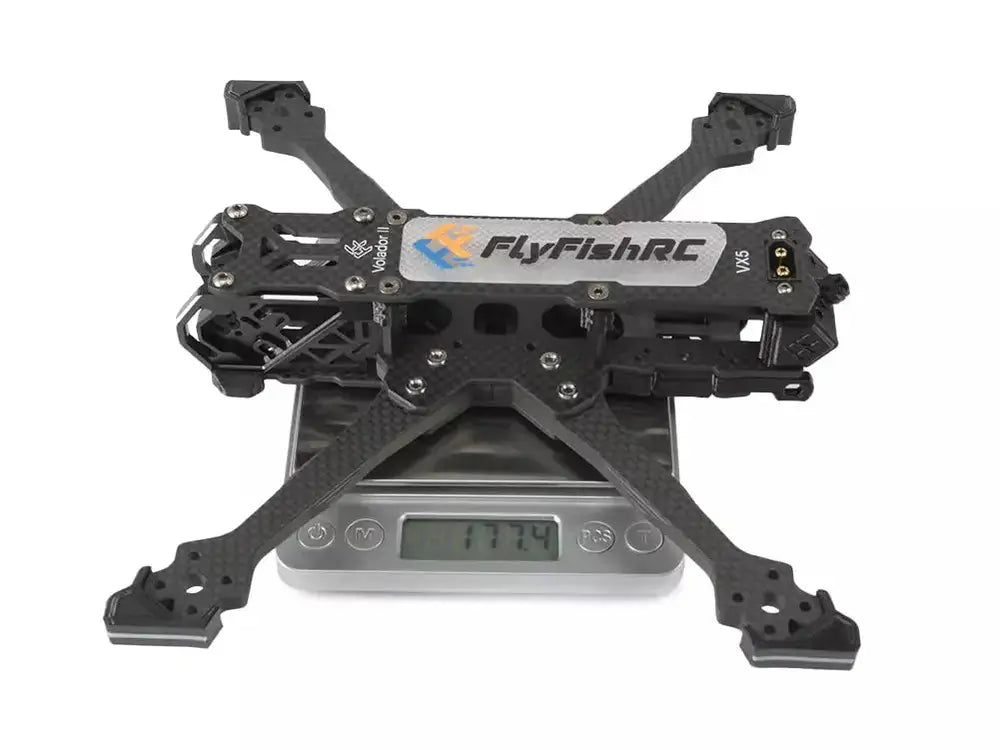

- Weight: 177.4g(with TPU parts)
- Color: Black/Tropical Mix (Optional)
- Total Dimensions:177mm*165mm Wheelbase:225mm
- Stack mounting holes: 20mm*20mm/30.5mm*30.5mm(M3)
- VTX mounting holes: 20mm*20mm/25.5mm*25.5mm(M2)
1x Flyfish RC Volador II VX5 O3 FPV Freestyle T700 Frame Kit
