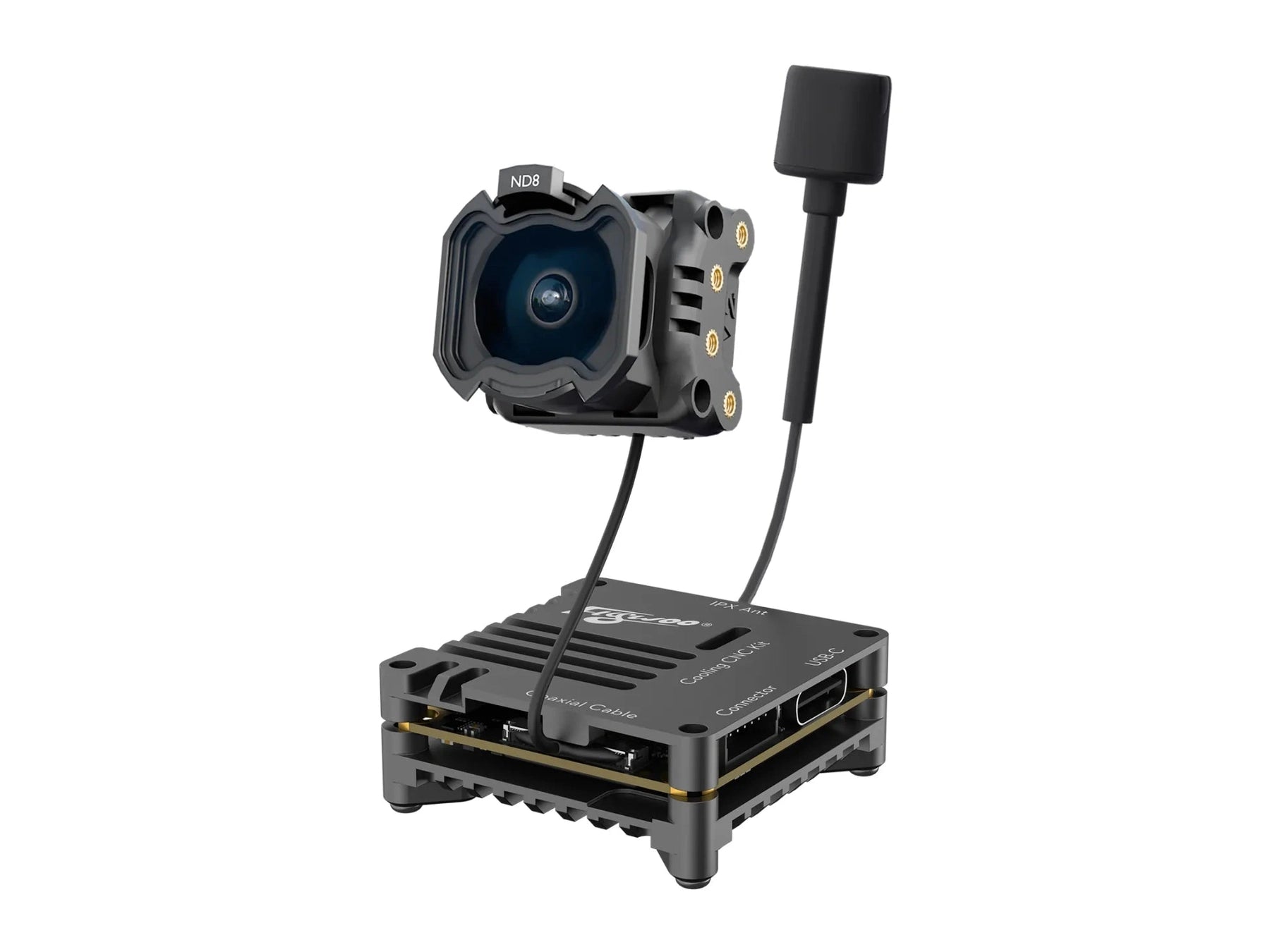

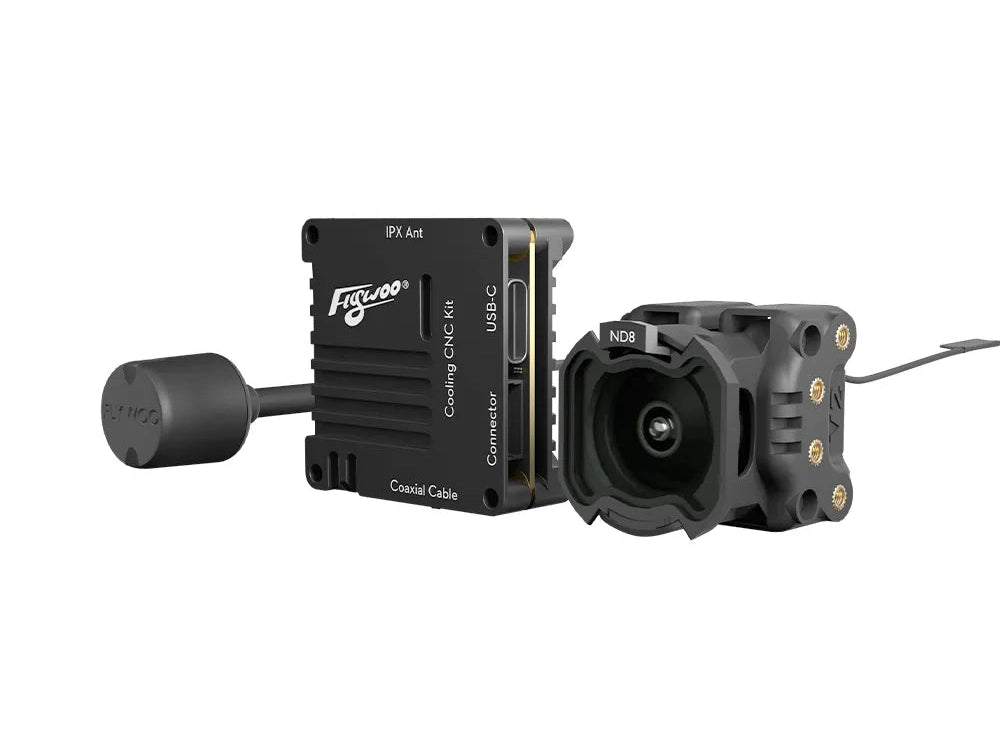

Flywoo DJI O4 Wide Air Unit Pro

NOTE: These are the regular DJI O4 Air Unit, not the DJI O4 Air Unit Pro.

Flywoo DJI O4 Wide Air Unit Pro adds a 159° ultra-wide FOV to O4 HD transmission, with 4K/60fps recording, 10km FCC range, 20ms Racing mode, and 23GB storage.

Pre-equipped with O4 Pro cam adapter, Cooling CNC Kit, 150mm longer coaxial cable, LHCP UFL antenna—perfect for 3/5/7-inch+ FPV drones.

Features:

• 10km O4 HD Digital Transmission: Same transmission performance as the standard O4 Air Unit, with up to 10km stable range under FCC standards and H.265 encoding for smooth 1080p/100fps live view.
• 20ms Low-Latency Racing Mode: Racing mode reduces latency to as low as 20ms and supports up to 8 aircraft racing simultaneously for responsive stick input.
• 1/2-inch Sensor + 159 Degree Ultra-Wide Imaging: The 1/2-inch CMOS sensor records 4K/60fps video, while the 159-degree ultra-wide FOV reduces blind spots for indoor gaps and close-range freestyle.
• Canvas Mode Custom OSD: Canvas Mode and Betaflight OSD support let pilots arrange flight data freely on the goggles display.

Specifications:

• Product Name:  DJI O4 Wide Air Unit Pro
• Gyroscope:  I469D

• Imaging:
  • 1/2-inch CMOS sensor
  • 4K/60FPS Video Recording
  • 159-degree ultra-wide FOV
• Video Transmission:
  • O4 HD digital transmission
  • Single-antenna design
  • 1080p/100fps live view
  • Minimum 20ms latency
  • Up to 10km range under FCC standards
  • Maximum 60Mbps bitrate
• Antenna:  Flywoo LDS UFL LHCP Antenna - 115mm
• Cooling Shell:  Flywoo Custom Heat Dissipation Shell
• Coaxial Cable:  150mm Coaxial Cable
• Storage:
  • 23G Built-in Storage
  • microSD Card Expansion Not Supported
• Weight:  19g (Including 150mm Coaxial Cable)
• Dimensions:  30 x 30 x 10.7 mm
• Mounting Hole Spacing:  20mm x 20mm / 25.5mm x 25.5mm
• Lens Size Option:
  • 14mm (stock)
  • 18mm (With Flywoo 18mm Lens Housing)
  • 20mm (With Flywoo 20mm Lens Housing)

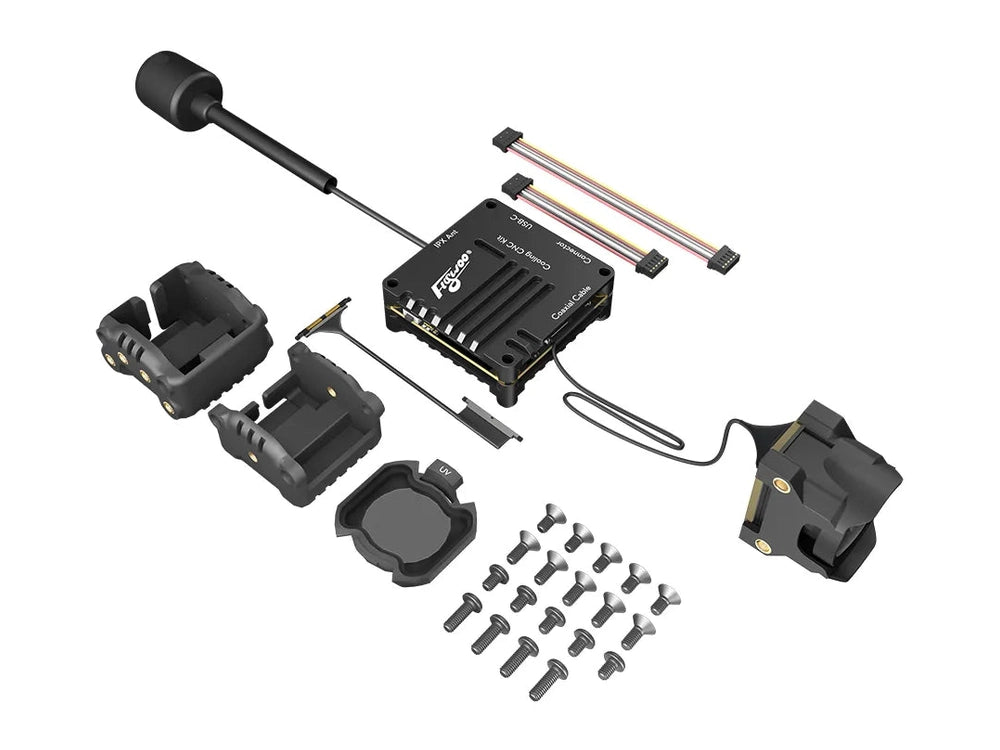

Includes:
1x Flywoo DJI O4 Wide Air Unit Pro
1x O4 Wide UV V2
1x 18mm Camera Shell
1x 20mm Camera Shell
1x 50mm Coaxial Cable
1x 150mm Coaxial Cable
1x Flywoo LDS UFL Antenna
1x 6-Pin Wire Harness 5cm
1x 6-Pin Wire Harness 10cm
5x M2x3 Cross Head Screws
5x M2x4 Cross Head Screws
5x M2x3 Round Head Screws
4x M2x7 Round Head Screws
