Flywoo ExpressLRS 2.4GHz Receiver

  • $13.99
    Unit price per



The Flywoo 2.4GHz ELRS Nano Series Receiver is an open source program based on Expresslrs.  It is lightweight, minimal in size and uses the ESP8285 MCU for great performance and support of ExpressLRS.

Divided into two versions EL24E / EL24P

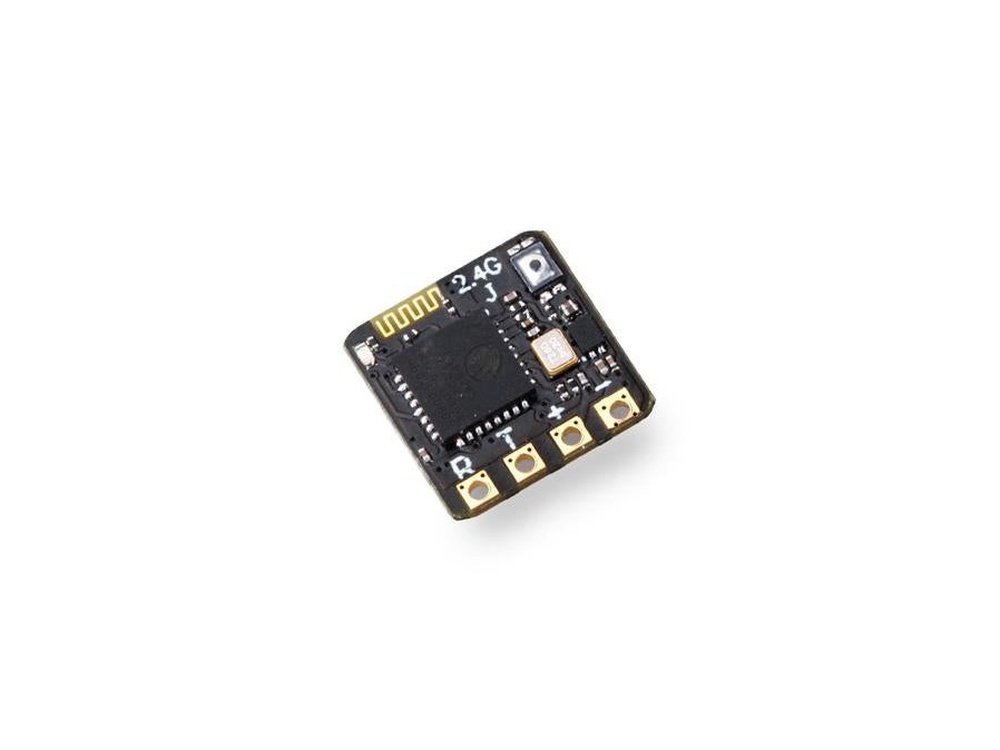

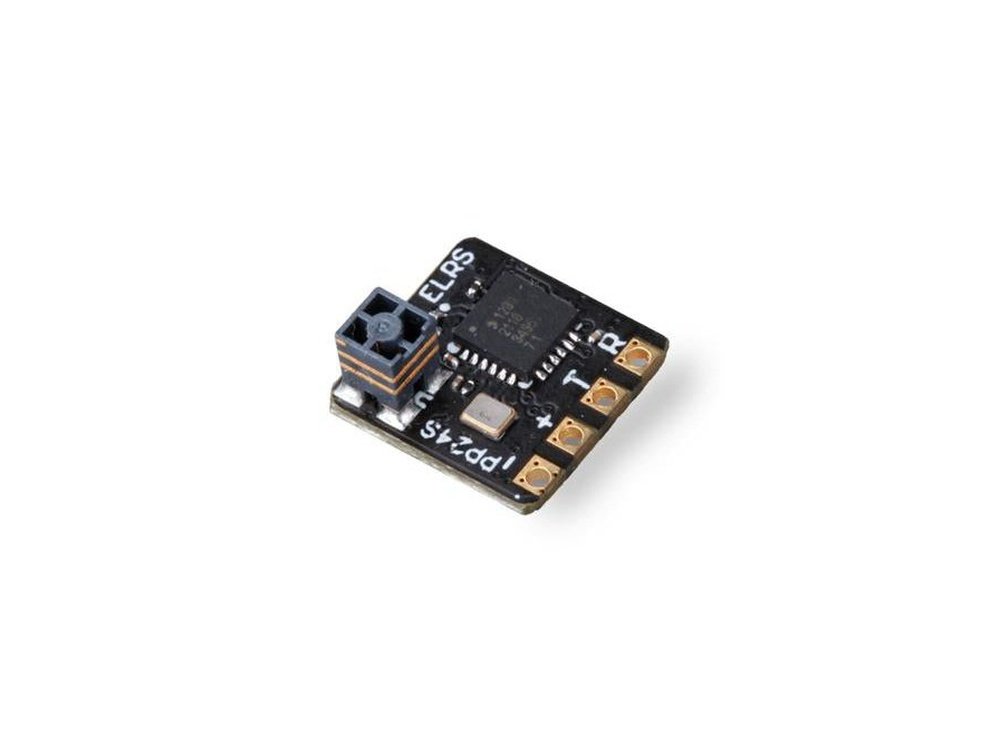

  1. EL24E: ESP8285 MCU, SX1280 RF CHIP, it has a Built-in Ceramic Antenna, Which Is Super Light and Small in Size.

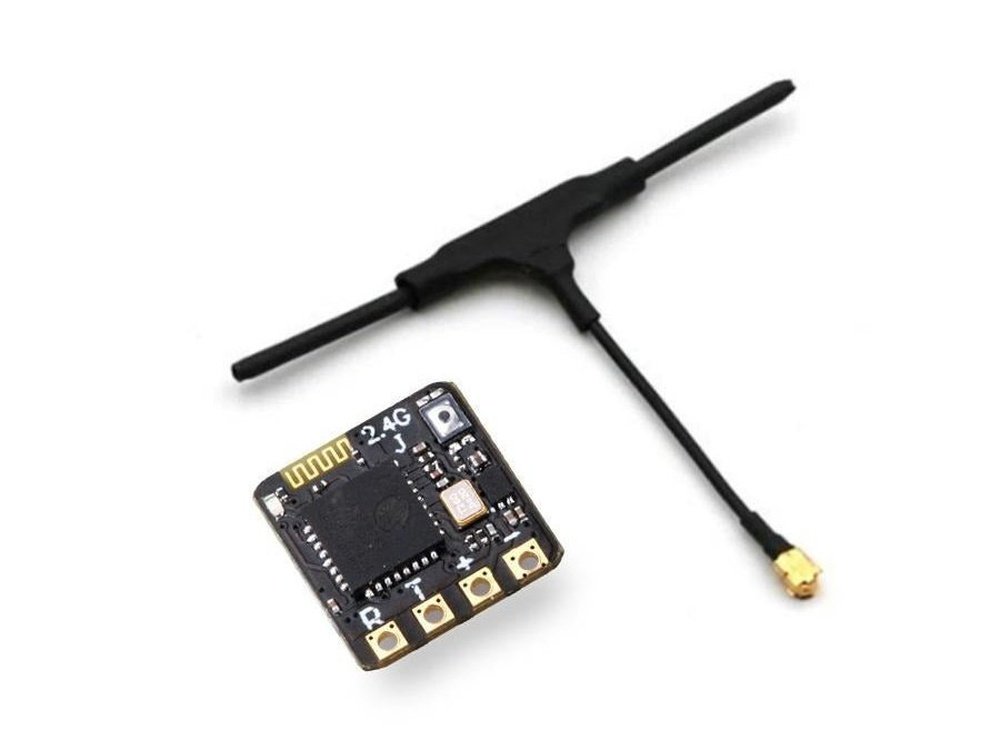

  2. EL24P: ESP8285 MCU, SX1280 RF CHIP, use IPX ports, connect external T-type antennas, farther distance, stronger signal

Specifications:

EL24E NANO RECEIVER

  • Type: ISM
  • ESP8285 MCU
  • SX1280IMLTRT RF Module
  • SMD Ceramic antenna
  • Frequency Range: 2400 MHz to 2500 MHz
  • Maximum receive refresh rate: 500Hz
  • Minimum receiver refresh rate: 25Hz
  • Working voltage: 5v

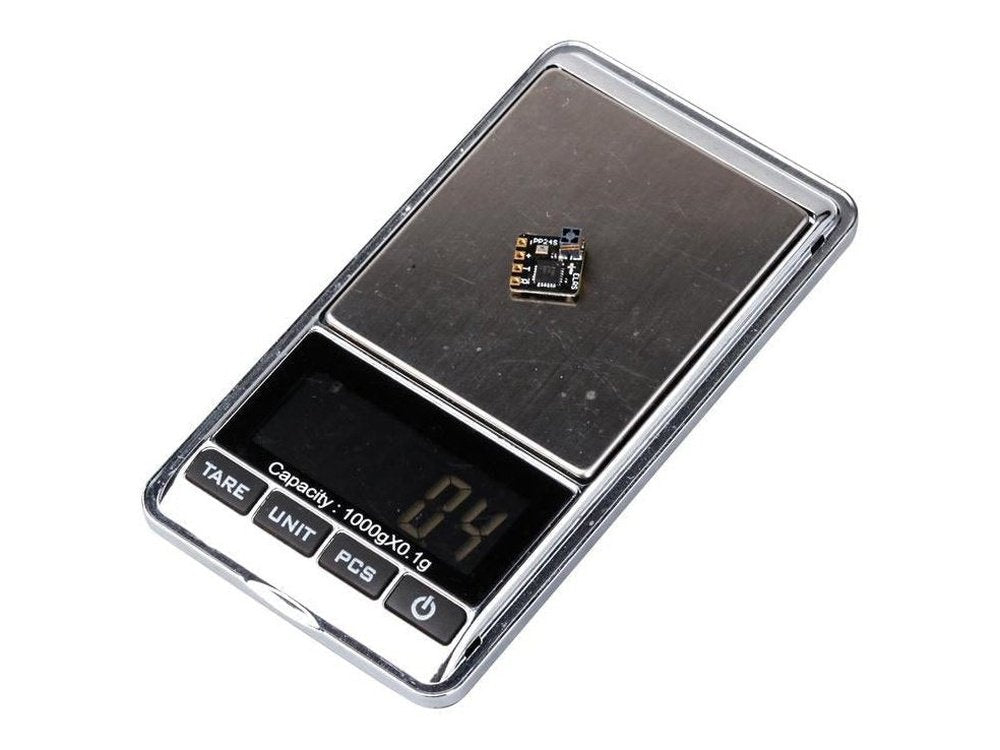

  • Weight: 0.4g
  • Dimension: 10.8mm*11mm*6mm
  • Peak gain: 3.7dB

EL24P NANO RECEIVER

  • Type: ISM
  • ESP8285 MCU
  • SX1280IMLTRT RF Module
  • Frequency Range: 2400 MHz to 2500 MHz
  • Maximum receive refresh rate: 500Hz
  • Minimum receiver refresh rate: 25Hz
  • Working voltage: 5v
  • Weight: 0.4g
  • Dimension: 10.8mm*11mm*6mm
  • Peak gain: 3.2dB
  • Includes 40mm half-wave dipole antenna

Binding Procedure:

  • Supply power to the EL24E/EL24P rx, wait until the LED on the RX is off, immediately turn off the power, and then repeat again the above steps. When the RX is powered on for the third time, the LED light will start to double-flash, which means that the RX enters the binding mode
  • Insert the 2.4G ELRS TX to Radio transmitter, and choose External RF mode to CRSF protocol, then you can find ELRS menu from the Radio systems(Need to copy the ELRS.LUA file to the SD-Card tools first), Enter into ELRS and press [Bind], the LED on the RX module will getting to be solid if bind successfully.

- Receiver LED status meanings:

EL24E/EL24P RX: LED solid means bind successful or Connection established; LED double-flash means in bind mode; LED flash slowly means no signal connection from the TX module; LED flash fast means in WIFI hotspot mode, you can connect the WIFI of the RX and upgrade firmware of the RX via visit 10.0.0.1 from the web browser(password: expresslrs)

Includes:
1x Flywoo ExpressLRS 2.4GHz Receiver

Link to ExpressLRS Github
