Crux35 HDZero is an ultra-lightweight 3.5 Inch FPV Freestyle FPV Racing Drone, the weight of the whole drone is only 108g for the digital HD version. The Crux35 series uses Happymodel EX1404 high-efficiency motor and HQPROP 3.5-inch three-blade propeller to ensure the largest thrust-to-weight ratio under the most efficient premise, which can bring you a smooth Freestyle flying experience.
The HDZero version is equipped with the HDZero RunCam Nano HDZero Camera and HDZero Whoop VTX. Includes SPI ExpressLRS 2.4GHz receiver.
Specifications:
- Brand: Happymodel
- Product name: Crux35 HDZero
- Wheelbase: 150mm

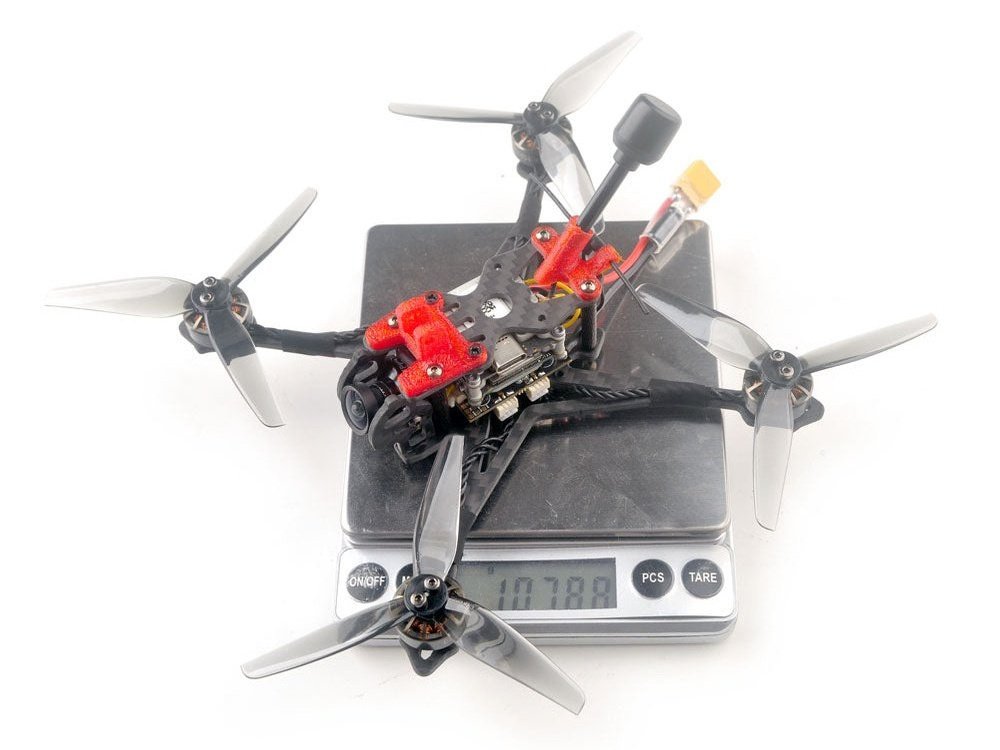

- Weight: 108gram
- Size: 130mmx130mmx45mm(without propellers)
- Flying time: 9min~15min 4s 750mah battery
HDZERO WHOOP VTX
- Frequency: 5.8G
- Resolution: 1280*720@60FPS
- RF Power: 25mW/200mW
- RF Connector: u.FL
- Interface: 4 lane MIPI CSI YUV422
- Size: 32.5x32.5x7mm
- Weight: 5.4g
HDZERO NANO CAMERA
- Lens: FOV D150 Degrees
- Power: 450mA@3.3V
- Resolution: 1280*720@60FPS
EXPRESSLRS FLIGHT CONTROLLER
- MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
- Sensor: MPU-6000(SPI connection)
- Mount pattern: 20×20 M2Size:32*28*9mm
- Power supply: 2-4S Lipo battery
- Built-in 12A Blheli_s ESC each
- Built-in Betaflight OSD(SPI Control)
- Built-in SPI ExpressLRS 2.4GHz receiver
- Built-in 5V 1A BEC
- Flight controller firmware target: CRAZYBEEF4SX1280
EX1404 MOTOR
- KV: 3500
- Configuration: 9N12P
- Dimensions: 15*15mm
- Weight: 9g

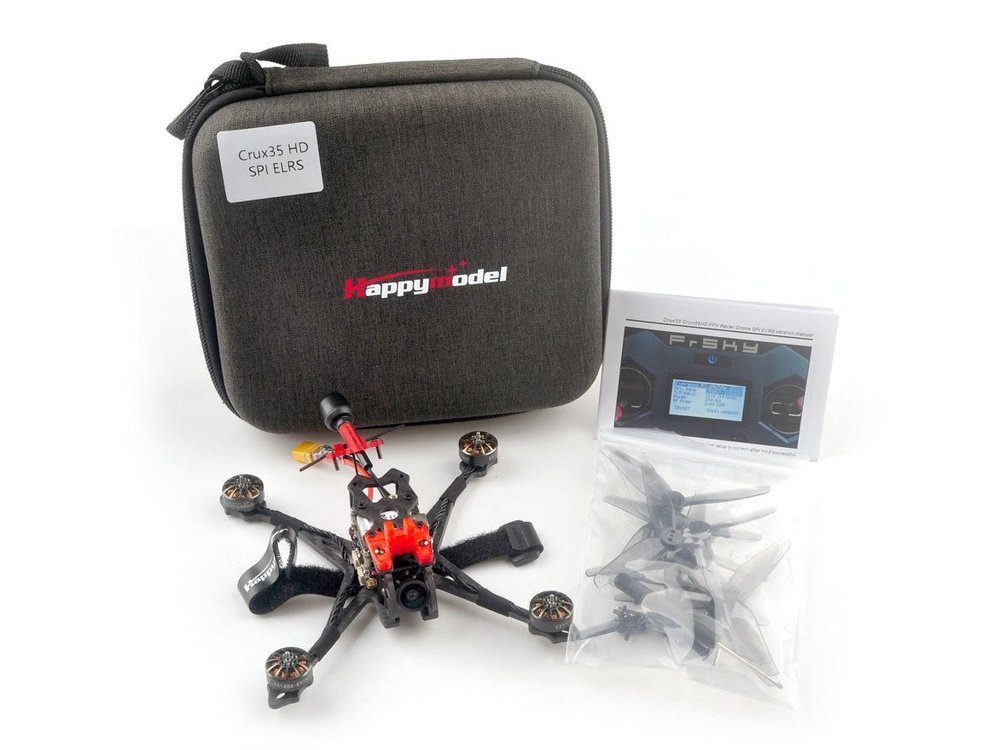

Includes:
1x Happymodel Crux35 HDZero 3.5 Inch 4S Micro Quad
