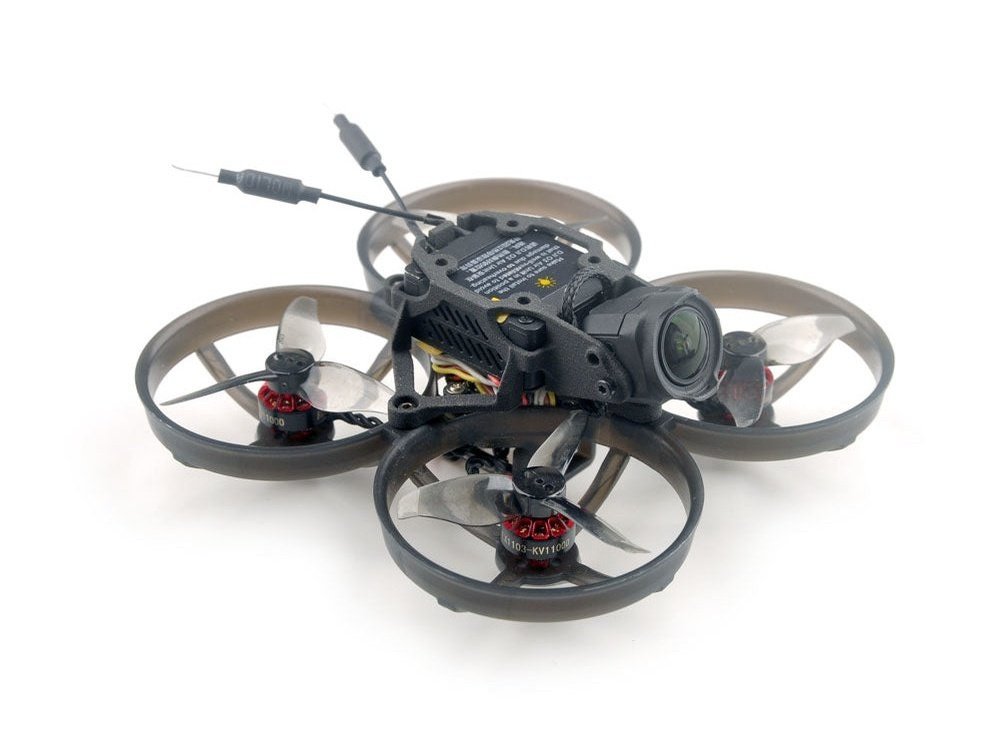

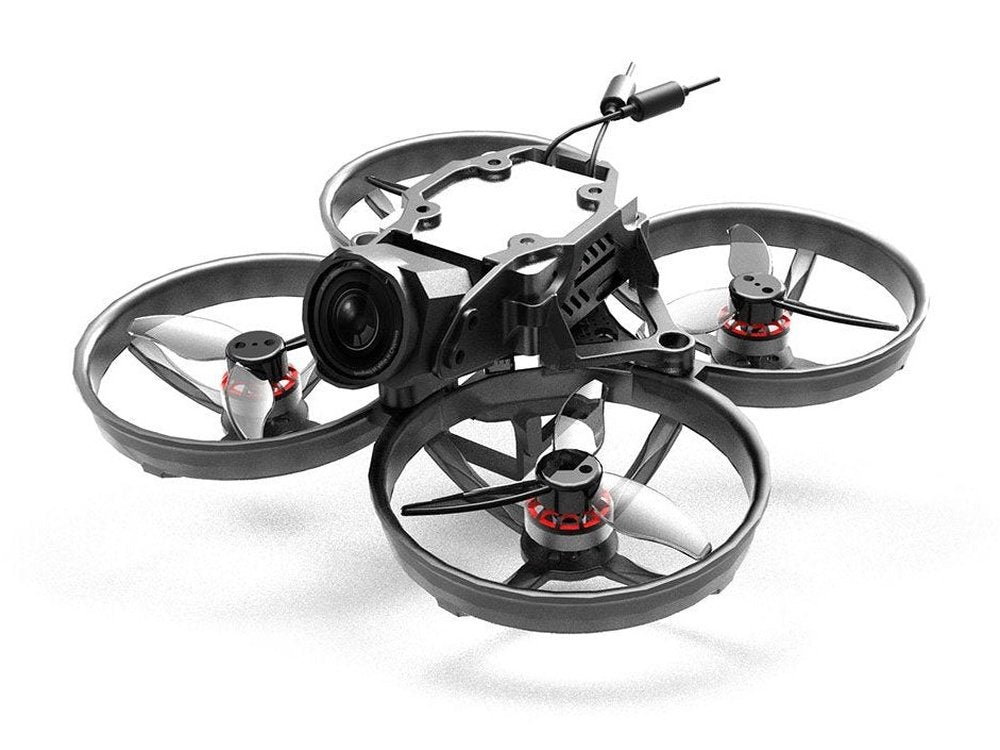

Happymodel Mobula8 2S 85mm DJI O3 HD Micro FPV Whoop Drone

$95.00
Unit price per

The Happymodel Mobula8 2S 85mm DJI O3 HD Micro FPV Whoop Drone provides a digital HD experience with high-performance power to rip through the air. Enjoy the ultimate in FPV whoop drone performance with a reliable air unit and an incredibly fast power system.

Features:

Digital HD FPV experience
New CrazyF405 ELRS HD flight controller
Powerful and Smooth
UART ExpressLRS 2.4GHz receiver
Built-in blackbox for Gyroflow and PID Tune

Specifications:

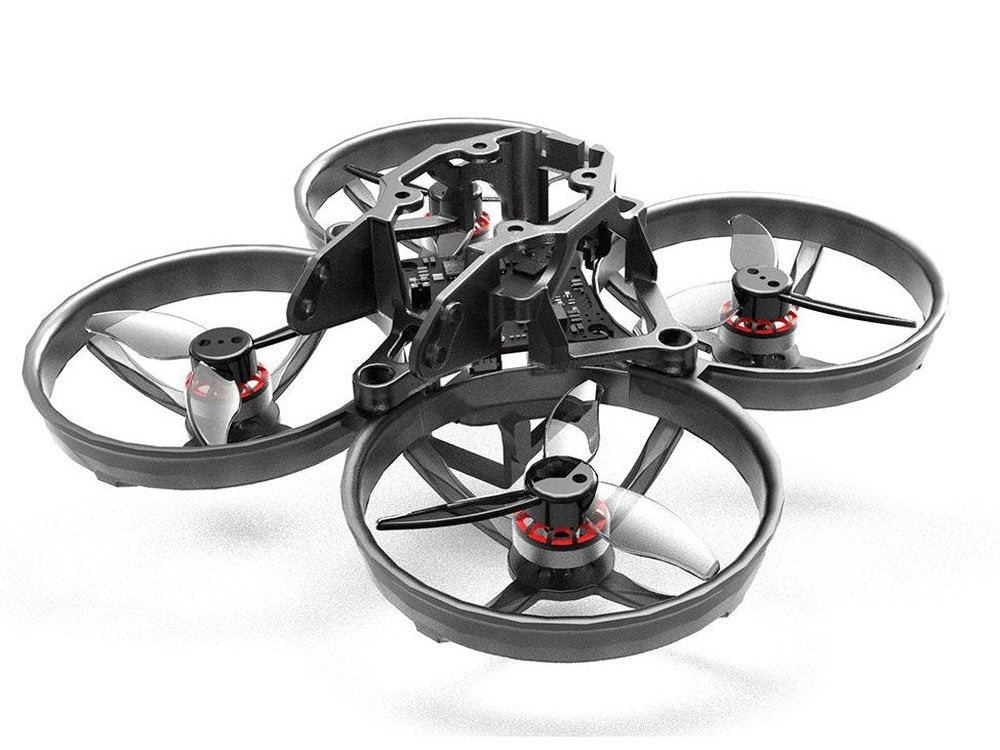

Frame: Happymodel Mobula8
Flight Controller: CrazyF405HD UART ELRS AIO
Motor: EX1103 KV11000 Brushless
Propellers: Gemfan Hurricane 2023 tri-blade
VTX: DJI O3 Air Unit
Camera: DJI O3 Camera

MOTOR

Mode: EX1103 KV11000
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:3mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm
Weight(g):3.8g
No.of Cells(Lipo):1-2S

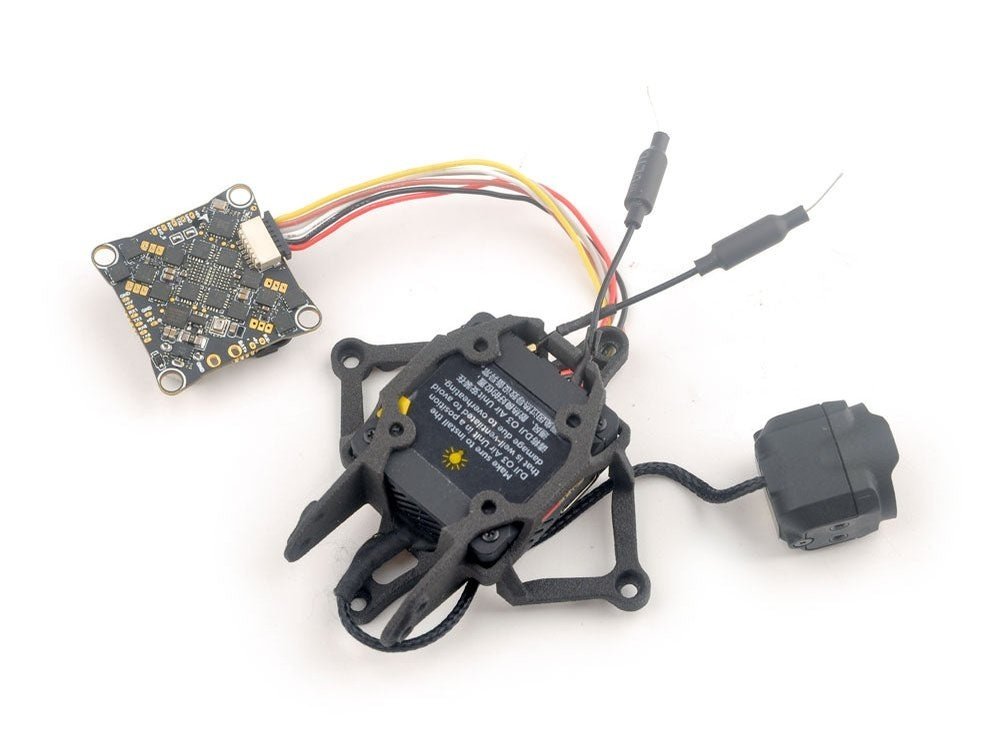

FLIGHT CONTROLLER

MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH)
GYRO Sensor: BMI270 (SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Serial ExpressLRS 2.4G
Built-in BMP280 Barometer
Built-in 8MBp blackbox
Built-in voltage meter sensor, voltage meter scale 110
Built-in current meter sensor, current meter scale 470

ONBOARD 4-IN-1 ESC

Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeli_S Bluejay firmware
Factory firmware: Bluejay ESC V0.19
Firmware target: Z-H-30
Default protocol: DSHOT300
When use 1s battery and high KV 0702/0802 motors, should set startup power to 1100/1200

ONBOARD UART ELRS 2.4GHZ RECEIVER

Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHz
Antenna: enameled copper wire 31mm length
Telemetry output Power: <12dBm
Default firmware version: ExpressLRS V3.0.1
Firmware target: HappyModel EP 2400 RX
Could update firmware via ExpressLRS configurator

DJI O3 AIR UNIT

Works with DJI FPV Goggles V2, DJI Goggles 2, and DJI FPV Remote Controller 2
D-Cinelike mode for Vivid Colors
Flagship O3+ Video Streaming
Customizable Canvas Mode
155° Super-Wide FOV
1/1.7-Inch Sensor
Compact in Size

Includes:
1x Happymodel Mobula8 2S 85mm DJI O3 HD Micro FPV Whoop Drone
