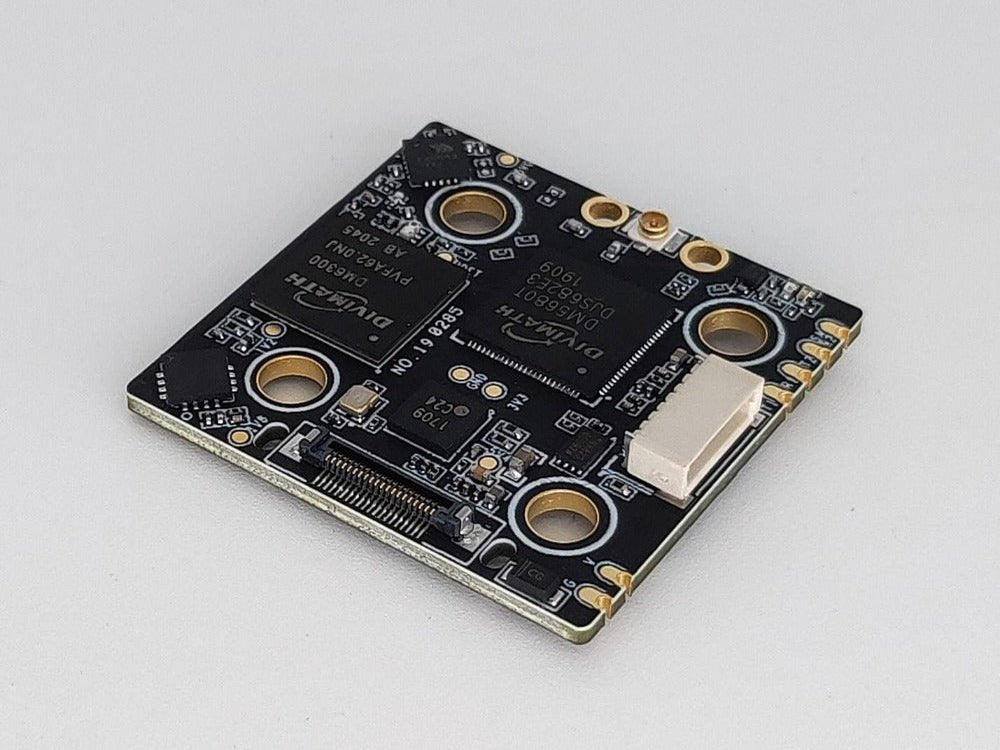

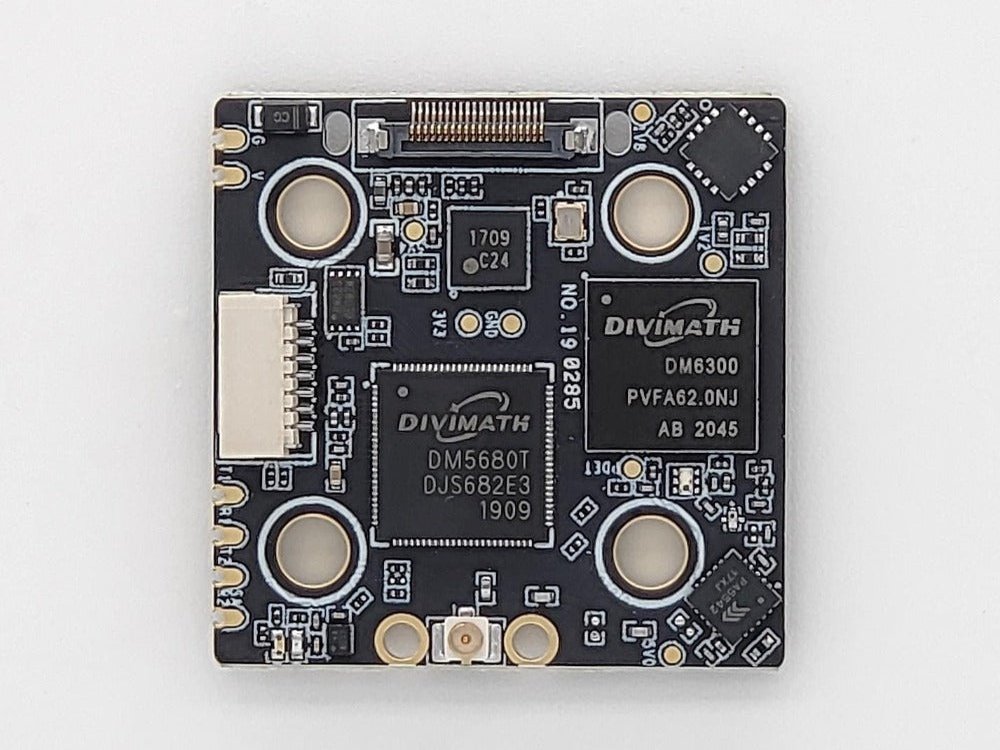

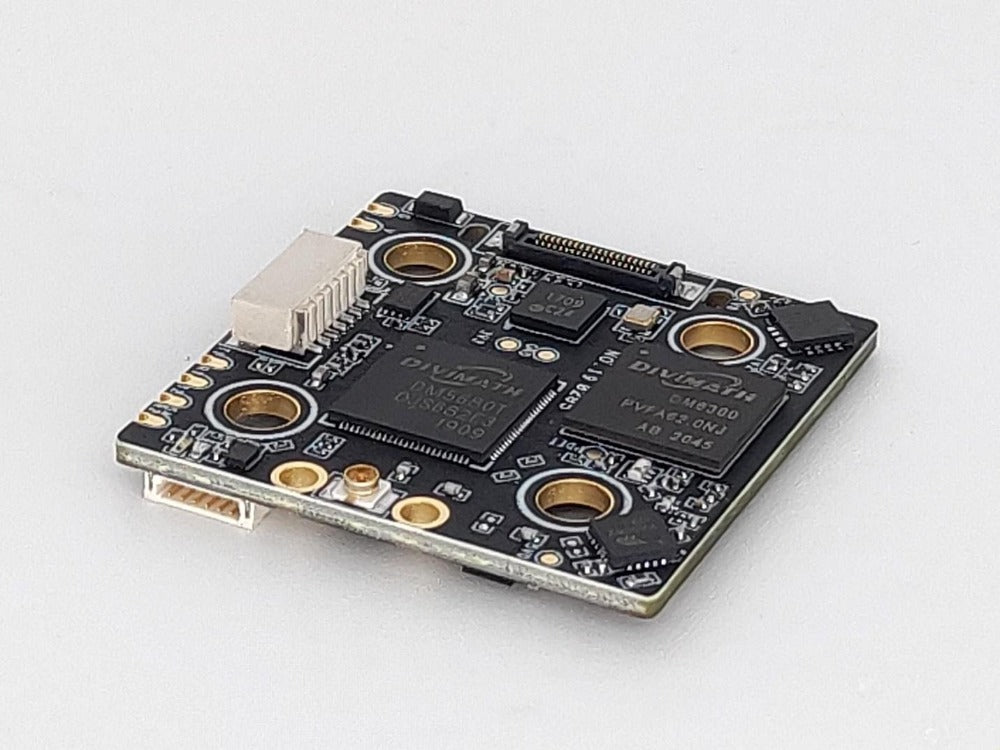

HDZero Race 2 Video Transmitter

  • $69.99
    Unit price per


Experience high-quality, low-latency HD video with the HDZero Race 2 VTX.

The HDZero Race 2 VTX is a digital HD 720p 60fps video transmitter capable of delivering up to 200mw on 5.8GHz. It works with the Shark Byte RX5.1 and other HDZero/Divimath receiver modules to receive video.

Coming in at just 6.2g and measuring 34x34mm, this board should fit just about anywhere.


  • Weight:  6.2g
  • Dimensions:  34x34x5mm
  • Operating Frequency:  5.725-5.850GHz
  • Transmitter Power:  25mW, 200mW
  • Mounting Pattern:  20x20mm with M4 to M3 gummies
  • Antenna Interface:  Secured u.FL
  • SmartAudio:  YES
  • MSP Canvas Mode:  YES
  • Input Power:  7-26V
  • Operating Temperature:  32˚F-104 ˚F (0˚-40˚C)
  • Power Consumption:  25mW:  5.0W, 200mW:  5.8W

HDZero Race 2 VTXIncludes:
1x HDZero Race 2 Video Transmitter



The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a "HAM" amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government's rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. Defiance RC, Inc cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.
