HGLRC Specter F722 Mini MPU6000 Flight Controller

With over a year of technological advancements, we have accelerated the development of the SPECTER F722 Mini FC in 2024. This flight controller incorporates a high-performing STM32 F722 main control and MPU6000 gyroscope for a precise flying experience. Additionally, the board is covered by the integrated CNC heat sink for better heat dissipation and durability. Additionally, all external devices are compatible with direct plug-in connection for convenient setup.

Features:

• The main control adopts an STM32F722 high-performance processor, with a computing speed of up to 216 MHz, providing smoother control, better hand feel, and faster response speed.
• The flight control gyroscope uses high-performance MPU6000 to improve the stability of use and reserves 42688 gyroscope pads.

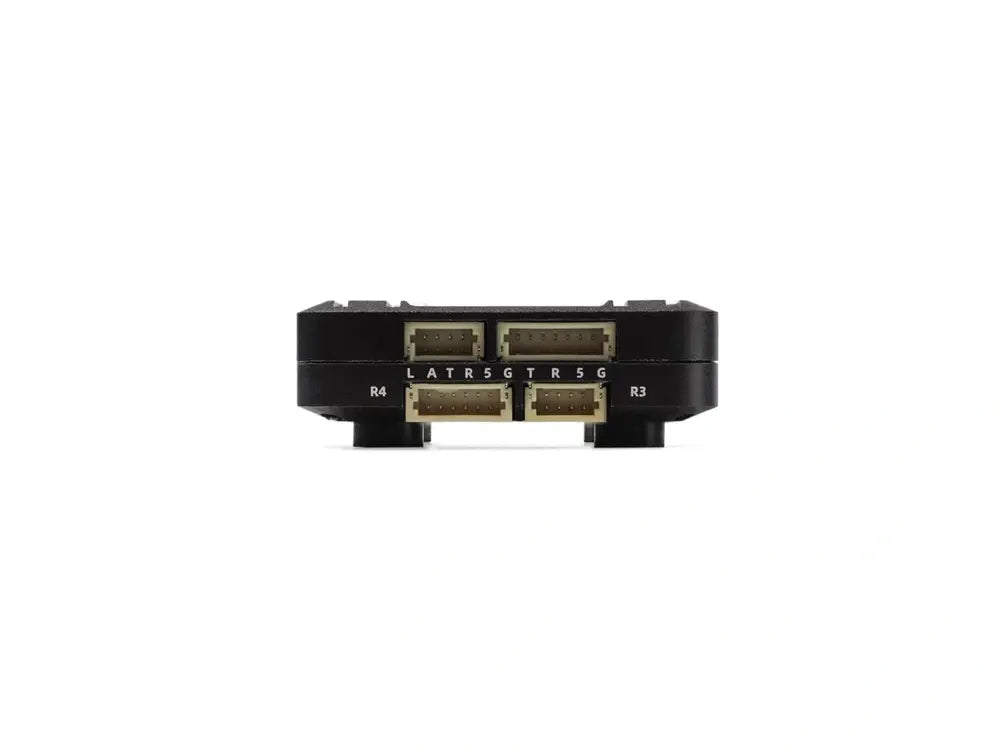

• Full module direct plug-in connection, plug and play, no soldering pads required, achieving modularity.

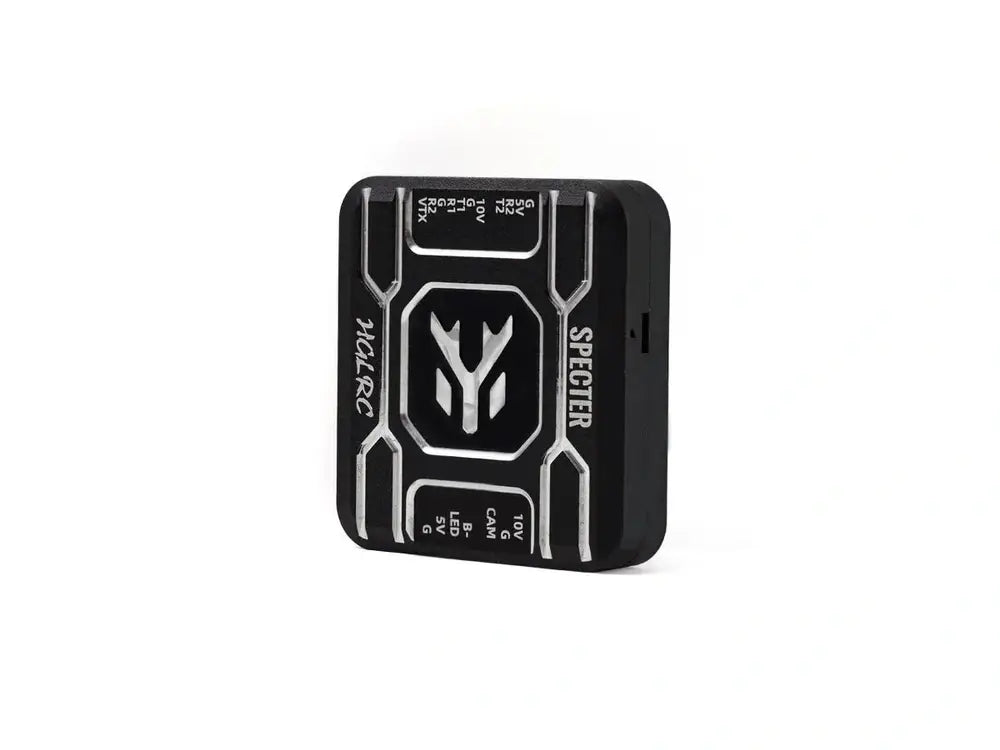

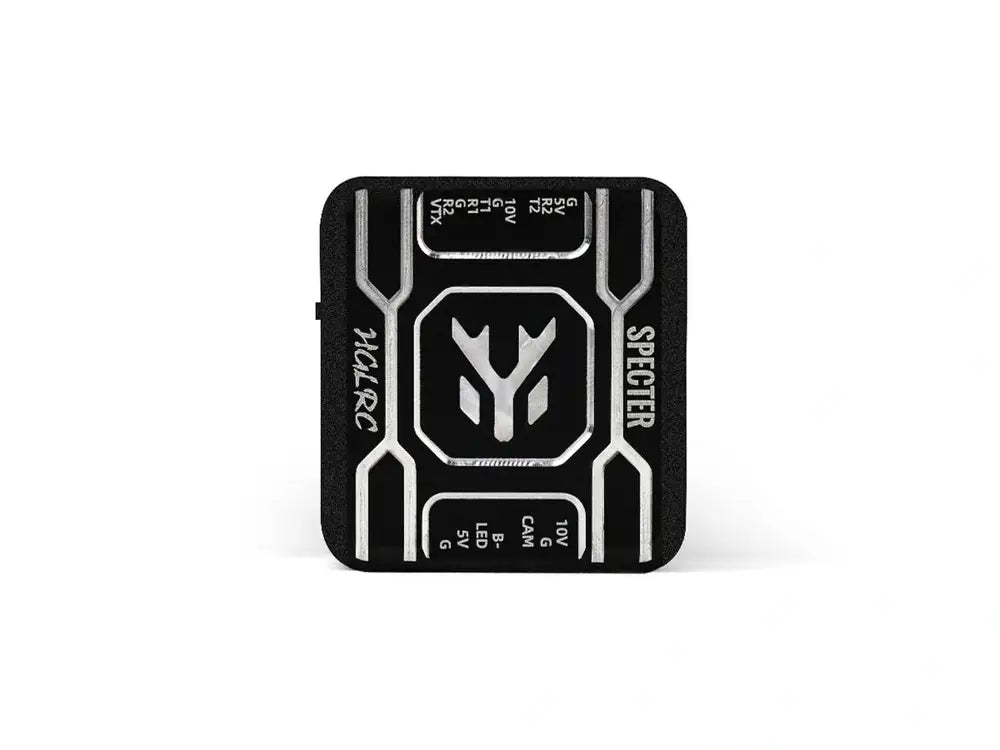

• Personalized CNC heat sink shell prevents debris from entering the interior of the flight control and improves usage efficiency.
• 16MB large-capacity black box to ensure adequate recording of flight data.
• Integrated BF wireless Bluetooth parameter adjustment, connect to SPeedyBee APP to adjust serial port, PID and other flight control parameters anytime and anywhere.
• Equipped with a 10V electronic switch, the on/off mode can be set through BF, which is convenient for solving the heating problem of long-term power-on
• Nano-scale coating is added to both sides of the board, and its main functions are waterproof, moisture-proof and corrosion-proof.

Specifications:

• Flight controller: HGLRC-SPECTER F722 mini flight controller
• Flight control firmware: HGLRCF722 MINI

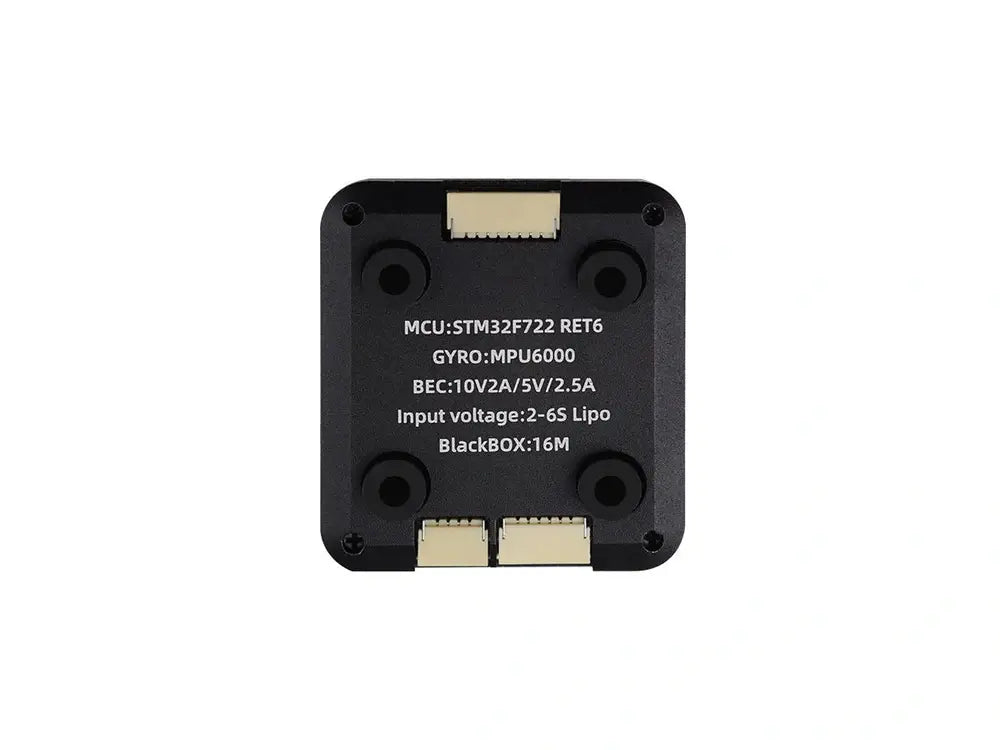

• MCU: STM32F722
• GYRO：MPU6000
• OSD:AT7456E
• Barometer: BMP280
• Black box: 16MB
• UARTS: 5 groups
• BEC: 10V2A/5V2.5A
• Flight control size: 37mmx34mmx9.8mm
• Installation hole position: 20x20mm, M3
• Weight:18g
