** Pre-Order - Typically arrives in two weeks **

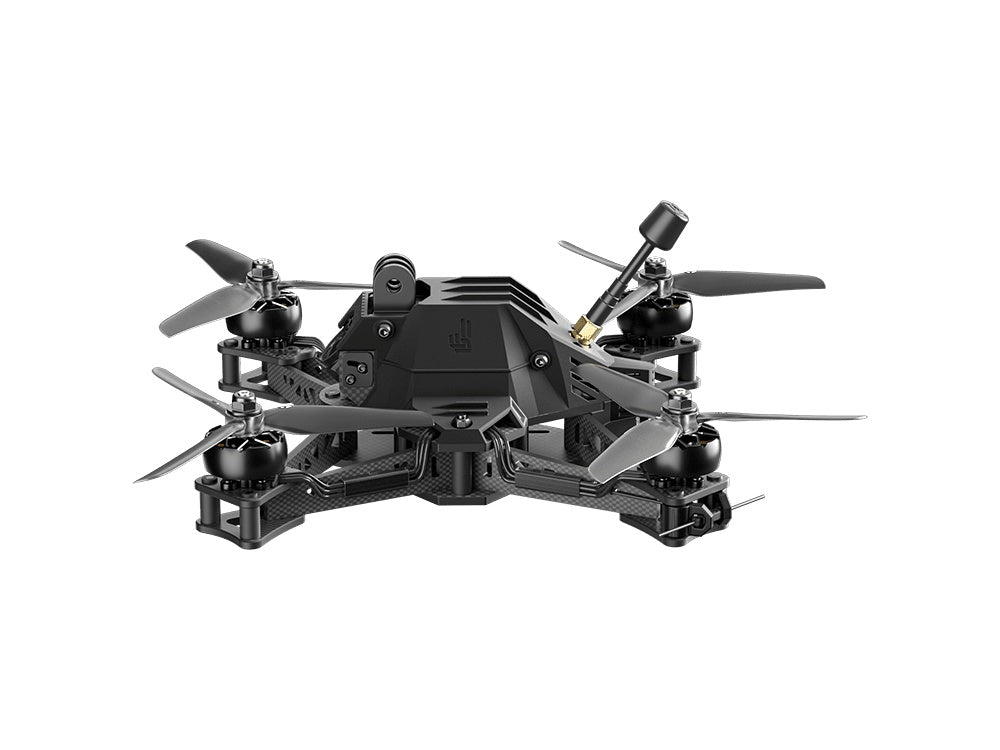

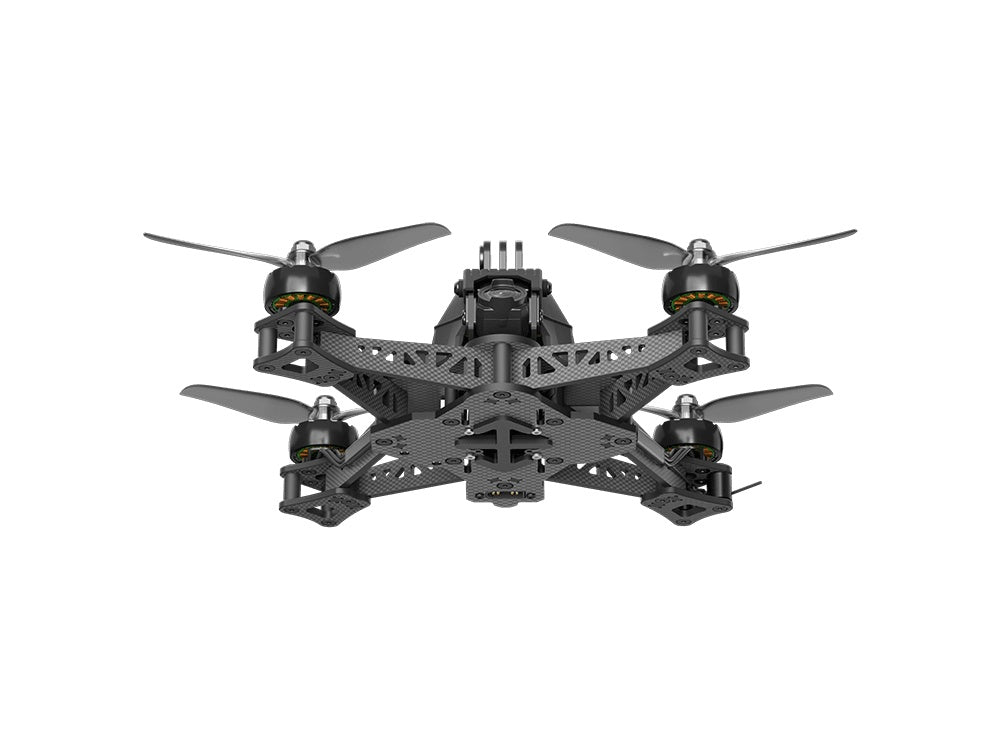

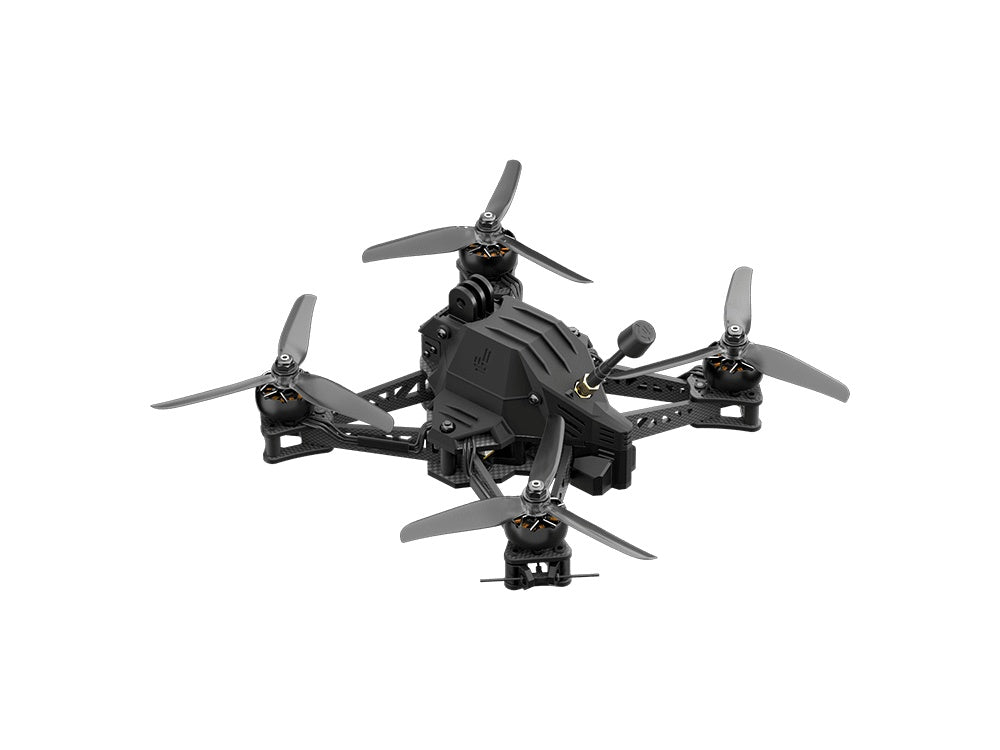

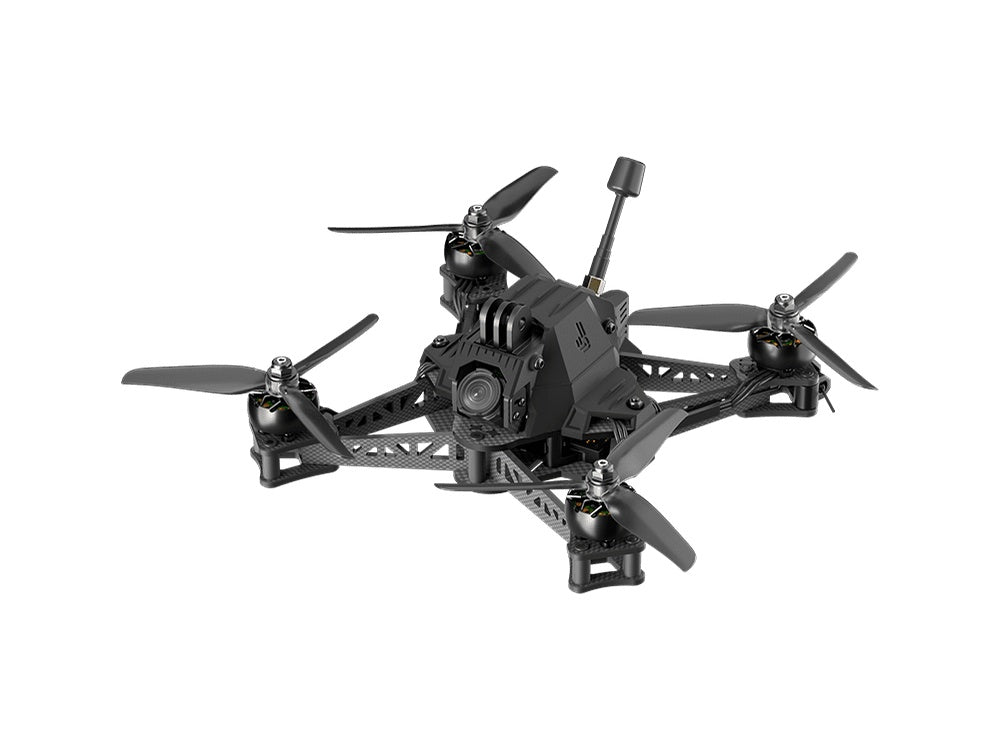

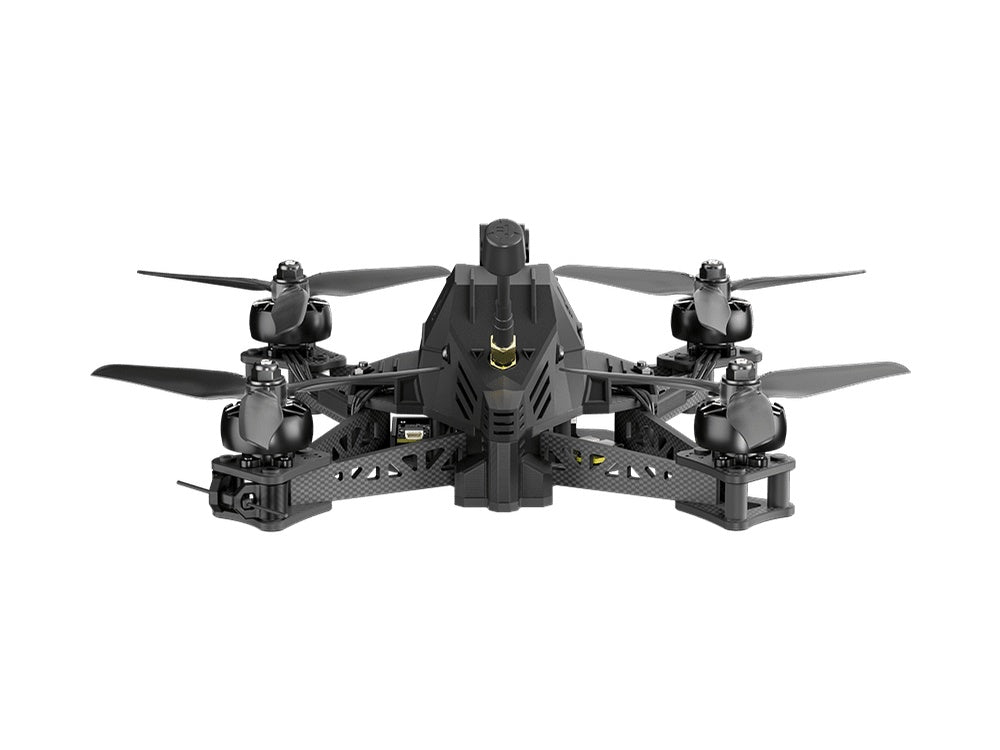

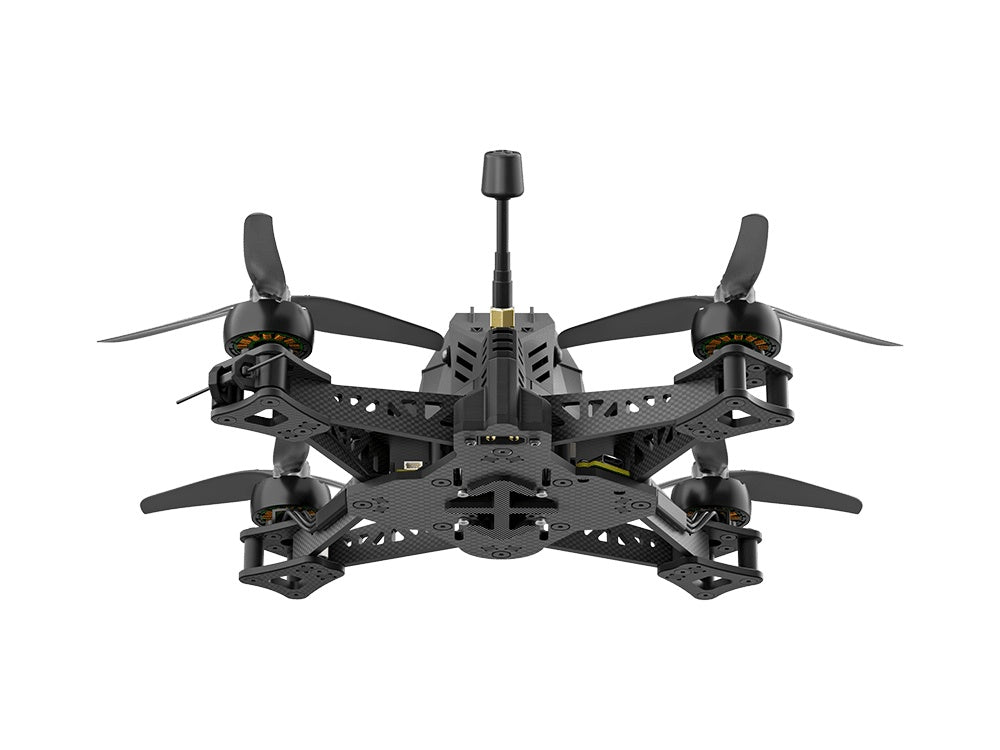

Afterburner - The Performance 5inch by 2RAW and iFlight
NOT A FREESTYLE DRONE - Afterburner is designed for professional pilots who use their FPV drones for cinematic work, this drone is not designed around being crashed into concrete and coming out fine. The drone is designed around aerodynamics and balance.
Afterburner has a 20% smaller footprint than traditional 5inch freestyle frames, this allows for easier transportation as well as increased agility and less drag - meaning better all round performance.

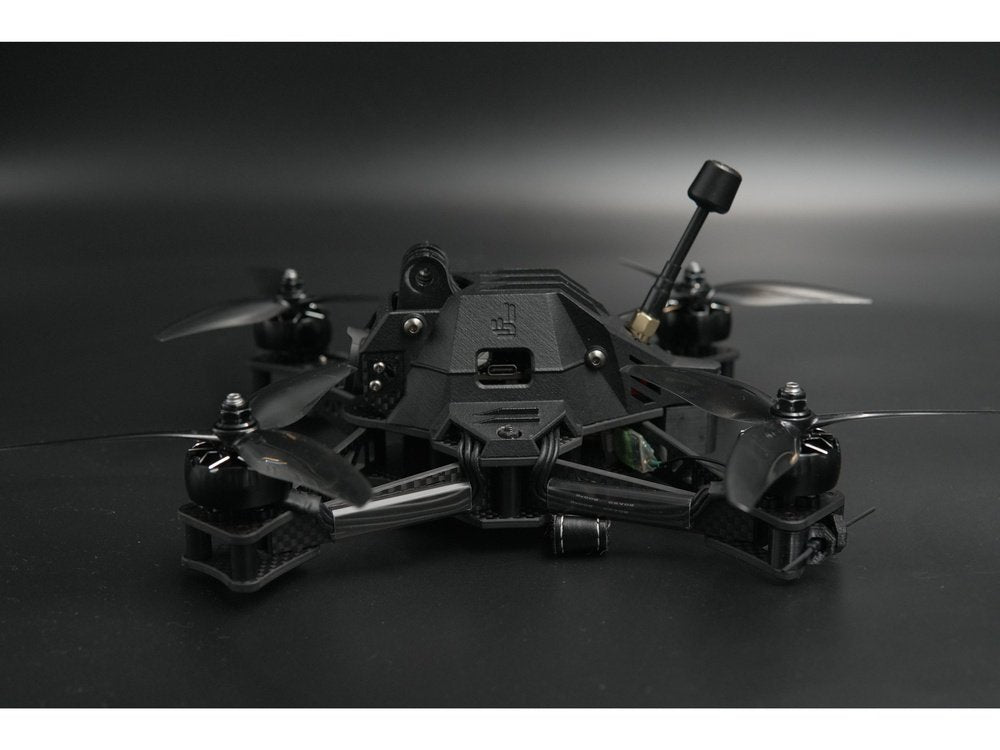

The aeroshell controls the airflow around the body and within the drone. As the speed of the drone increases the aero shell acts as an air divider, preventing air from hitting the flat top plate. The shell also helps to shield the electronics from dirt and moisture so you can have more confidence in critical situations.

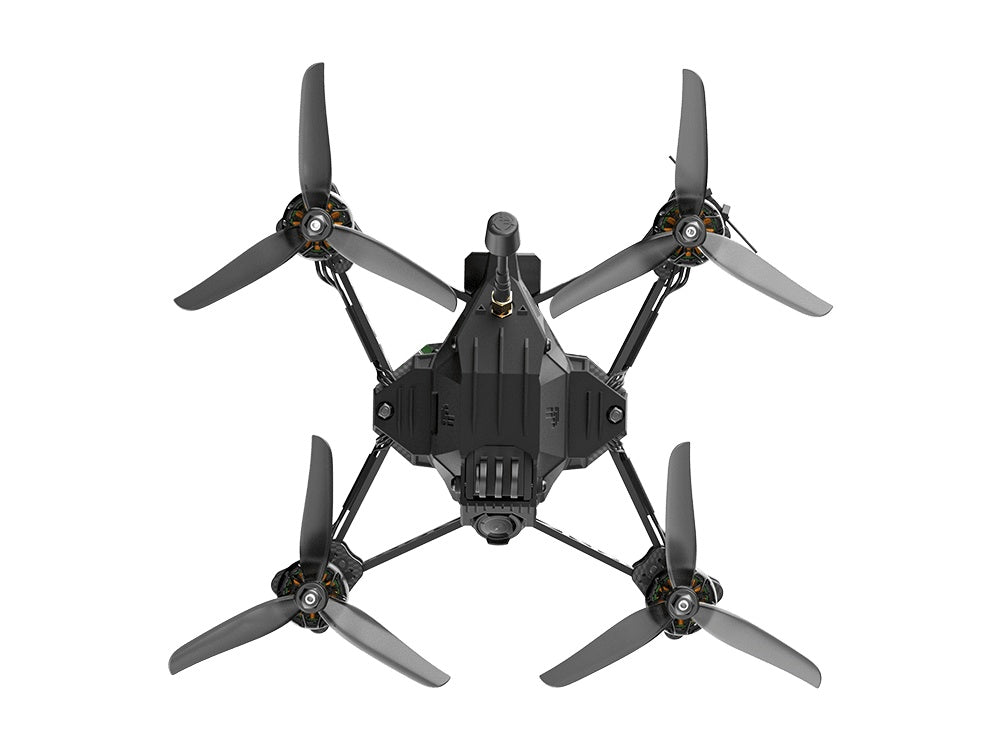

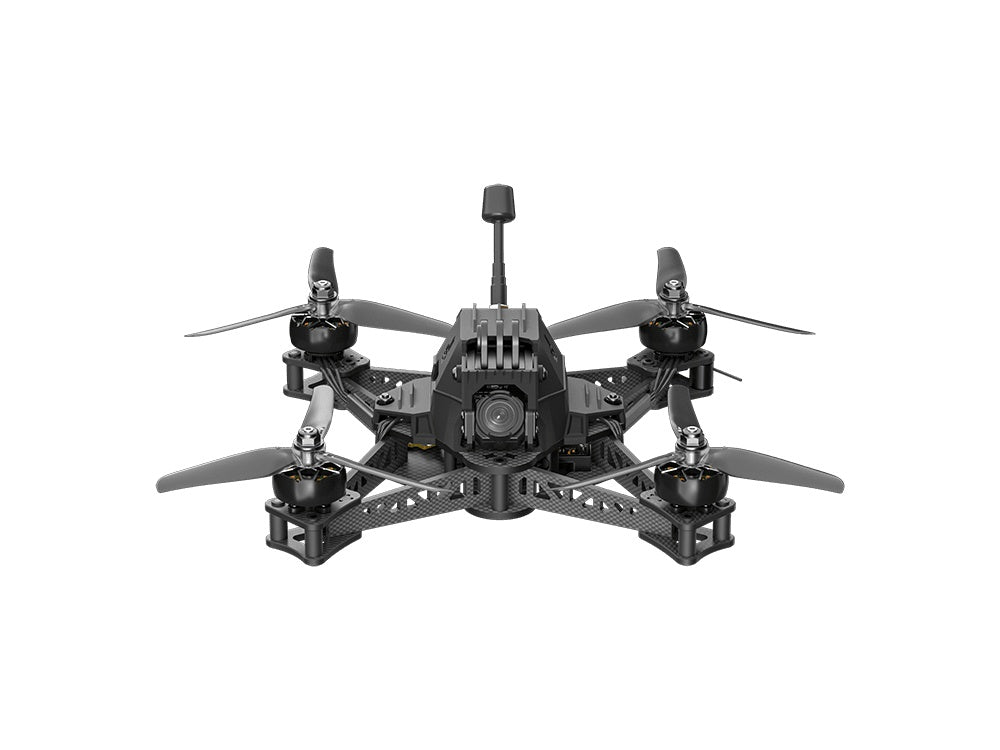

Advanced Truss Arms
The star design combined with the trusses ensures great stiffness while keeping the weight down, and perfect balance, delivering exceptional results when it comes to filming with buttery footage.

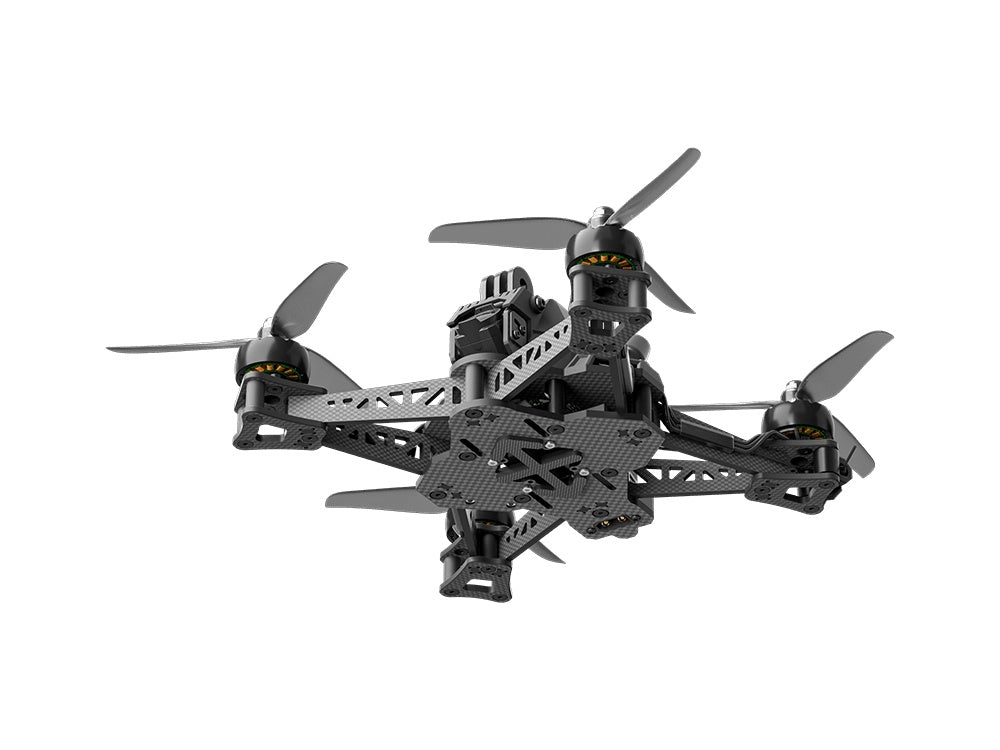

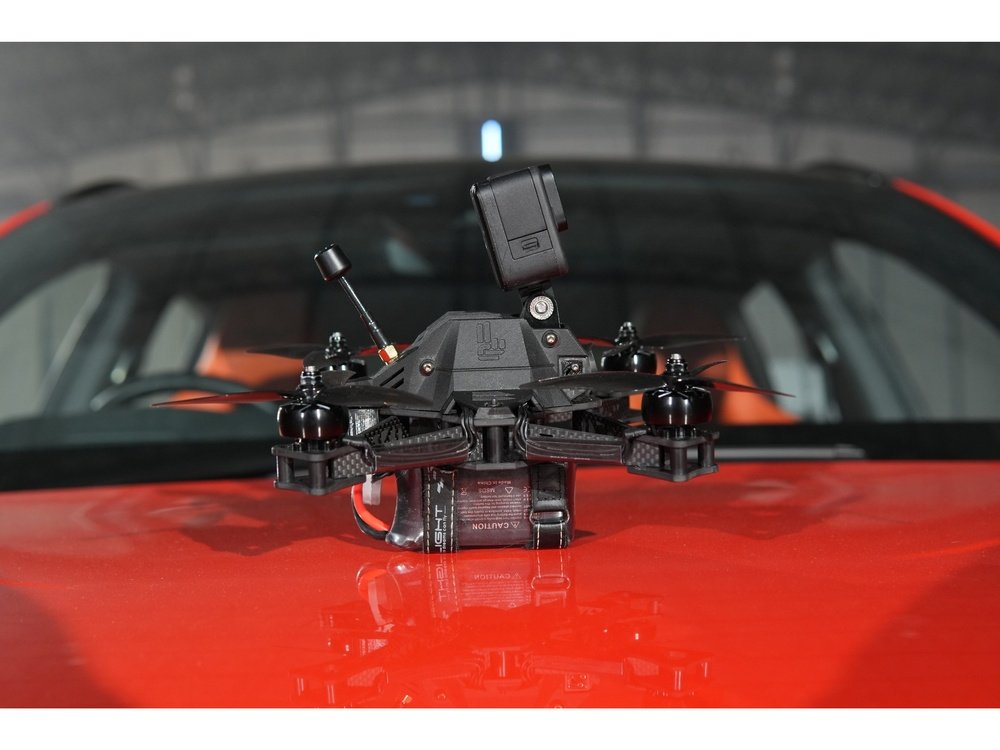

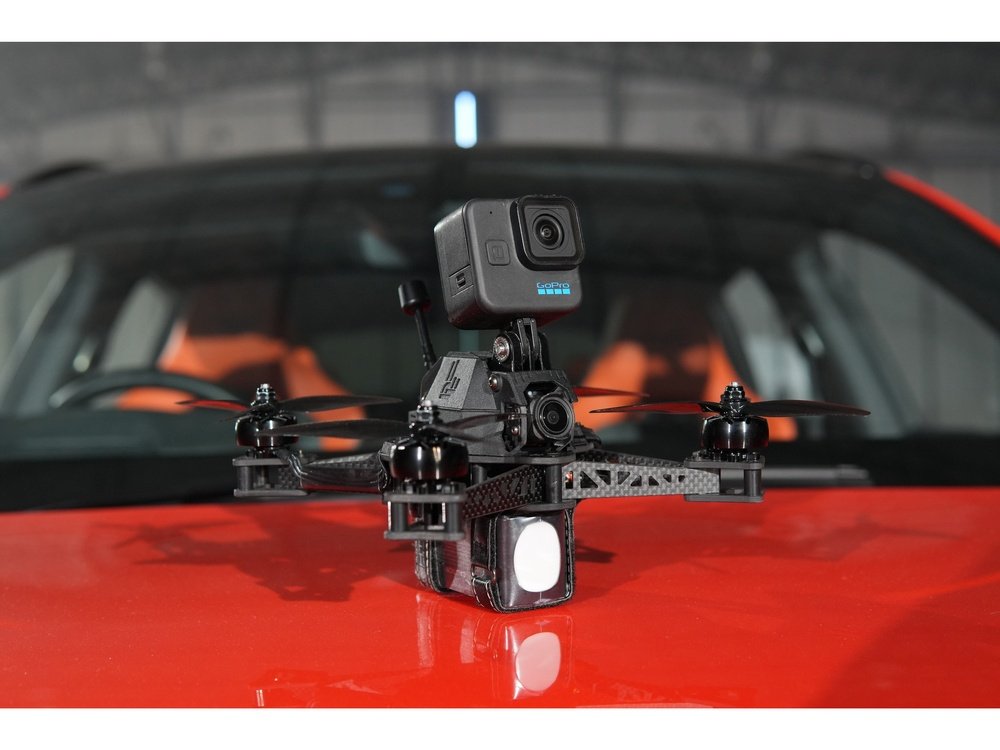

Bottom Mount Battery
Inspired from FPV racers, we took a bottom mount battery approach, this allows the battery to cause minimal drag possible and completely clears the top of the drone to allow for the Gopro mounting as well as clear line of sight for the GPS. Afterburner was built for the cinema pilot! The central battery also allows the CG to remain close to the middle of the body allowing for improved agility in the air.

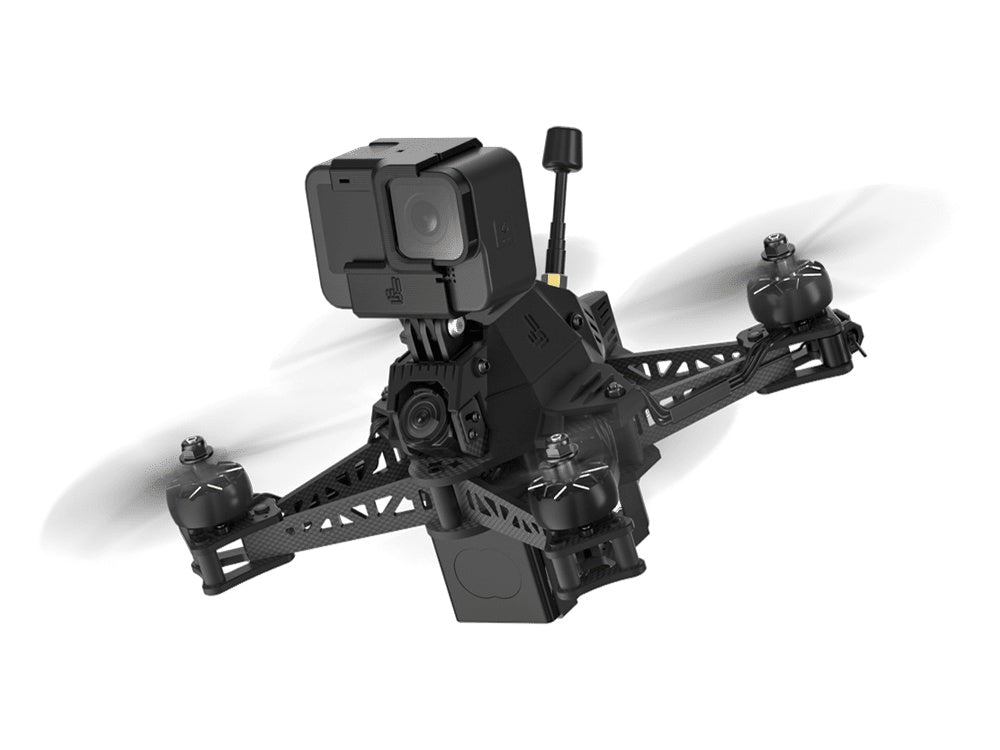

No Prop in view with Gopro
In 16:9 the GoPro has no props in the view from 5 degrees all the way to 60 degrees.
DJI O3 HD Air Unit Low-Latency Digital Transmission
Up to 10 km video transmission range, enjoy a crisp and smooth real-time view in your goggles, even in environments with interference. (Source DJI)
4K Stabilized Video with 155° Ultra-Wide Angle
Together with high-grade imaging performance, it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)
Smooth & Stable Tune
The Afterburner is designed around filming, which means our tune has to be buttery smooth. Our parts selection as well as our tune is entirely centred around an extremely smooth video performance.
Lowest Resonance - Highest Performance
Our team does a lot of experimenting with different shapes and materials. T700 Toray Twill weave Carbon Fibre means you are guaranteed to be getting the very best quality material.
- Product Name: Afterburner 5 O3 6S HD
- FC: BLITZ F7 Flight Controller
- ESC: BLITZ E55 4-IN-1 2-6S 55A ESC
- Video Transmission: DJI O3 Air Unit
- Geometry: X-Frame
- Frame: 210 mm wheelbase
- Motor: XING2 2207 1750KV motors
- Prop: GEMFAN 5.1X3.6X3 propellers
- Weight: 472±7g (Without Battery)
- Dimensions (L×W×H)：148x148x64mm
- Max Speed: 160km/h
- Maximum Takeoff Altitude: 7000 m
- Max Hover Time: Approx. 11mins with 6S Lipo 1400mAh battery W/O Load
- Operating Temperature Range: -10° to 40° C
- Antennas: Single Antennas
- GNSS: GPS+SBAS+Galileo+QZSS+Glonass
1x iFlight 2RAW Afterburner 5 O3 6S HD
1x Screw Bag
2x Battery Straps
2x Battery Pads
